Overview

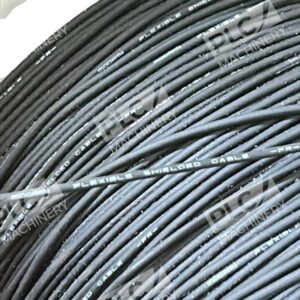

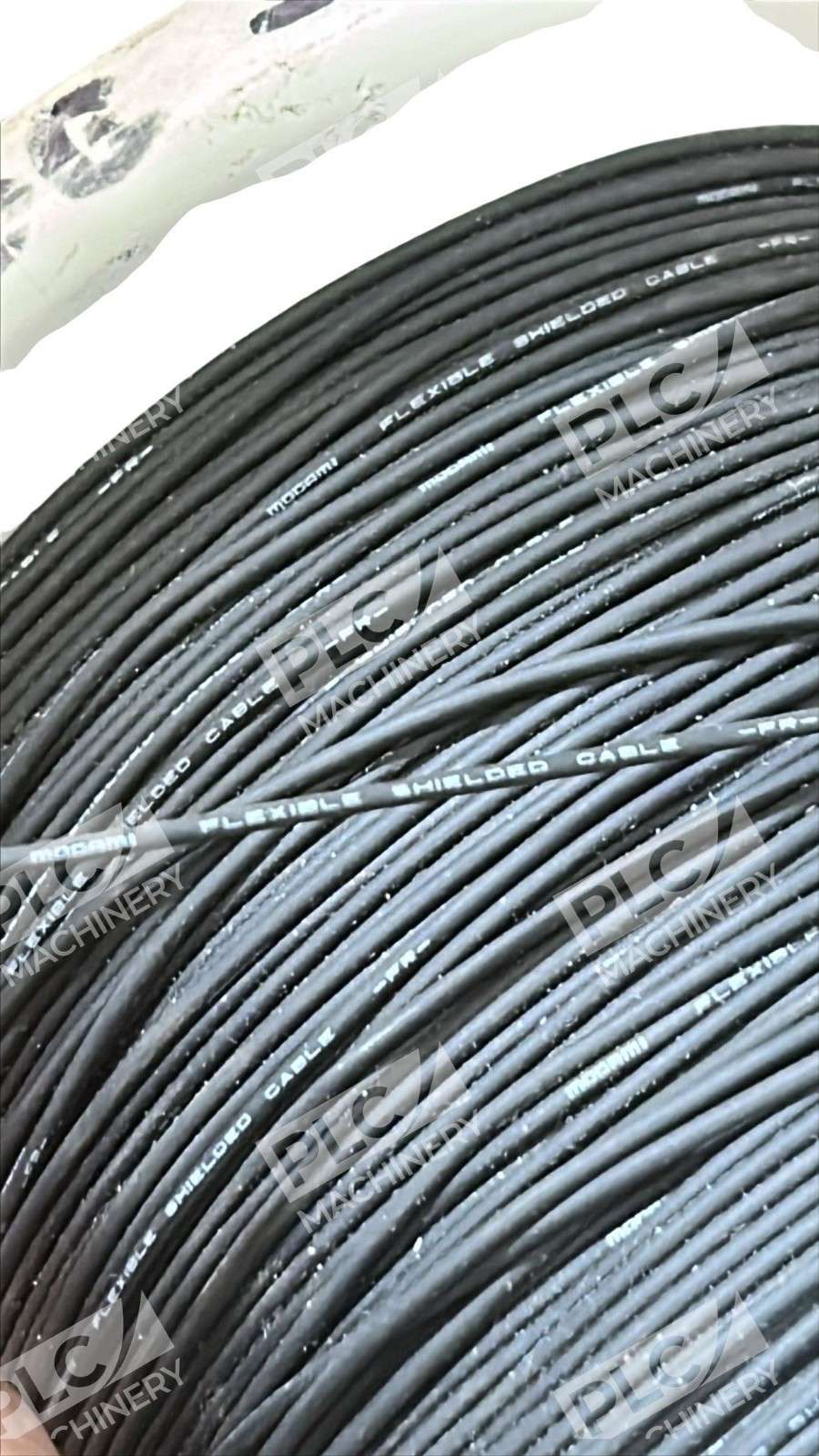

The Mogami 2943-00 is a miniature shielded cable engineered for professional audio, broadcast, and instrumentation applications. With one #28 AWG conductor and an overall diameter of just 1.5mm, this cable delivers the flexibility and signal integrity required in compact, high-performance environments. Mogami ultra flexible miniature cables are widely used in various applications where a very small diameter high quality cable is required.
Key Features
- Conductor: Single #28 AWG conductor with overall shielding
- Ultra-Flexible Design: Very soft and highly flexible with excellent shielding
- Compact Profile: 1.5mm overall diameter for tight routing and minimal footprint
- Color: Available in black only
- Low Force Performance: Minimal drag during installation and operation
Technical Specifications
- Conductor Size: 28 AWG
- Overall Diameter: 1.5 mm
- Voltage Breakdown: Must withstand at DC 250V/15 sec
- Insulation Resistance: 1000 MW x m Min at DC 250V, 20°C
- Shield Type: Overall shielded design
- Flexibility: Highly flexible, rated for dynamic applications

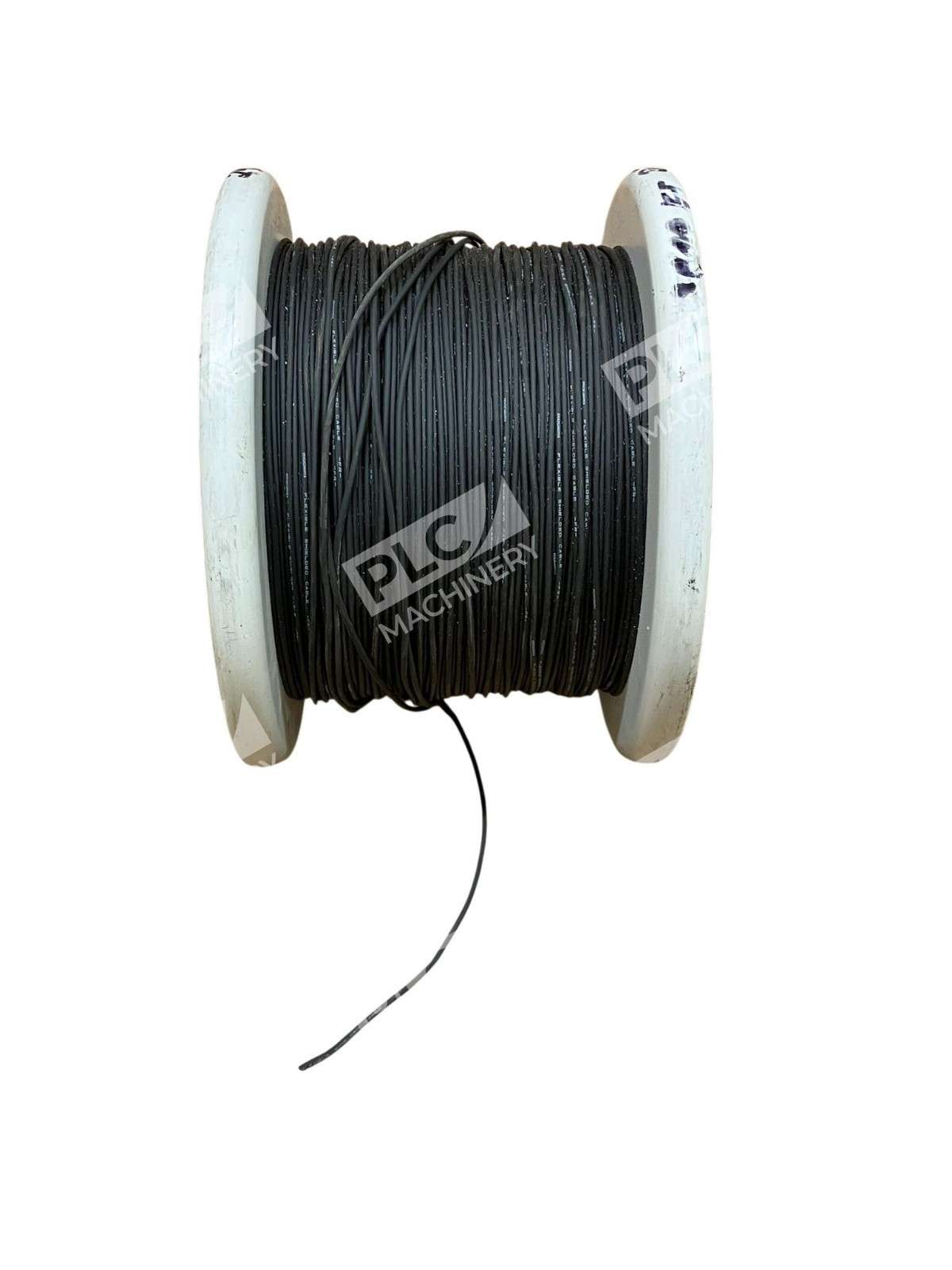

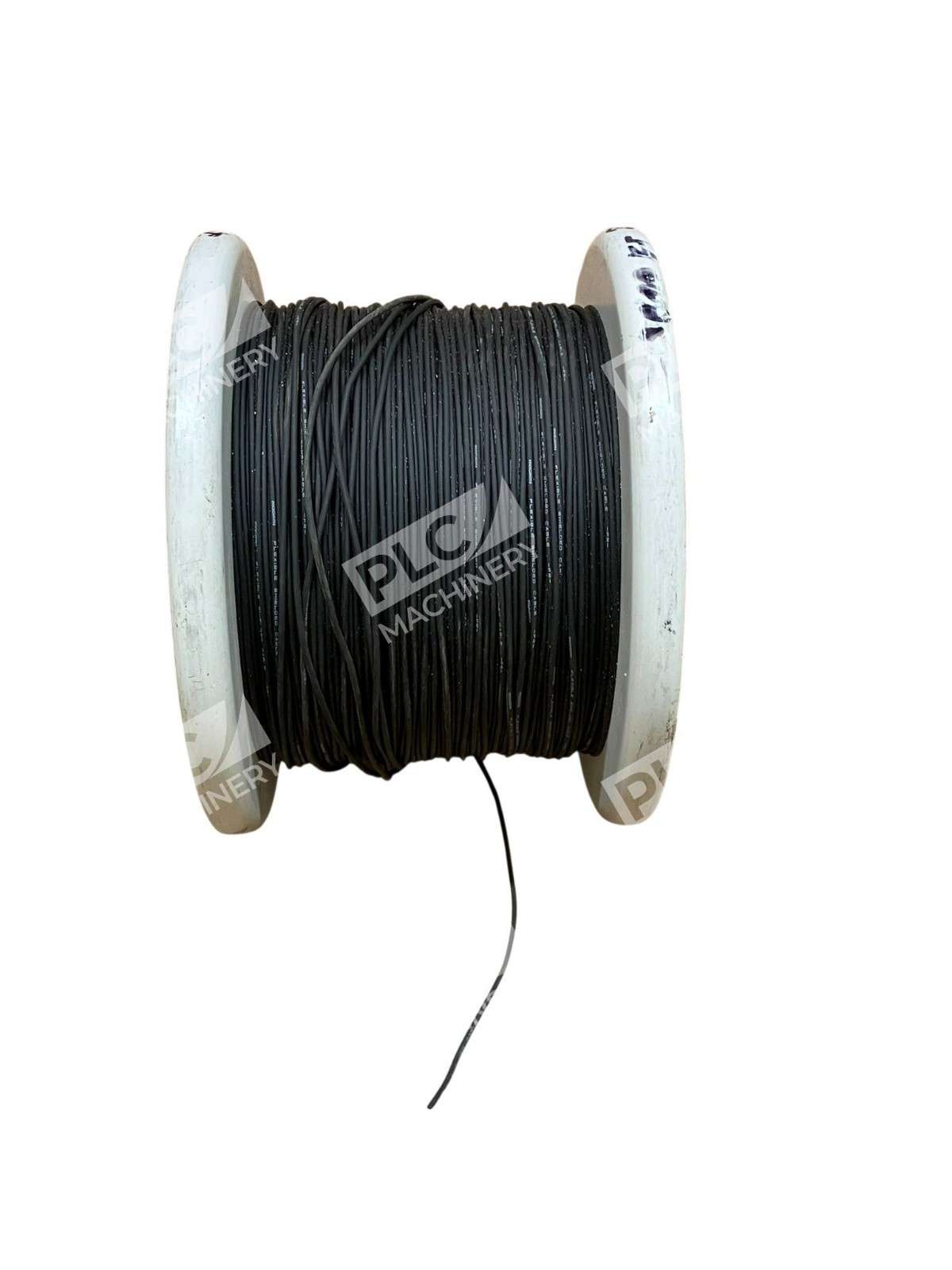

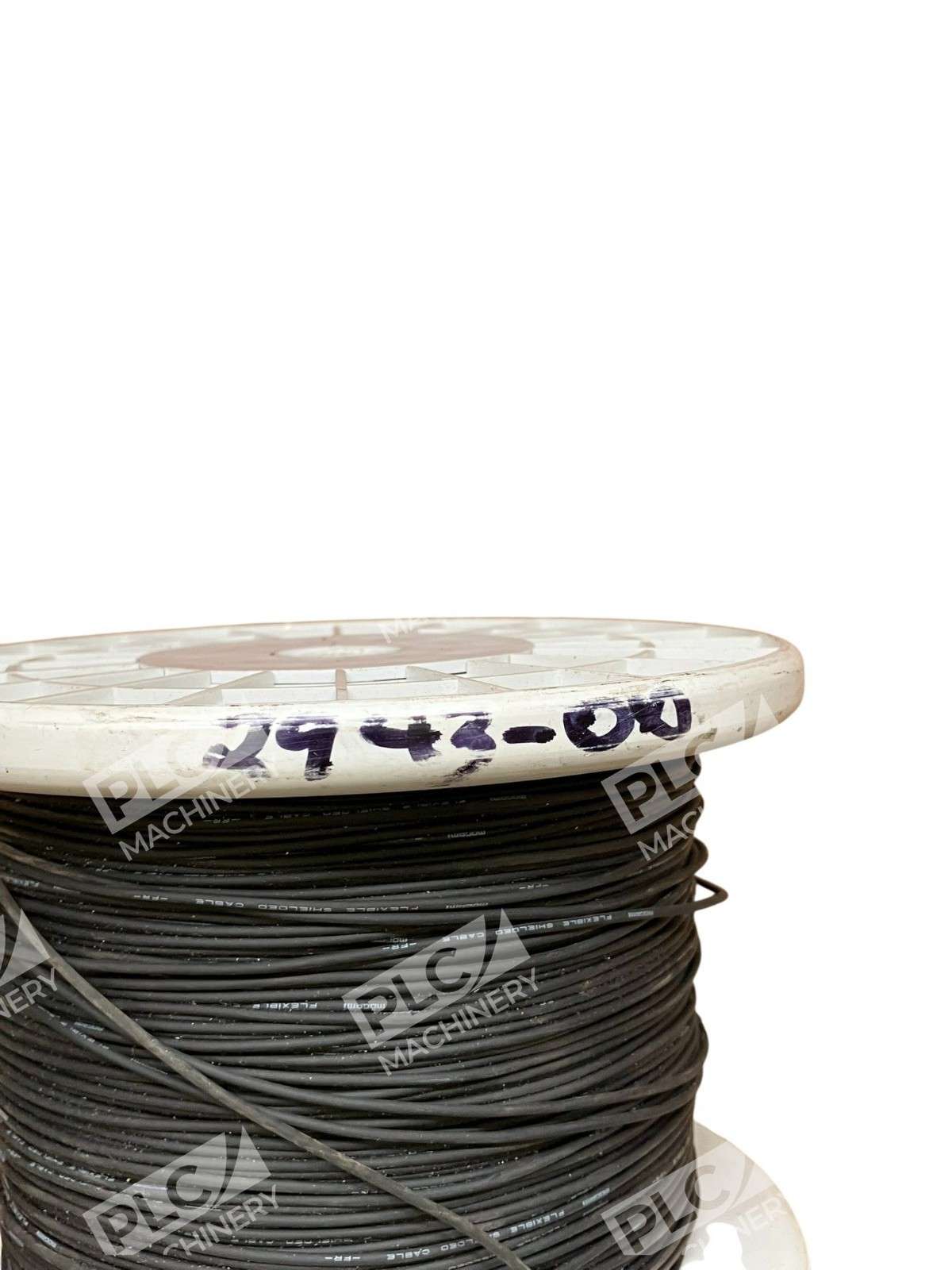

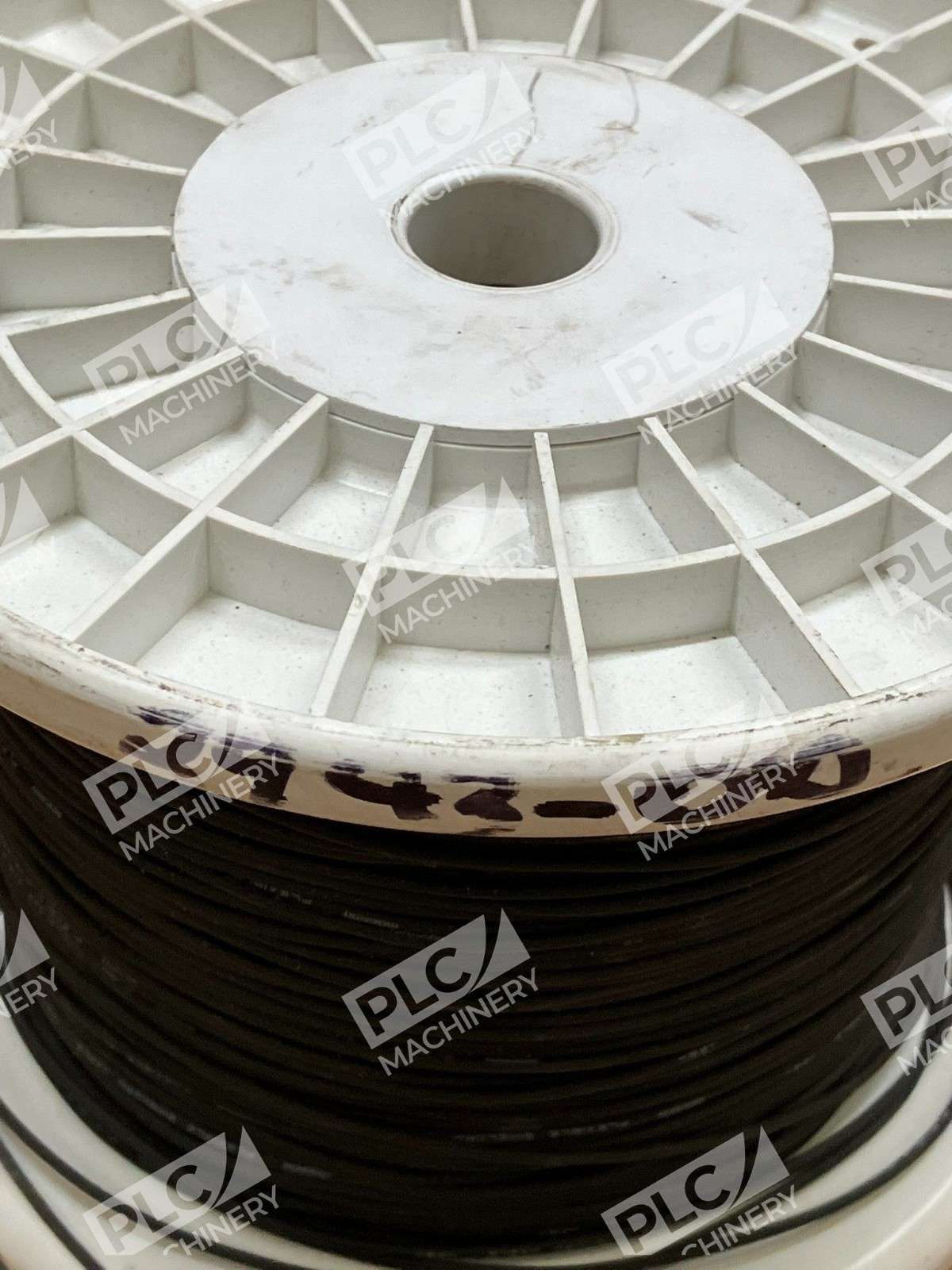

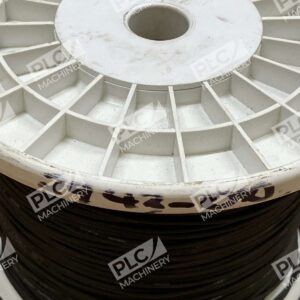

- Standard Spool Sizes: Available in 1000 ft. / 305 m rolls
Typical Applications
The Mogami 2943-00 is ideal for:
- Magnetic head leads and precision instrumentation
- Professional audio and broadcast studio interconnects
- Medical device signal routing and sensor leads
- Low-level signal transmission requiring excellent shielding
- Space-constrained applications requiring compact cable geometry
- Computer and data acquisition interfaces
Compatibility & Replacements
Compatible With
- Professional audio equipment and studio consoles
- Broadcast and communications systems
- Instrumentation and data acquisition hardware
- Medical devices and monitoring equipment
- Computer peripheral connections
Replaces / Drop-In Replacement For
- Similar Mogami miniature cable configurations
- Generic 28 AWG shielded miniature cables
- OEM cable harnesses in audio and instrumentation devices
Works With
- Standard connectors (soldered or crimped terminals)
- Professional XLR, RCA, and mini audio connectors
- Custom connector assemblies and harnesses
- Breadboards and test bench setups
