Overview

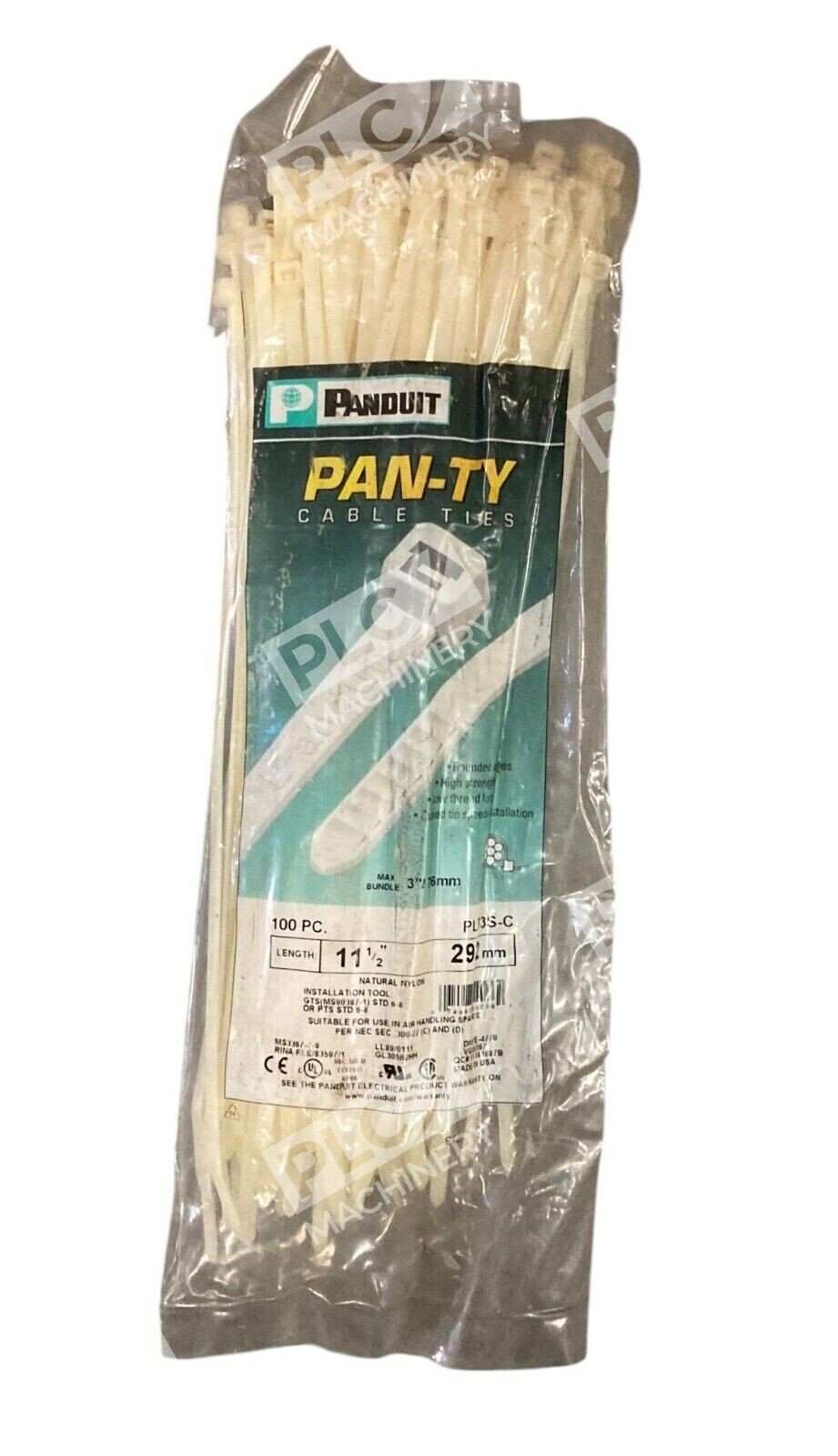

The Panduit PLT3S-C Pan-Ty cable ties deliver reliable cable management for general-purpose applications. These locking cable ties feature a curved tip for easier pick-up, standard 11.5″ (292mm) length, and are made of Nylon 6.6 in natural color, packaged 100 per bundle. Plenum-rated for air-circulating environments, UL Listed and CSA certified, making them suitable for commercial, industrial, and data center installations.
Key Features
- Curved tip allows for easy pick-up from flat surfaces and faster initial threading
- Nylon 6.6 construction rated for indoor use
- Plastic locking pawl closure mechanism
- Plenum-rated for UL and CSA compliance in air-handling plenum spaces
- Pack of 100 ties per package for cost-effective bulk bundling
- Natural finish compatible with most cable management systems
Technical Specifications
- Material: Nylon 6.6
- Length: 11.5″ (292mm)
- Minimum Tensile Strength: 50 lb
- Maximum Bundle Diameter: 3.0″
- Width: 0.190″
- Thickness: 0.052″
- Color: Natural
- Quantity per Package: 100
- Locking Style: Standard ratchet mechanism
- Temperature Range: -76°F (-60°C) to 185°F (85°C)
- Certifications: UL Listed and CSA certified
Typical Applications
The PLT3S-C ties are suited for:
- Data center cable organization and plenum-space bundling
- Industrial control panel wiring
- Commercial building automation systems
- Telecom and network infrastructure
- General-purpose cable bundling where 3″ maximum diameter bundles are sufficient
Compatibility & Replacements
Compatible With
- Standard hand installation tools (no tool required)
- Pneumatic tensioning tools (PTS, PPTS, PTH)
- Hand-operated tool-controlled systems (GTS-E, GTH-E, GS2B-E, GS4H-E)
- All standard cable management systems accepting 11.5″ ties
- Indoor and plenum-rated cable routing applications per UL 62275 Type 2S/21S
Replaces / Drop-In Replacement For
The PLT3S-C is the natural (non-weather-resistant) variant. Direct replacement options:
- PLT3S-C0 — Weather-resistant black variant for outdoor/HVAC use
- PLT3S-C86 — Metal-detectable variant for food/pharmaceutical processing
All three share identical length (11.5″), tensile rating (50 lb), and compatibility with installation tools.
Works With
- Panduit hand tools: GTS-E, GTH-E, GS2B-E, GS4H-E, GS4EH-E
- Pneumatic tool systems: PTS, PPTS, PTH
- Operator-controlled tools: STS2, STH2, ST3EH
- All standard cable management and wire routing infrastructure
