Overview

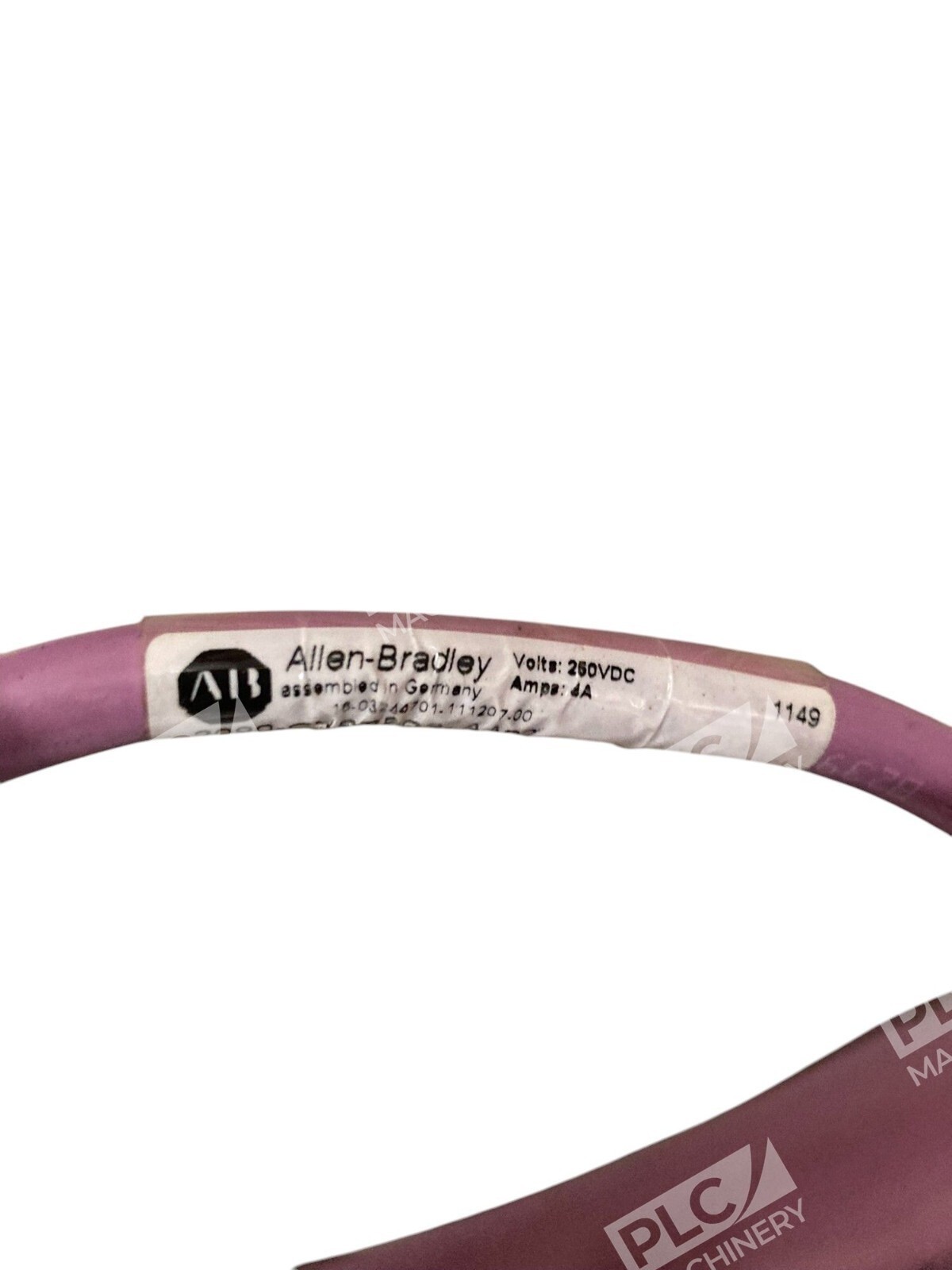

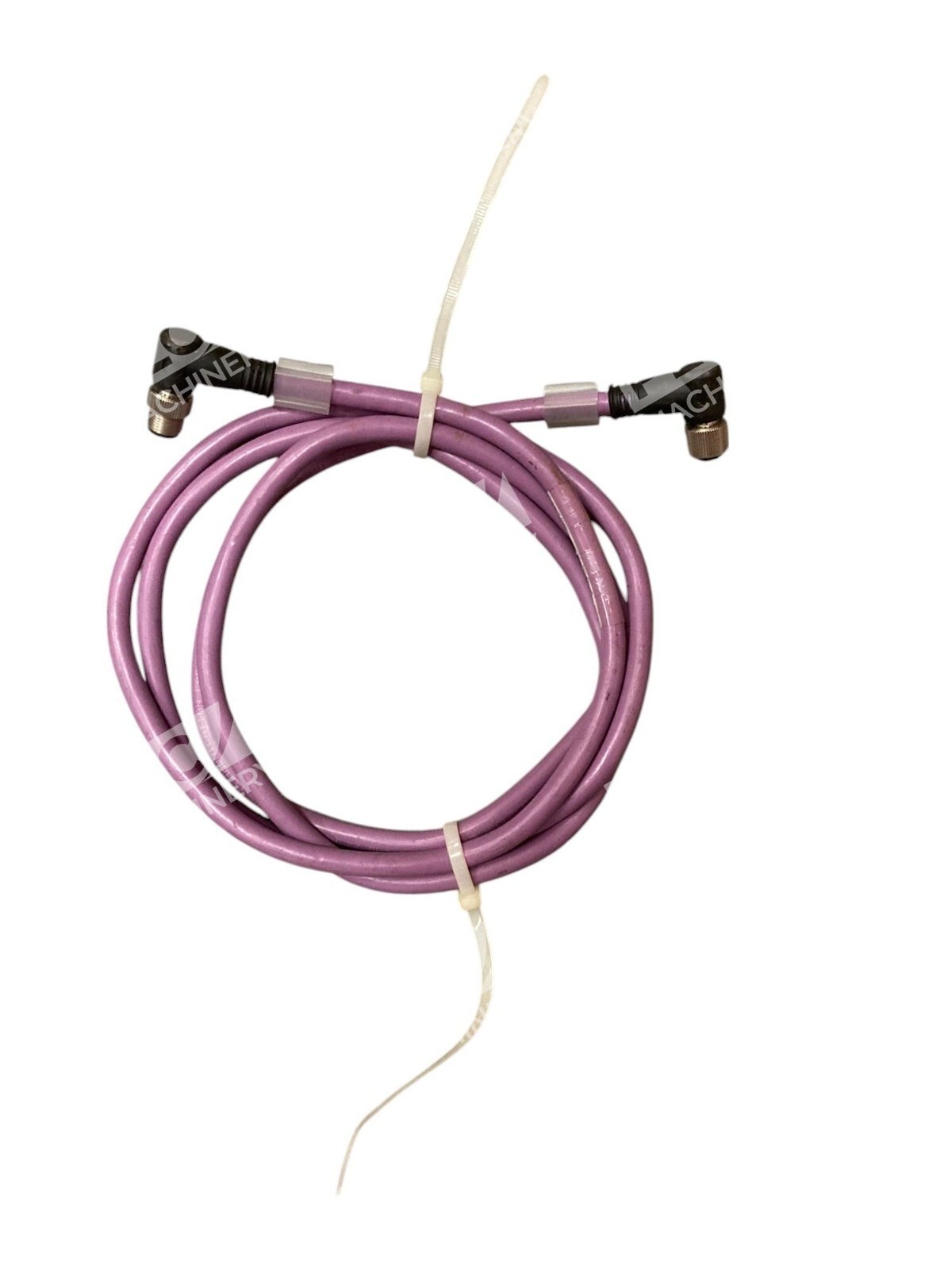

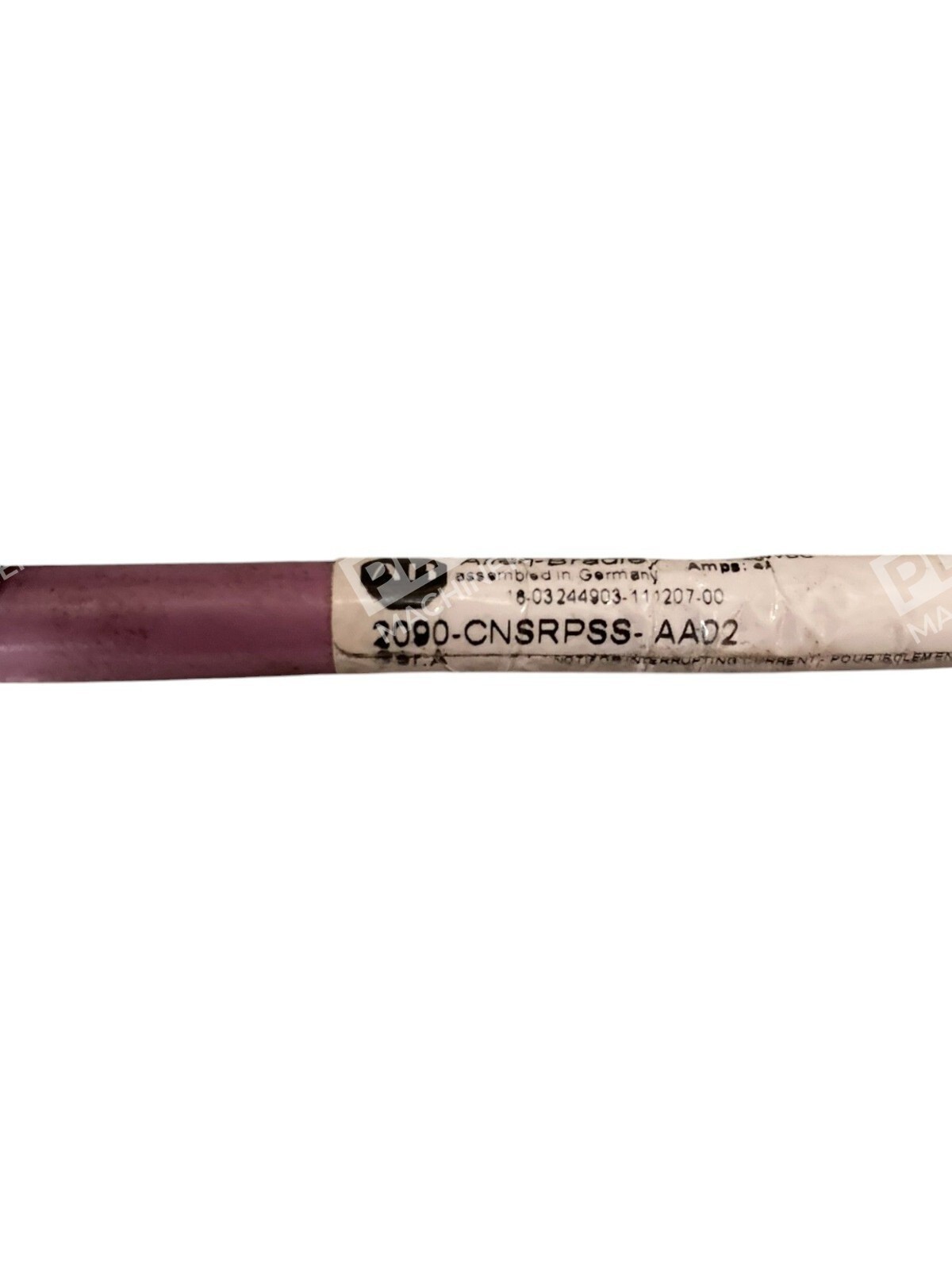

The Allen-Bradley 2090-CNSRPSS-AA02 is a servo feedback and power cable engineered for Kinetix motion control platforms. Manufactured by Rockwell Automation, this 2-meter cable assembly provides 250VDC 4A rated performance with precision connectors optimized for servo drive-to-motor and drive-to-feedback-device installations. The cable construction meets industrial standards for EMI immunity, mechanical durability, and long-term reliability in manufacturing and automation environments.
Key Features
- 250VDC, 4A continuous current rating suitable for Kinetix servo drive systems
- 2-meter length convenient for mid-range motor spacing without extension cables
- Precision molded connectors ensure repeatable mating and minimize connection loss
- Shielded construction reduces electrical noise and EMI interference in control cabinets
- UL-listed and designed to Allen-Bradley 2090 series standards
Technical Specifications
| Cable Length | 2 meters (6.6 feet) |
| Voltage Rating | 250 VDC |
| Current Rating | 4 Amperes (continuous) |
| Series | 2090 (Kinetix Servo Cable) |
| Connector Type | Rockwell Automation Kinetix Micro-connector |
| Construction | Shielded twisted pair with PVC jacket |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Certifications | UL Listed, Rockwell Automation Compliant |
| Country of Origin | United States |
Typical Applications
This cable is commonly deployed in:
- Kinetix 5700 and 5500 servo drive-to-motor connections
- Manufacturing machinery requiring multi-axis motion control
- Automotive and aerospace production systems
- Packaging equipment with synchronized servo positioning
- Factory automation with high-reliability uptime requirements
Compatibility & Replacements
The 2090-CNSRPSS-AA02 is compatible with Kinetix servo drives including the 5700, 5500, 5300, and 5100 series when used with corresponding motor connectors. This part integrates seamlessly into Allen-Bradley motion control systems. For alternative cable lengths or connector configurations, consult Rockwell Automation’s 2090 series cable catalog or contact an authorized distributor. Always verify connector compatibility with your specific motor and drive configuration before installation.
