Overview

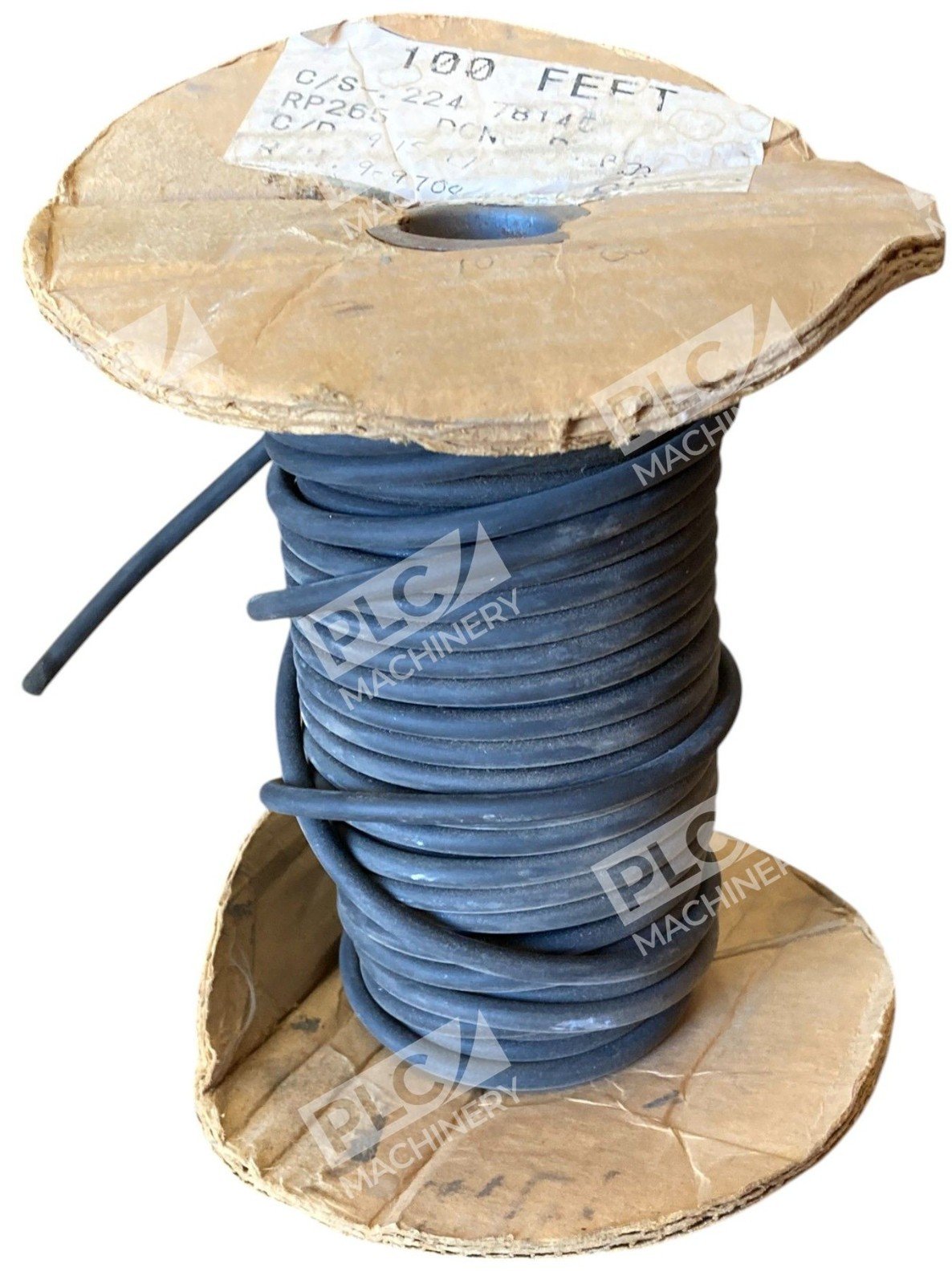

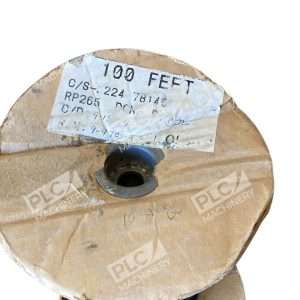

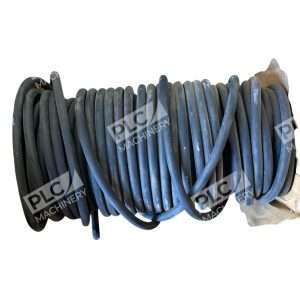

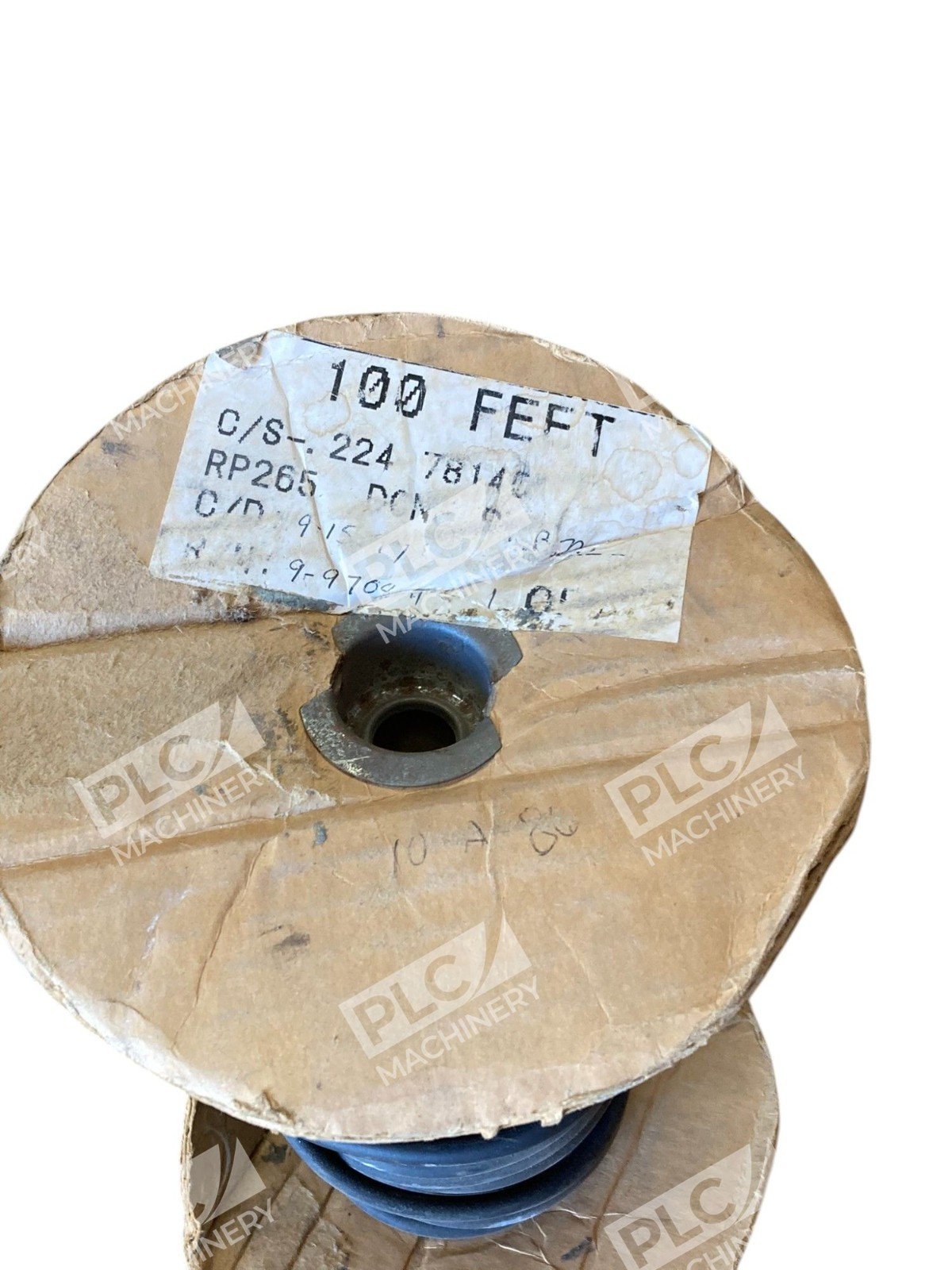

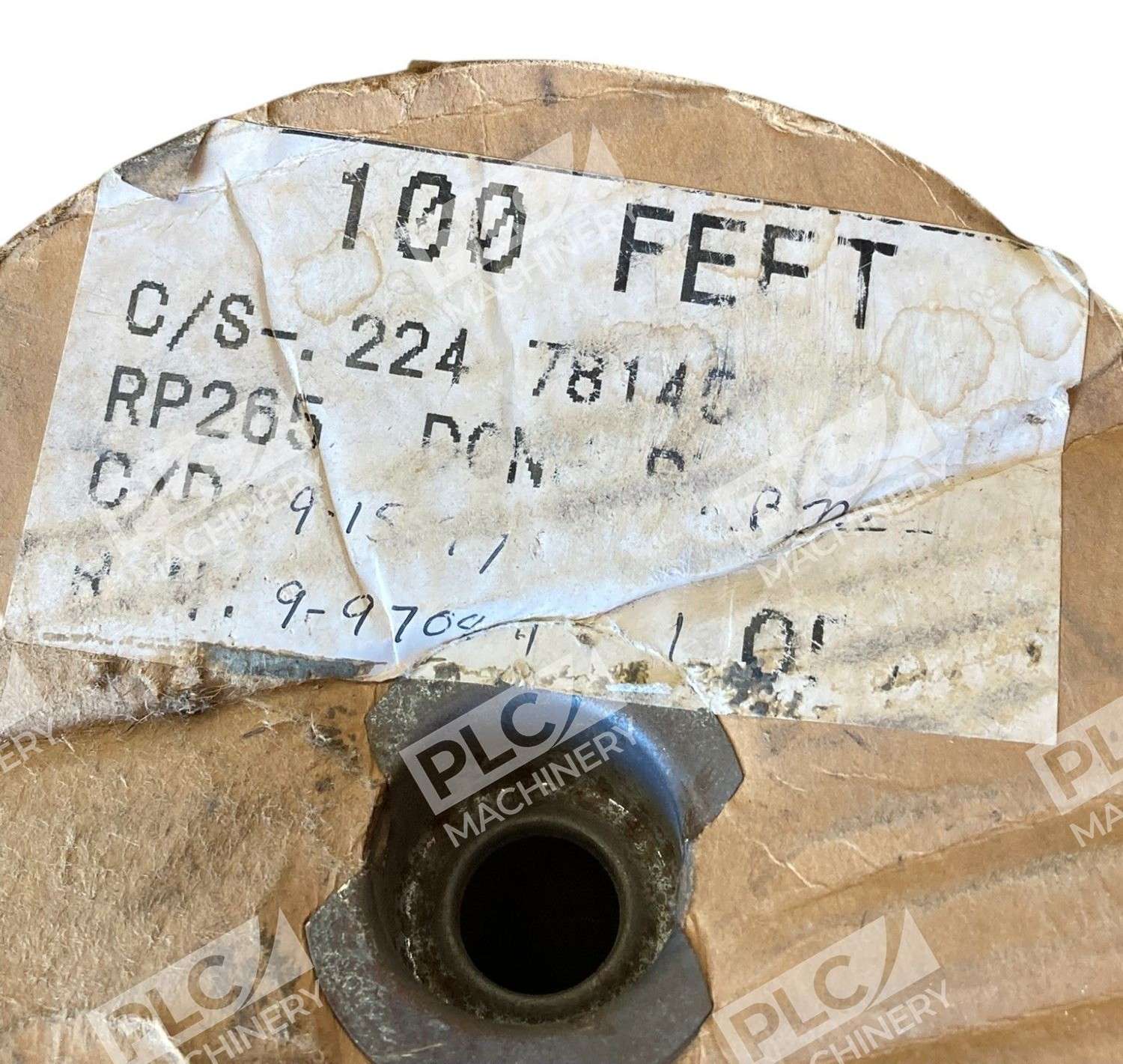

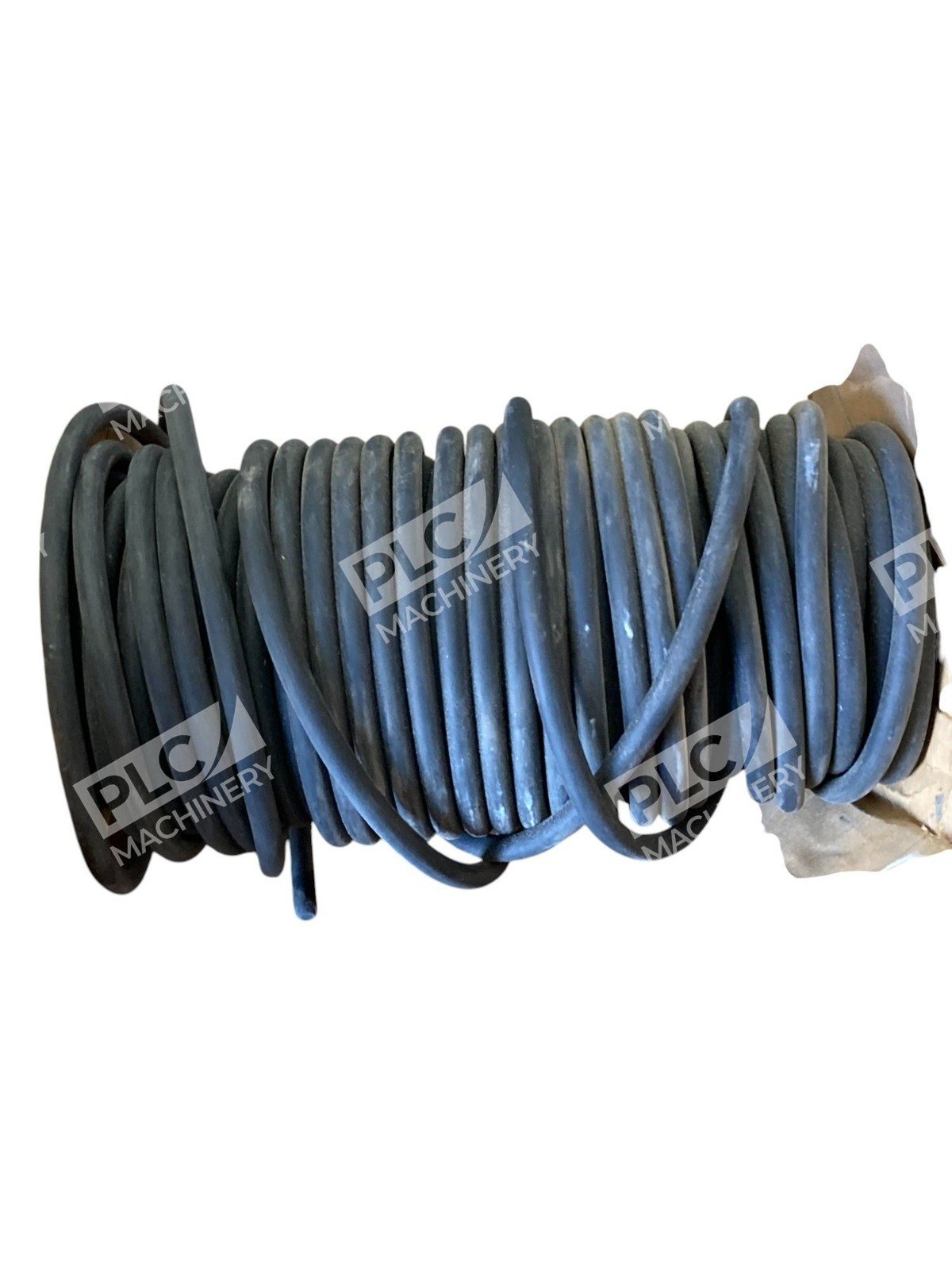

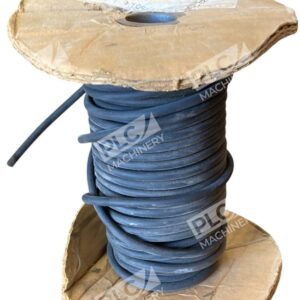

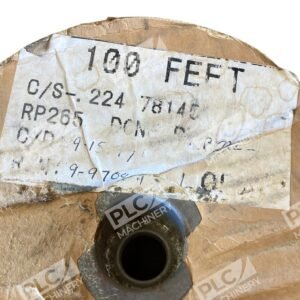

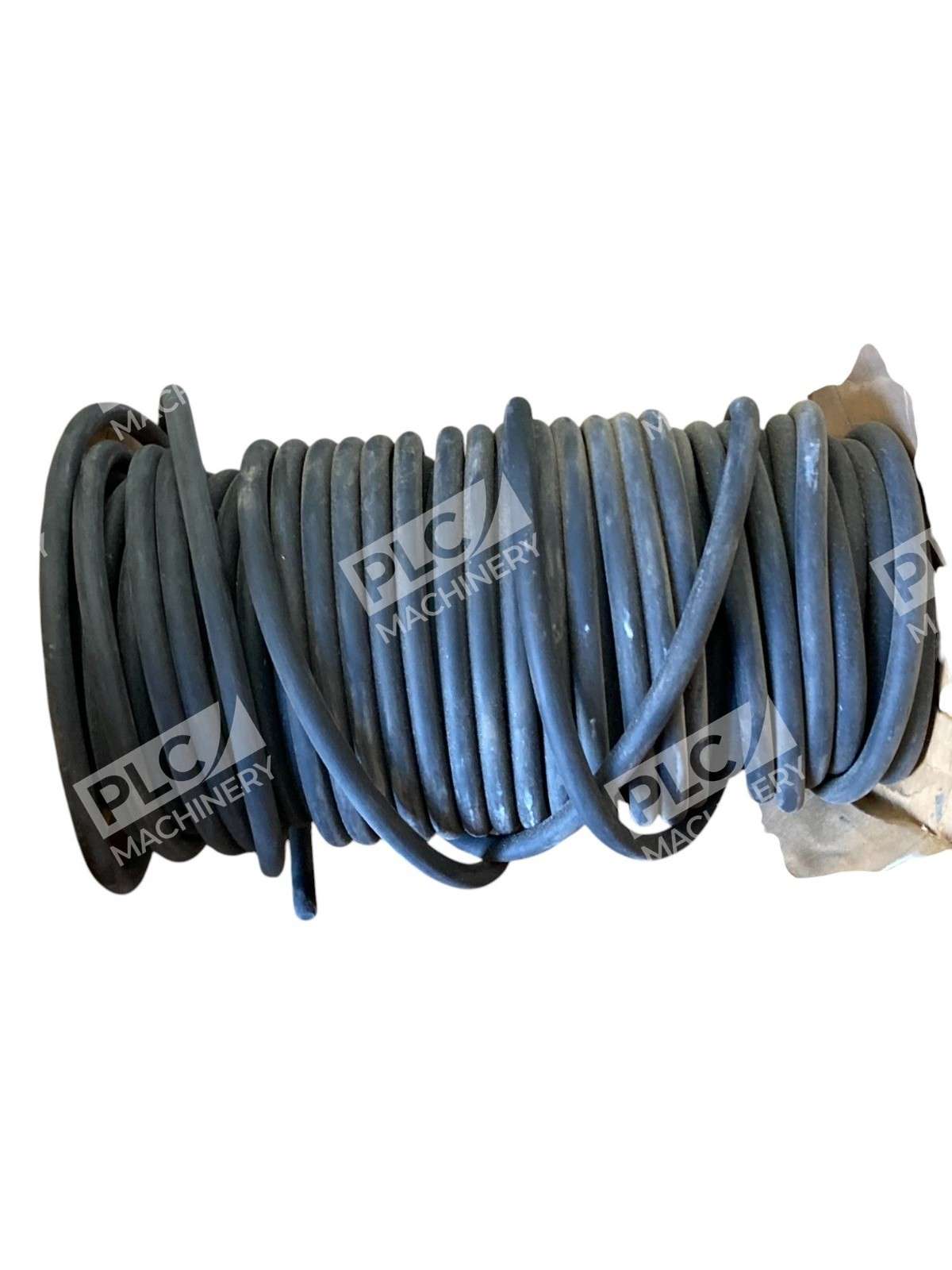

The Alpha Wire 78140 EcoCable Mini is a foil-shielded, 10-conductor multiconductor cable designed for industrial control, machinery, and automation wiring applications. This 100 ft length cable combines reliable signal transmission with environmental compliance, making it suitable for control cabinets, sensor interfaces, and general industrial wiring where EMI rejection and halogen-free construction are required.
Key Features
- 10-Conductor Configuration — Provides flexible signal routing for multiple control circuits in a single cable run
- Foil Shield — Reduces electromagnetic interference (EMI) for reliable signal integrity in industrial environments
- Halogen-Free Design — Meets RoHS and environmental compliance standards; lower outgassing in enclosed spaces
- MPPE Insulation — Enhanced temperature and abrasion resistance for reliable field performance
- UL/CSA Certified — Approved to UL AWM 21460, UL VW-1, and CSA I A/B FT1 standards for industrial machinery applications
- 300V Rating — Suitable for standard industrial control voltages
Technical Specifications
- Conductor Count: 10
- Wire Gauge: 22 AWG
- Nominal Diameter: 0.222 inches (5.64 mm)
- Voltage Rating: 300V
- Insulation Material: MPPE (Modified Polypropylene)
- Shield Type: Foil shield

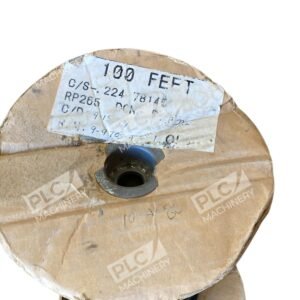

- Cable Length: 100 feet (30.5 meters)
- Certifications: UL AWM 21460, UL VW-1, CSA I A/B FT1, ISO 10993-5
- Color: Slate
- Country of Origin: United States
Typical Applications
- Industrial machinery and equipment control wiring
- PLC and control system interconnection
- Sensor and transducer signal transmission
- NFPA 79 electrical machinery installations
- Control cabinet and junction box wiring
- General automation and factory automation systems
Compatibility & Replacements
Compatible With
- Industrial control systems and PLCs
- Machinery equipped with terminal blocks and crimp connectors
- Standard DIN rail and panel-mount terminal blocks
- All systems requiring 22 AWG multiconductor shielded cable
Replaces / Drop-In Replacement For
The Alpha Wire 78140 can replace any general-purpose 10-conductor 22 AWG shielded industrial cable. Verify specific connector and termination compatibility with your system integrator before ordering.
Works With
- Standard industrial terminal blocks (Phoenix Contact, Weidmüller, etc.)
- Crimp connectors (DT series, molex micro-fit, etc.)
- All standard automation machinery and control panels
- NFPA 79 compliant industrial electrical installations
