Overview

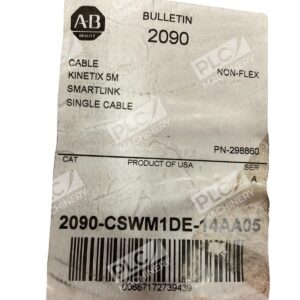

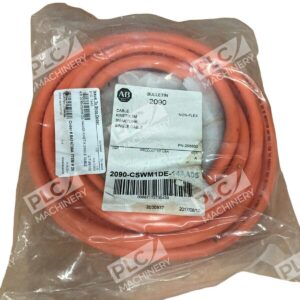

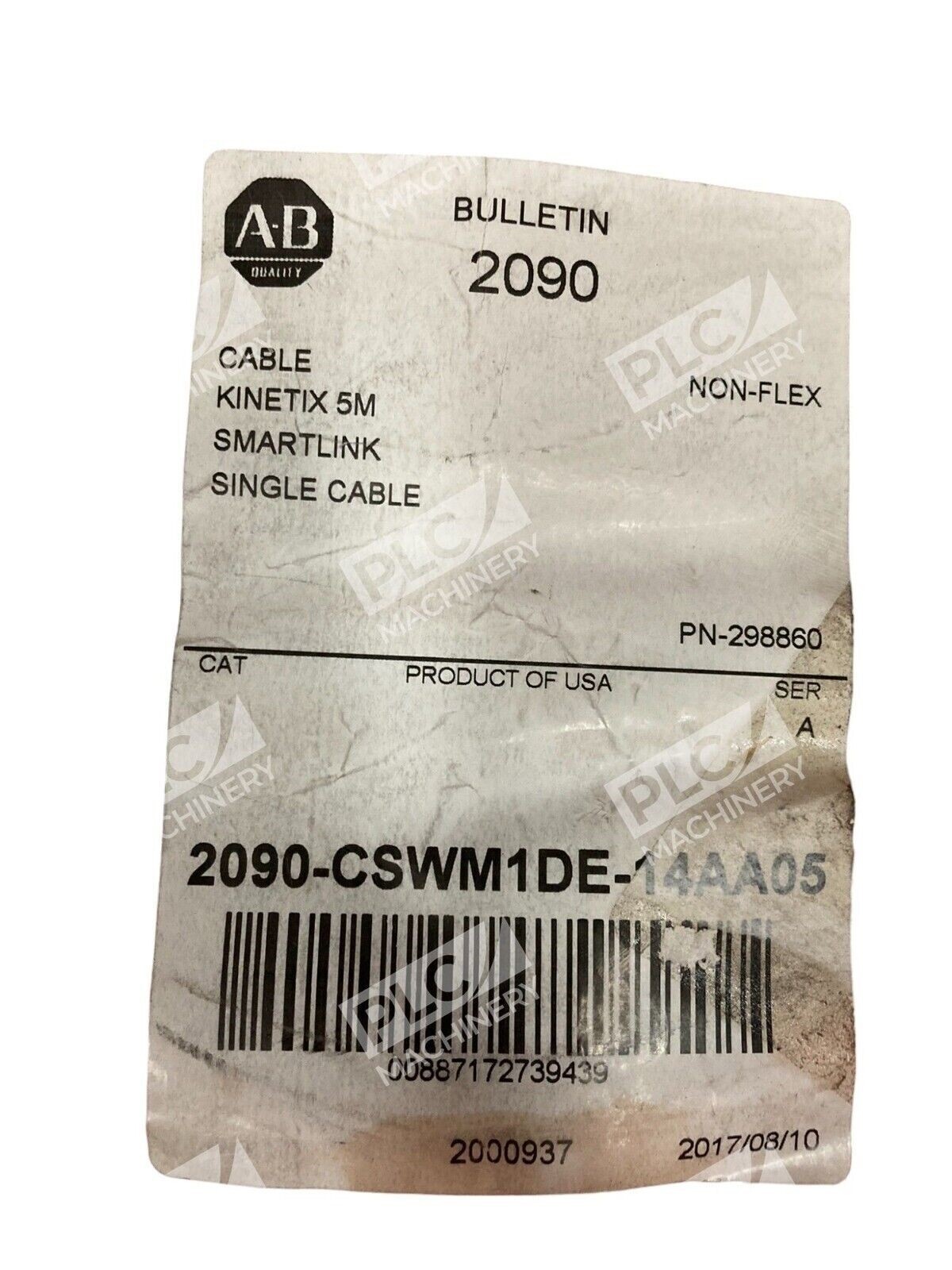

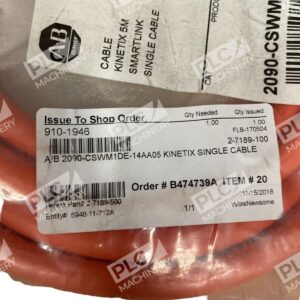

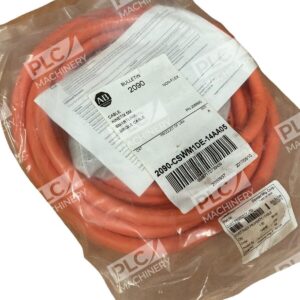

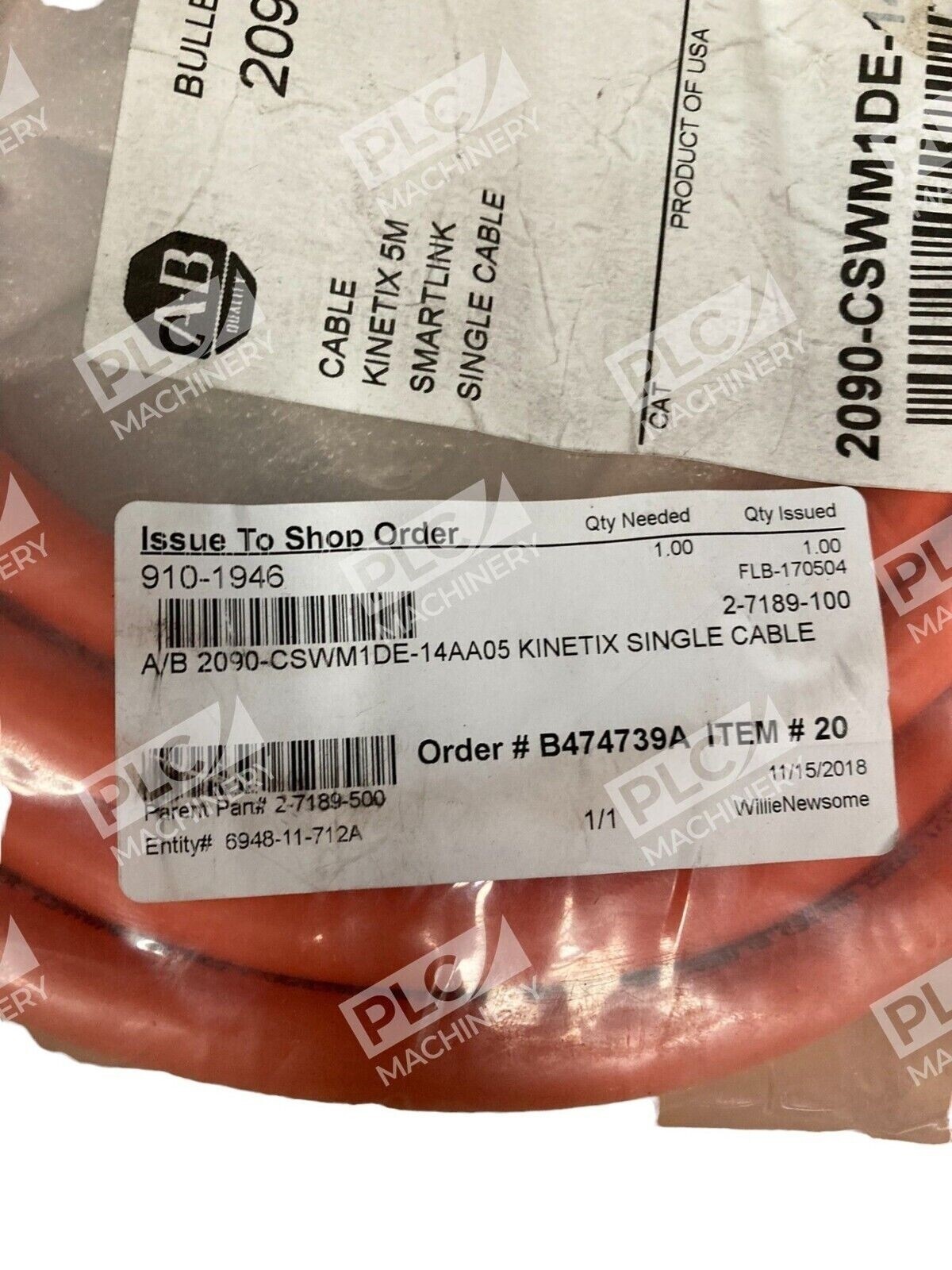

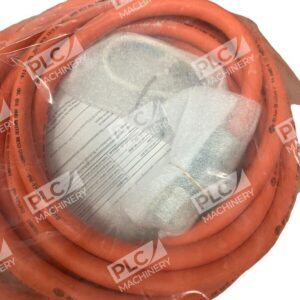

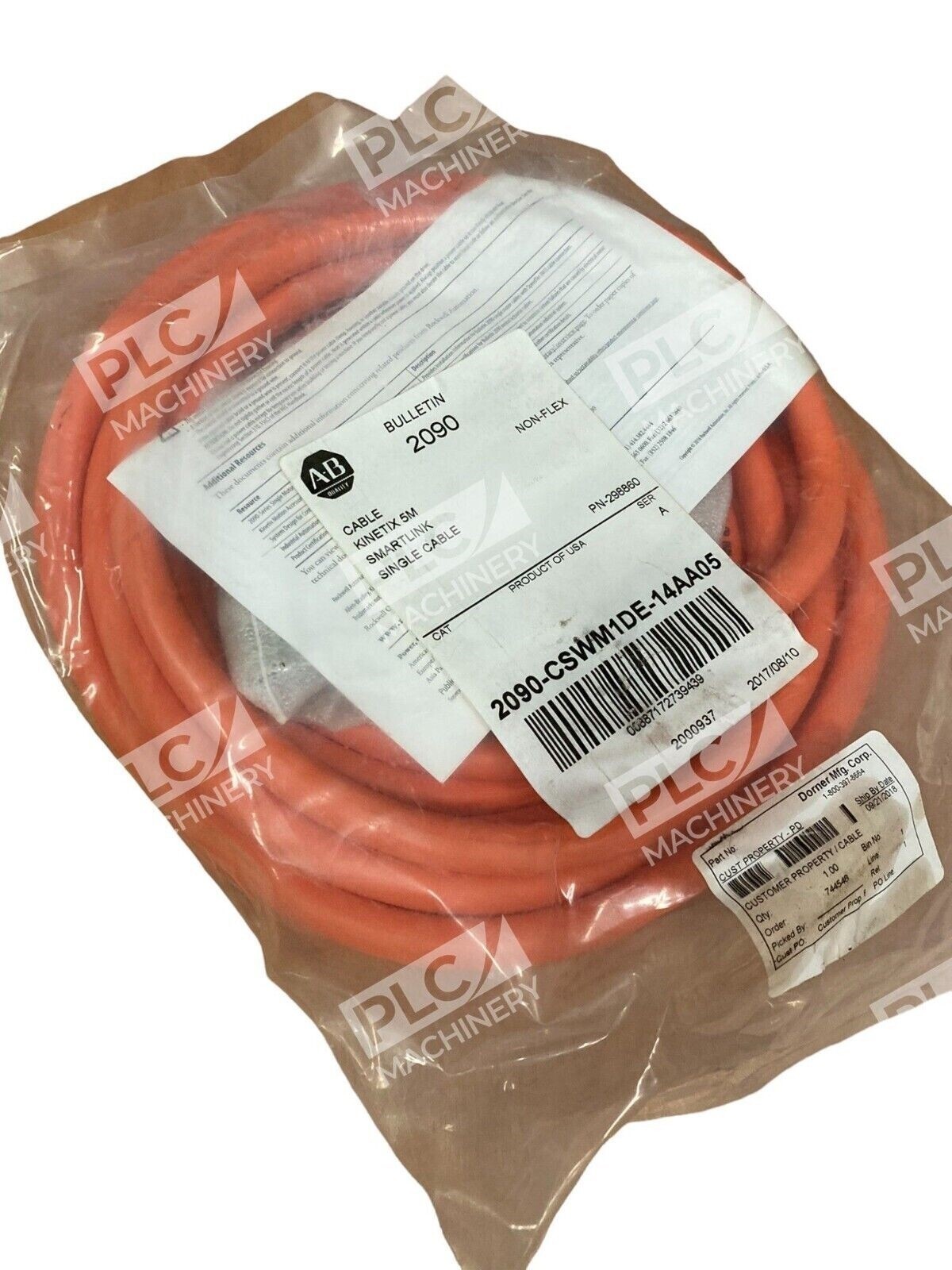

The Allen-Bradley 2090-CSWM1DE-14AA05 is a Kinetix 2090 single motor cable engineered for Kinetix 5700 servo drive systems. This 5-meter cable combines power, feedback, and brake conductors in a rugged, single-shielded design. The -DE variant includes the 2198-KITCON-DSL pre-wired feedback connector kit, eliminating on-site lead preparation and reducing commissioning time on high-performance motion control applications.
Key Features
- Single-cable design integrating power, feedback, and brake conductors with 100% EMC/EMI shielding
- Pre-assembled 2198-KITCON-DSL connector kit optimized for Kinetix 5700 drives—no field lead prep required
- SpeedTec DIN motor-end connector ensures secure, repeatable connections
- 14 AWG power conductors deliver efficient current transmission for standard servo loads
- TPE jacket with orange color coding for visibility in complex panel layouts
- Standard non-flex design rated for static mounting; continuous-flex options available separately
Technical Specifications
Electrical & Conductor Configuration
- Wire Gauge: 14 AWG
- Power Conductors: 4
- Feedback Conductors: 2
- Brake Conductors: 2
- Total Conductors: 8
Cable & Connectors
- Shielding: Tinned copper braid with aluminum/polyester tape (100% coverage)
- Jacket Material: TPE (Thermoplastic Elastomer)
- Motor-End Connector: Single SpeedTec DIN
- Drive-End: Flying leads with pre-wired feedback assembly
- Length: 5 meters (16.4 feet)
Performance & Ratings
- Designed for cable runs up to 50 meters on Kinetix 5700 systems
- Flex Rating: Standard (non-flex) for static applications
- UL Listing: PLTC-ER (14 AWG)
Typical Applications
The 2090-CSWM1DE-14AA05 is ideal for precision servo applications using Kinetix 5700 drives, including:
- Multi-axis CNC machine tool control systems
- High-speed textile and packaging machinery
- Robotic arm and articulated motion systems
- Industrial automation requiring deterministic feedback and braking
- OEM equipment where commissioning speed reduces time-to-market
Compatibility & Replacements
This cable is designed specifically for Kinetix 5700 servo drives. The -DE designation indicates drive-end pre-wired connector kit assembly. Related variants include:
- 2090-CSWM1DF-14AA05: For Kinetix 5500 systems (different lead prep)
- 2090-CSWM1DG-14AA05: Universal drive-end for both 5500/5700 systems
- Lengths from 1m to 50m available in 1-meter increments
Verify drive model and cable length requirements before ordering. Consult the Kinetix Rotary and Linear Motion Cable Specifications (KNX-TD004) publication for detailed drive compatibility and bend-radius guidance.
