Overview

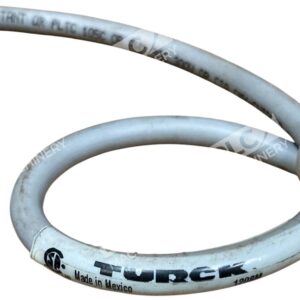

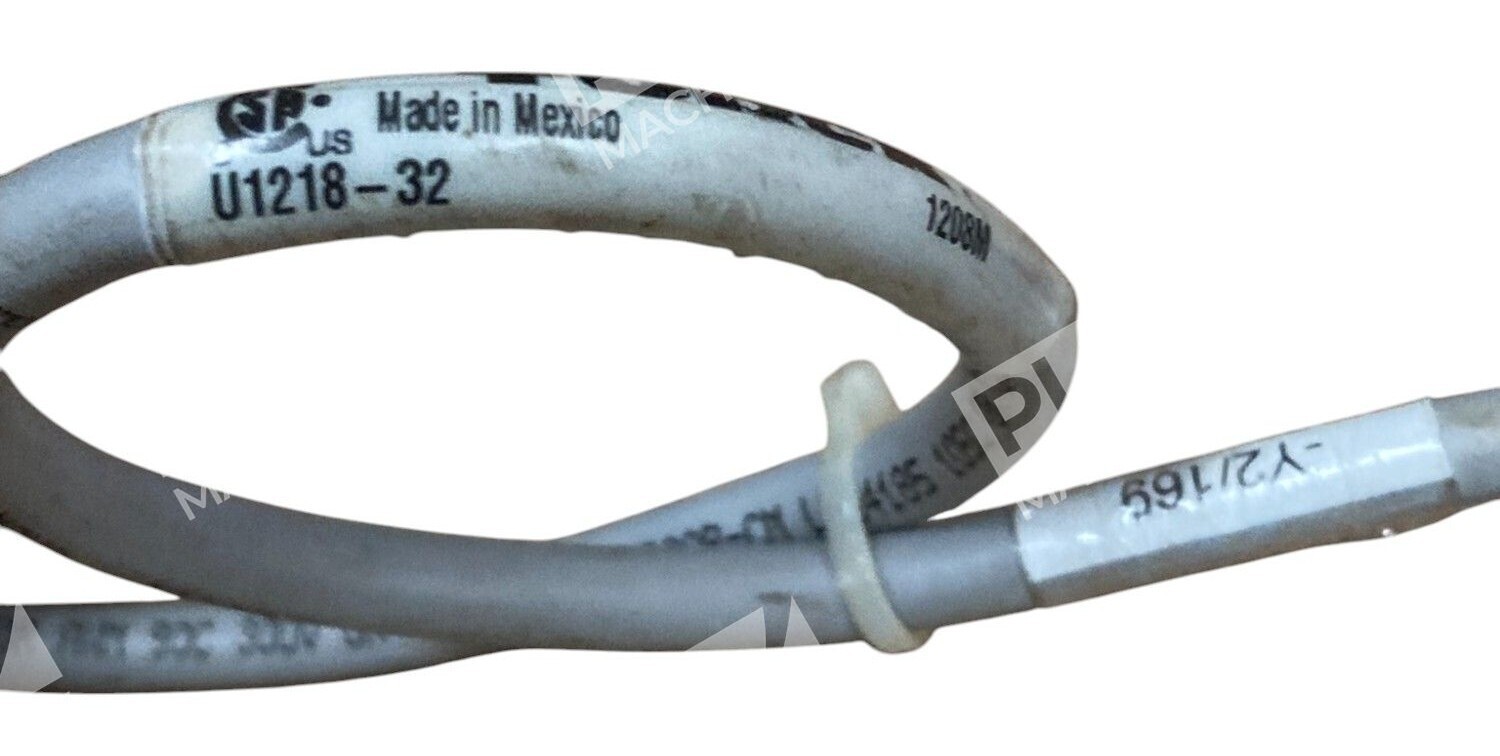

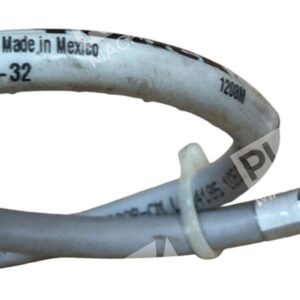

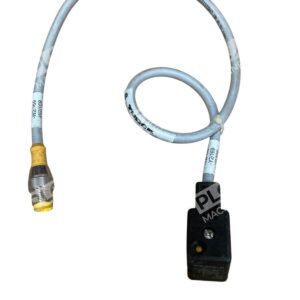

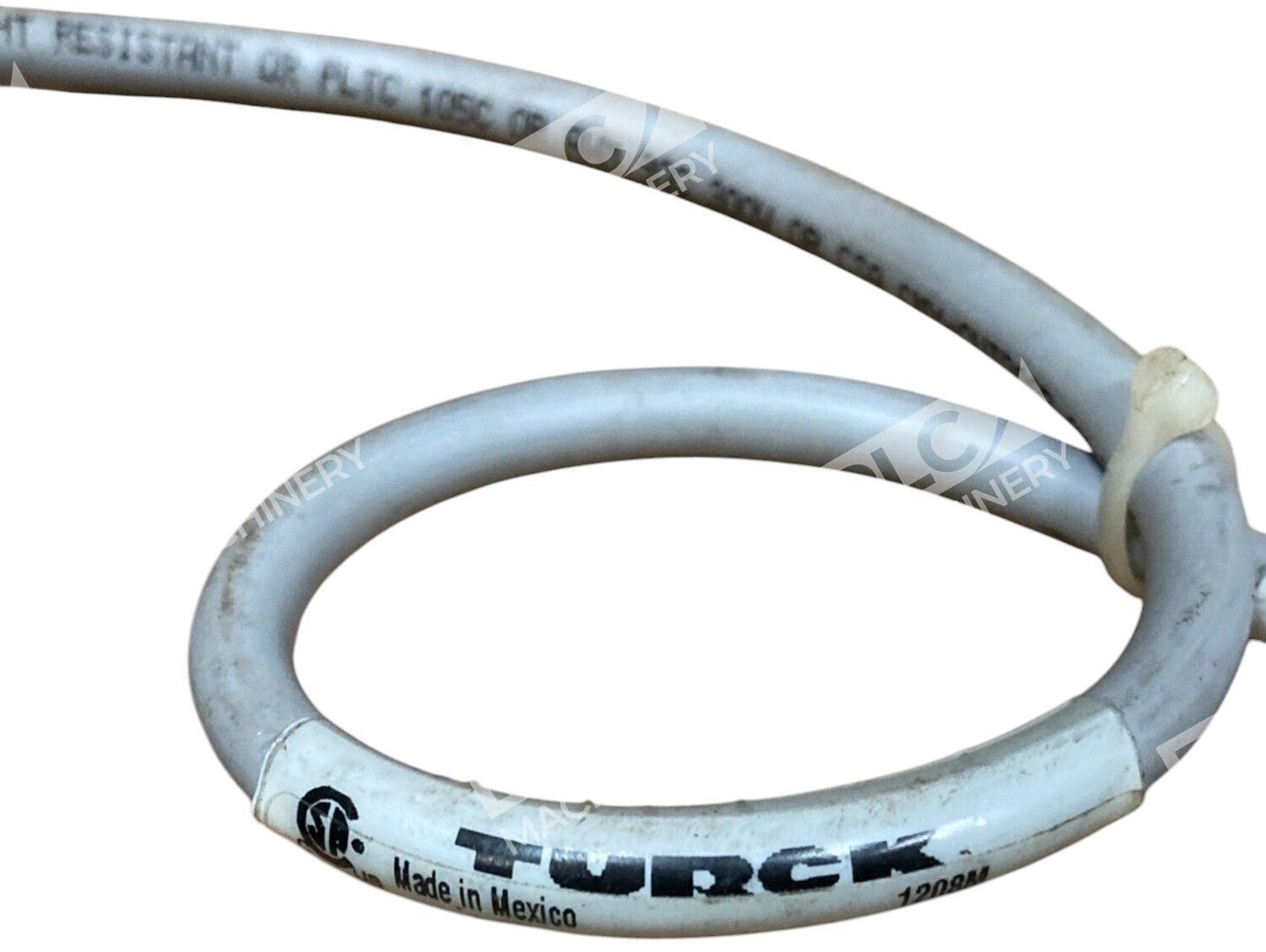

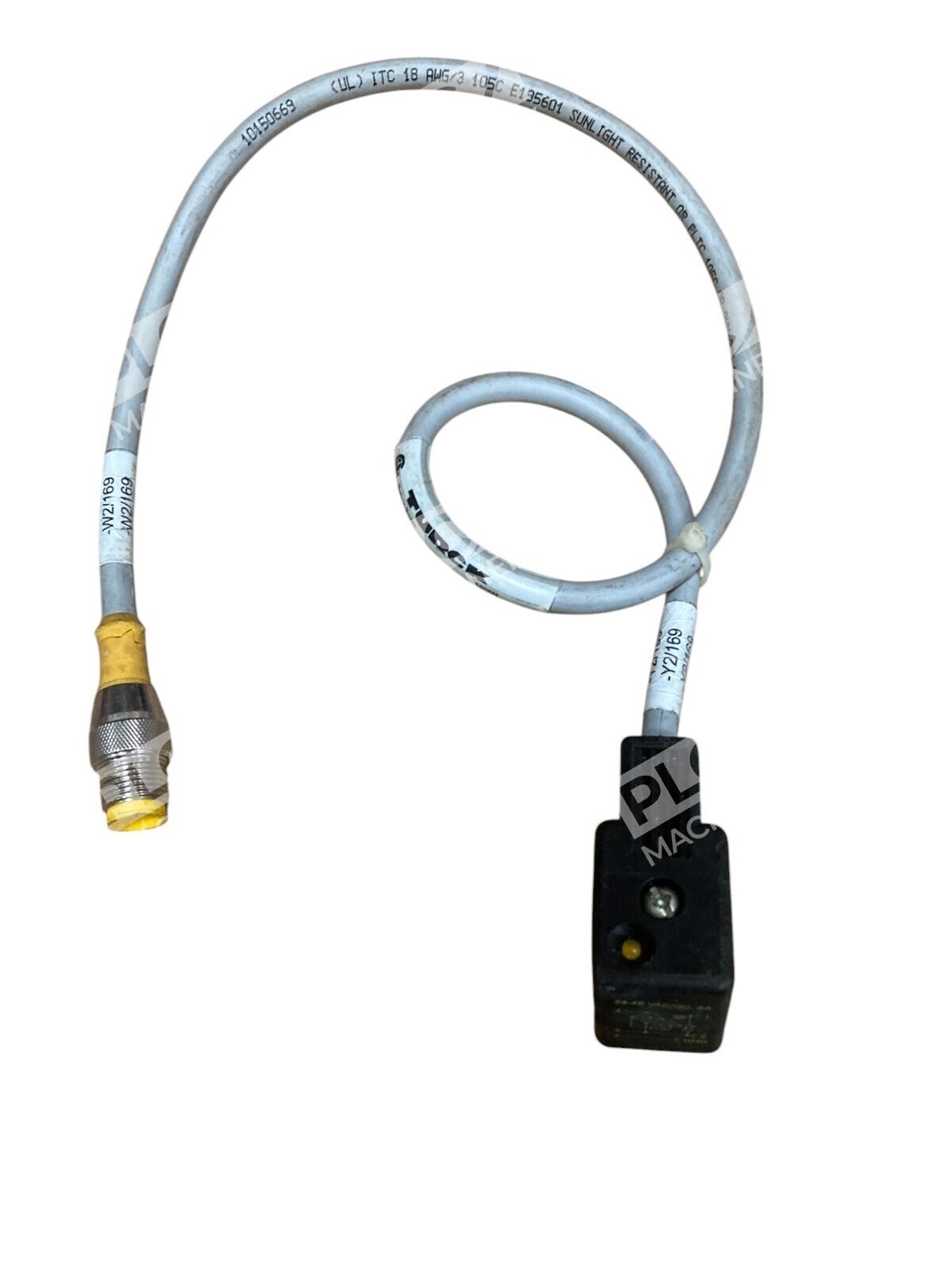

The Turck U1218-32 1208M is a shielded molded cordset engineered for reliable power transmission to sensors, actuators, and field devices in industrial automation systems. Rated for 24-48VAC/DC at 4A, this M12 connector cable combines EMI-shielded construction with industrial-grade cable jacket material for dependable operation in washdown, outdoor, and demanding manufacturing environments. Pre-assembled molded termination eliminates field wiring errors and accelerates installation timelines.
Key Features

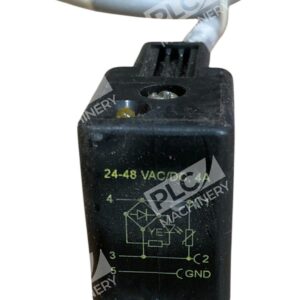

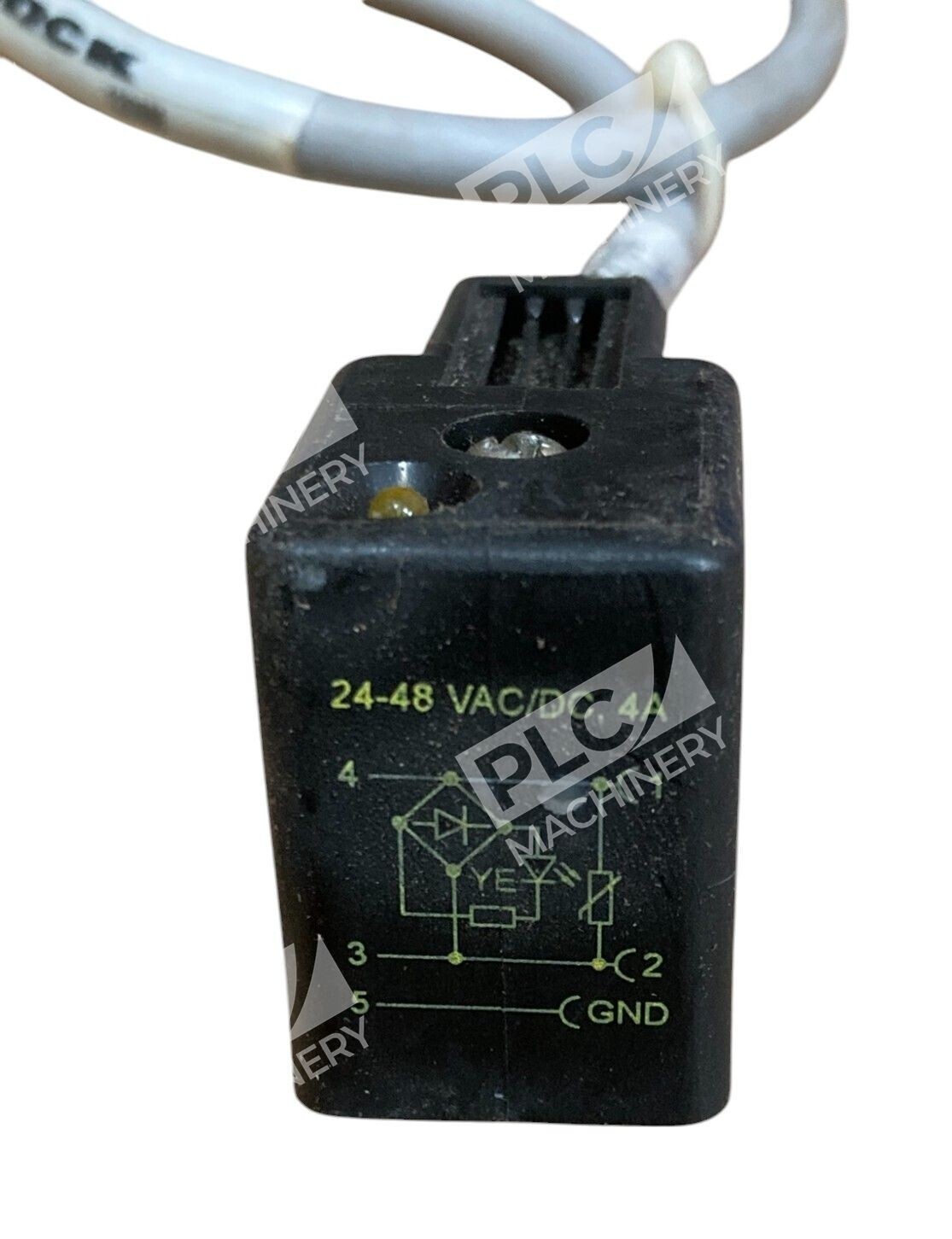

- Dual voltage/current rating: 24-48VAC/DC, 4A maximum
- M12 molded straight connector with tool-free installation
- Foil shield with drain wire for EMI suppression and noise immunity
- IP67 ingress protection rated for washdown and outdoor duty cycles
- Flexlife cable rated for up to 10 million bend cycles at standard bend radius
- Space-saving connector footprint compatible with standard M12 A-coded power receptacles
Technical Specifications
- Rated current: 4A at 24-48VAC/DC
- Connector type: M12 molded straight connector
- Cable shield: Foil with drain wire
- IP rating: IP67
- Flex life: 10 million cycles at rated bend radius
- Jacket material: Industrial-grade PVC or TPE
- Operating temperature range: -40°C to +80°C
- Certification: UL, CSA, CE compliant
Typical Applications
- Sensor and actuator power distribution in manufacturing and assembly plants
- Robotics and motion control systems requiring quick-disconnect power connectivity
- Industrial field device wiring in washdown facilities and outdoor environments
- PLC and automation cabinet interconnect on C-track installations
- OEM equipment integration where pre-assembled, certified cordsets reduce commissioning time and labor costs
Compatibility & Replacements
Compatible With
- Industrial sensors and actuators with standard M12 A-coded power connectors
- Turck Eurofast®, Minifast®, and Picofast® automation connectivity ecosystems
- Standard 24VDC and 48VAC/DC field device power networks
- Programmable Logic Controllers (PLCs) with M12 power input modules
- Industrial motion control and robotics systems with M12 receptacles
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Turck cordset model variants exist across different connector series and pin configurations; confirm mechanical fit, pin assignment, and electrical specifications match your application requirements before installation.
Works With
- M12 A-coded power connector systems per IEC 61076-2-109 standard
- Standard industrial M12 power receptacles and field device connectors
- Turck Eurofast®, Minifast®, and Picofast® cordset ecosystems
- EtherNet/IP and PROFINET enabled automation networks (with appropriate gateway hardware)
- C-track and cable management systems for industrial panel and control cabinet installations
