Overview

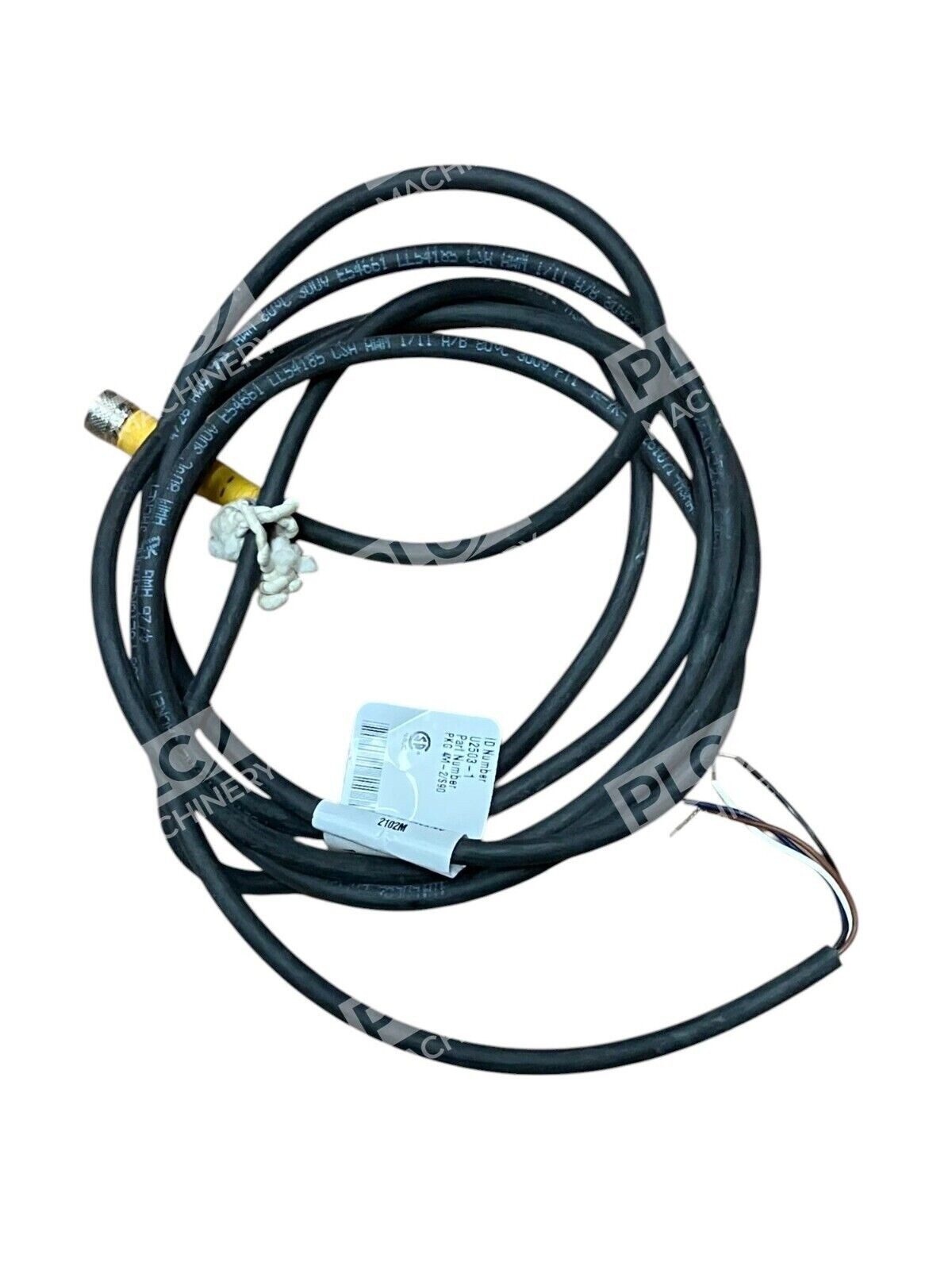

The Turck PKG 4M-2/S90 is a robust single-ended cordset engineered for industrial automation and sensor connectivity. This M8 picofast cordset combines Turck’s proven reliability with cut- and abrasion-resistant cable construction, making it ideal for factory floors, assembly lines, and process control systems where dependable signal transmission is critical.
Key Features
- Single-ended design with 4-pin M8 picofast female connector and bare flying leads
- 2-meter cable length for flexible installation layouts
- TPU jacket with foil shielding for EMI protection and durability
- M8x1 threaded coupling nut (nickel-plated brass) for secure, vibration-resistant mating
- IP67 / NEMA 1-3-4-6P protection rating for indoor and outdoor use
- Color-coded 4-wire conductors (Brown, Blue, Black, White) per IEC standards
Technical Specifications
- Connector Type: M8 Picofast, 4-pin Female Straight
- Cable Length: 2 meters (6 feet)
- Wire Count: 4 conductors
- Wire Gauge: 26 AWG
- Rated Current: 2 amperes
- Rated Voltage: 125 VAC
- Cable Outer Diameter: 4.2 mm
- Jacket Material: TPU (thermoplastic polyurethane) with foil shield and drain wire
- Cable Color: Black
- Protection Rating: IP67 / NEMA 1 / NEMA 3 / NEMA 4 / NEMA 6P
- Operating Temperature: -40°C cold bend rated
- Coupling Nut: Nickel-plated brass with M8x1 threaded connection
- Locking Mechanism: Threaded coupling nut
- Country of Origin: Mexico
- RoHS Compliant: Yes
Typical Applications
- Proximity sensors and limit switches
- Encoder and resolver connections
- Industrial actuator signal lines
- PLC and controller I/O wiring
- CNC machine tool connectivity
- Factory automation and robotics
- Material handling systems
Compatibility & Replacements
Compatible With
- Turck M8 picofast connector receptacles and connectors
- Industrial control systems with M8 connectivity
- Sensor and actuator modules supporting M8 picofast standard
- PLC input/output modules with M8 female interfaces
Replaces / Drop-In Replacement For

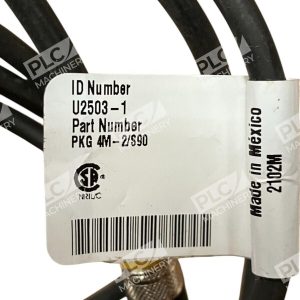

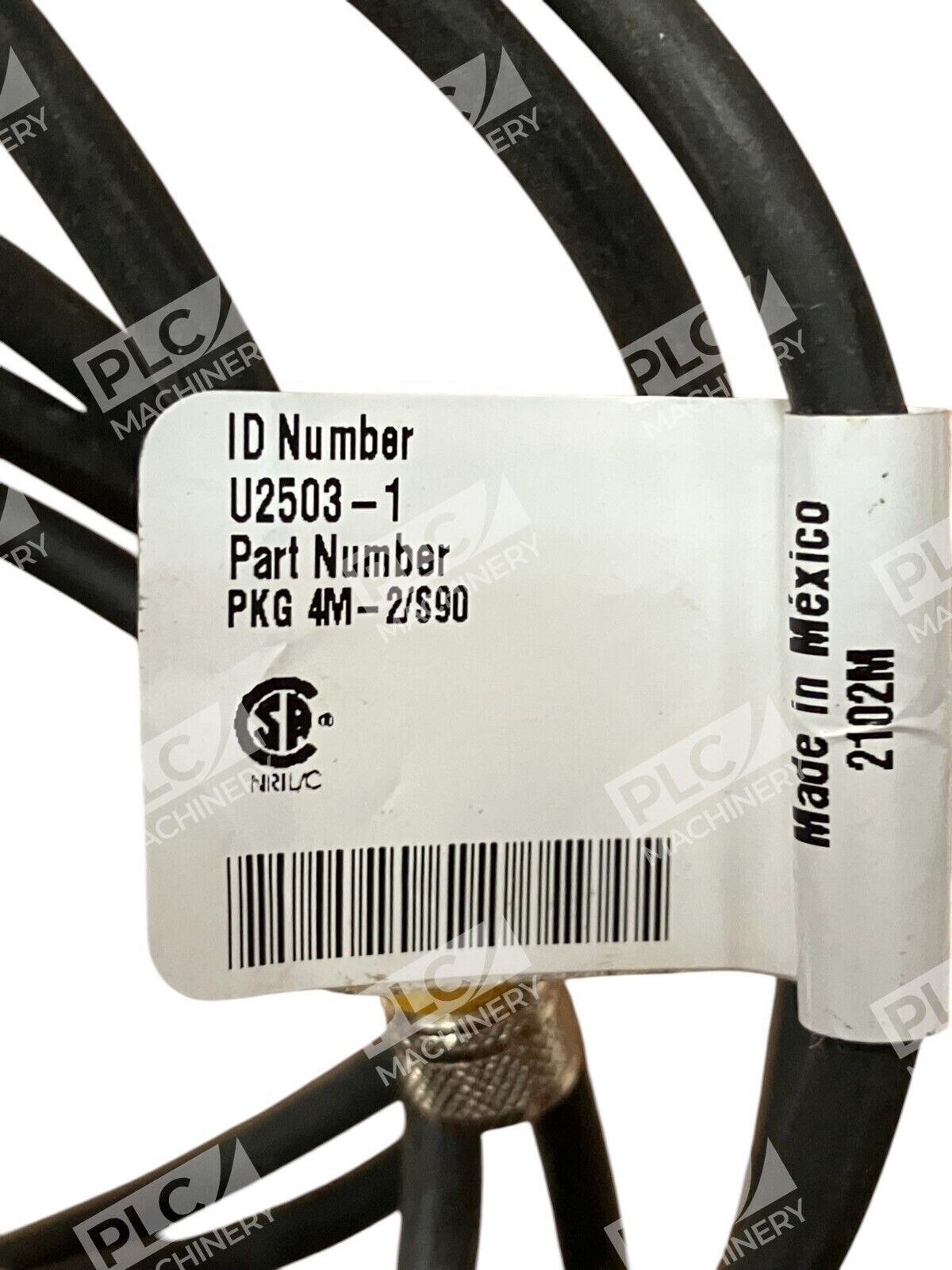

- Turck U2503-1 (equivalent part number)
- PKG 4-2/S90 (snap-lock variant)
- Other Turck 4-wire 2-meter M8 picofast single-ended cordsets
Works With
- M8 picofast female connector sockets
- Turck TNS and TN series sensor connectors
- IEC 61076-2-109 M8 picofast standard interfaces
- Industrial ethernet and discrete I/O systems compatible with M8 connectivity
