Overview

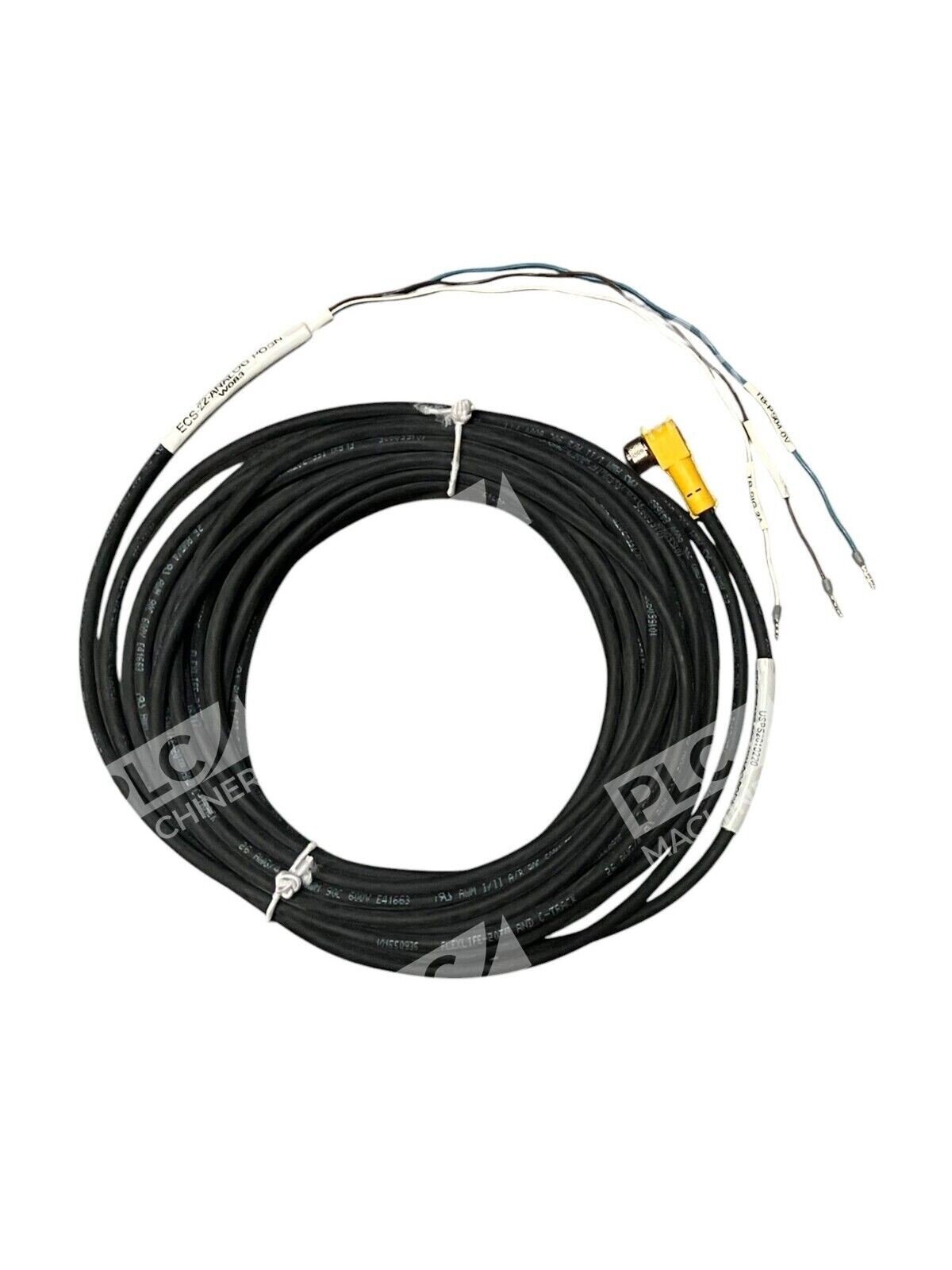

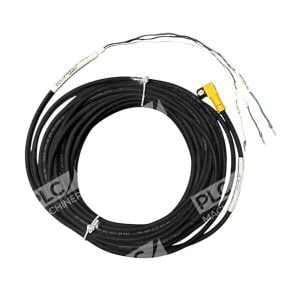

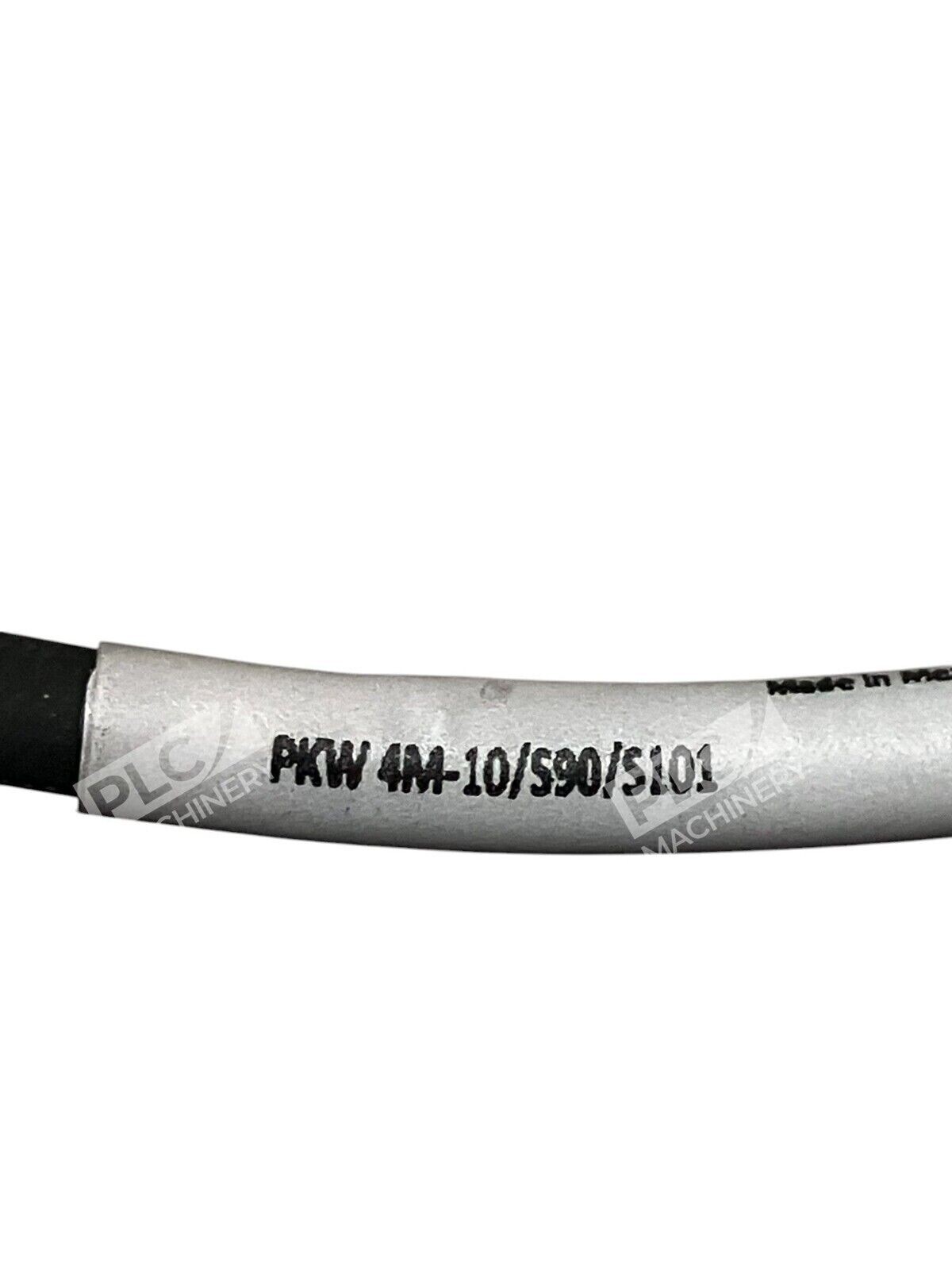

The Turck PKW4M-10/S90/S101 is a single-ended cordset from Turck’s PicoFast series, designed for sensor and actuator connections in harsh industrial environments. This 10-meter cordset provides pre-terminated connectivity with a right-angled 4-pin M8 picofast female connector on one end and bare flying leads on the other, eliminating the need for field termination and reducing assembly time.
Key Features
- Single-ended M8 picofast connector with right-angle (90°) configuration for tight mounting spaces
- 4-pin configuration with 4x #26 AWG conductors for sensor and low-power control circuits
- IP67 environmental protection rating (NEMA 1, 3, 4, 6P) for washdown and wet environments
- Cut- and abrasion-resistant TPU jacket with Flexlife-20 (20 million bend cycles) for long service life
- Nickel-plated brass M8x1 threaded coupling nut for durable, corrosion-resistant connections
- 10-meter cable length ideal for extended runs in machine layouts and control enclosures
Technical Specifications
- Connector Type: M8 PicoFast, 4-pin, right-angled female
- Cable Length: 10 meters (32.8 feet)
- Rated Voltage: 125V AC
- Rated Current: 2A per conductor
- Wire Gauge: 4x #26 AWG
- Cable Sheath O.D.: 4.4 mm
- Jacket Material: TPU (thermoplastic polyurethane)
- Connector Material: Nickel-plated brass coupling nut
- IP Rating: IP67 (NEMA 1, 3, 4, 6P)
- Mechanical Resistance: Flexlife-20 (20 million bend cycles)
- Operating Temperature: -40°C to +80°C (standard range)
- Termination: Bare flying leads (open-end)
Typical Applications
The PKW4M-10/S90/S101 is commonly used in:
- Inductive and capacitive sensor connections to PLC and control modules
- Photoelectric sensor and limit switch wiring in automated machinery
- Compact actuator control circuits where angled connector orientation reduces footprint
- Food, beverage, and pharmaceutical automation with frequent washdowns (IP67 rated)
- Machine tool and assembly line applications requiring long cable runs without splicing
Compatibility & Replacements
Compatible With
- Turck M8 PicoFast receptacles and connectors
- Turck sensor and actuator devices with M8 picofast connections
- Standard industrial controllers and I/O modules accepting M8 picofast input/output
- Turck valve terminals and automation devices in the PicoFast family
Replaces / Drop-In Replacement For
- Other Turck PKW4M cordsets with identical connector and pin configuration
- Verify connector orientation (S90 = right angle) and lead type (S101 = bare leads) before substituting
Works With
- Turck PicoFast connectivity ecosystem
- M8 standardized picofast sensors and field devices
- Industrial 24 VDC control systems and analog/digital input modules
- Legacy and modern automation platforms requiring M8 cordset compatibility
