Overview

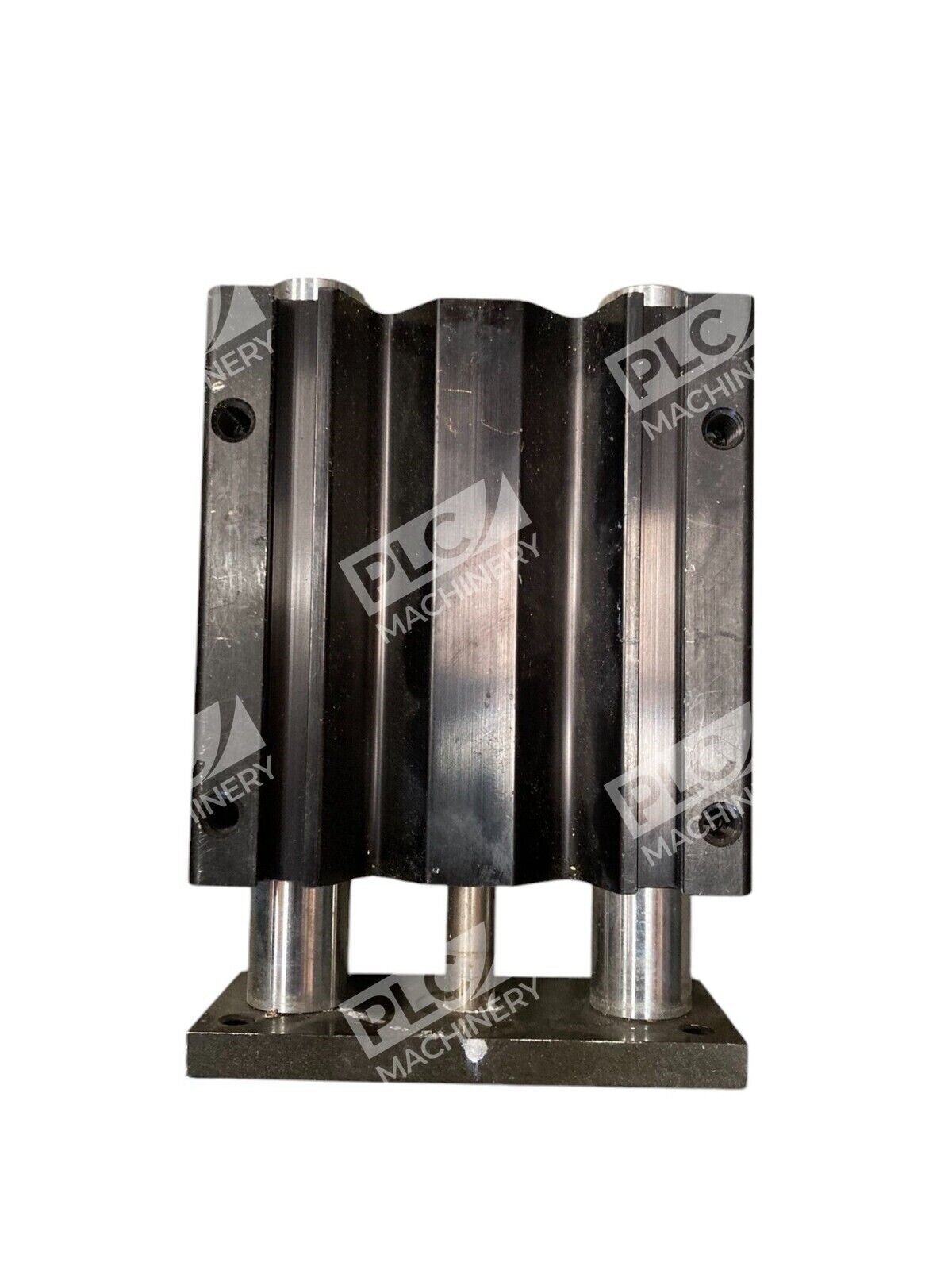

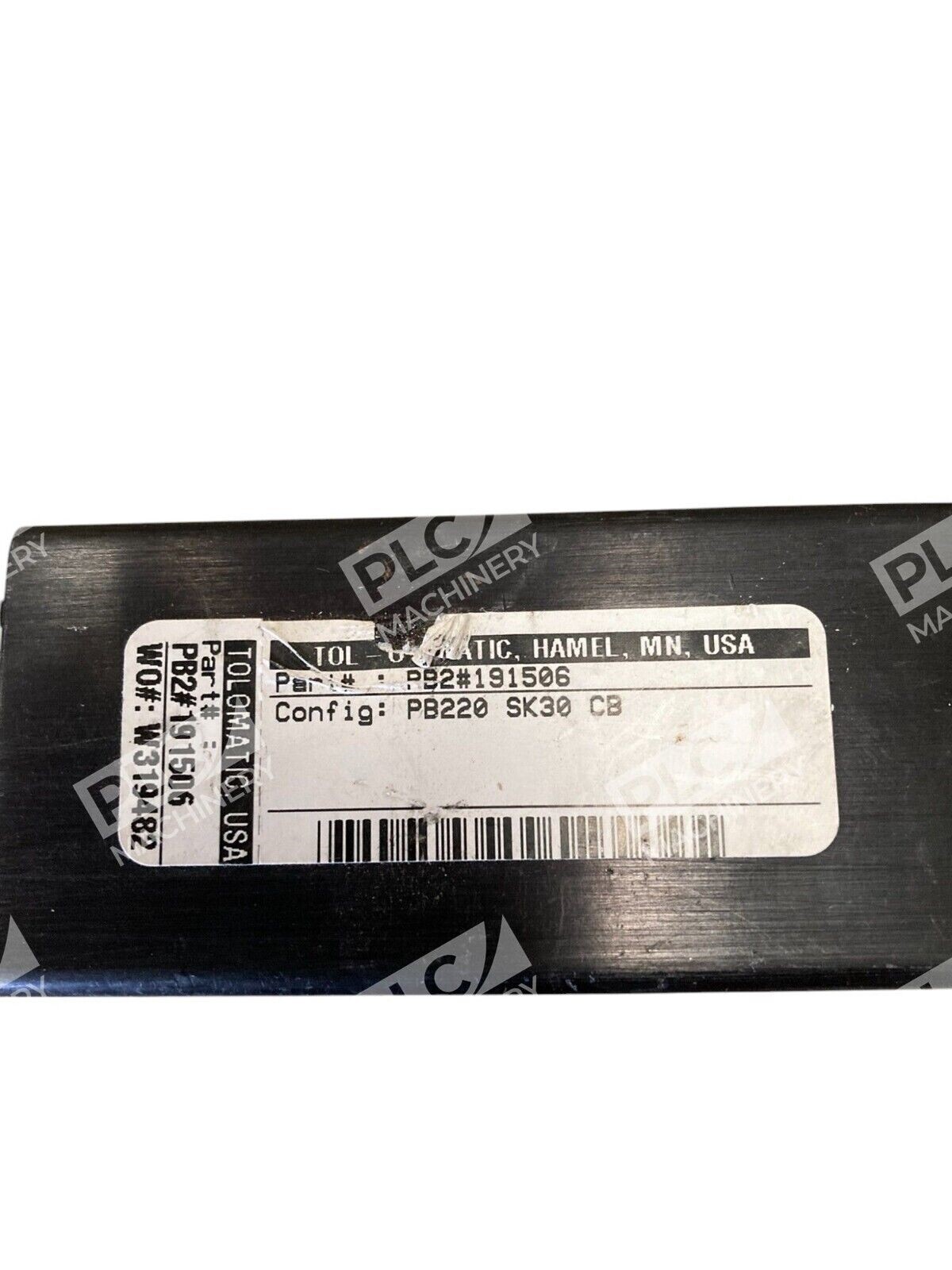

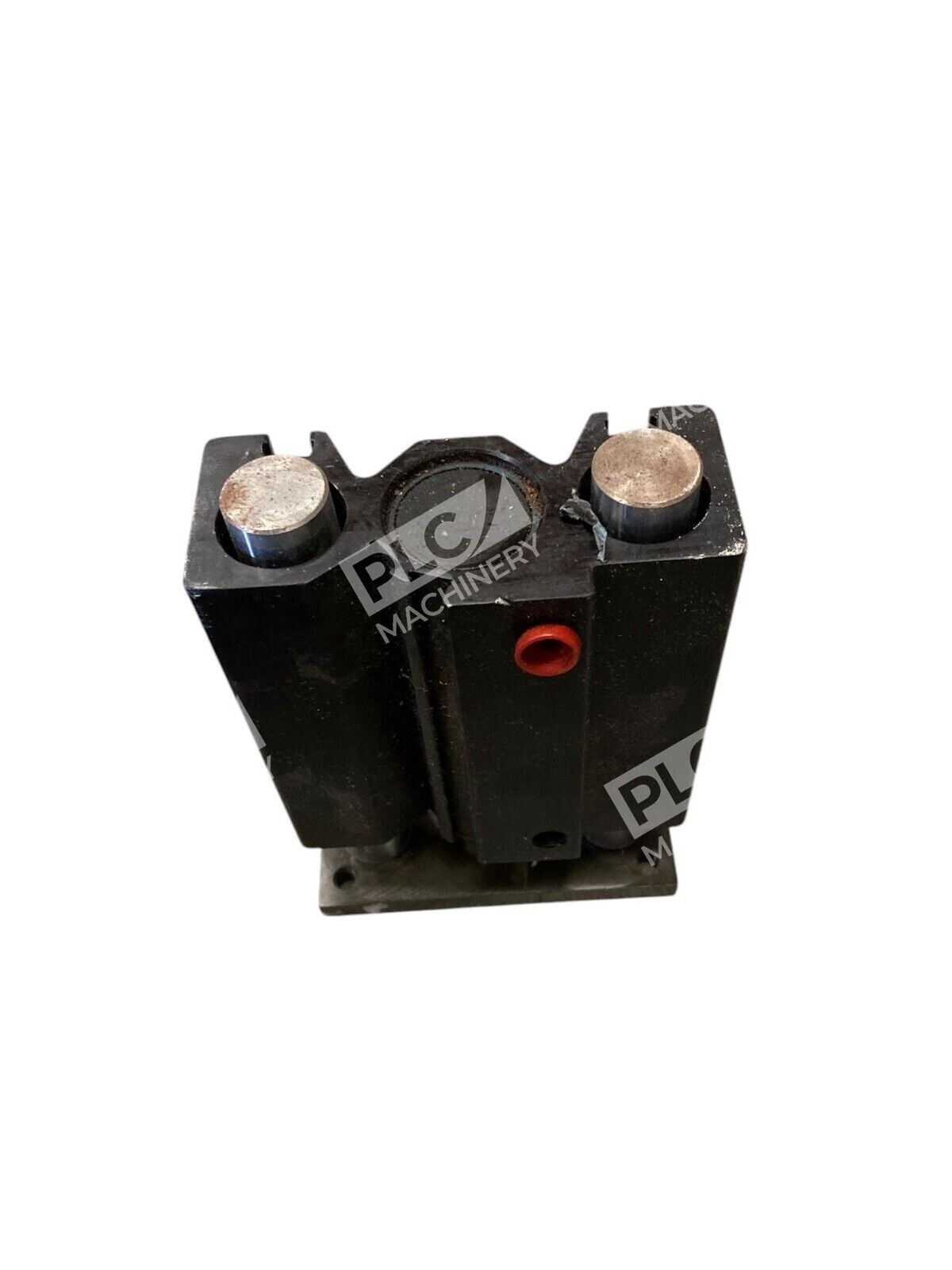

The Tol-O-Matic PB220 SK30 CB is a Power Block 2 series guided pneumatic cylinder engineered for industrial linear motion applications. This model combines a compact aluminum body with integrated guide rods for accurate motion control, making it ideal for pick-and-place systems, material handling, and precision positioning tasks. The 3″ stroke capacity enables controlled extension and retraction across a wide range of manufacturing processes.
Key Features
- Power Block 2 guided design for enhanced power and rigidity
- 1-1/4″ bore with 3″ stroke configuration
- Aluminum body construction for lightweight corrosion resistance
- Internal bumper cushioning for impact protection
- Integrated piston magnet for proximity sensor compatibility
- 100 PSI rated working pressure
- Composite bearing surfaces for smooth rod-slide operation
Technical Specifications
The PB220 SK30 CB delivers reliable performance across demanding industrial environments:
- Bore Diameter: 1-1/4″ (31.75 mm)
- Stroke Length: 3″ (76.2 mm)
- Working Pressure: 100 PSI maximum
- Series: Power Block 2 (PB2)
- Bearing Type: Composite
- Body Material: Aluminum
- Piston Magnet: Yes
- Internal Bumper: Yes
- Actuator Type: Guided rod-slide pneumatic cylinder
- Operating Temperature Range: 20°F to 140°F (-7°C to 60°C)
- Mounting: Rod-slide configuration
Typical Applications
- Pick-and-place automation systems
- Material handling and transfer equipment
- Precision positioning and indexing
- Assembly line clamping and actuation
- Food and beverage processing machinery
- Packaging equipment and conveyors
- Woodworking and light manufacturing automation
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems operating at 80–100 PSI
- Air compressors and pneumatic distribution networks
- Proximity sensors (via integrated piston magnet)
- Industrial PLCs and pneumatic valve modules
- FESTO, Parker, SMC, and Aventics compatible manifolds
Replaces / Drop-In Replacement For
The PB220 SK30 CB directly replaces other Tolomatic PB220 SK30 variants. Verify compatibility with your system integrator before ordering to ensure mechanical and pneumatic line connections match your existing installation.
Works With
- ISO 4401 standard pneumatic control valves
- CETOP-05 and SAE manifold patterns
- Inductive and capacitive proximity sensors
- Pneumatic timing and sequencing logic controls
- PLC-based automation platforms (Rockwell, Siemens, Mitsubishi, Omron)
