<h2>Overview</h2>

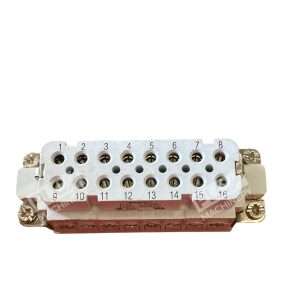

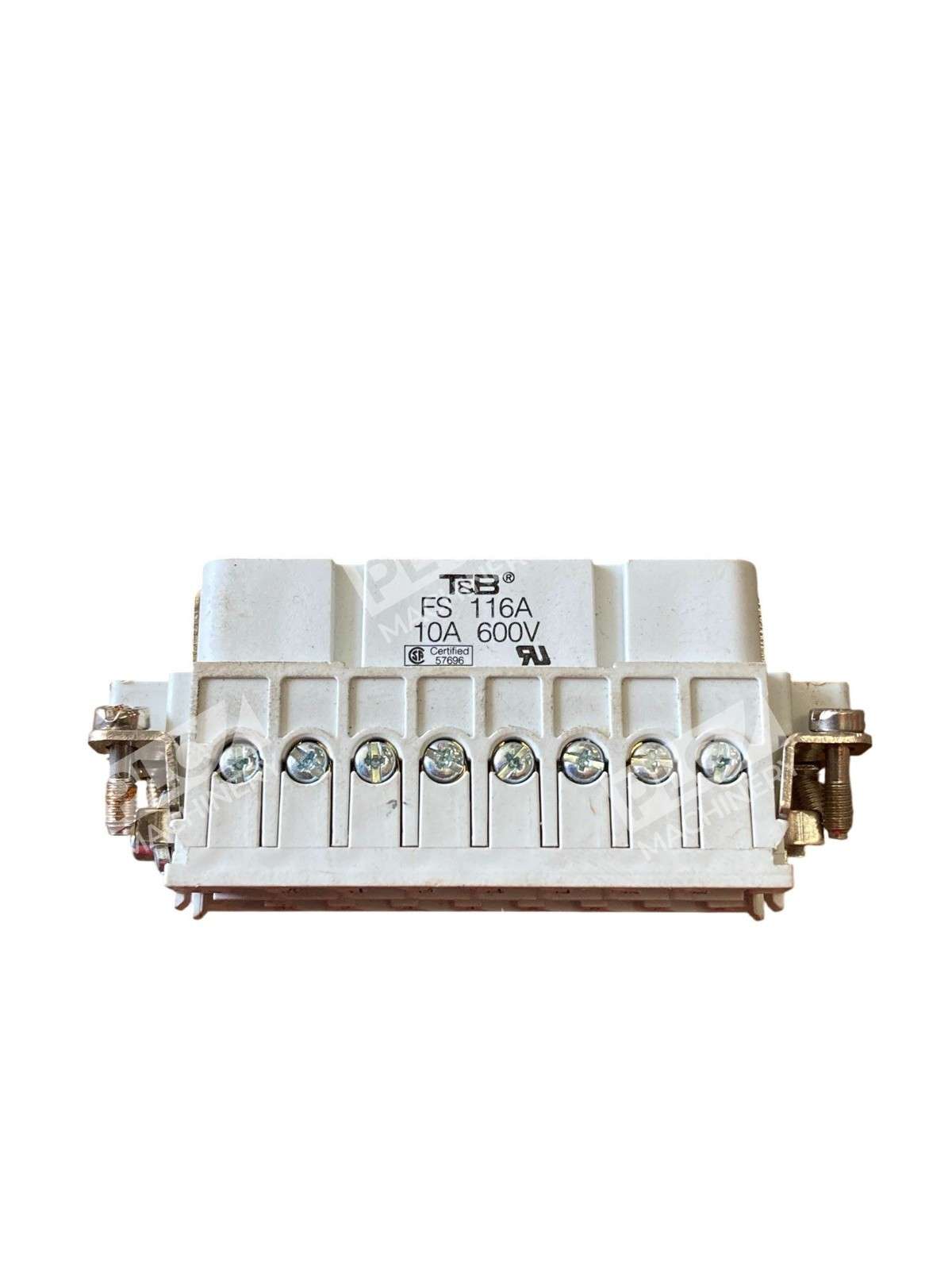

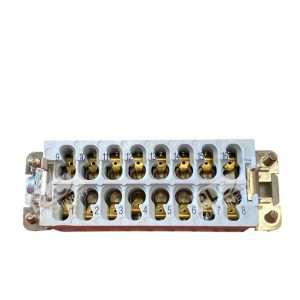

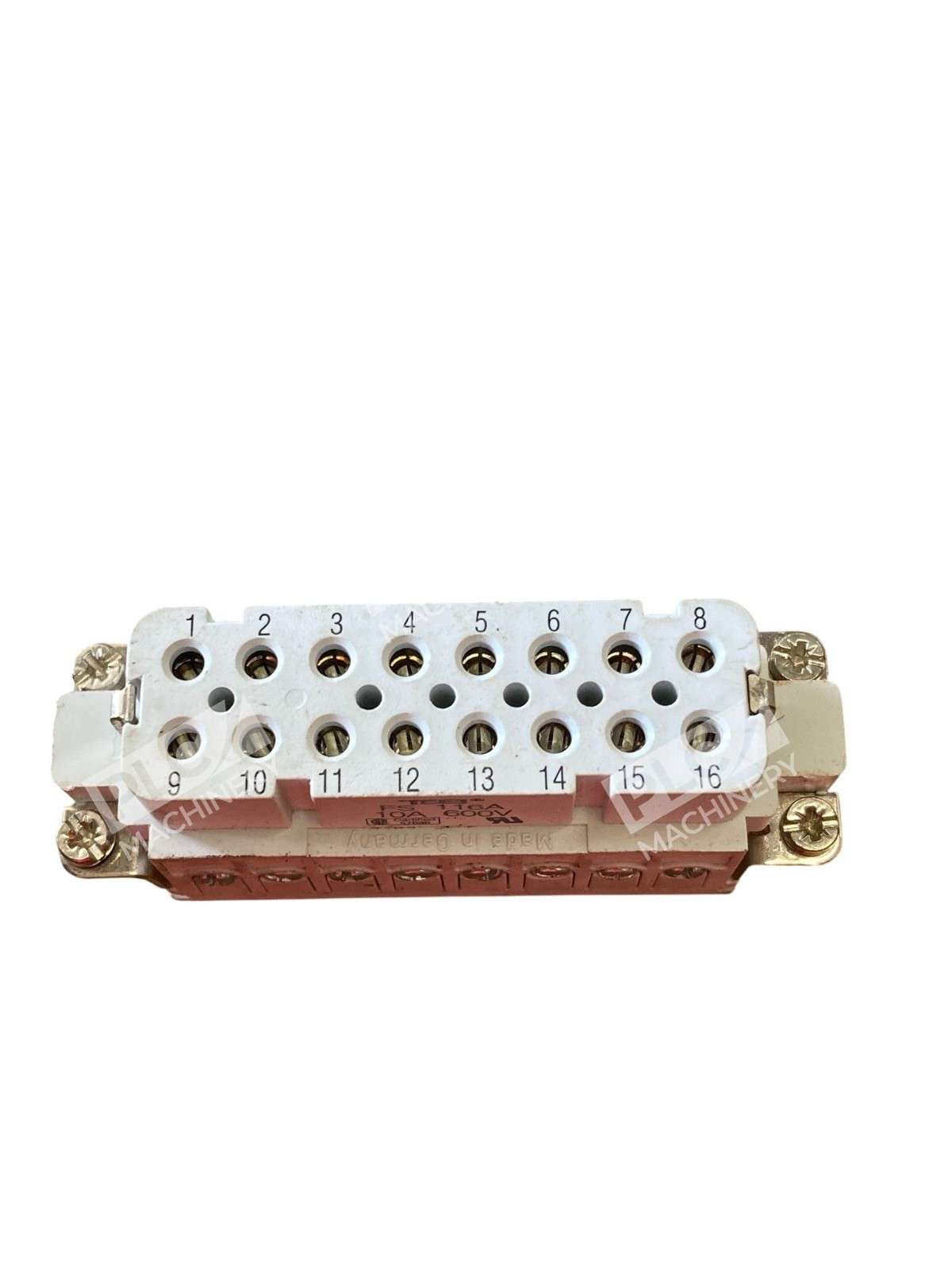

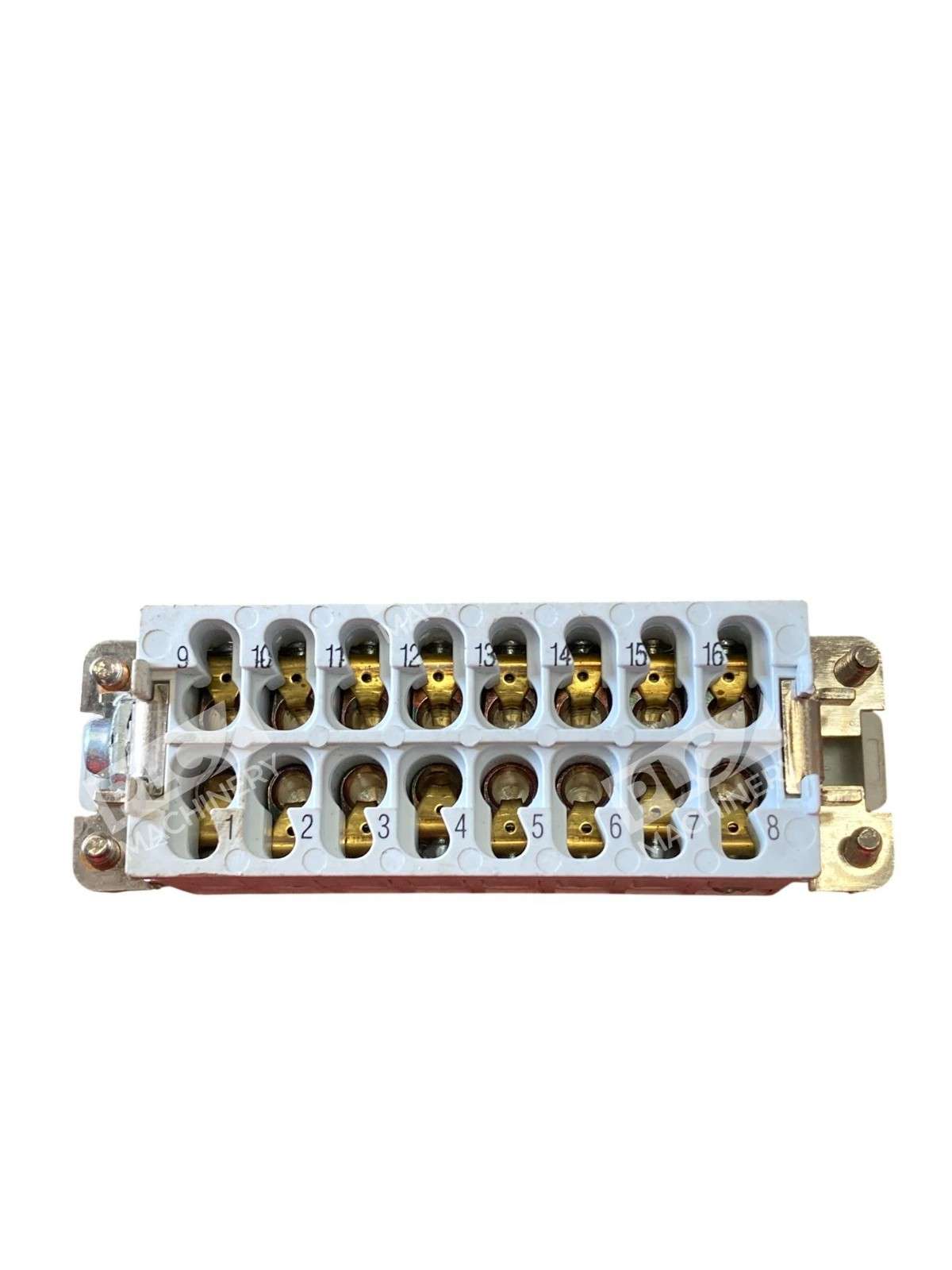

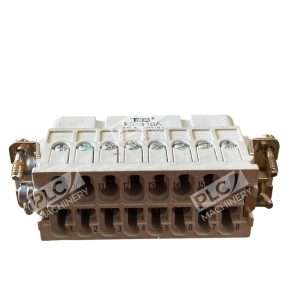

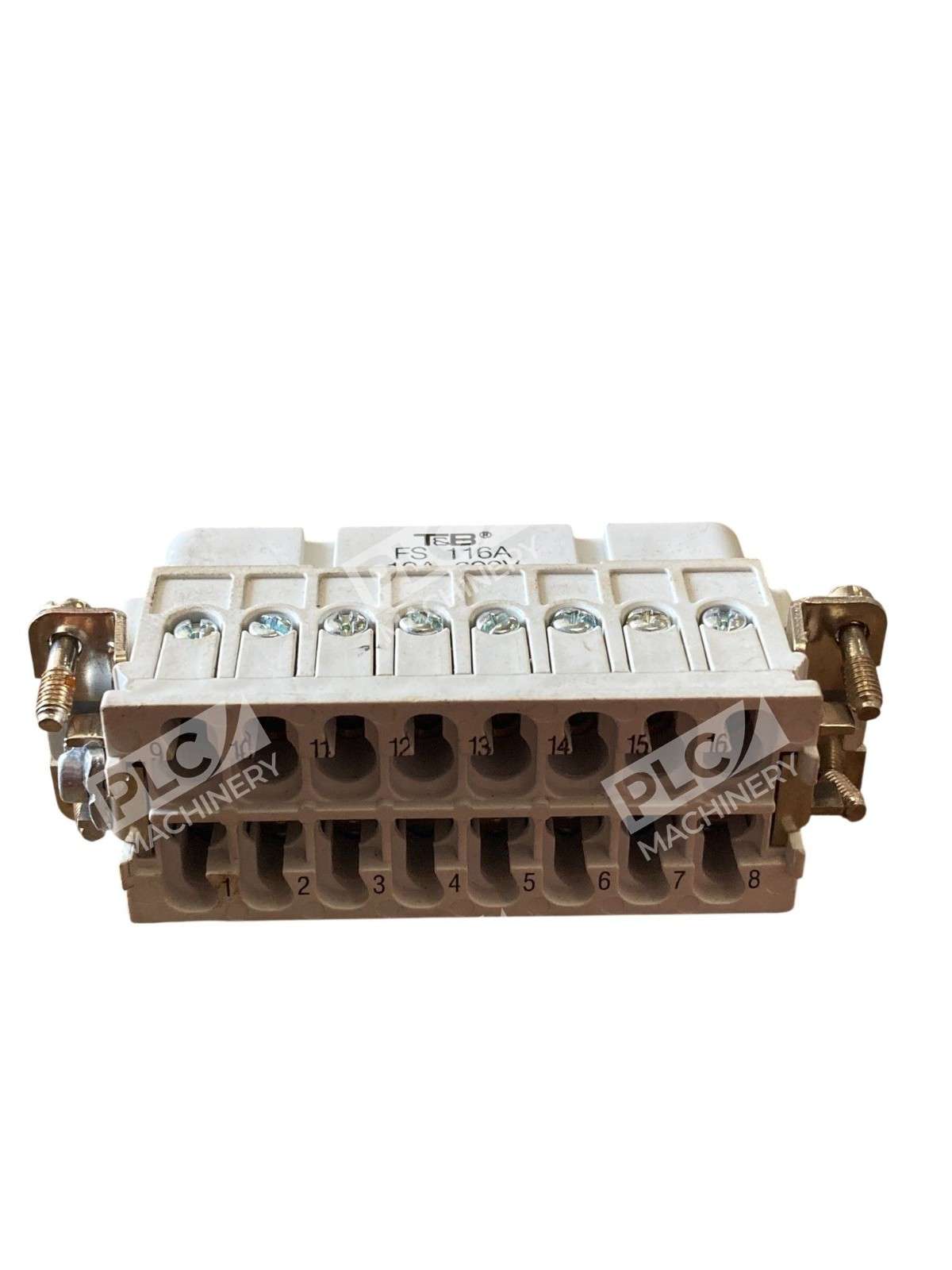

<p>The <strong>Thomas & Betts FS116A</strong> is a heavy-duty rectangular terminal insert designed for Pos-E-Kon A Series connectors. This female receptacle insert features 17 contact positions and is built from die-cast copper alloy with silver-plated screw contacts, providing excellent conductivity and corrosion resistance for demanding industrial applications up to 600 volts.</p>
<h2>Key Features</h2>
<ul>
<li>17-contact receptacle insert with screw termination</li>
<li>Silver-plated copper alloy construction for superior conductivity</li>
<li>Rated for 16A continuous current at 600V AC</li>
<li>Compatible with Pos-E-Kon A Series connector bodies</li>
<li>Integral screw terminals enable fast, tool-free assembly</li>
<li>RoHS compliant for environmental and regulatory compliance</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Product Series:</strong> Pos-E-Kon A Series</li>
<li><strong>Gender / Orientation:</strong> Female / Receptacle</li>
<li><strong>Number of Contacts:</strong> 17 (including ground)</li>
<li><strong>Contact Type:</strong> Screw Socket (female)</li>
<li><strong>Current Rating:</strong> 16A</li>
<li><strong>Voltage Rating:</strong> 600V AC</li>
<li><strong>Shell Material:</strong> Die-Cast Copper Alloy</li>
<li><strong>Contact Material:</strong> Silver-Plated Copper</li>
<li><strong>Wire Gauge:</strong> 20–14 AWG</li>
<li><strong>Termination Method:</strong> Screw Terminal</li>
<li><strong>RoHS Compliant:</strong> Yes</li>
</ul>
<h2>Typical Applications</h2>
<p>The FS116A insert is widely used in industrial control panels, power distribution enclosures, automated machinery, and test equipment where modular, quick-disconnect terminal connections are required. Its screw-terminal design allows field technicians to add or reconfigure wiring without special tools, making it ideal for reconfigurable control systems and maintenance environments where regular terminal access is necessary.</p>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Pos-E-Kon A Series connector bodies and pin inserts</li>
<li>16A, 600V AC industrial control systems</li>
<li>Panel-mount and bulkhead A Series connectors</li>
<li>Standard industrial modular wiring systems</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The FS116A is a direct replacement for OEM or field-service applications requiring Pos-E-Kon A Series 17-contact female inserts. Verify compatibility with your connector body and system integrator before ordering to ensure proper fit and electrical rating.</p>
<h3>Works With</h3>
<ul>
<li>Pos-E-Kon A Series connector housings and hoods</li>
<li>Standard industrial electrical wiring and control systems</li>
<li>600V rated panel enclosures and distribution equipment</li>
<li>20–14 AWG copper wire installations</li>
</ul>
