Overview

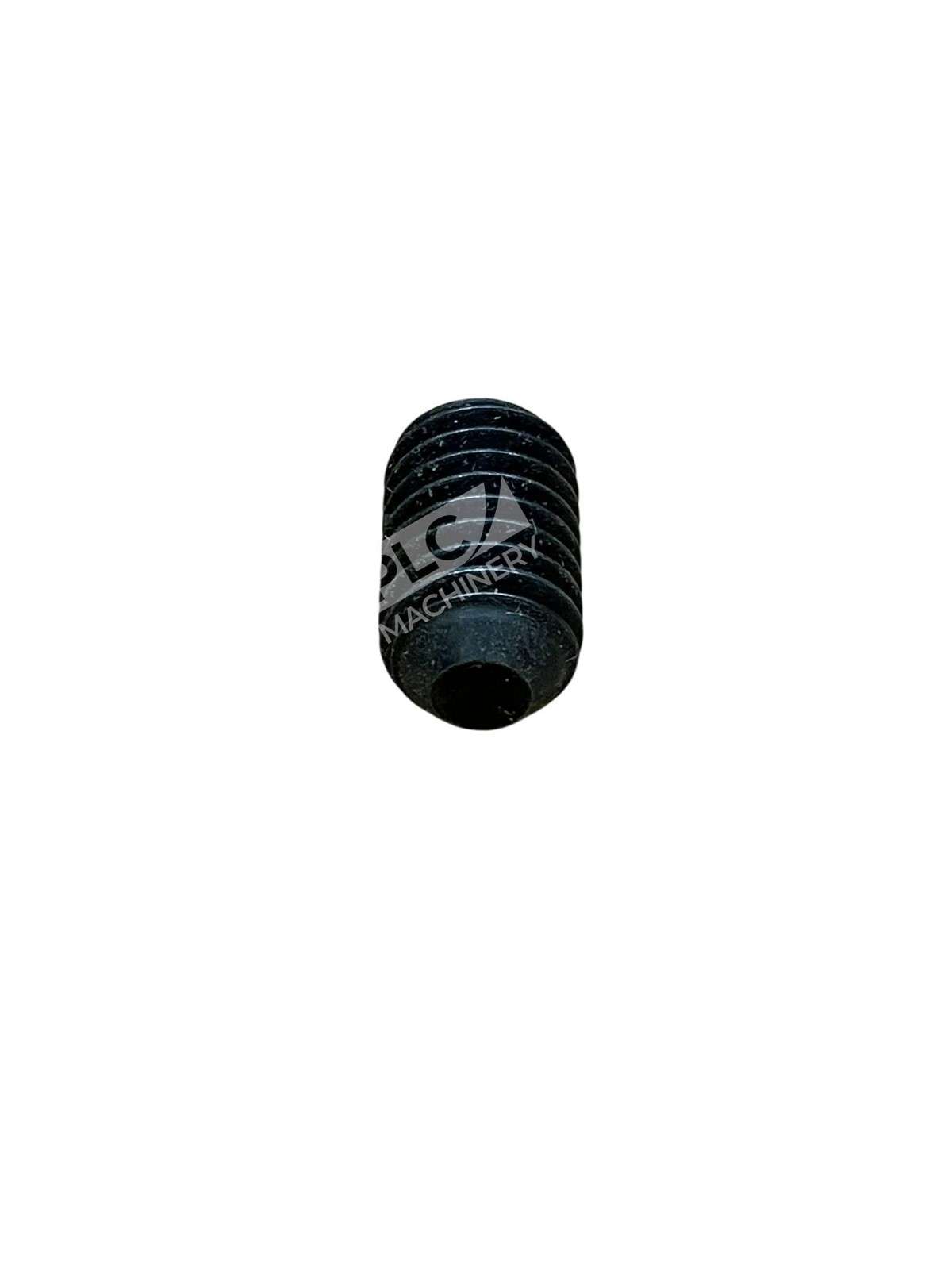

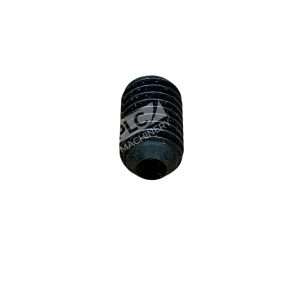

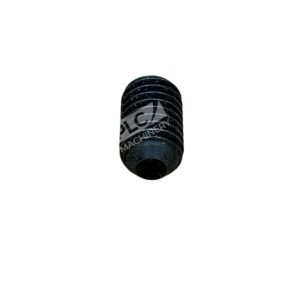

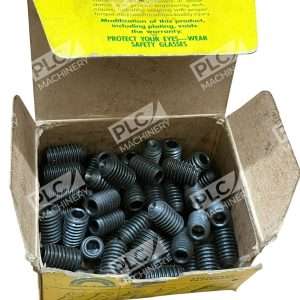

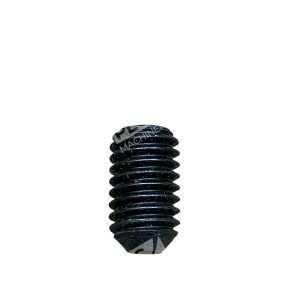

The Holo-Krome 32200 cup point set screw is a precision socket fastener engineered for permanent or semi-permanent assembly of rotating components. With a 7/16″-14 thread size, 3/4″ overall length, and 7/32″ key size, this alloy steel fastener features a black oxide finish for corrosion resistance. This product comes packaged in a convenient box of 100 units, providing professional-grade fasteners for industrial and maintenance applications.
Key Features
- Forged sockets ensure maximum strength and resistance to cracking in the corners
- Smooth, flat, deep sockets free of machining tears or broach chips
- Socket walls are much stronger than those created by drill and broach methods, reducing potential for failure
- Black oxide finish provides durable corrosion resistance
- Meets ASME/ANSI B18.3 and ASTM F912 standards with Class 3A thread fit
- Threads are either rolled or ground depending on size limitations
Technical Specifications
- Thread Size: 7/16″-14 UNC
- Overall Length (OAL): 3/4″
- Socket Key Size: 7/32″
- Material: Alloy Steel
- Finish: Black Oxide

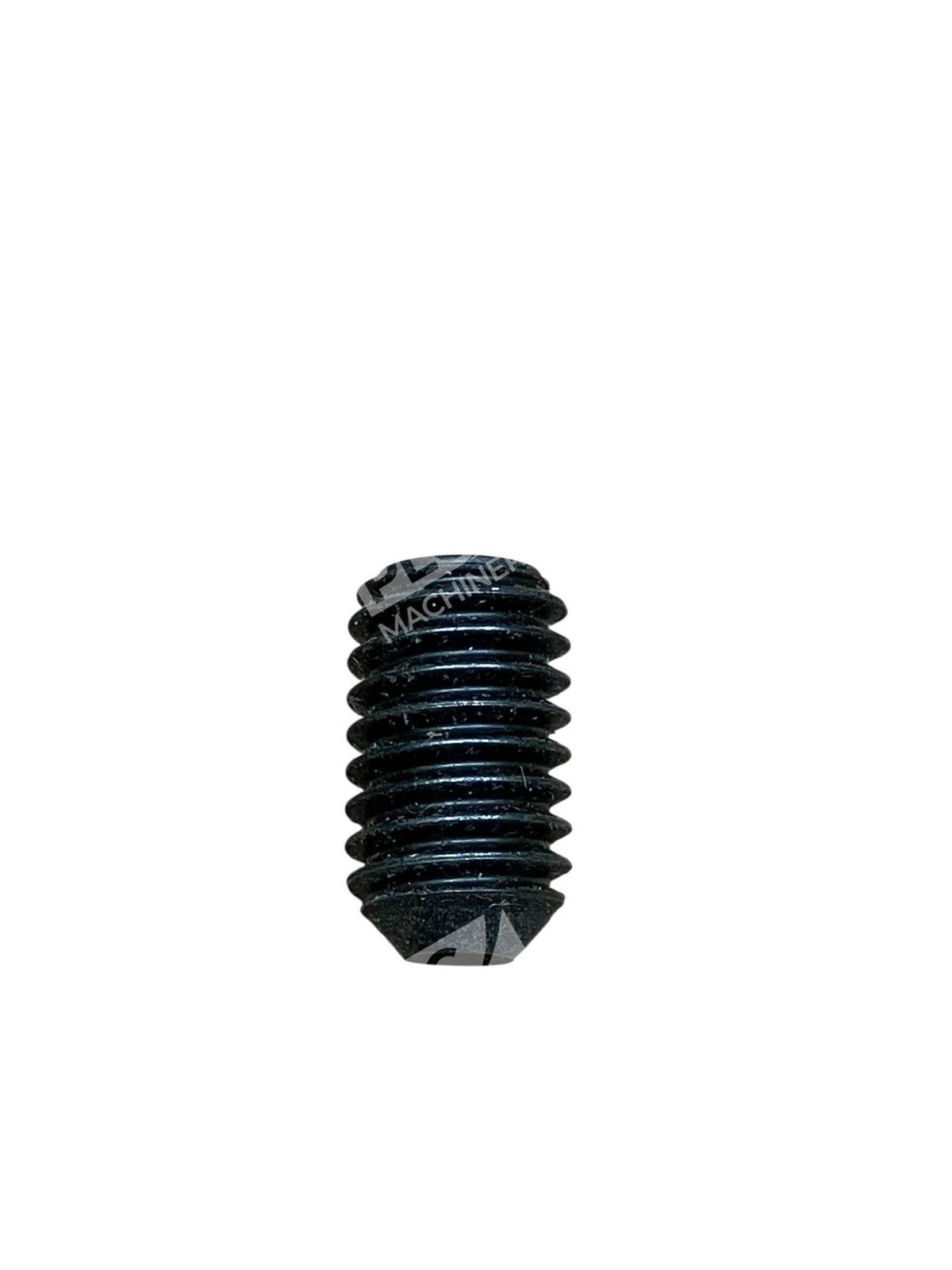

- Point Type: Cup
- Thread Standard: ASME/ANSI B18.3, ASTM F912
- Thread Class: 3A

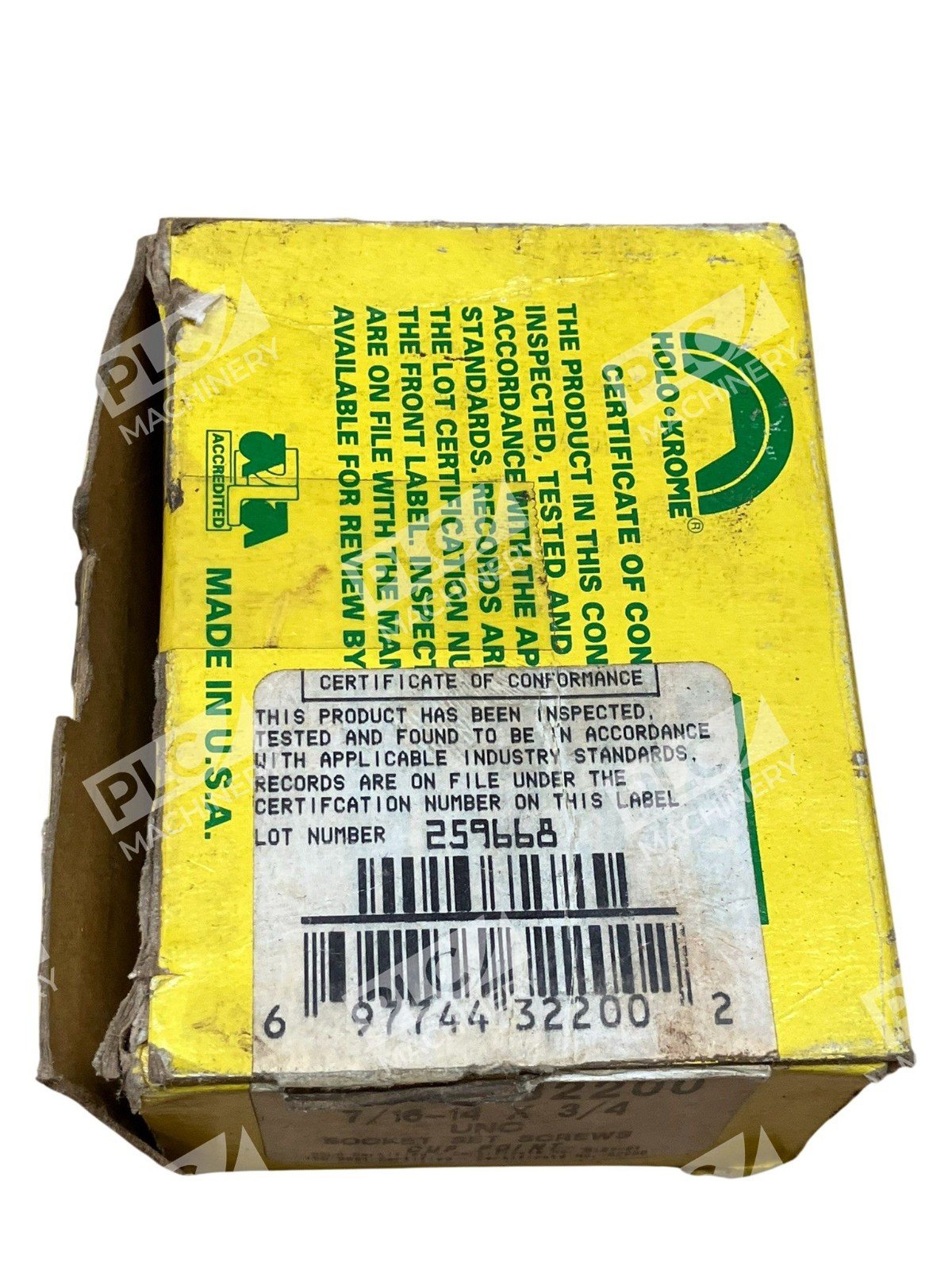

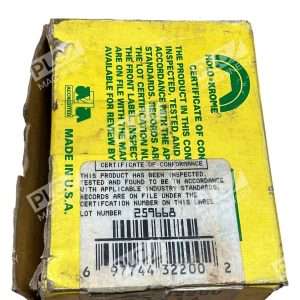

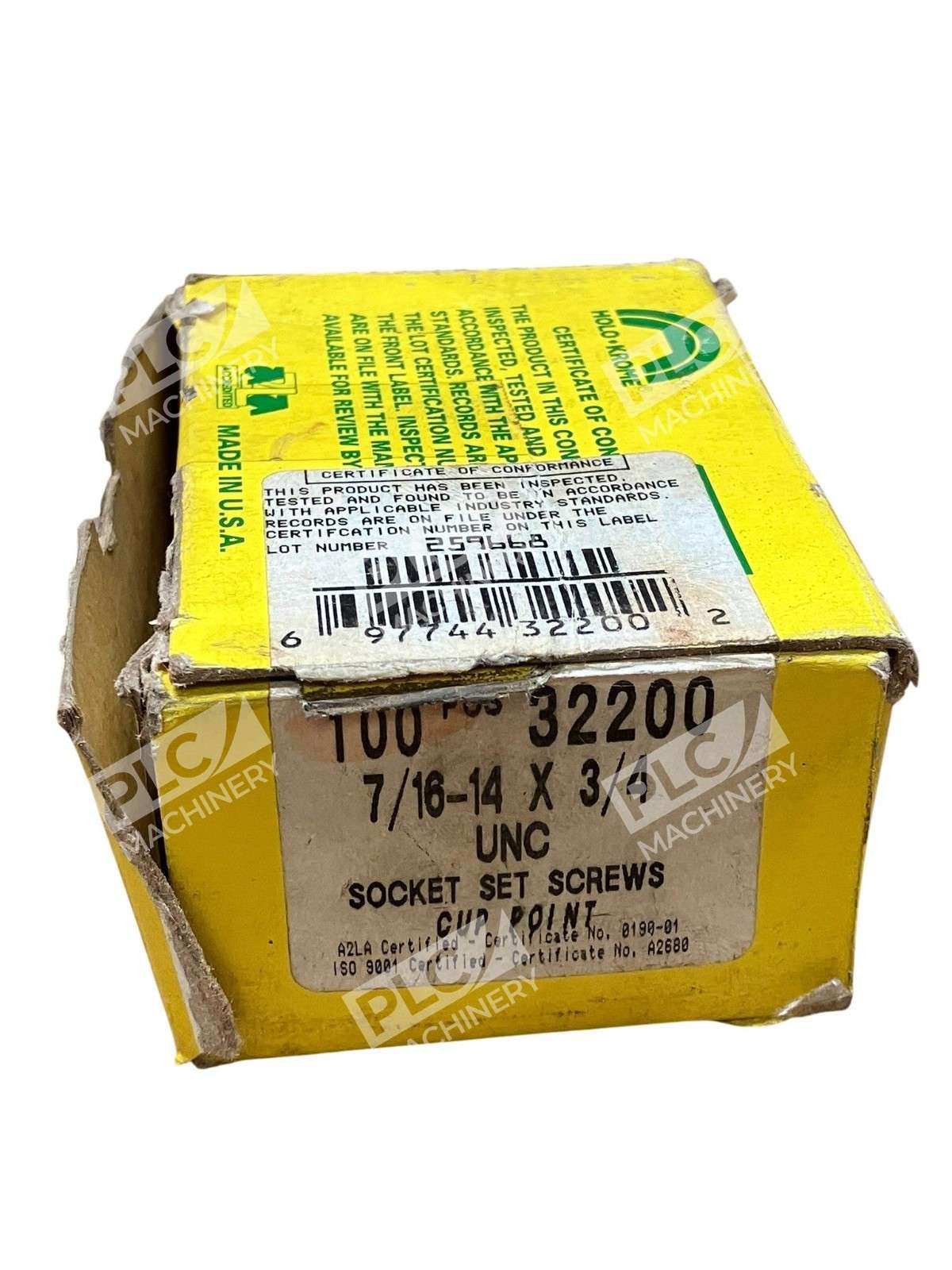

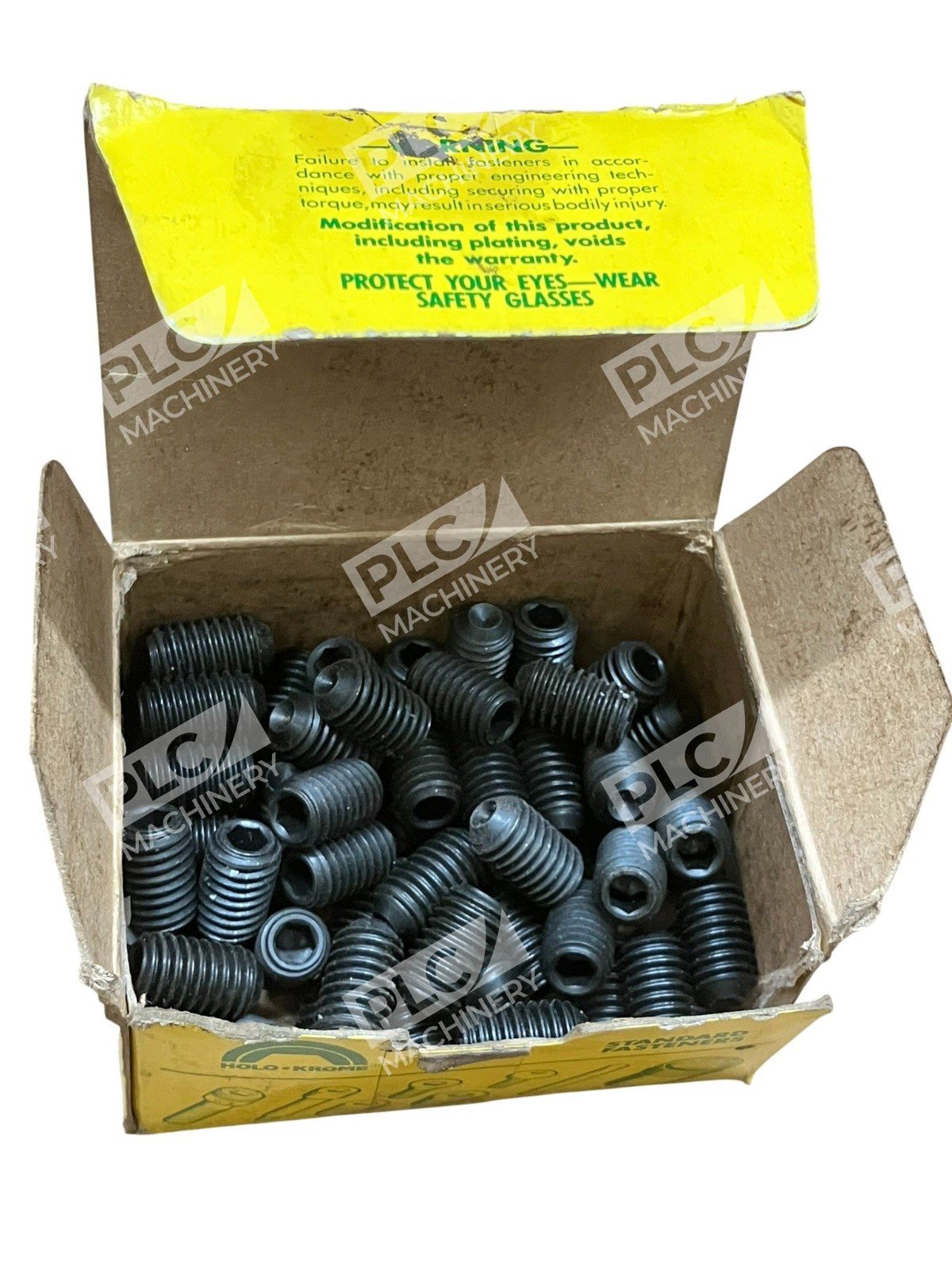

- Package Quantity: 100 pieces
- Manufacturer: Holo-Krome, Sparks, MD
Typical Applications
Cup point set screws are employed where quick and more or less permanent location of pulleys, collars, and similar components on soft shafts is required. These fasteners are ideal for machinery adjustment, bearing positioning, gear mounting, and precision gauging applications. Holo-Krome set screws are adapted for use in gauges where tamper-proof settings are necessary, and because of close engagement between key and socket, screws can be set up or adjusted without risk of key slipping.
Compatibility & Replacements
Compatible With
- Industrial rotating shaft assemblies
- Machinery requiring precision coupling and alignment
- Gauge and measurement systems
- Standard hex socket tools (7/32″ hex key)
- Soft steel and aluminum shafts (not hardened surfaces)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering.
Works With
- 7/32″ hex socket drivers
- Standard socket set screw installation procedures per ASME/ANSI B18.3
- Manual and pneumatic torque tools
