Overview

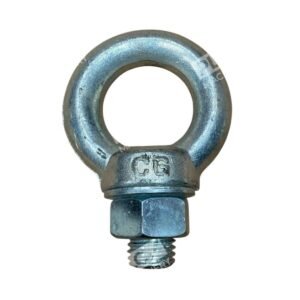

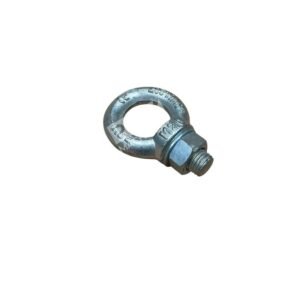

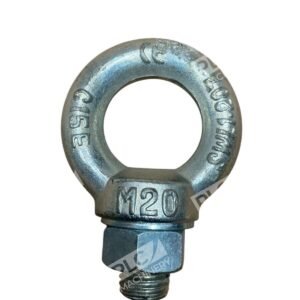

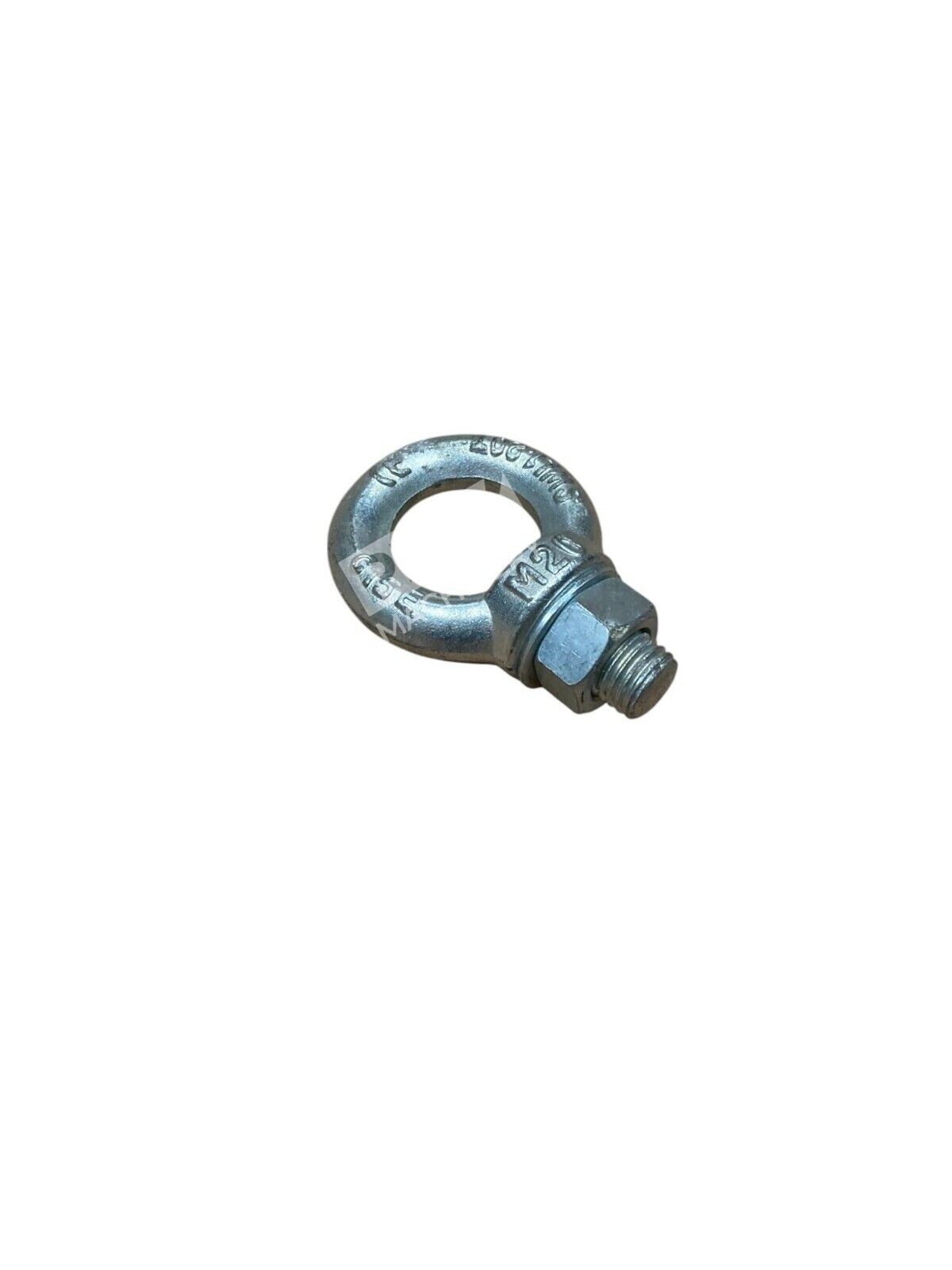

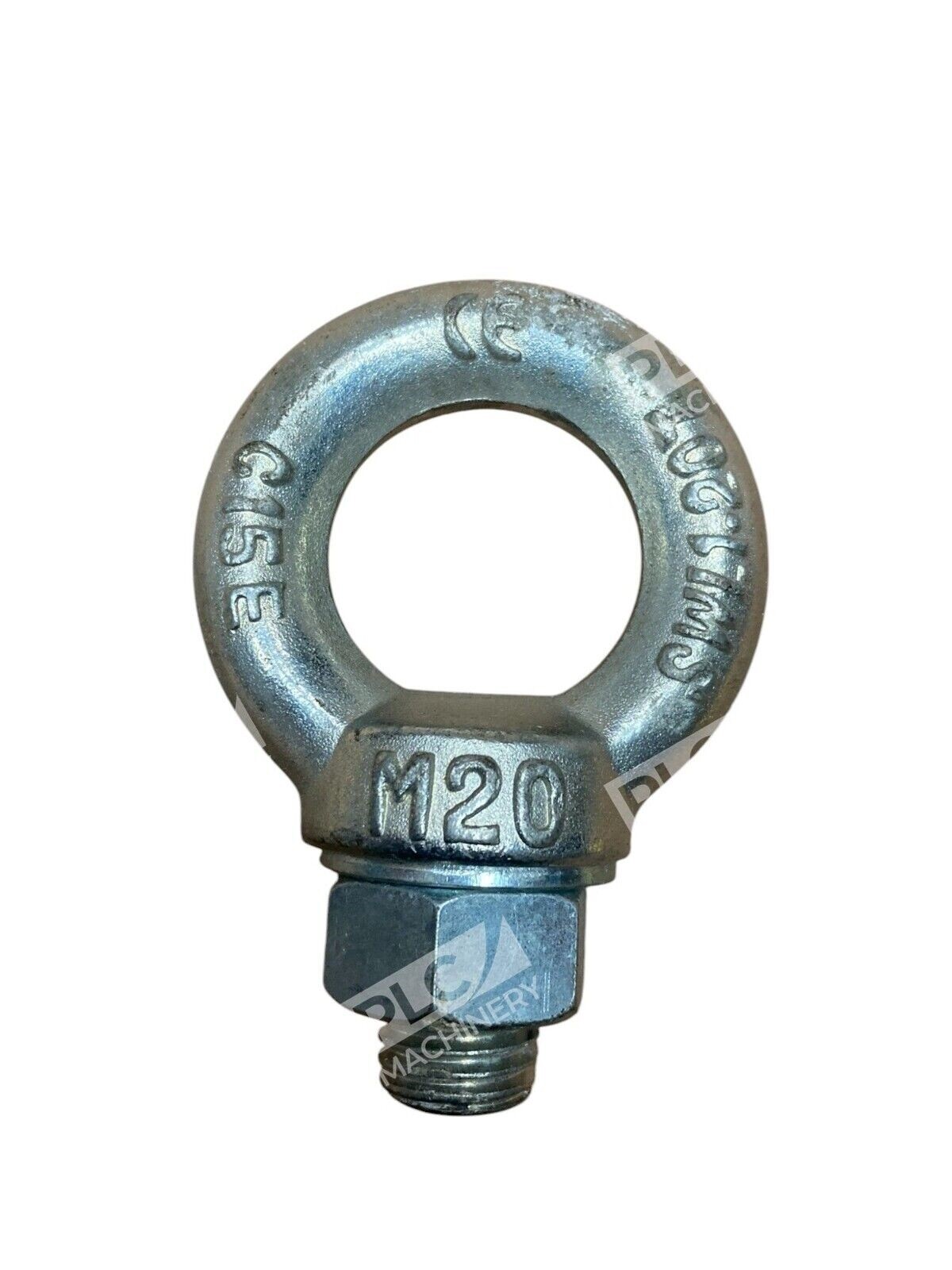

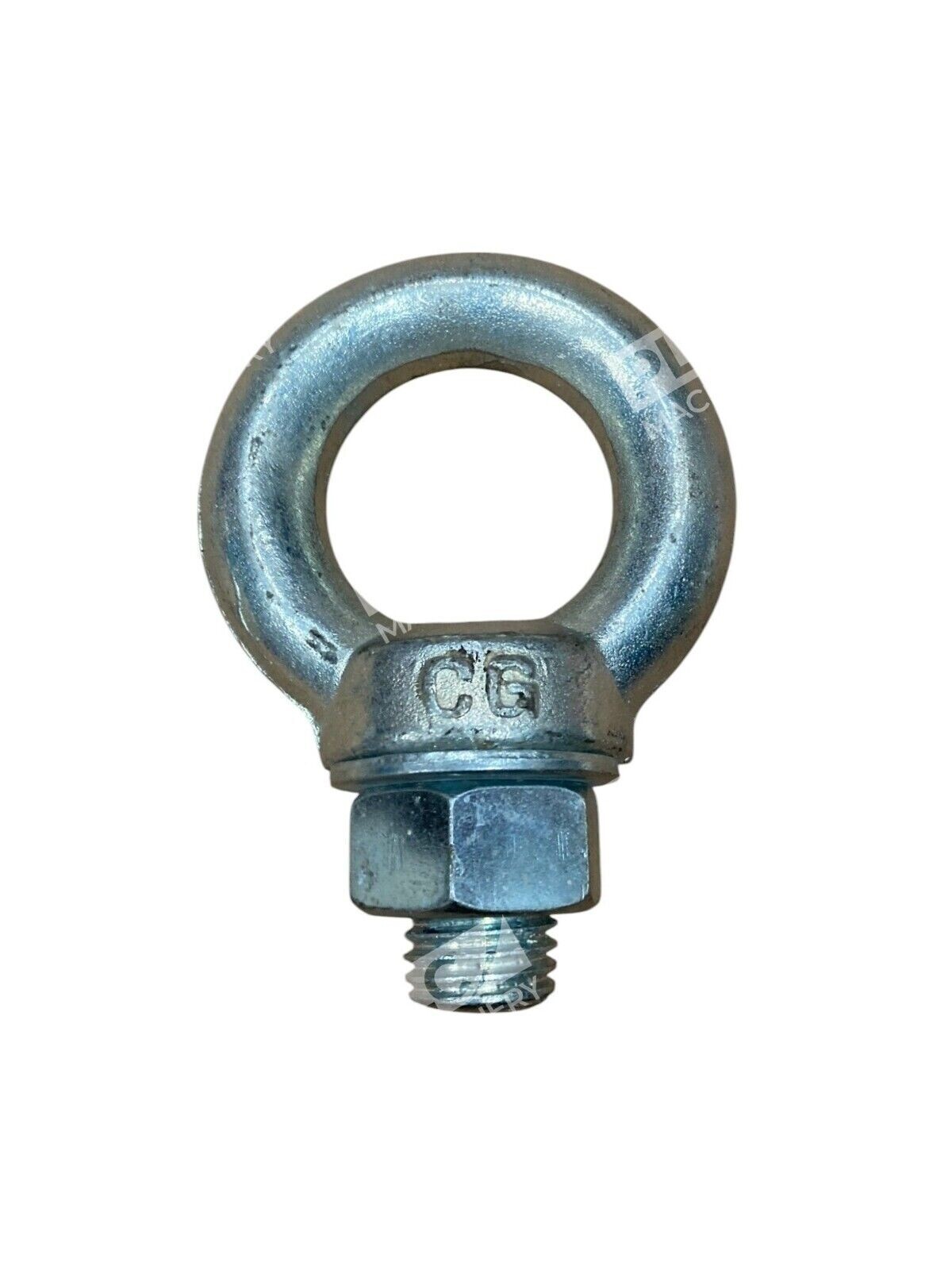

The CG C15E M20 eyebolt is a precision-forged lifting component designed for demanding rigging, material handling, and hoisting applications. Manufactured from low-carbon steel C15E and compliant with DIN 580 standards, this eyebolt provides reliable and durable performance in both indoor and outdoor environments. The metric M20 thread size and 12,000 N (1.2 tonne) working load limit make it suitable for light to moderate lifting tasks across industrial, construction, and logistics sectors.
Key Features
- DIN 580 Compliant – Meets European lifting and rigging standards for safety and performance
- Drop-Forged Construction – One-piece forged steel design ensures structural integrity without weak points
- Low-Carbon Steel C15E Material – Proven material composition for consistent strength and ductility
- CE Marking – Certified for European lifting equipment directives and safety requirements
- Metric M20 Thread – Standard thread pitch and diameter for compatibility with M20 fastening systems
- Straight-Lift Design – Optimized for vertical lifting applications; avoid angled or side-load use
Technical Specifications
- Thread Size: M20 × 2.50 mm pitch
- Material: Low-carbon steel C15E
- Finish: Plain or zinc-coated (verify with supplier)
- Shank Diameter: 40 mm
- Eye Inside Diameter: 40 mm
- Eye Outside Diameter: 72 mm
- Thread Length: 30 mm
- Working Load Limit (WLL): 12,000 N (1.2 tonne)
- Operating Temperature Range: –20°C to +200°C
- Standards Compliance: DIN 580, EN 10204, CE marked
- Eye Shape: Round
- Installation: Screw mount (threaded into anchor point)
Typical Applications
- Material handling and warehouse lifting operations
- Hoist and winch attachment points
- Rigging and sling connection hardware
- Transport and logistics equipment
- Construction and temporary support structures
- Machinery and equipment anchoring
- Load distribution and load cell mounting
Compatibility & Replacements
Compatible With
- Standard M20 threaded anchor points and fastening systems
- Chain slings, wire rope slings, and web slings rated for 1.2 tonne loads
- Lifting lugs and eye bolts in the 1–1.5 tonne capacity range
- Shackles, carabiners, and lifting hardware on DIN 580 standard equipment
- Hoists, pulleys, and mechanical lifting devices rated for M20 mounting
Replaces / Drop-In Replacement For
- Standard DIN 580 C15E M20 eyebolts from other manufacturers
- ISO 4928 compliant M20 eyebolts in the 1.2 tonne class
- OEM replacement eyebolts for material handling equipment
Works With
- All standard DIN 580 lifting equipment and rigging systems
- European lifting directive compliant machinery (Machinery Directive 2006/42/EC)
- Load testing and certification systems (TTIPM, DNV, ABS where applicable)
- Slinging and rigging software for load planning and weight distribution
