Overview

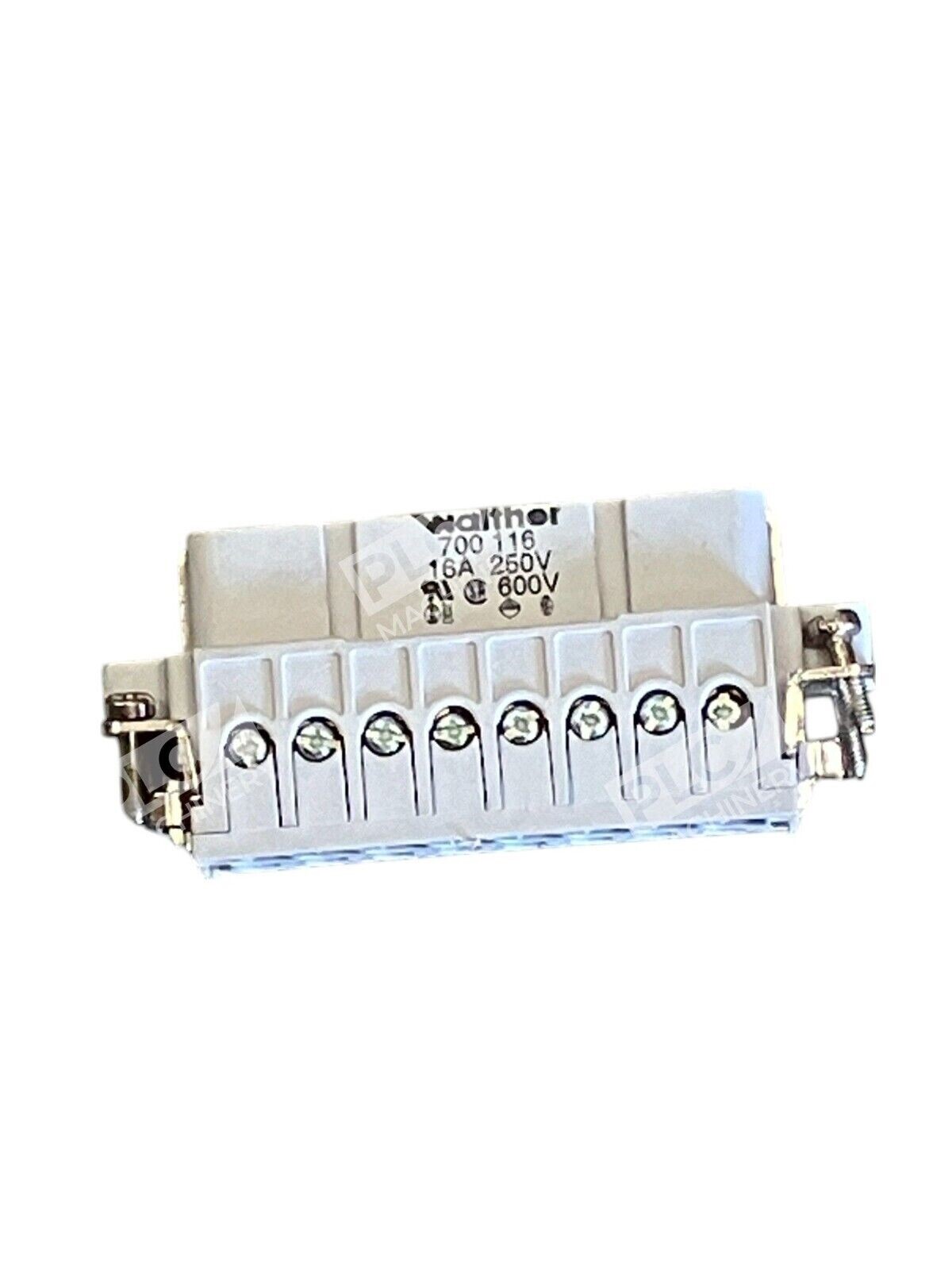

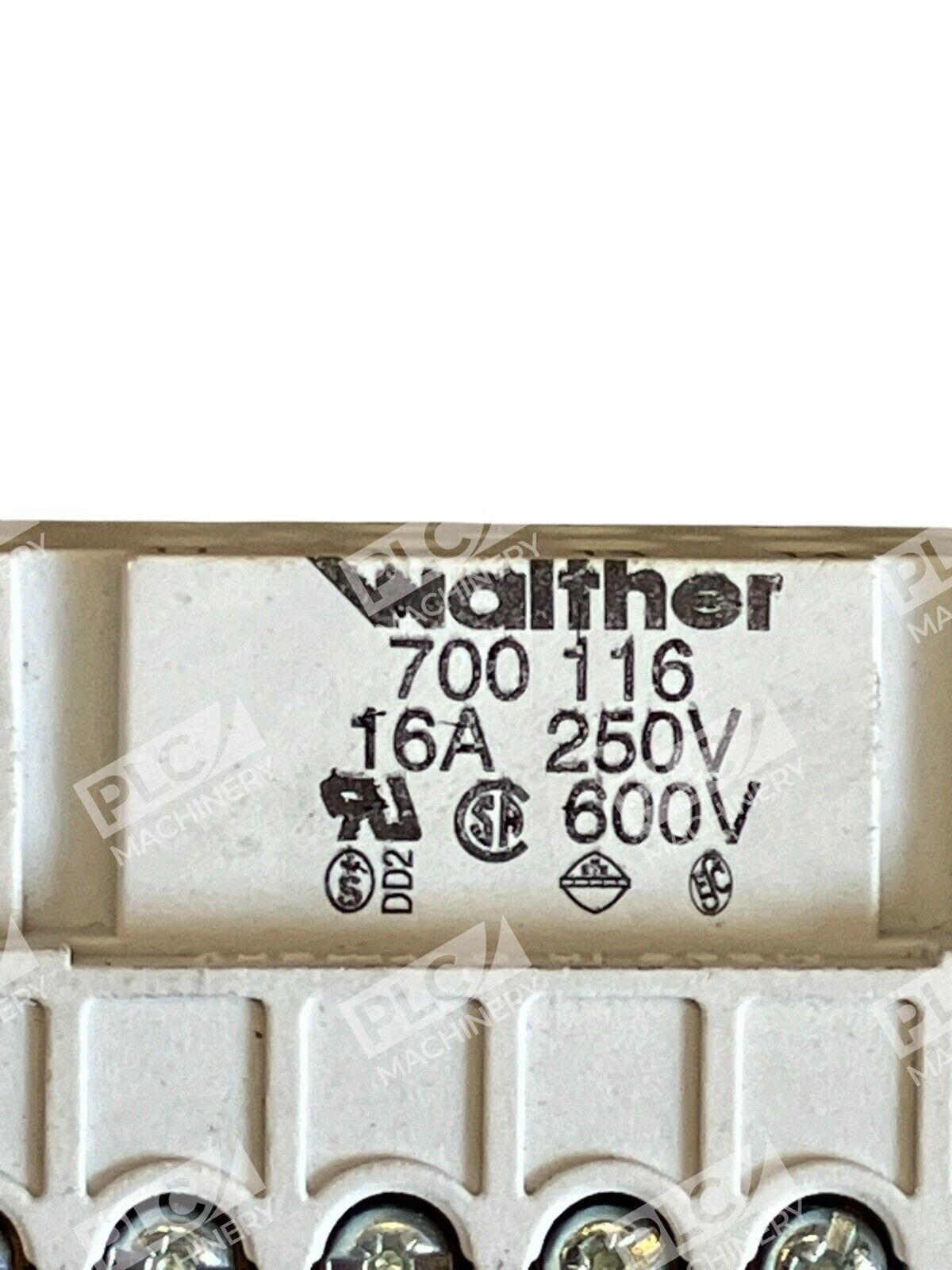

The Walther 700-116 is a female insert screw terminal connector engineered for industrial and domestic electrical applications. Rated at 16A (250V/600V), this connector delivers secure and reliable electrical connections with a proven screw-terminal design. The robust construction ensures consistent performance even in demanding environments.
Key Features
- 16 Amp contact rating for reliable current handling
- 250V and 600V rated for both AC and industrial voltages
- Screw terminal design for quick, secure wire termination
- Female insert configuration for standard Walther male connector mates
- Compact, space-efficient form factor suitable for panel and DIN rail mounting
- Long service life with minimal maintenance requirements
Technical Specifications
The following specifications are derived from manufacturer data and industry sources:
- Part Number: Walther 700-116 (also listed as A16+G)
- Connector Type: Female Insert, Screw Terminal
- Current Rating: 16 Amps per contact
- Voltage Rating: 250V / 600V
- Terminal Style: Screw (M3.5)
- Mounting Type: Panel mount (rectangular insert)
- Contact Material: Tin-plated copper
- Body Material: Phenolic or plastic compound
- Operating Temperature Range: –25°C to +80°C (typical)
- Mating Connector: Walther male pins or plug connectors
Typical Applications
The Walther 700-116 is widely used in:
- Industrial control panels and switchboards
- Machine tool electrical interfaces
- Power distribution and connection assemblies
- Domestic appliance and equipment wiring
- HVAC and building automation systems
- General industrial equipment requiring modular connector solutions
Compatibility & Replacements
Compatible With
- Walther Electric 700 series male connectors and pins
- Procon rectangular connector systems
- Standard panel-mount and DIN rail-mounted electrical systems
- IEC and industrial connector standards
- Applications requiring 16A, 250V/600V female connector inserts
Replaces / Drop-In Replacement For
- Walther 700-116 (OEM original)
- Legacy female insert terminals in equivalent 16A 250V/600V configurations
- Verify compatibility with your specific application before substitution
Works With
- Walther Electric proprietary connector mating systems
- Standard metric M3.5 screw terminal wiring practices
- IEC 61076 rectangular connector specifications
- Industrial control and power management assemblies
- Panel and enclosure wiring applications
