Overview

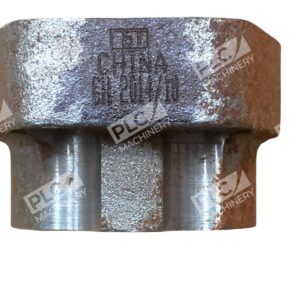

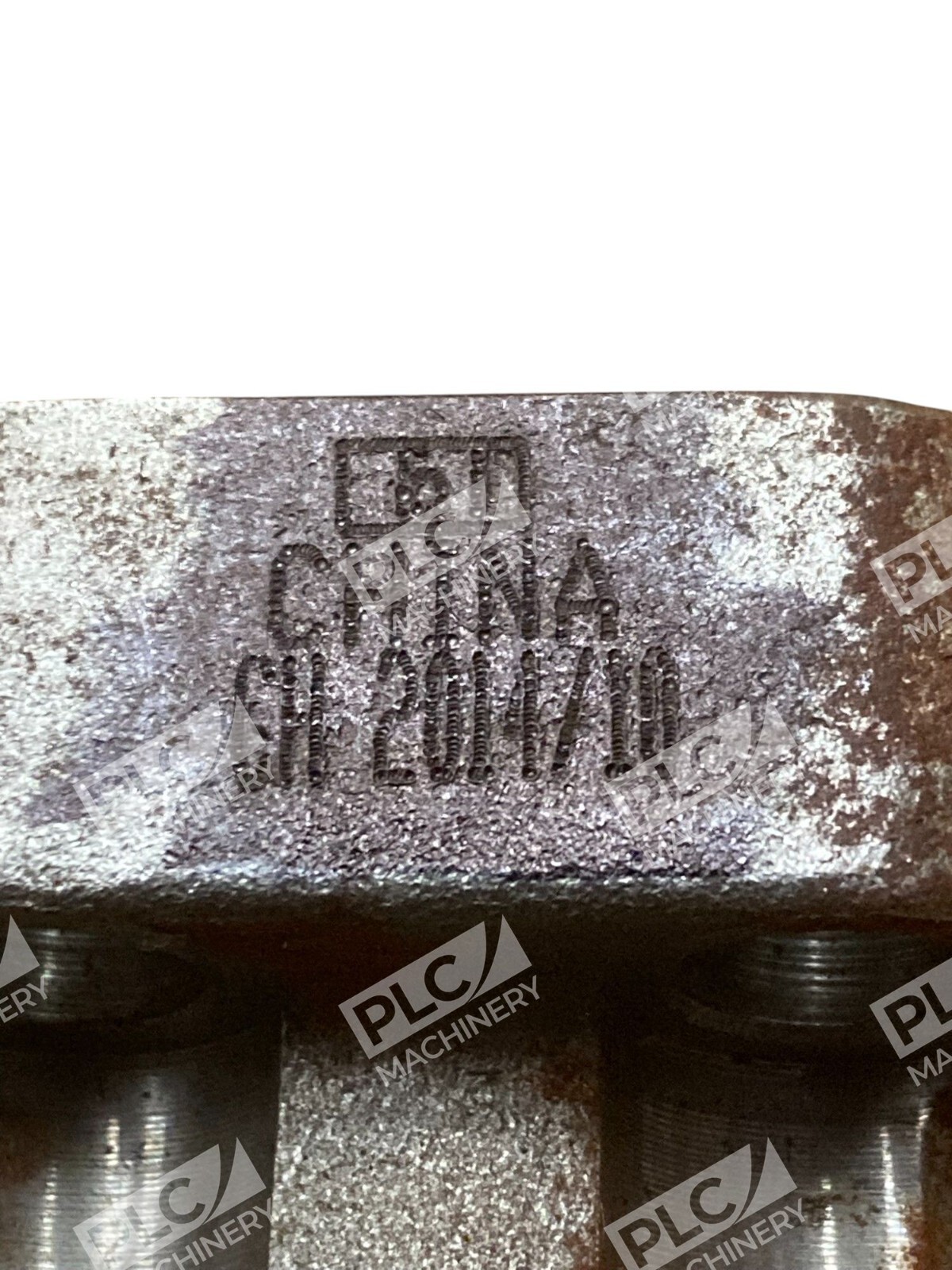

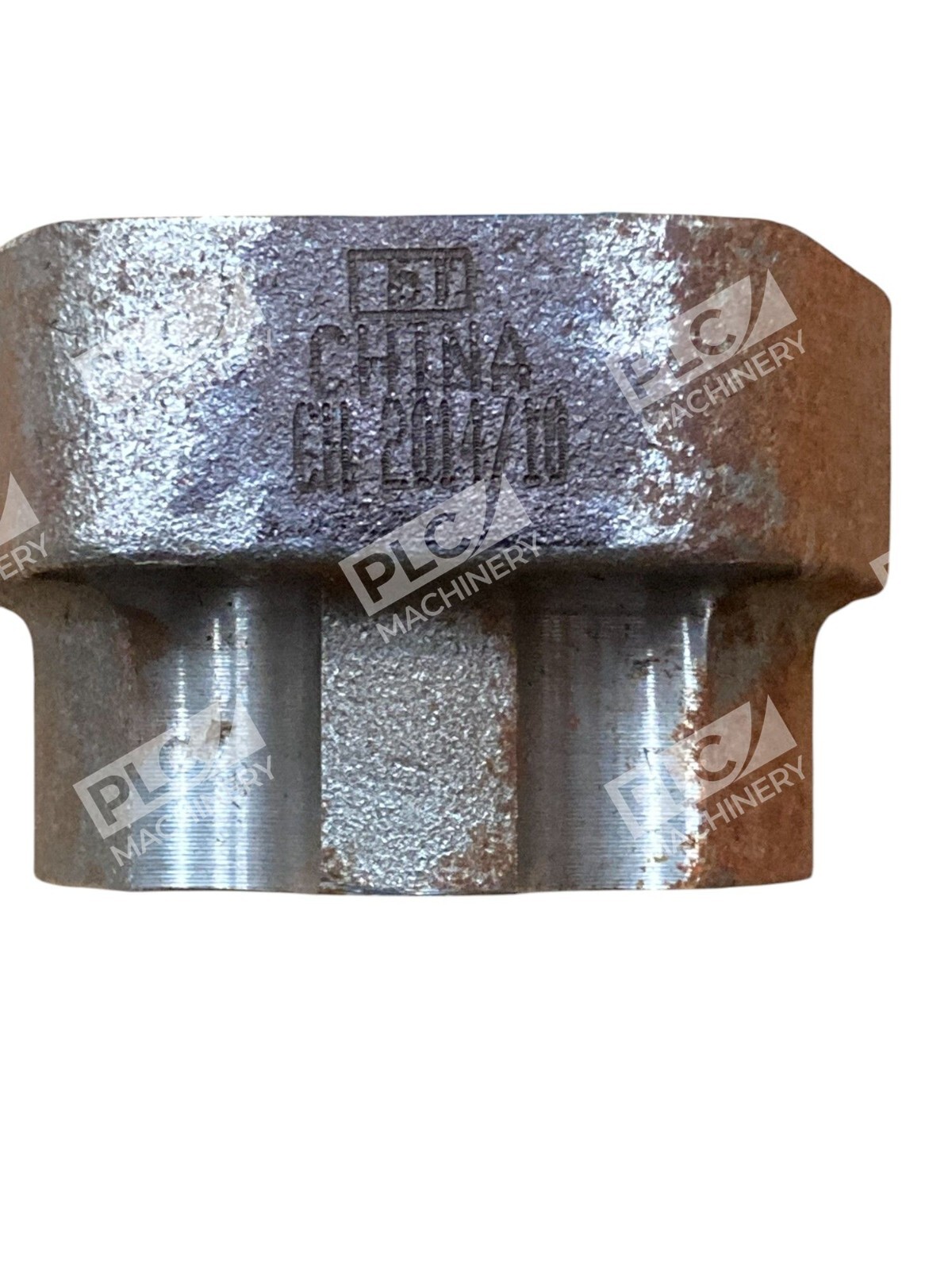

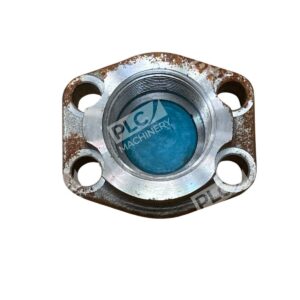

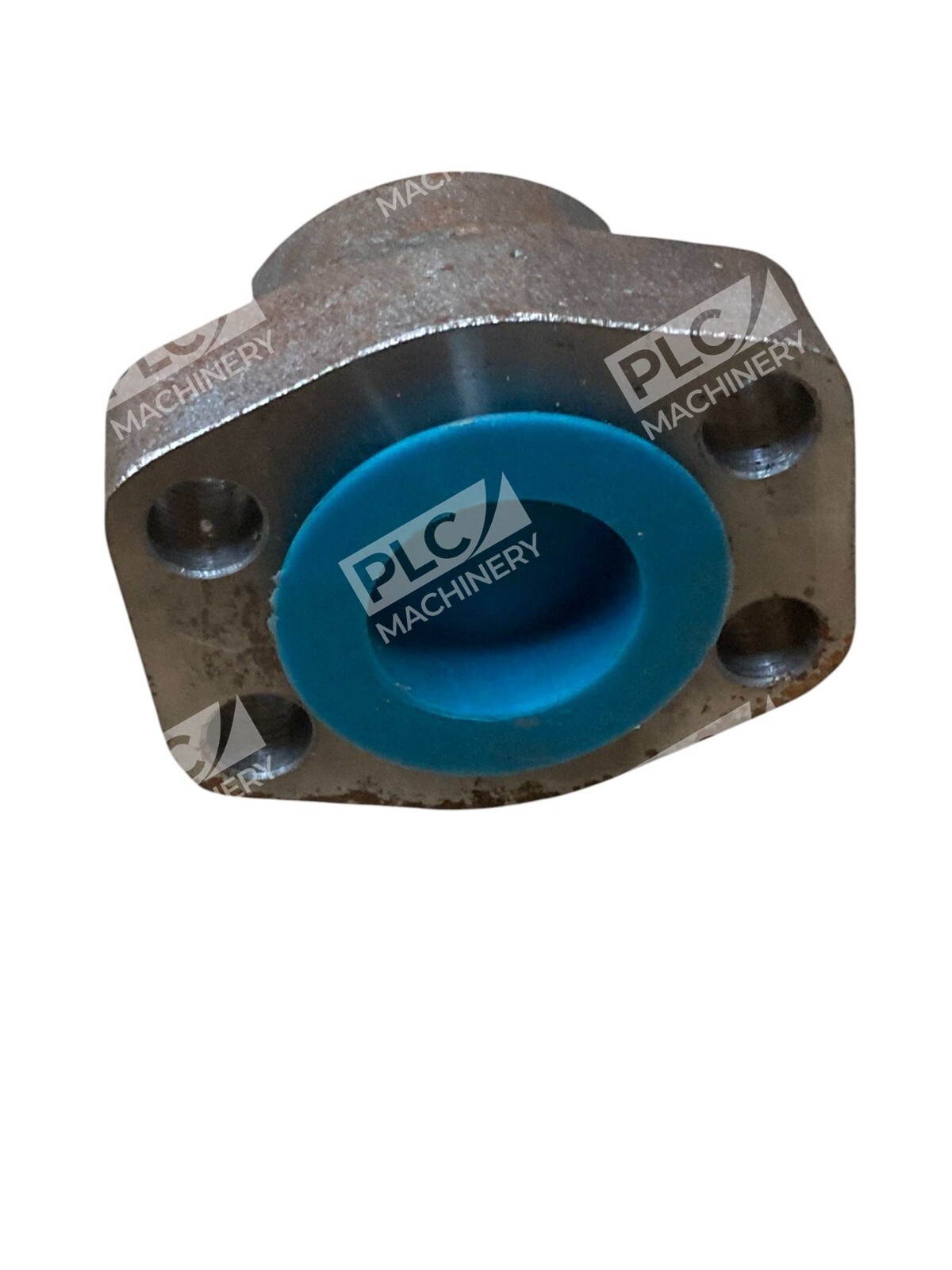

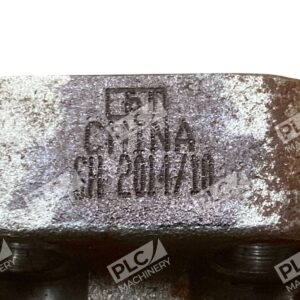

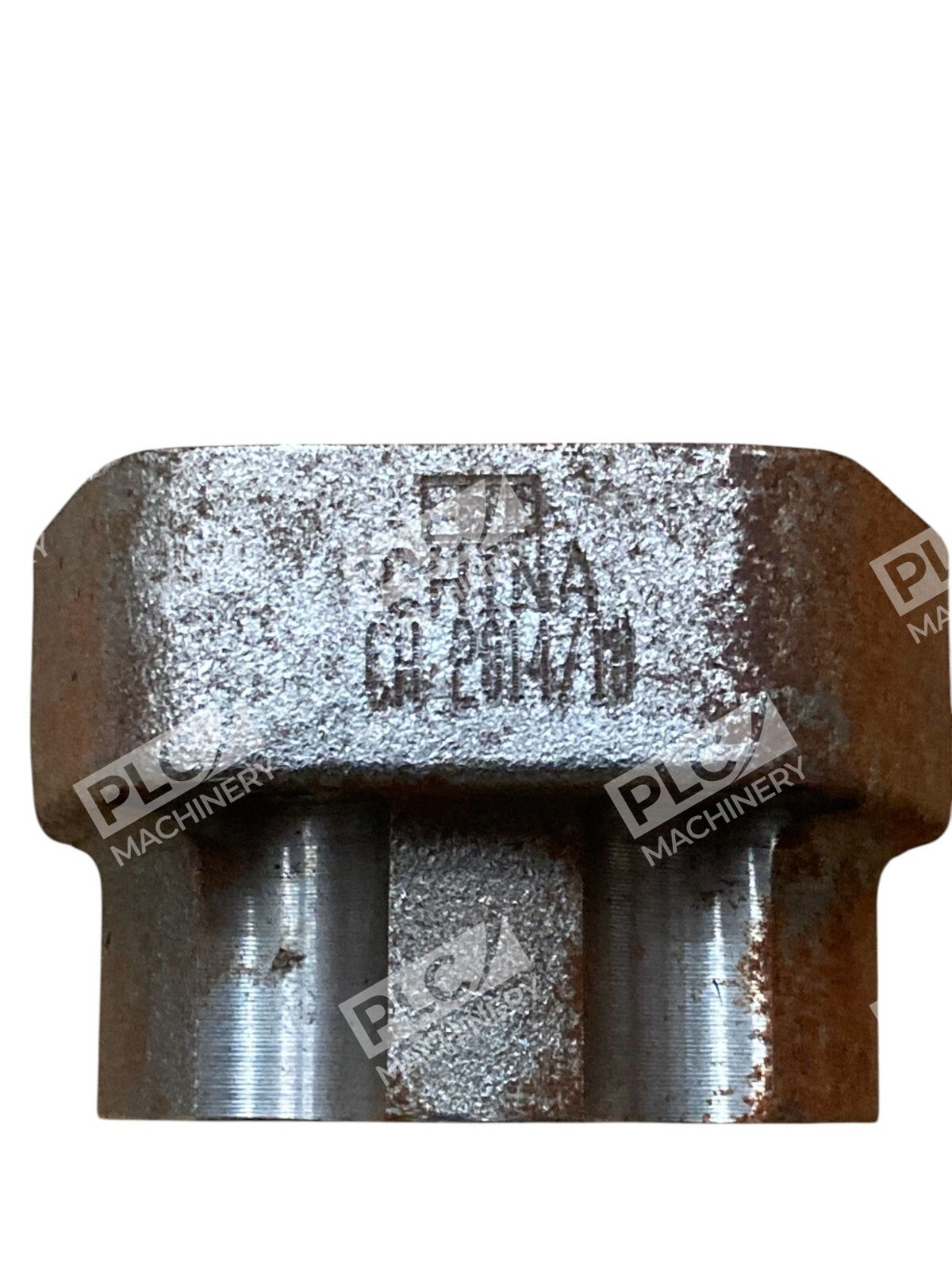

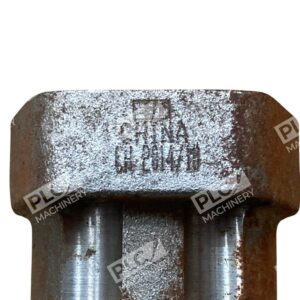

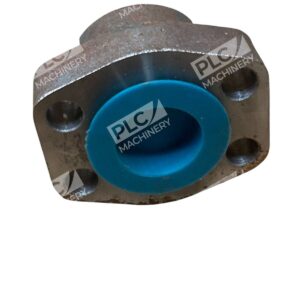

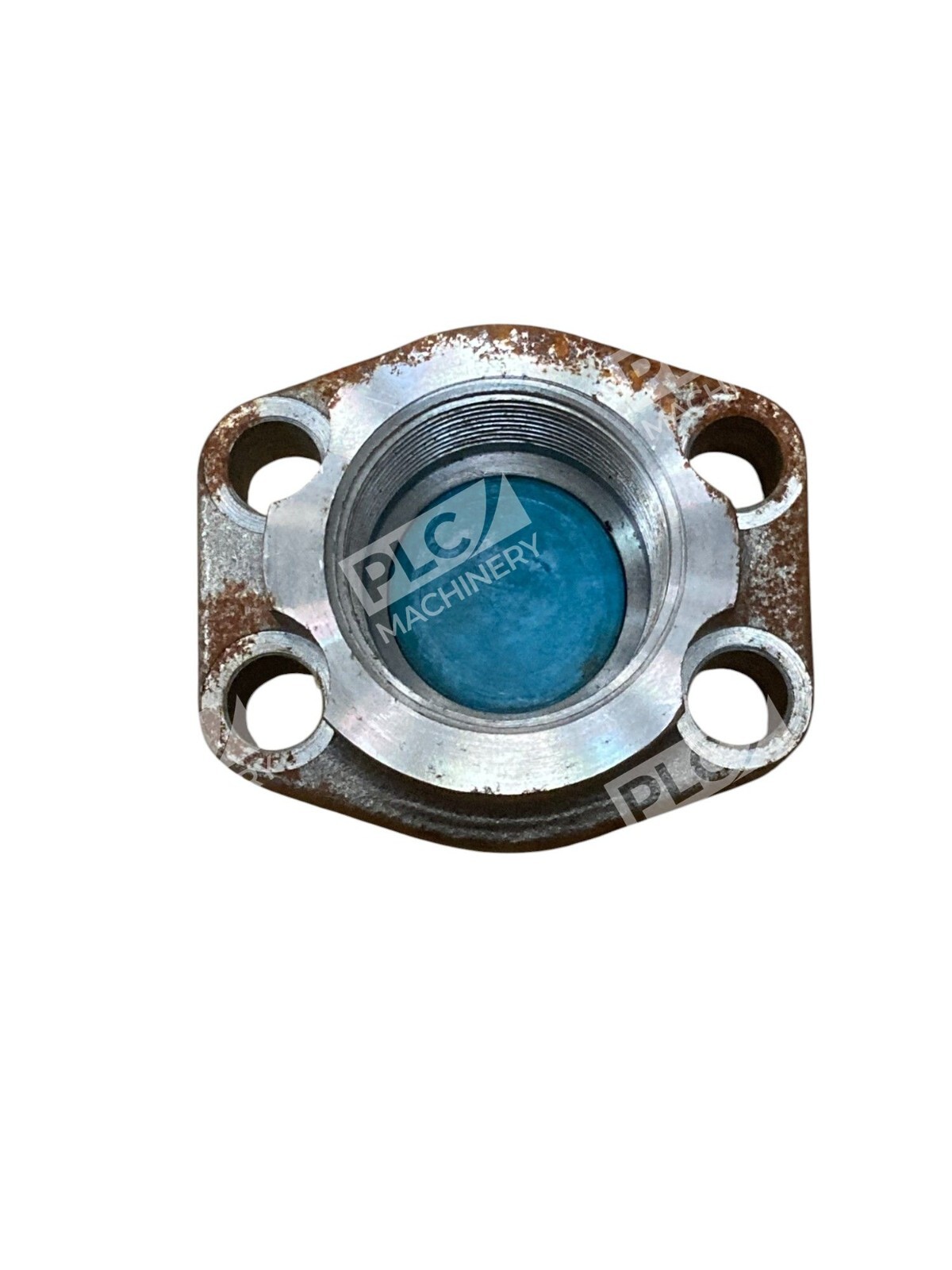

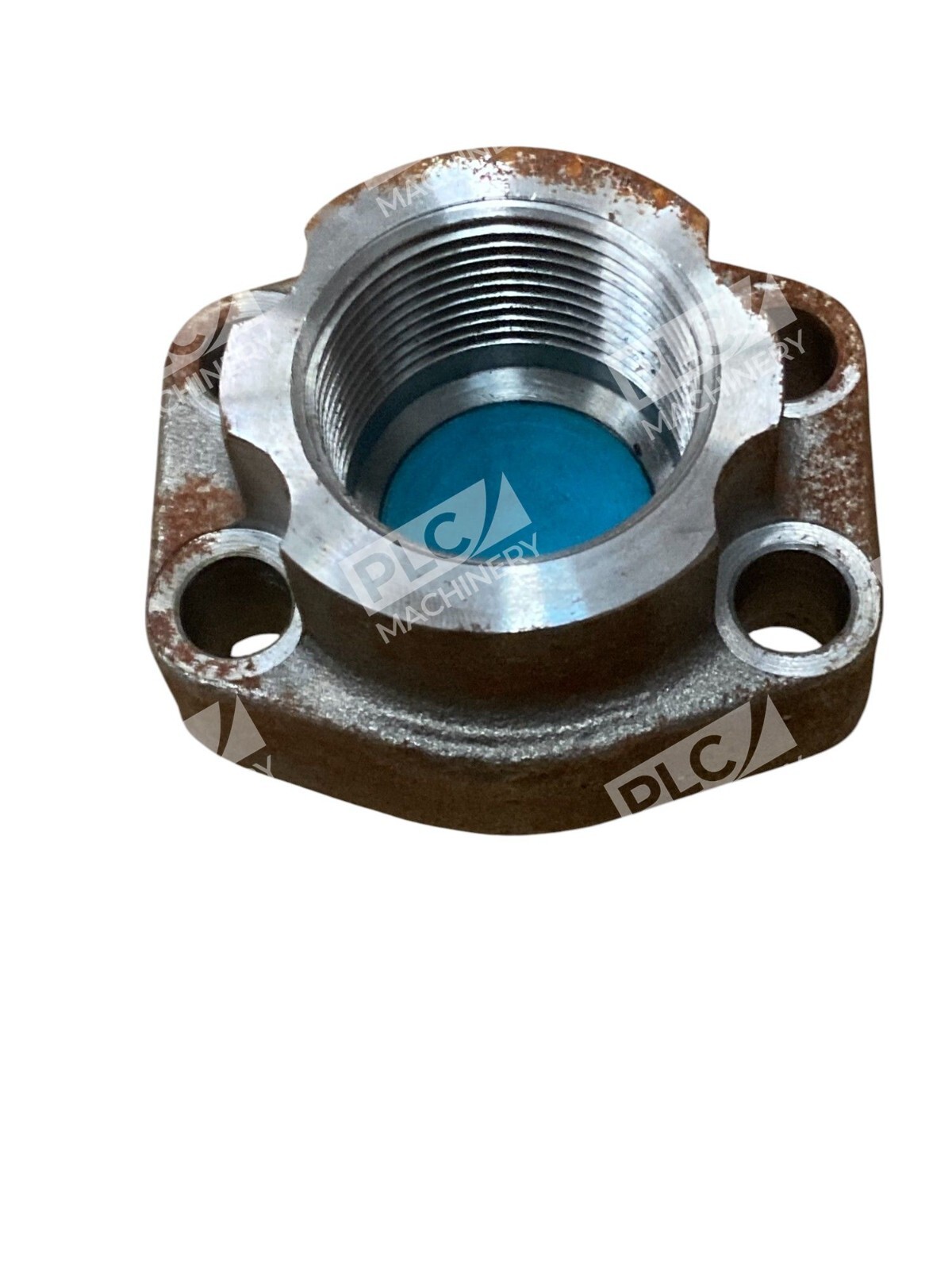

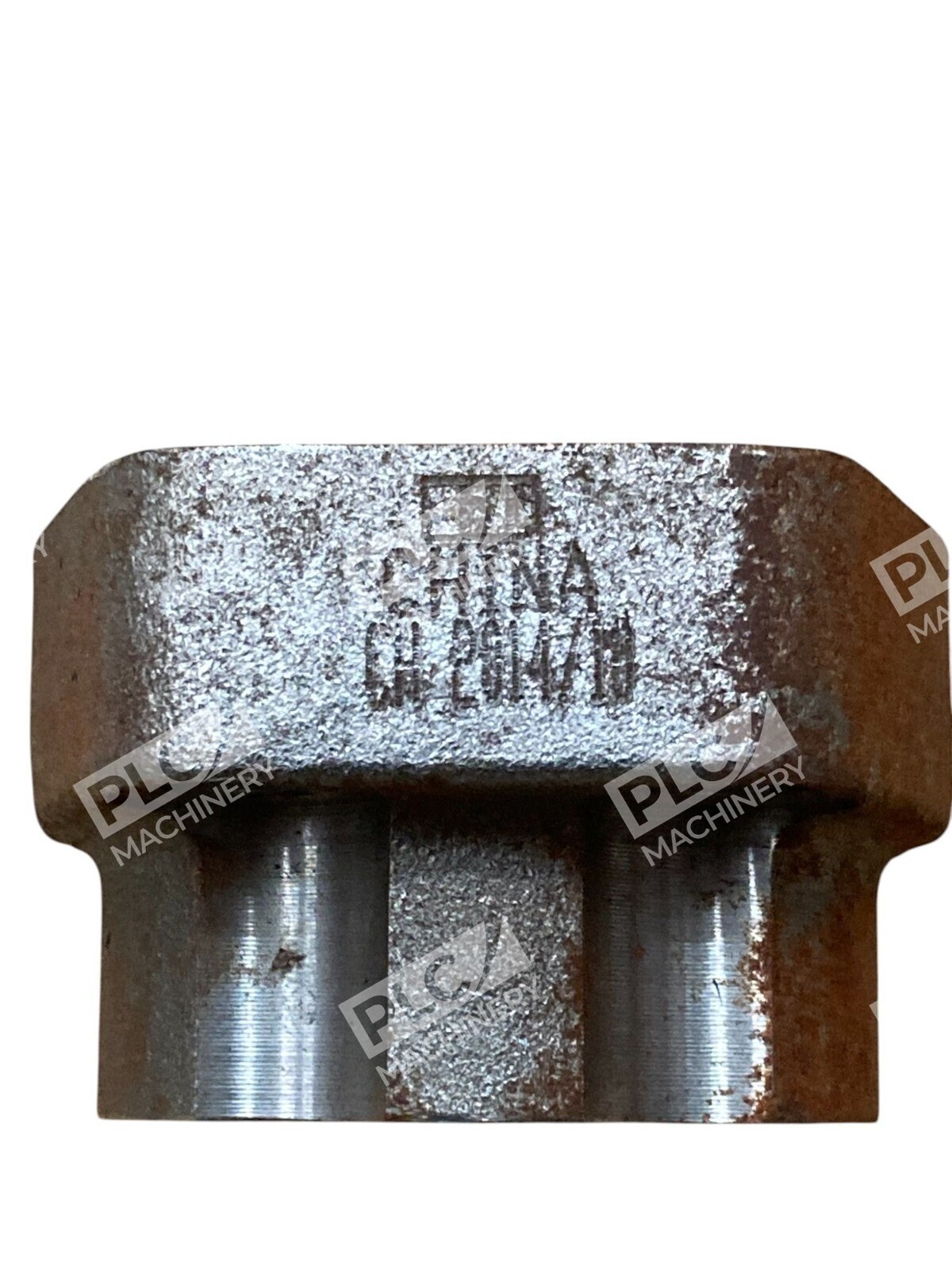

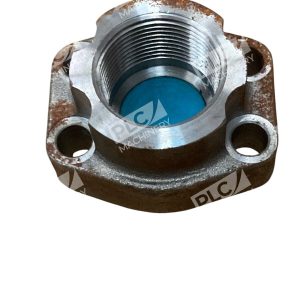

The Anchor Fluid Power 1062 four-bolt flange kit with 1-1/2″ thread provides a reliable connection solution for industrial hydraulic systems. Four-bolt hydraulic flanges have long been a trusted connection for demanding high-pressure mobile and industrial applications, using four fasteners to draw two mating flanges together. This SAE-compliant flange is manufactured from carbon steel and rated for high-pressure fluid power applications.
Key Features
- Four-bolt flange design for balanced load distribution
- One flange contains a captive O-ring and the other a smooth machined surface, with four fasteners that slip through clearance holes and screw into threaded holes, creating a leak-free connection when tightened.
- Load distribution across four fasteners reduces likelihood of joint failure due to system vibration.
- Designed for SAE Code 61 and Code 62 applications
- Carbon steel construction with anti-corrosion properties
- 1-1/2″ thread size suitable for medium to large flow systems
Technical Specifications
The 1062 flange kit is suitable for Code 61 and Code 62 high-pressure applications. Pressure ratings vary by code designation: Code 61 adapters are rated to 3,000 psi, while Code 62 configurations support up to 6,000 psi. The kit includes four mounting bolts for secure assembly.
Typical Applications
- Mobile hydraulic equipment connections
- Industrial machinery fluid power systems
- Heavy equipment hydraulic circuits
- Fixed industrial hydraulic installations requiring secure flange-to-block connections
- Oil well and mining equipment fluid power networks
Compatibility & Replacements
Compatible With
- SAE Code 61 (O-ring face) flange systems
- SAE Code 62 (flat face) flange systems
- 1-1/2″ NPT and SAE threaded ports
- Standard four-bolt flange patterns per SAE J518
- Hydraulic systems operating up to rated pressure limits
Replaces / Drop-In Replacement For
The 1062 is a direct replacement for equivalent Anchor Fluid Power four-bolt flange kits with 1-1/2″ thread specifications. Verify the exact Code designation (61 or 62) and port configuration required for your system before ordering.
Works With
- SAE J518 standard hydraulic systems
- ISO 1219 compatible fluid power circuits
- Hydraulic hose and fitting assemblies (NPT, SAE, ORFS configurations)
- Industrial pump and motor systems
- Valve and actuator flange connections
