Overview

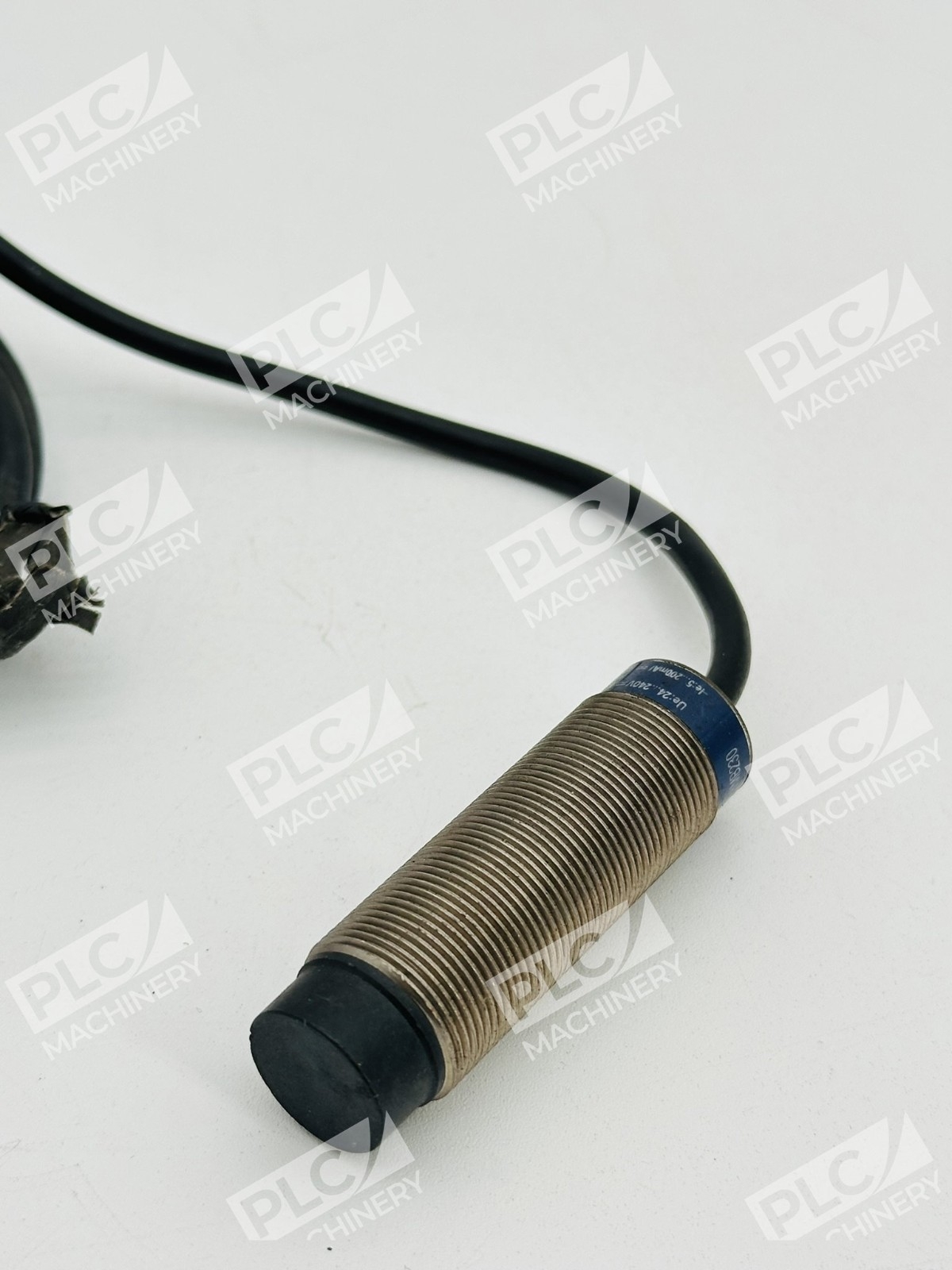

The Telemecanique XS2M18MB230 is an M18 cylindrical inductive proximity sensor designed for metal object detection in manufacturing, material handling, and process automation. This model combines reliable electromagnetic sensing technology with a durable brass-body construction, making it suitable for high-temperature and corrosive environments. The sensor operates across a wide voltage range, providing flexibility in legacy and modern control systems.
Key Features
- M18 cylindrical form factor for compact mounting in tight spaces
- Nickel-plated brass body for corrosion resistance
- Wide supply voltage range: 24–240VAC/DC
- 8 mm sensing distance (Sn) for reliable object detection
- 2-meter cable for flexible installation
- Standard inductive switching (metal detection only)
Technical Specifications
- Sensor Series: XS2 M18
- Sensing Technology: Inductive proximity (ferrous/non-ferrous metals)

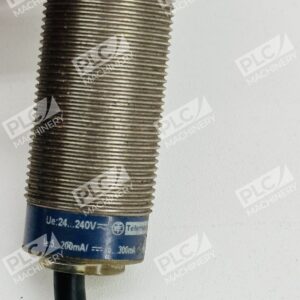

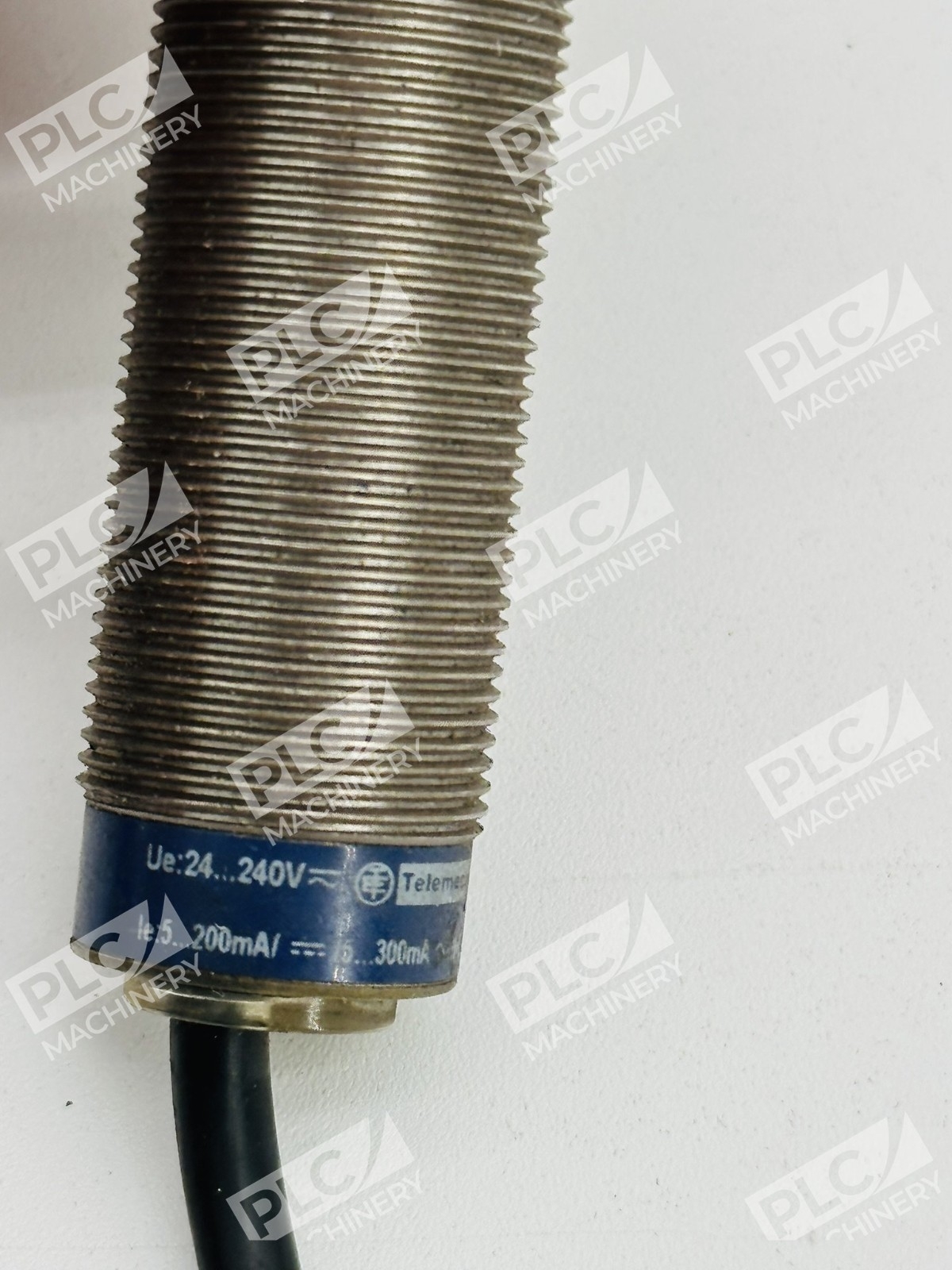

- Rated Supply Voltage: 24–240 VAC/DC
- Switching Capacity: 300 mA (AC with overload/short-circuit protection)
- Sensing Distance (Sn): 8 mm (adjustable range)

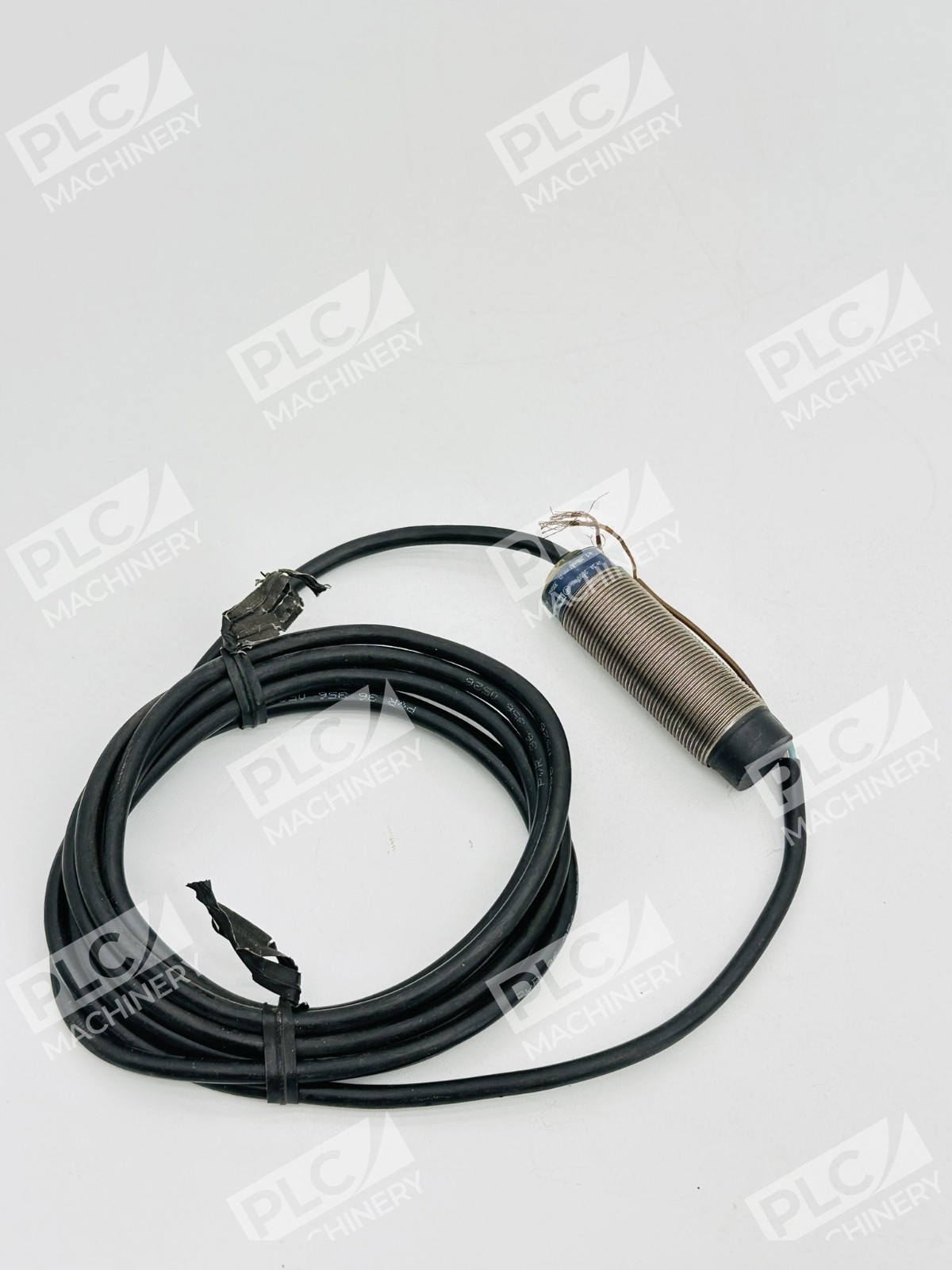

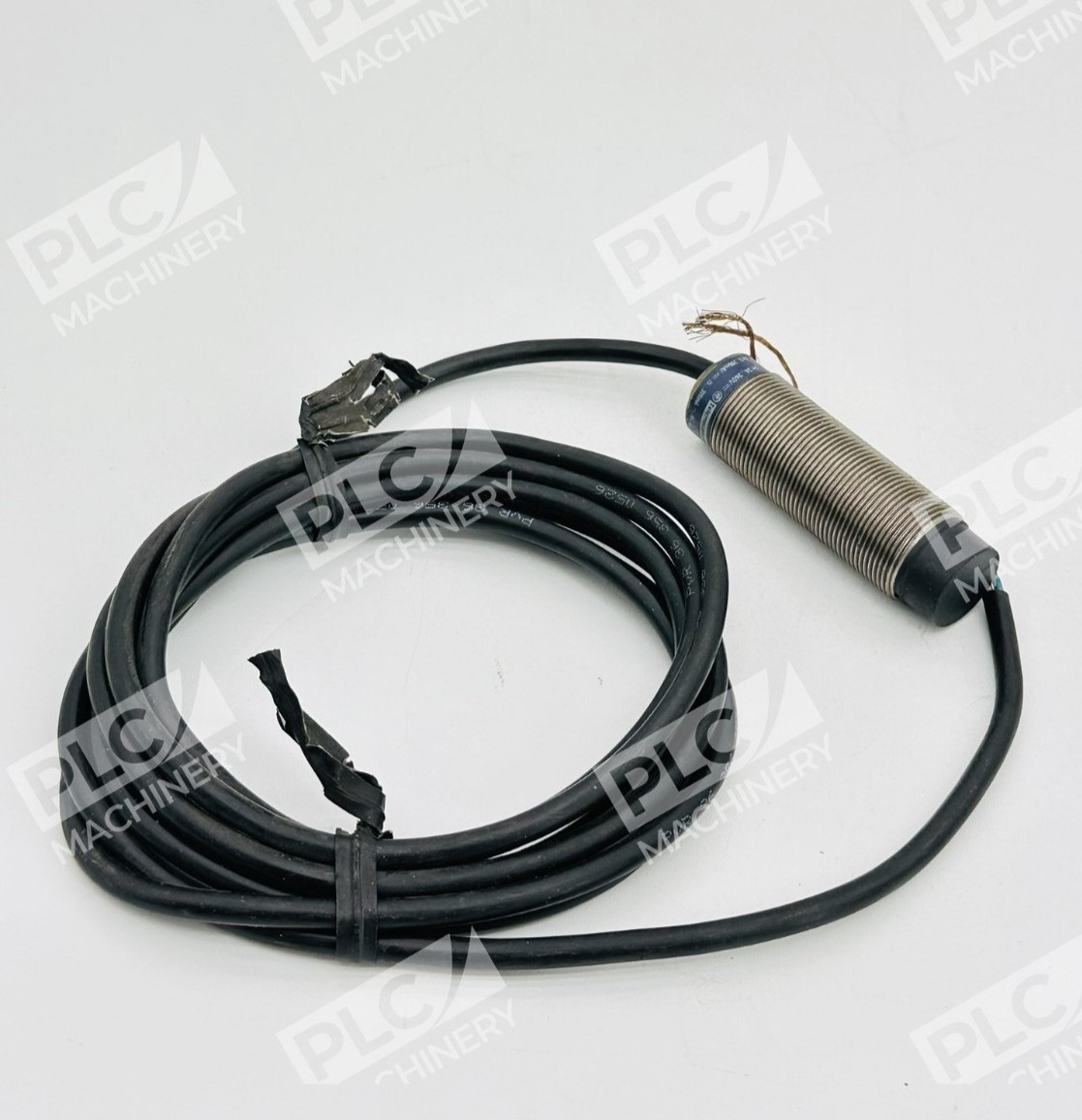

- Cable Length: 2 meters

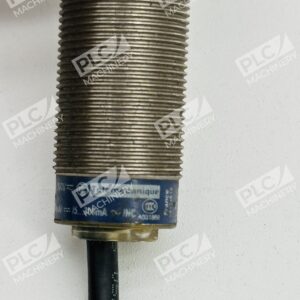

- Housing Material: Nickel-plated brass
- IP Rating: IP68 (sealed, suitable for washdown)
- Operating Temperature: Industrial range (verify with data sheet)
- Connector Type: Fixed cable
- Switching Frequency: 2000 Hz typical
Typical Applications
- Conveyor belt systems and position detection
- Machine tool part counting and feeder verification
- Automated assembly line object presence sensing
- Material handling and robotic arm end-of-travel detection
- Production flow control and part sorting
- Level sensing and fill detection in hoppers
Compatibility & Replacements
Compatible With
- PLC discrete input modules (24 VDC logic)
- Industrial control systems with 24–240V supply rails
- Legacy and modern automation platforms (Rockwell, Siemens, Mitsubishi, Omron, Schneider Electric)
- Standard relay and contactor coil circuits
- SCADA and DCS systems with analog/digital input cards
Replaces / Drop-In Replacement For
This model is obsolete. Verify compatibility with your system integrator or Telemecanique/Schneider Electric application support before ordering. Consider XS4P18M, XS1M18M, or equivalent M18 brass-body models from the current XS range for upgrades.
Works With
- Fixed-cable integration in hardwired control circuits
- PLC analog/digital input terminals
- Industrial relay logic and hardwired panels
- 24 VDC and 240 VAC distribution networks
- Standard automation wiring and termination practices
