Overview

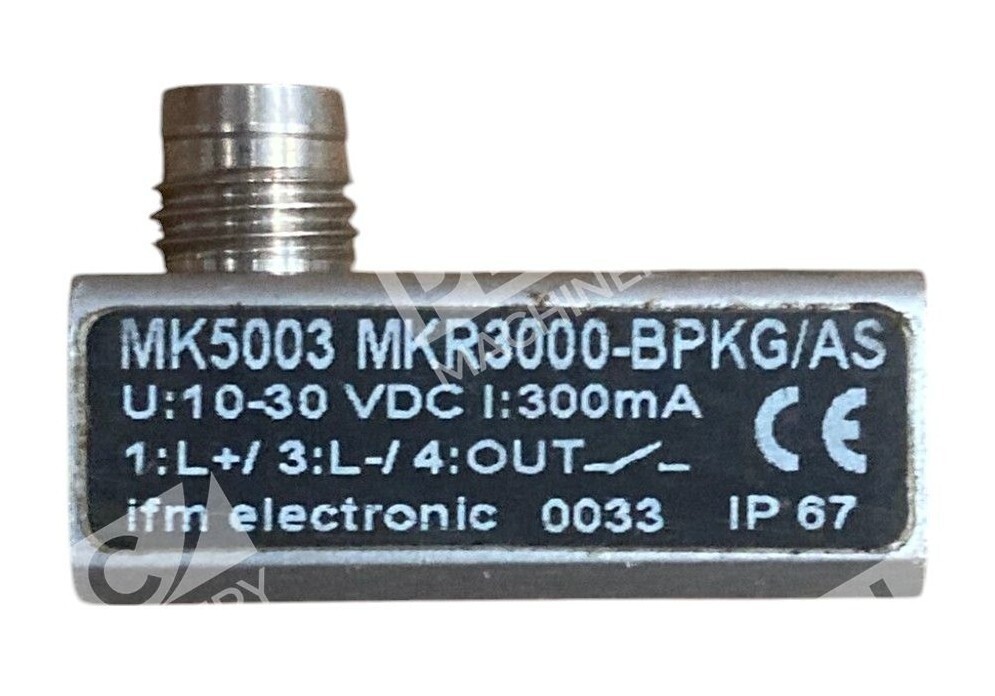

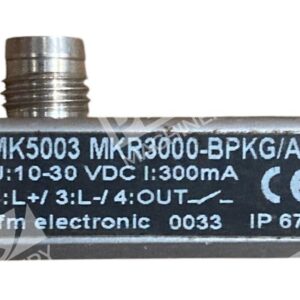

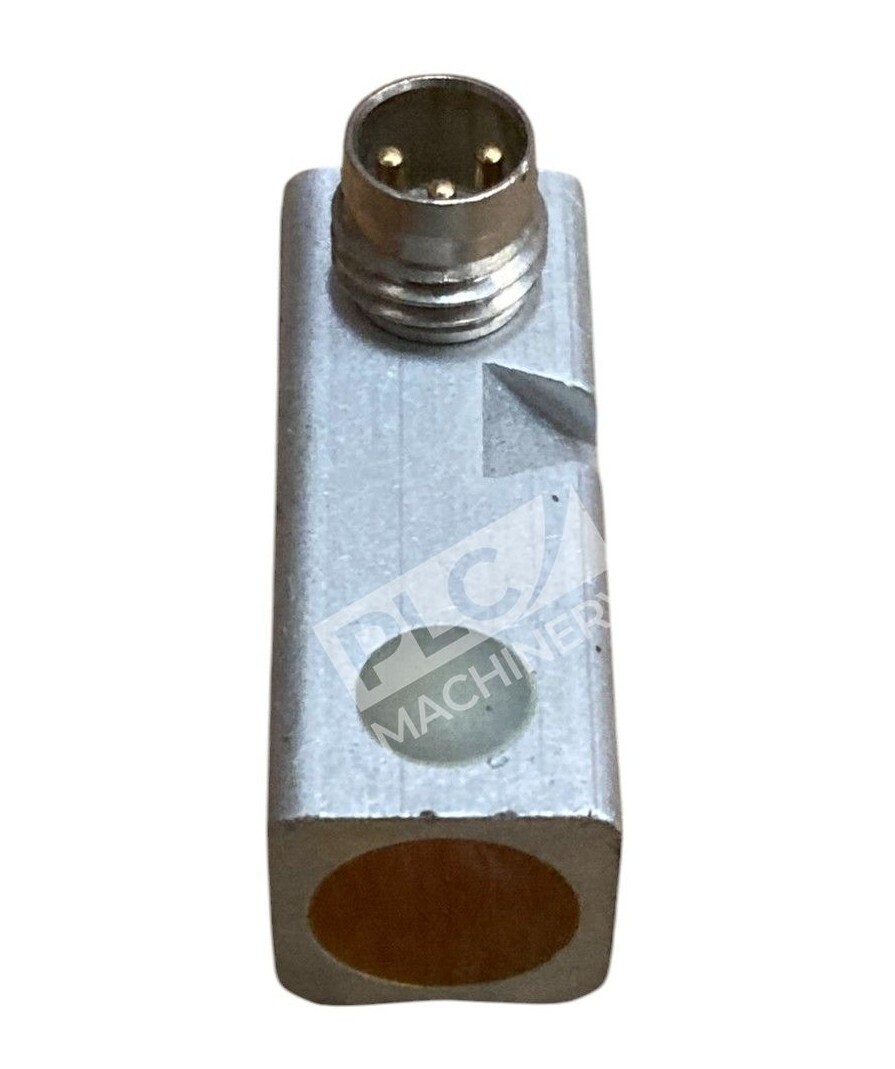

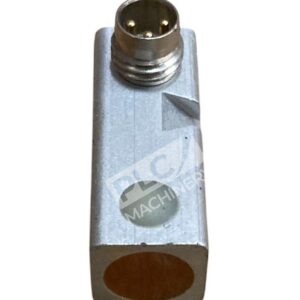

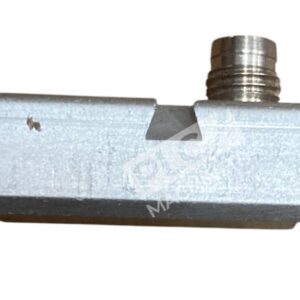

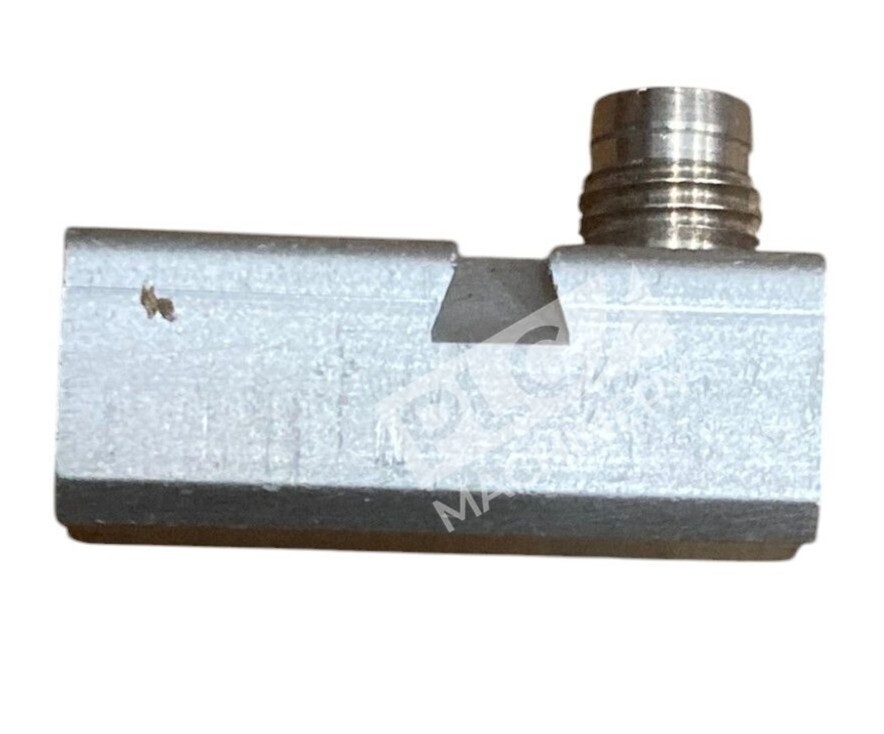

The IFM MKR3000-BPKG/AS (MK5003) inductive proximity sensor is a solid-state detection device designed for motion control and industrial automation applications. Part of IFM’s EFECTOR line, this sensor offers reliable sensing of ferrous and non-ferrous metal targets with no moving parts. The 10-30VDC DC-powered design delivers a 300mA PNP normally-open (NO) output with integrated M8 connector and 6 ft cable assembly, making it suitable for tight mounting spaces and retrofit installations.
Key Features
- PNP normally-open output for direct integration with standard industrial controls
- M8 threaded connector (3-pin Pico plug configuration) enables quick disconnects and sensor swaps
- 6 ft cable included—no custom harness fabrication required
- Wide 10-30VDC supply range tolerates voltage sag in industrial power systems
- 300mA rated output supports multiple control inputs or LED indicators
- Compact cylindrical housing designed for mounting on cylinders, slides, and machine frames
Technical Specifications
- Supply Voltage: 10-30 VDC
- Output Current: 300 mA (maximum)
- Output Type: PNP normally open
- Connector: M8 threaded, 3-pin
- Cable Length: 6 feet
- Sensing Technology: Inductive (detects ferrous & non-ferrous metals)
- Housing Material: Brass or stainless steel (variant dependent)
- Manufacturer: IFM Electronic (EFECTOR series)
- Series: MKR3000
- Part Number: MKR3000-BPKG/AS
Typical Applications
- Pneumatic and hydraulic cylinder end-of-stroke detection
- Conveyor and linear motion control
- Automated gate and hatch position sensing
- Stackers, lifts, and material handling equipment
- Machine tool workpiece presence detection
- Factory automation and assembly line integration
Compatibility & Replacements
Compatible With
- PLC digital input modules (24VDC-rated)
- Industrial relays and contactor coils
- Counter and timer circuits
- Safety controllers and E-stop circuits
- Variable frequency drives (VFD) and soft starters
- Motion controllers and servo amplifiers
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or refer to the original equipment manufacturer documentation before ordering. The MKR3000-BPKG/AS is designed as a direct replacement for other EFECTOR MKR-series sensors with identical M8 connector pinout and voltage/current ratings.
Works With
- 24VDC control circuits (PLC input modules)
- Industrial logic controllers (Allen-Bradley CompactLogix, ControlLogix; Siemens S7-1200, S7-1500)
- Discrete hardwired relay logic
- PROFIBUS and EtherNet/IP gateways (via appropriate gateway modules)
- Standard M8 female receptacle connectors and industrial quick-disconnects
