Overview

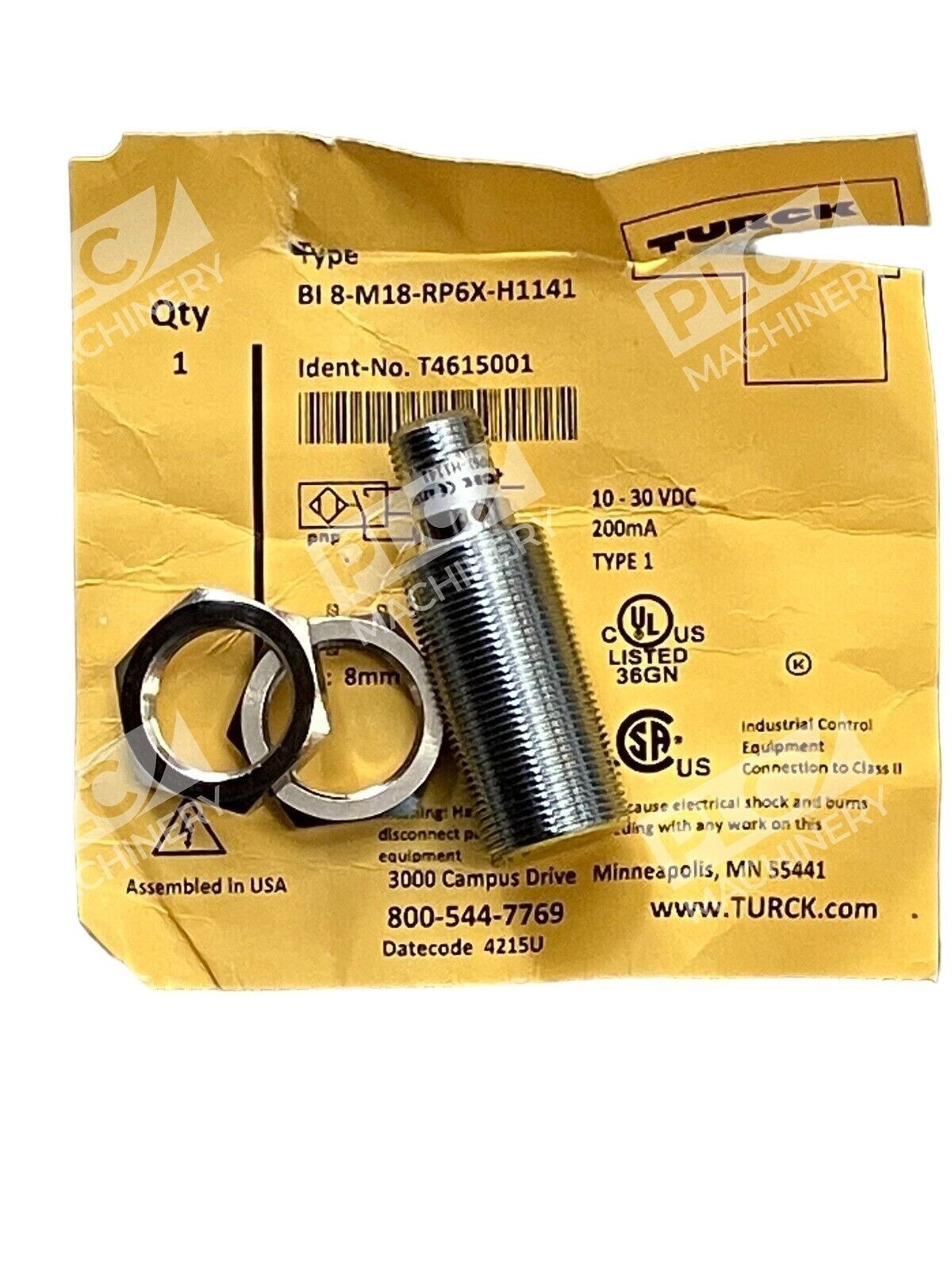

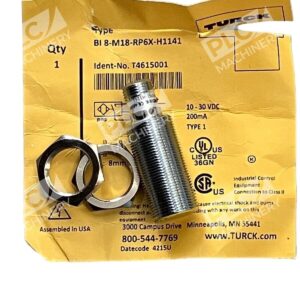

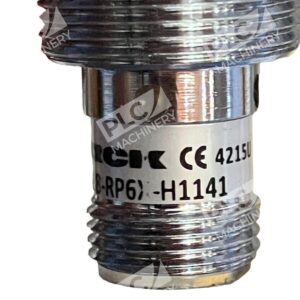

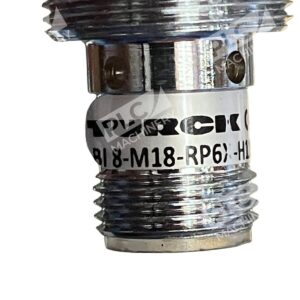

The Turck BI8-M18-RP6X-H1141 is a compact inductive proximity sensor designed for metal object detection in industrial automation applications. With an 8mm rated sensing distance and flush-mount M18 barrel housing, this sensor delivers reliable, contactless target detection using a high-frequency electromagnetic field. The cylinder detects ferrous and non-ferrous metals without wear, making it ideal for positioning control, counting, and part inspection in space-constrained environments.
Key Features
- 8mm sensing distance with flush-mount M18×1 threaded barrel for easy integration
- PNP output with 200mA load capacity and NO (normally open) configuration

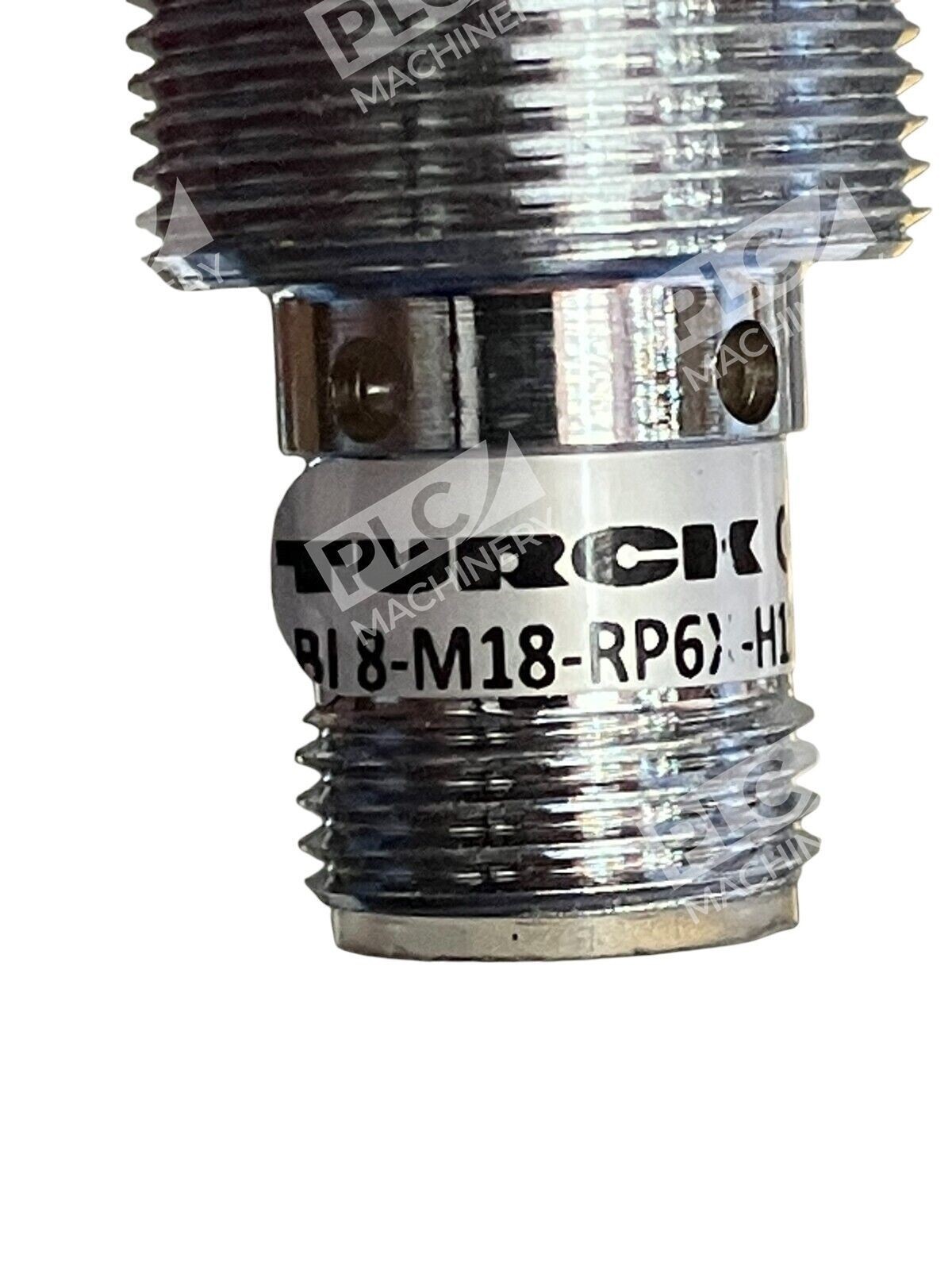

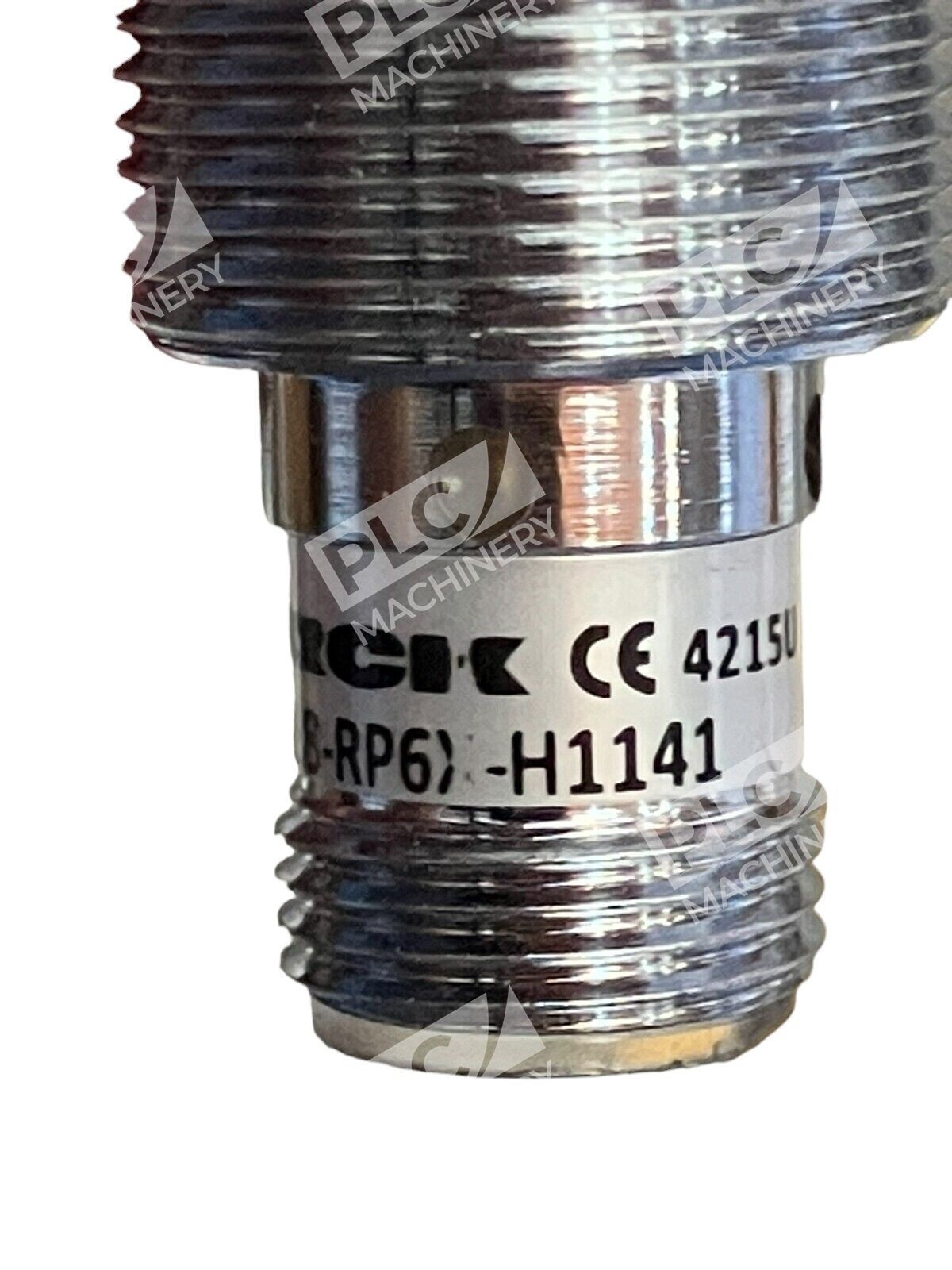

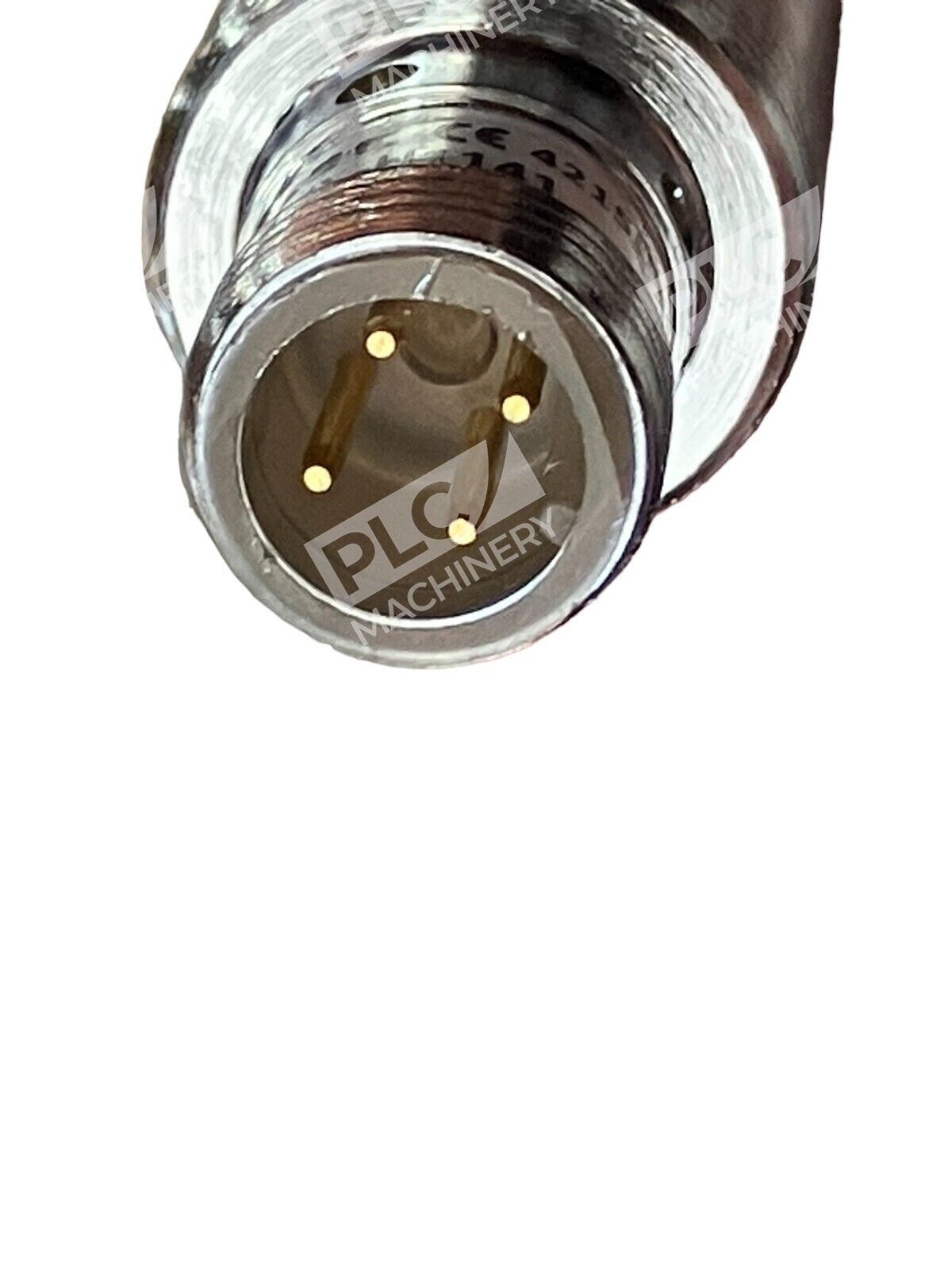

- M12×1 male connector (4-pin Eurofast QD) for standard industrial connections
- IP67-rated chrome-plated brass housing for wet and dusty environments
- Fast response with 500Hz maximum switching frequency for high-speed applications
- Built-in LED indicator for easy diagnostics and status verification

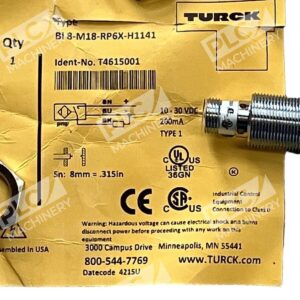

Technical Specifications

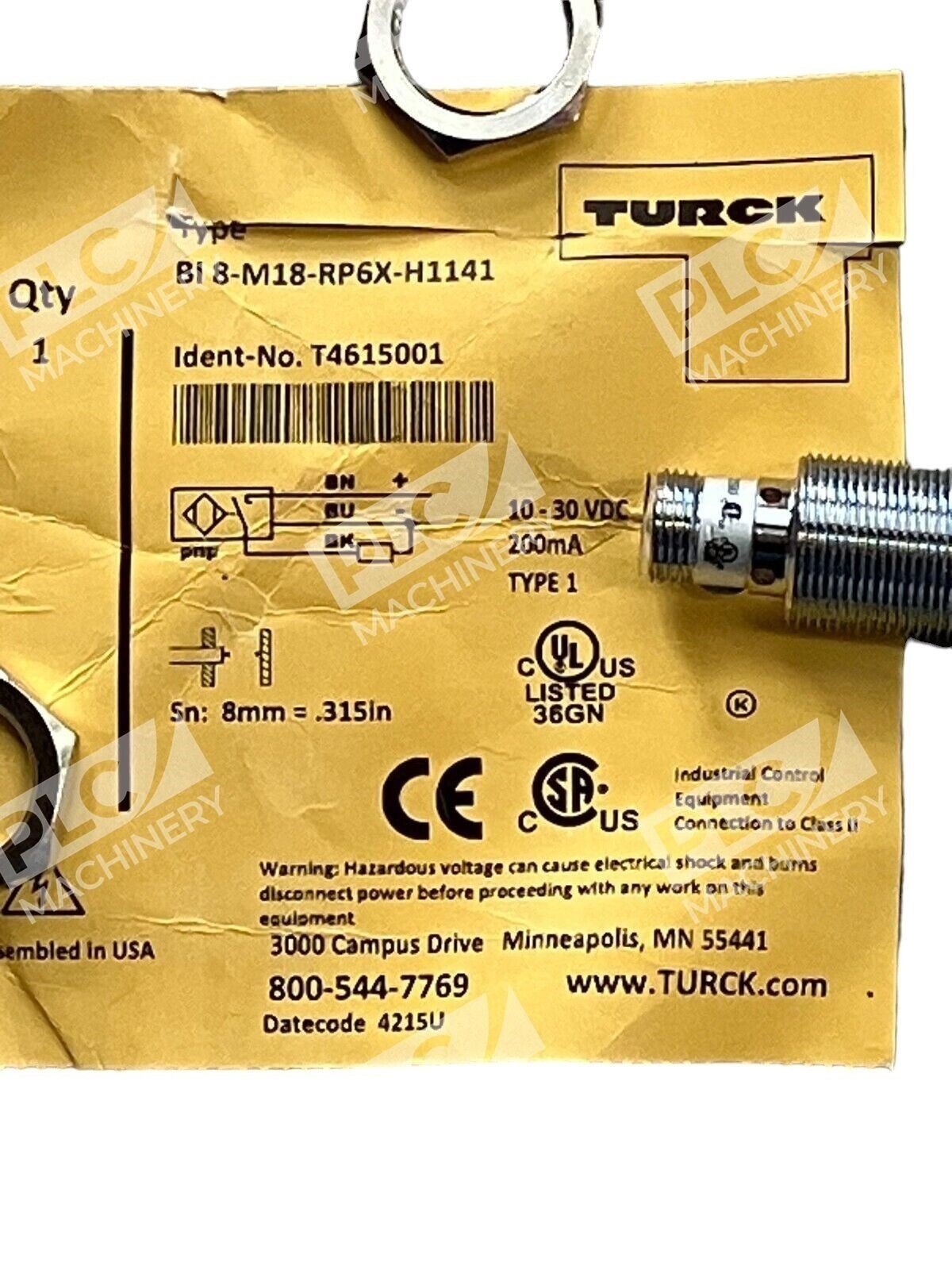

- Sensing Distance: 8mm (rated, flush-mounting conditions)
- Detection Type: Inductive (metal)
- Output Function: 3-wire, PNP, NO (normally open)
- Supply Voltage: 10–30 VDC (nominal 12 or 24 VDC)
- Output Current: ≤200 mA maximum load
- Voltage Drop: ≤1.8 VDC at maximum load
- Switching Frequency: ≤500 Hz
- Operating Temperature: −25°C to +70°C (−13°F to +158°F)
- Repeat Accuracy: ≤2% of full scale
- Temperature Drift: ≤±10%

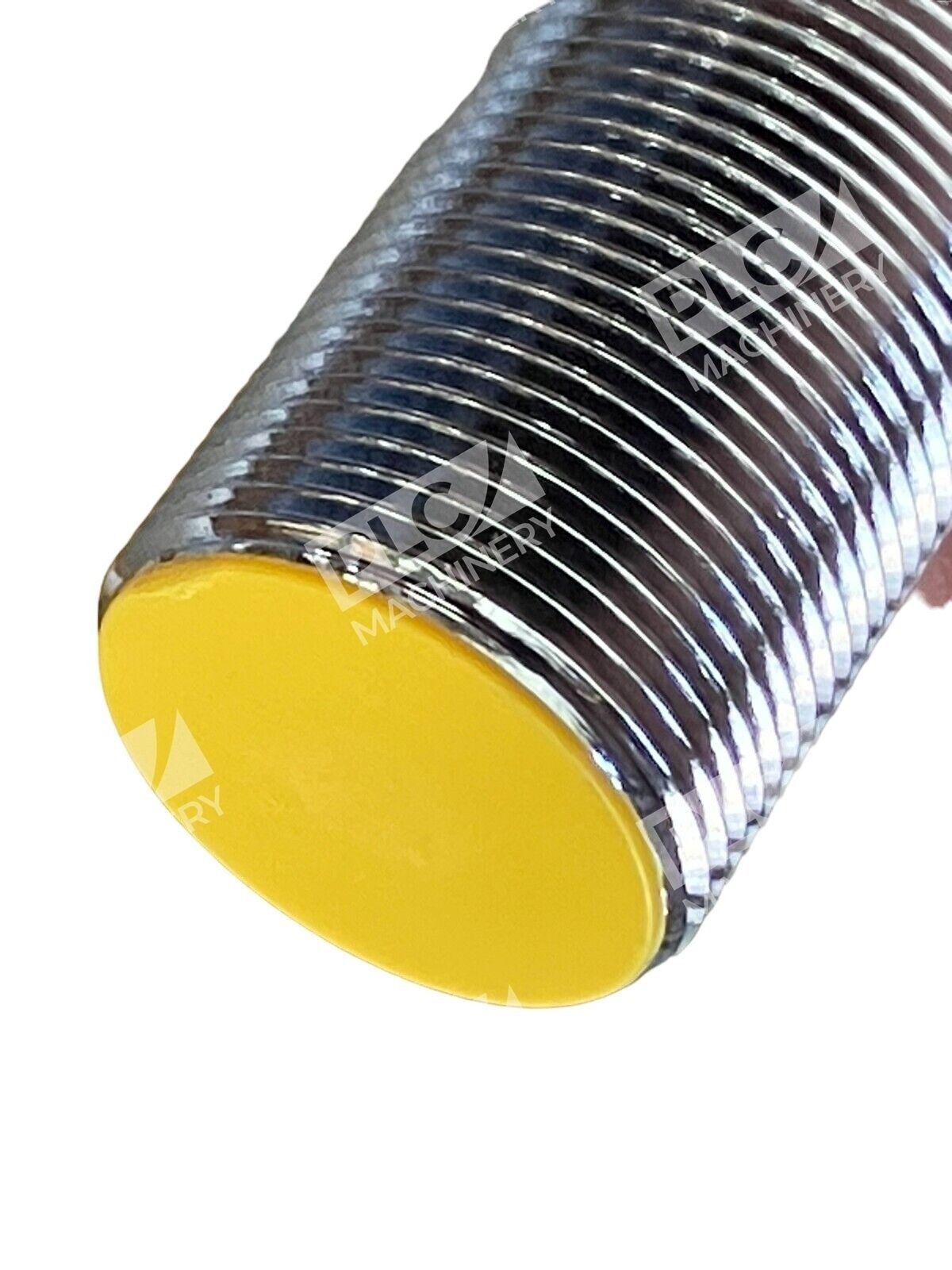

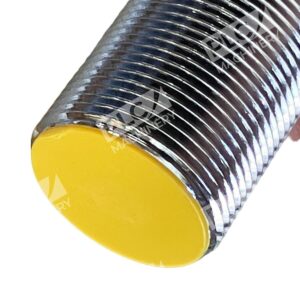

- Housing Material: Chrome-plated brass with PA12-GF30 sensing face
- Thread: M18×1 (flush-mounting)

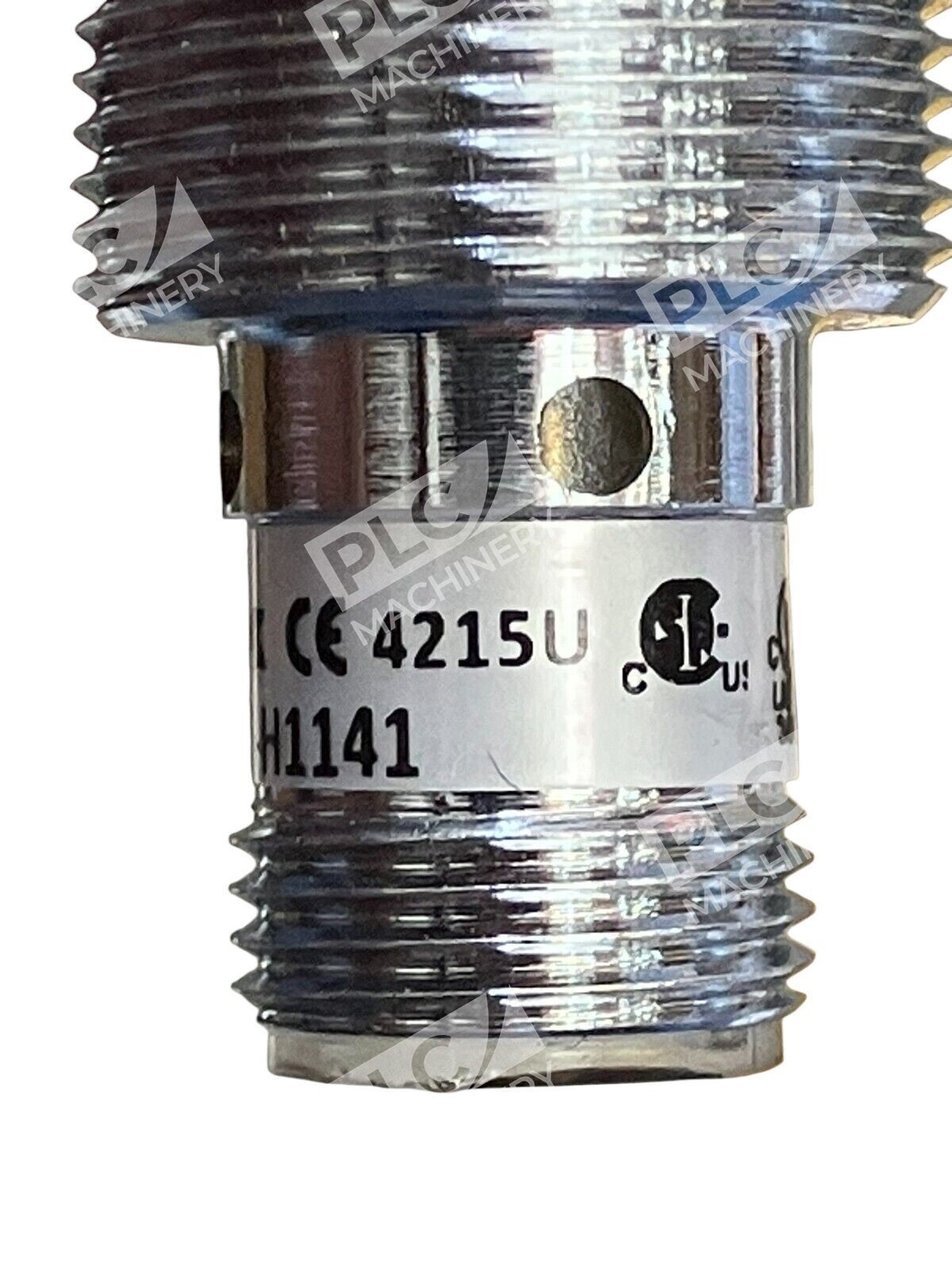

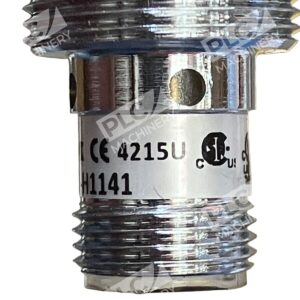

- Electrical Connection: M12×1 male, 4-pin Eurofast QD
- Protection Rating: IP67 (NEMA 1, 3, 4, 6, 13)
- Turck Model Number: 4615001
Typical Applications
The BI8-M18-RP6X-H1141 is well-suited for:
- Parts positioning and alignment in assembly systems
- Metal part counting and sorting on conveyor lines
- Robotic gripper feedback and end-of-arm tooling (EOAT)
- Object detection in tight assembly spaces
- Presence/absence verification in pick-and-place operations
- Pallet and fixture detection in automated warehouses
Compatibility & Replacements
Compatible With
- PLC and CNC systems with 10–30 VDC inputs (24 VDC standard)
- Industrial controller inputs (Allen-Bradley, Siemens, Omron, Mitsubishi)
- M12 sensor networks (EtherNet/IP, PROFIBUS, CANopen compatible systems)
- Standard ISO 13849-1 safety-rated control systems
Replaces / Drop-In Replacement For
- Turck BI8-M18-AP6X-H1141 (normally open, same specifications)
- Similar Turck M18 inductive sensors in the BI8 family
- Third-party M18 inductive sensors with 8mm range, PNP, M12 connector
Works With
- Turck modular M12 connector ecosystems
- Standard 3-wire PNP sensor networks
- Distributed I/O systems supporting M12 Eurofast connectors
- Industrial Ethernet protocols (EtherNet/IP, PROFINET) via M12 gateways
- Hardwired discrete I/O in traditional automation panels
