Overview

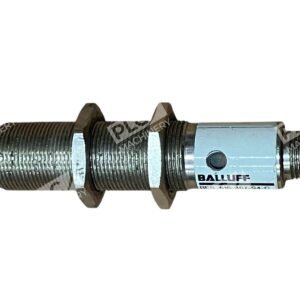

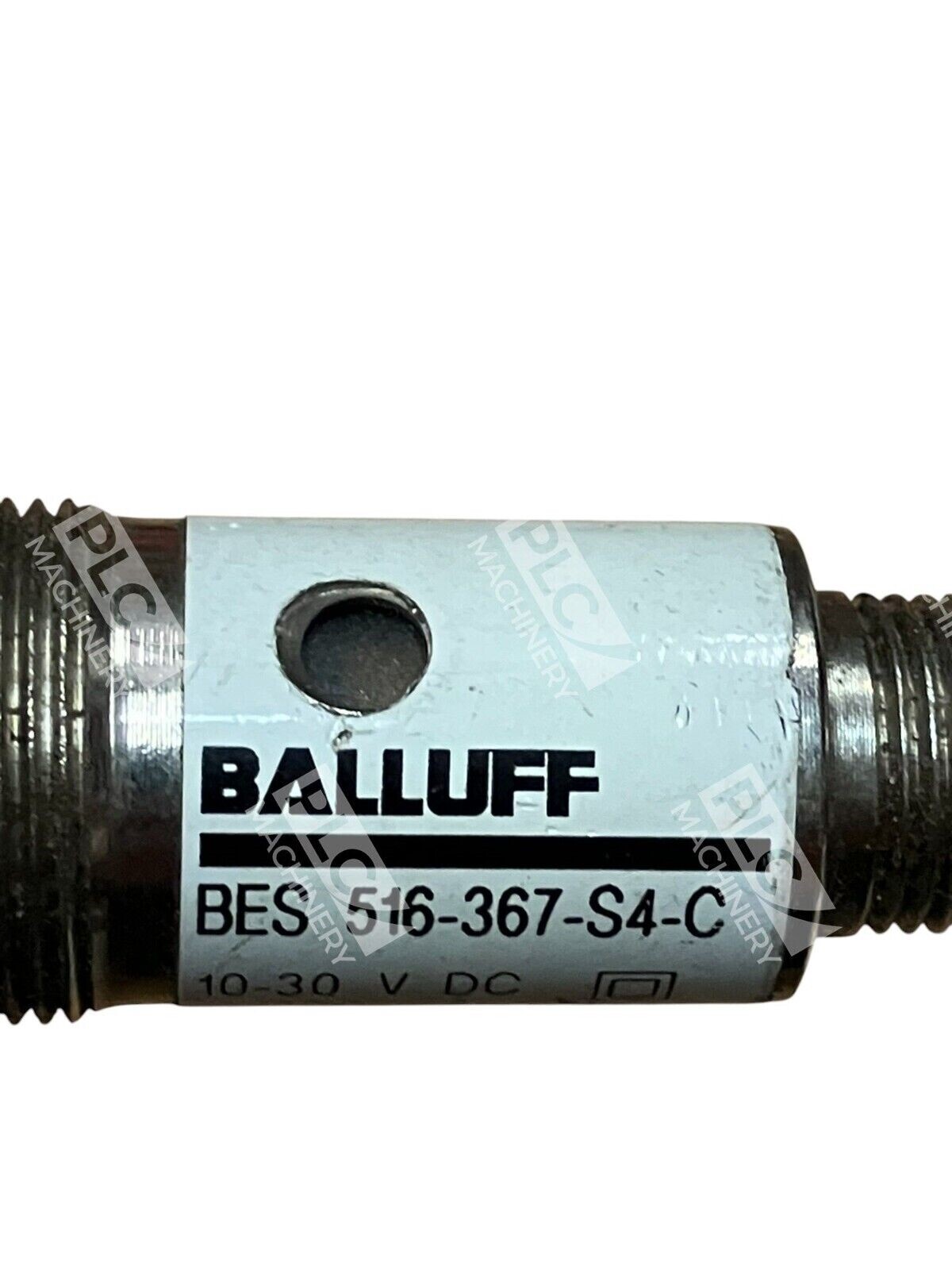

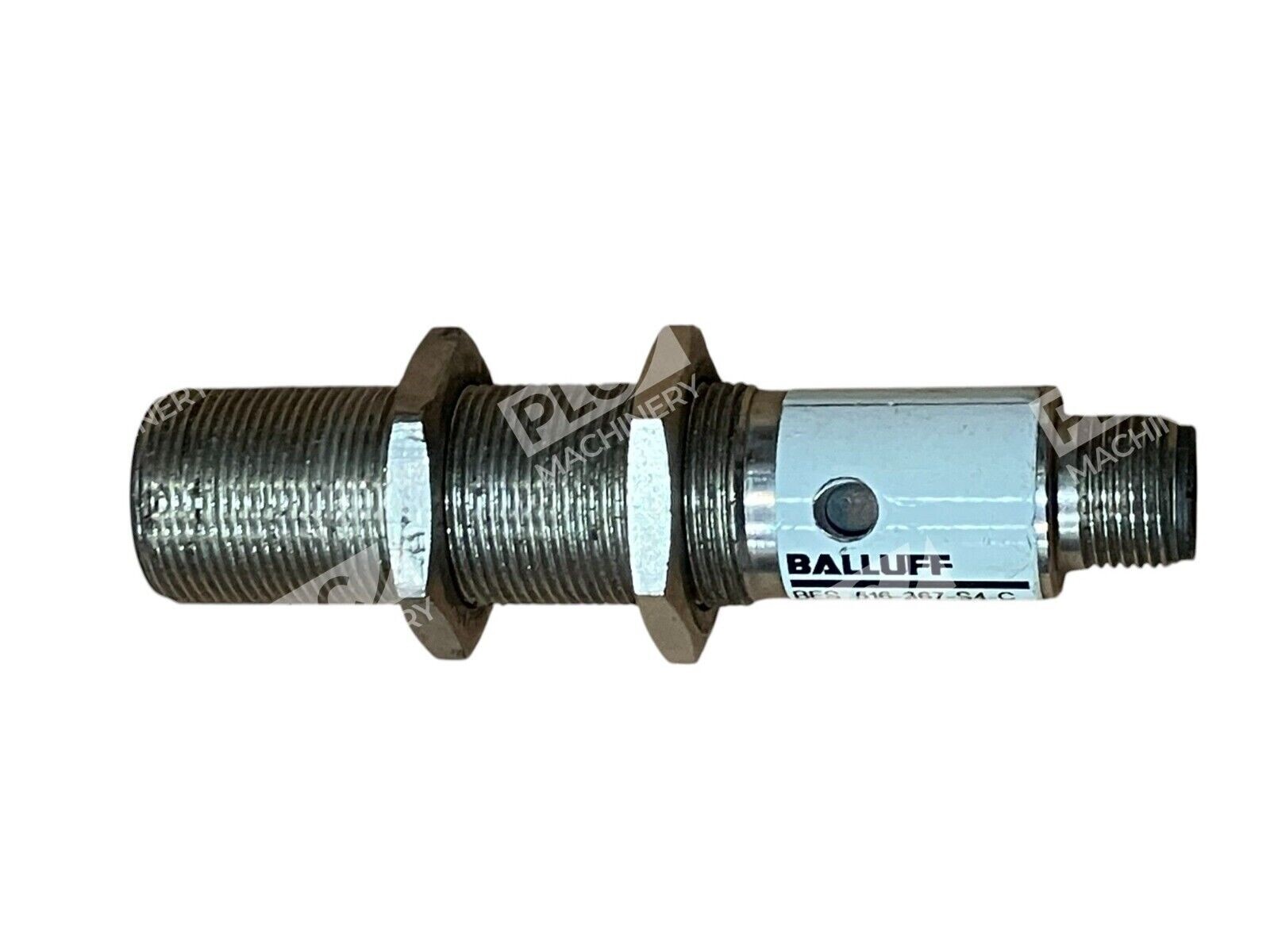

The Balluff BES516-367-S4-C is a robust inductive proximity sensor engineered for reliable ferromagnetic object detection across demanding industrial automation and motion control applications. Operating on a 10-30VDC supply, this flush-mount sensor delivers a 5mm sensing distance and features a normally closed (NC) output configuration, making it suitable for integration into PLC-controlled systems, conveyor networks, and machinery position monitoring.
Key Features
- 10-30VDC operating voltage range for system flexibility
- Flush-mount M12x1 connector design for compact panel integration
- 5mm sensing range for precise ferromagnetic object detection
- Normally closed (NC) switching output for fail-safe logic control
- IP68-rated housing for resistance to moisture, dust, and washdown environments
- Short-circuit protected circuitry for enhanced component reliability
Technical Specifications
- Operating Voltage: 10-30 VDC
- Output Type: PNP, Normally Closed (NC)
- Sensing Range: 5 mm
- Switching Frequency: 3500 Hz
- Connector: M12x1 4-pin male connector
- Housing Material: Stainless steel
- Installation: Flush mount
- Dimensions: 18 × 83 mm
- IP Rating: IP68
- Operating Temperature: -40 to +85°C
- Manufacturer: Balluff (Model BES01JW)
Typical Applications
- Conveyor belt object detection and positioning
- Press and stamping machine part presence sensing
- Machinery safety interlocks and position monitoring
- Automated assembly line metal component detection
- Valve and actuator position feedback in hydraulic/pneumatic systems
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix PLCs with 10-30VDC input modules
- Siemens S7-1200, S7-1500 controllers via digital input cards
- Mitsubishi FX and Q-series PLCs with 24VDC input capability
- Omron CJ2/NJ-series controllers
- Schneider Electric TeSys and M241/M251 automation platforms
- Any 10-30VDC PLC, motion controller, or safety relay with standard NC input channels
Replaces / Drop-In Replacement For
- Balluff BES01JW (OEM reference designation)
- Equivalent Balluff BES516 series flush-mount sensors with 5mm NC output configuration
Works With
- Studio 5000 (Allen-Bradley RSLogix 5000) ladder logic programs
- TIA Portal (Siemens Step 7) function block and ladder development
- GX Works (Mitsubishi) industrial automation software
- EtherNet/IP fieldbus networks when used with appropriate gateway modules
- PROFIBUS-DP and standard discrete 24VDC sensor networks
- Legacy analog 4-20mA converter circuits for legacy PLC integration
