Overview

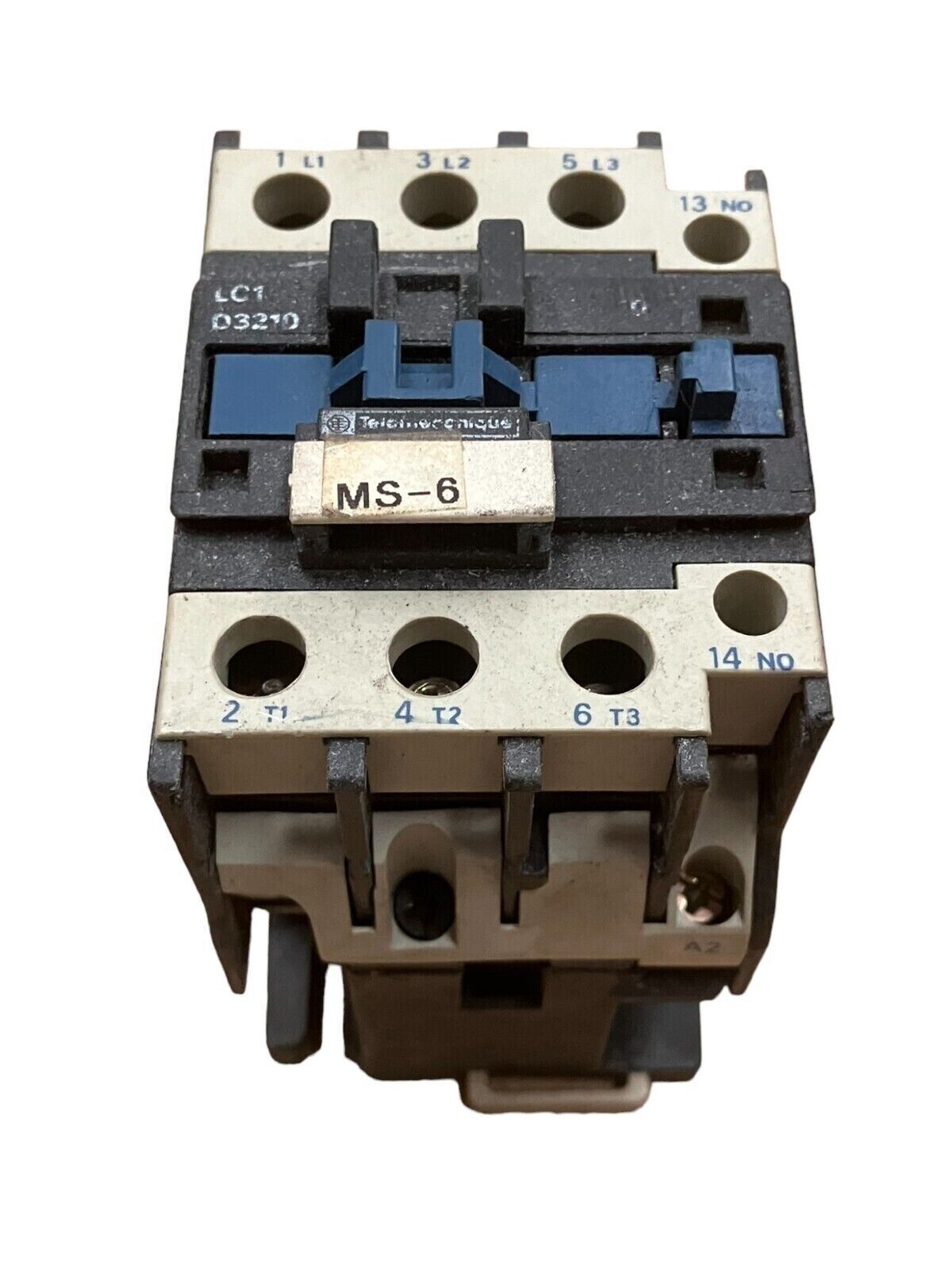

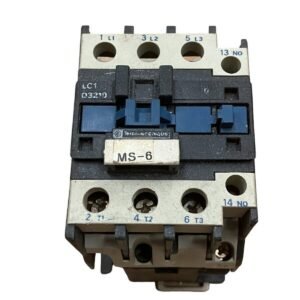

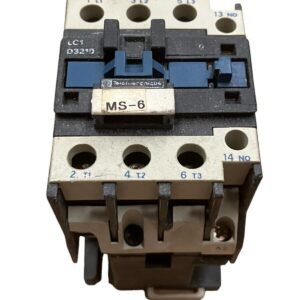

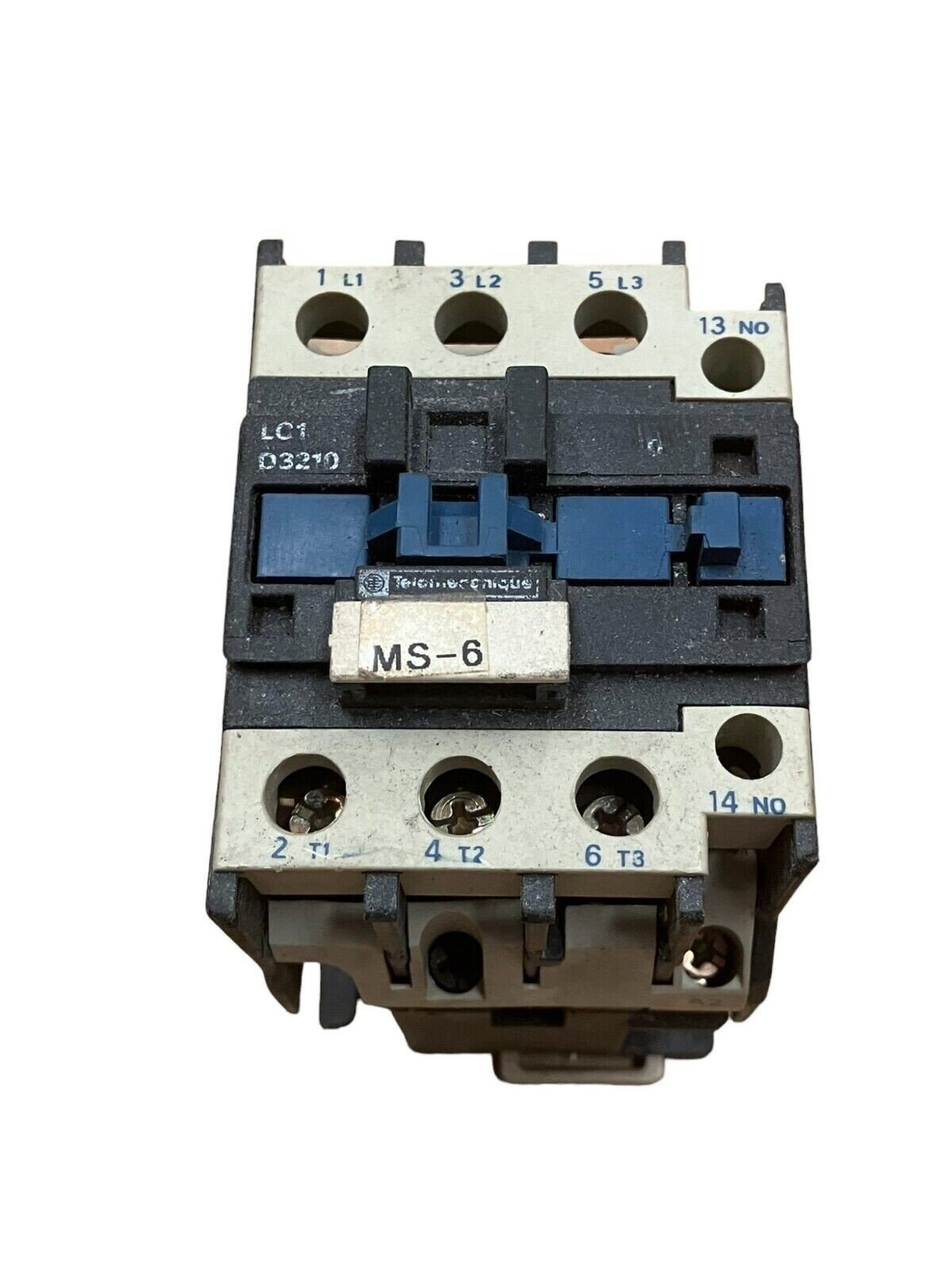

The Telemecanique LC1-D3210 is a robust 3-pole AC magnetic contactor from the TeSys D series designed for industrial motor control applications. This 50A unit operates at 600V AC and includes a 24V 50/60Hz control coil. With one normally-open auxiliary contact and proven IEC/UL compliance, the LC1-D3210 delivers dependable switching performance in manufacturing, HVAC, and process automation environments.
Key Features
- 50A rated current; 600V AC maximum operating voltage
- 24V 50/60Hz coil voltage for standard control circuits
- 3-pole main contacts; 1 N/O auxiliary contact
- Integral DIN rail and base mounting for flexible installation
- UL508, CSA C22.2, IEC 60947-4-1, and CE certified
- Compact footprint typical of TeSys D design

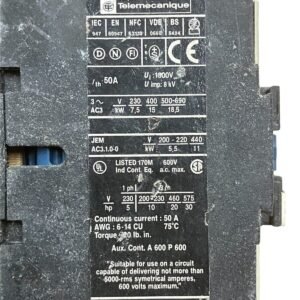

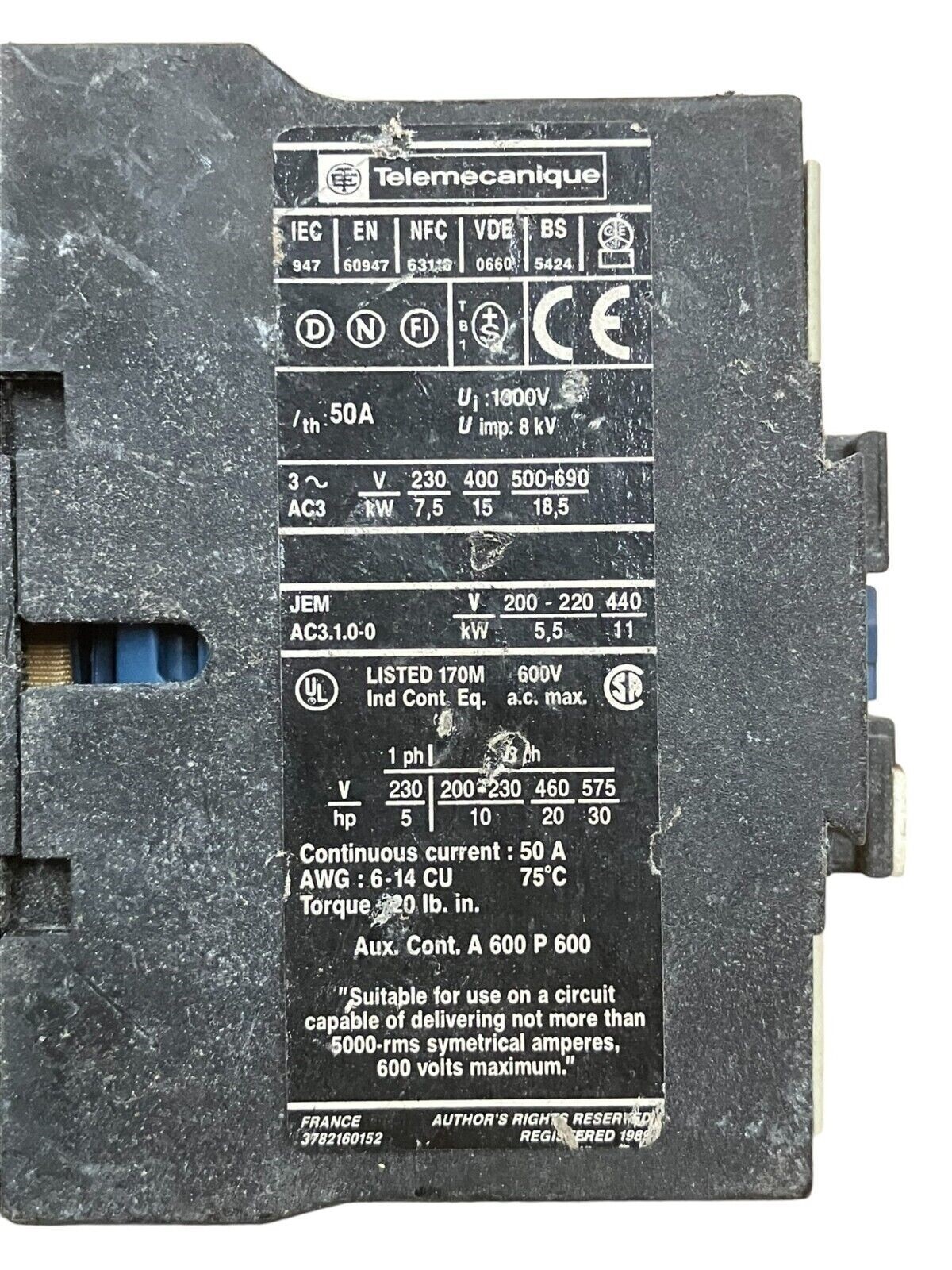

Technical Specifications
- Part Number: LC1-D3210
- Manufacturer: Telemecanique / Schneider Electric
- Series: TeSys D (LC1D type)
- Main Contacts: 3-pole
- Rated Current: 50A at rated voltage
- Maximum Voltage: 600V AC (3-phase)
- Motor Ratings: 10HP @ 240V, 20HP @ 480V, 30HP @ 600V

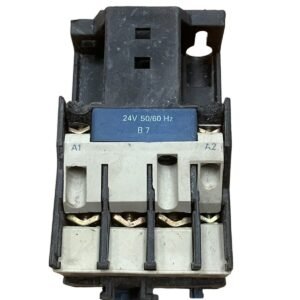

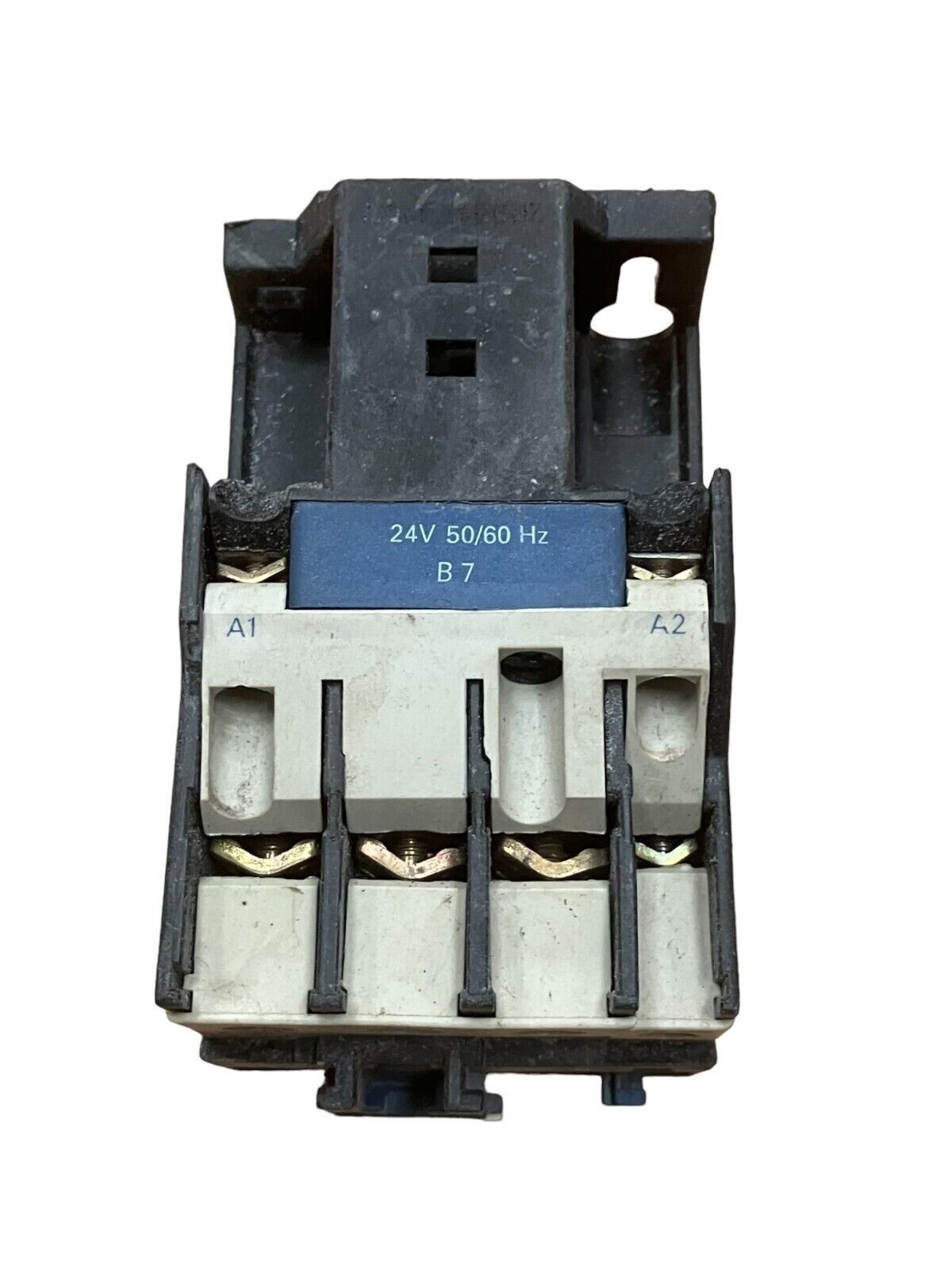

- Coil Voltage: 24V AC, 50/60Hz
- Auxiliary Contacts: 1 N/O (normally-open)
- Mounting: DIN rail and base mount compatible
- Standards: UL508, CSA C22.2, IEC 60947, CE marked
- Weight: Approximately 0.75 lbs
Typical Applications
The LC1-D3210 is ideal for:
- Three-phase motor starter circuits in industrial plants
- HVAC compressor and pump control
- Machine tool motor switching and soft-start systems
- Process automation and conveyor line control
- Building automation and facility management systems
- General-purpose switching in 480V and 600V three-phase circuits
Compatibility & Replacements
Compatible With
- TeSys D series control devices and protective functions
- Standard three-phase 480V and 600V industrial power systems
- 24V AC control transformer outputs
- Motor control centers (MCCs) with DIN rail mounting
- IEC 60947-4-1 compliant motor starter assemblies
Replaces / Drop-In Replacement For
The LC1-D3210 is part of the TeSys D family. Verify compatibility with your system integrator before ordering, as coil voltage variants (110/120V, 220/240V, 24V) require confirmation of your control voltage supply.
Works With
- 24V AC control circuits and transformers
- Thermal overload relays and electronic motor protection modules
- Push-button stations and pilot devices
- Contactor auxiliary blocks and mechanical interlock kits
- Standard three-phase motor wiring per NEC and IEC standards
