Overview

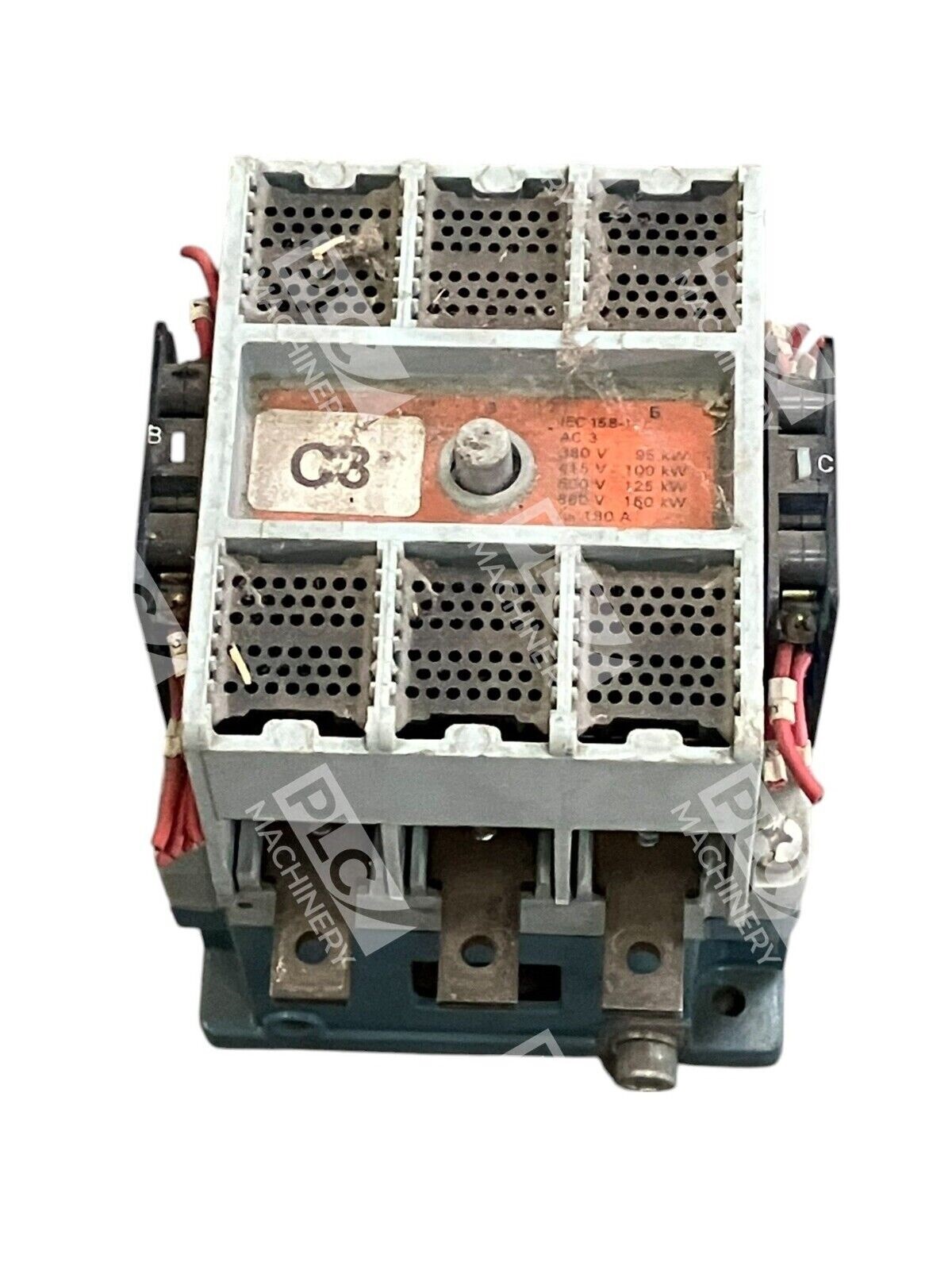

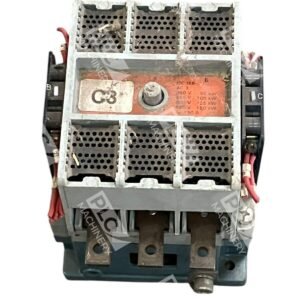

The Asea EG160-1 contactor is an industrial-grade magnetic contactor rated for 160A continuous current at 600V, 60 Hz, 3-phase operation. Built to IEC and NEMA standards, this Size 4 unit delivers dependable motor control for heavy-duty industrial applications including compressors, pumps, fans, and mill drives. The EG160-1 offers proven field performance and straightforward integration into existing three-phase power control systems.
Key Features
- 160A AC continuous current rating at 600V
- 3-pole configuration with 3-pole break design
- Heavy-duty contacts rated for frequent duty cycles
- Standardized IEC and NEMA mounting and connection
- Size 4 frame (standardized industrial footprint)
- Field-proven reliability in industrial motor applications
Technical Specifications
- Current Rating: 160A AC
- Voltage: 600V AC, 60 Hz
- Phase: 3-Phase
- Poles: 3 Poles, 3-Pole Break
- Horsepower (480/600V): 100 HP
- Horsepower (240V): 50 HP
- Contactor Size: Size 4
- Contact Kit: EG 160-1 CK
- Standards: IEC, NEMA, Complies with AS 1029
- Construction: Heavy-duty industrial
Typical Applications
- Centrifugal and reciprocating compressor starters
- Large pump motor control systems
- Industrial fan and blower control
- Mill drive and conveyor motor switching
- Heavy-duty industrial motor soft-starters
- Commercial HVAC and refrigeration systems
Compatibility & Replacements
Compatible With
- ABB/Asea Brown Boveri switchgear and control systems
- NEMA-rated three-phase motor control centers
- IEC-standard industrial contactor assemblies
- 600V industrial power distribution systems
- Direct-on-line (DOL) motor starter cabinets
Replaces / Drop-In Replacement For
- Asea EG160-1 (all variants)
- ABB EG 160-1-UL models
- Size 4 IEC contactors rated 160A 600V
Works With
- Standard IEC motor control coils and overloads
- NEMA-rated thermal overload relays
- Conventional manual and electromechanical starters
- Industrial AC three-phase power systems
