Overview

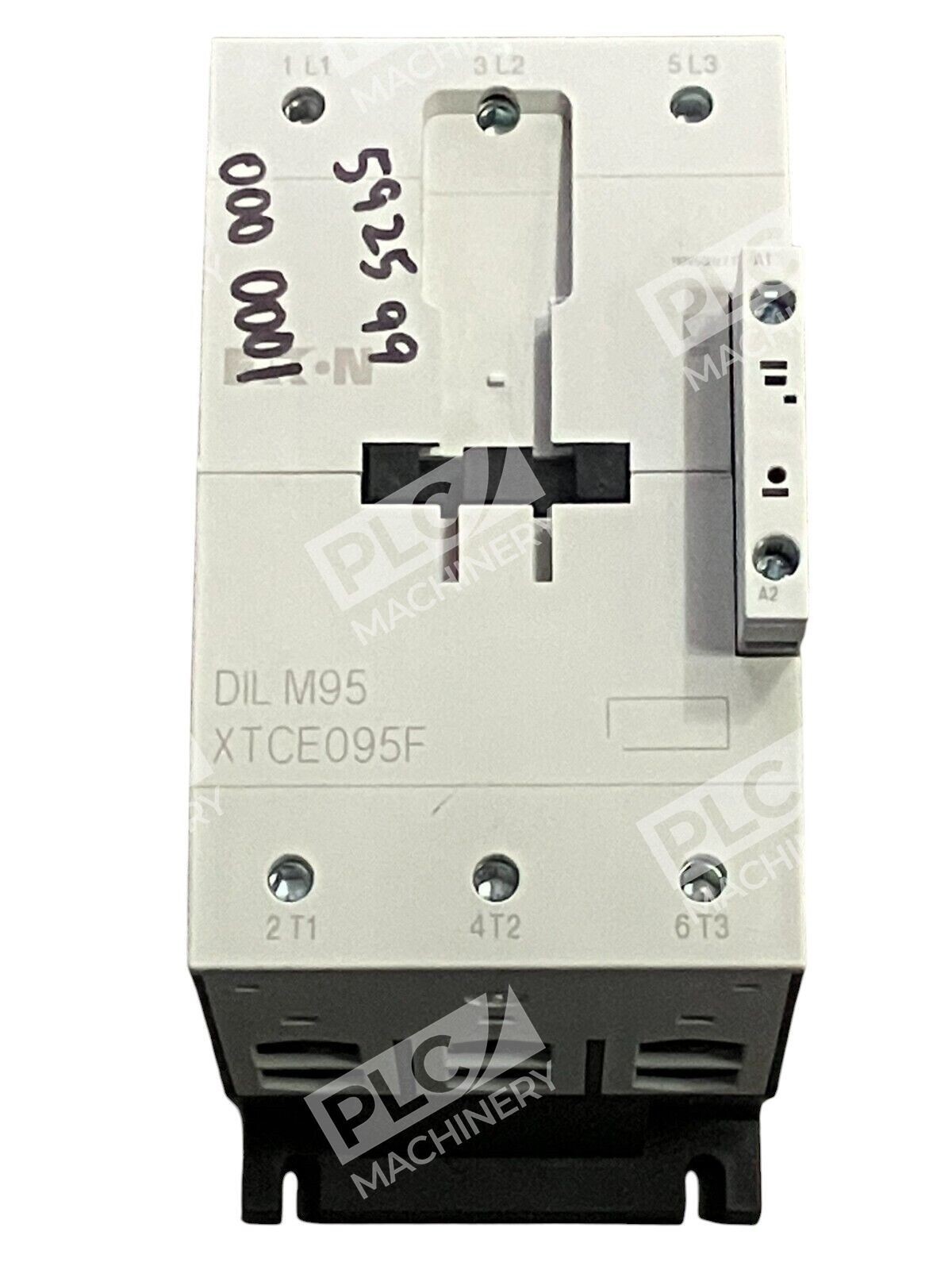

The Eaton XTCE095F00A / DILM95 is a 3-pole IEC contactor designed for motor control and industrial switching applications. This Frame F, 95A unit features a full voltage non-reversing (FVNR) control coil and conforms to IEC 60947 standards. With a compact 90 mm footprint and proven reliability across global installations, it delivers the robust performance required by controls engineers and maintenance teams.
Key Features
- 3-pole, 95A AC-3 rated (125A AC-1) contactor for motor control
- IEC 60947 compliant design meeting international standards
- Frame F, 90 mm compact design for space-constrained panels
- FVNR coil configuration with 110V 50 Hz / 120V 60 Hz AC control
- Motor ratings: 40 HP @ 230V, 75 HP @ 460V, 100 HP @ 575V (3-phase)
- Screw terminal construction for reliable field connections
- Supports auxiliary contact blocks for expanded circuit logic
- Compatible with overload relay mounting for complete motor starter packages
Technical Specifications
Key electrical and mechanical parameters for the XTCE095F00A:
Typical Applications
- Motor control: 3-phase induction and synchronous motor starters
- Pump and compressor drives: HVAC, water treatment, industrial processes
- Conveyor and material handling: Belt-driven systems requiring reliable on/off switching
- Machine tool controls: Mills, lathes, and automated production equipment
- Industrial automation: Factory automation systems using IEC-rated switchgear
- OEM equipment: Original equipment manufacturers requiring global IEC standards compliance
Compatibility & Replacements
Compatible With
- Eaton / Cutler-Hammer motor starter packages and enclosures
- IEC 60947 control systems and motor protection schemes
- XTOB overload relays (direct load-side mounting for Class 10 thermal protection)
- Auxiliary contact blocks (2 or 4-pole front-mounted; 2-pole side-mounted options)
- AC/DC control circuits, 12V to 600V
- UL, CSA, and CE certified industrial equipment
Replaces / Drop-In Replacement For
- Eaton DILM95 (equivalent designation)
- Previous-generation Eaton 95A NEMA frame contactors where IEC conversion is planned
Works With
- IEC 60947-4-1 motor starter circuits
- Eaton XTCE and XT series accessory ecosystems
- Thermal overload relays and electronic motor protection devices
- AC and DC coil control systems (same frame compatibility)
- PLC outputs with standard relay switching (no specialized interface required)
