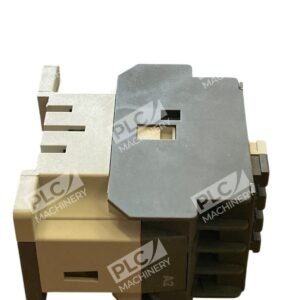

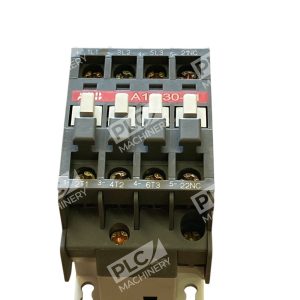

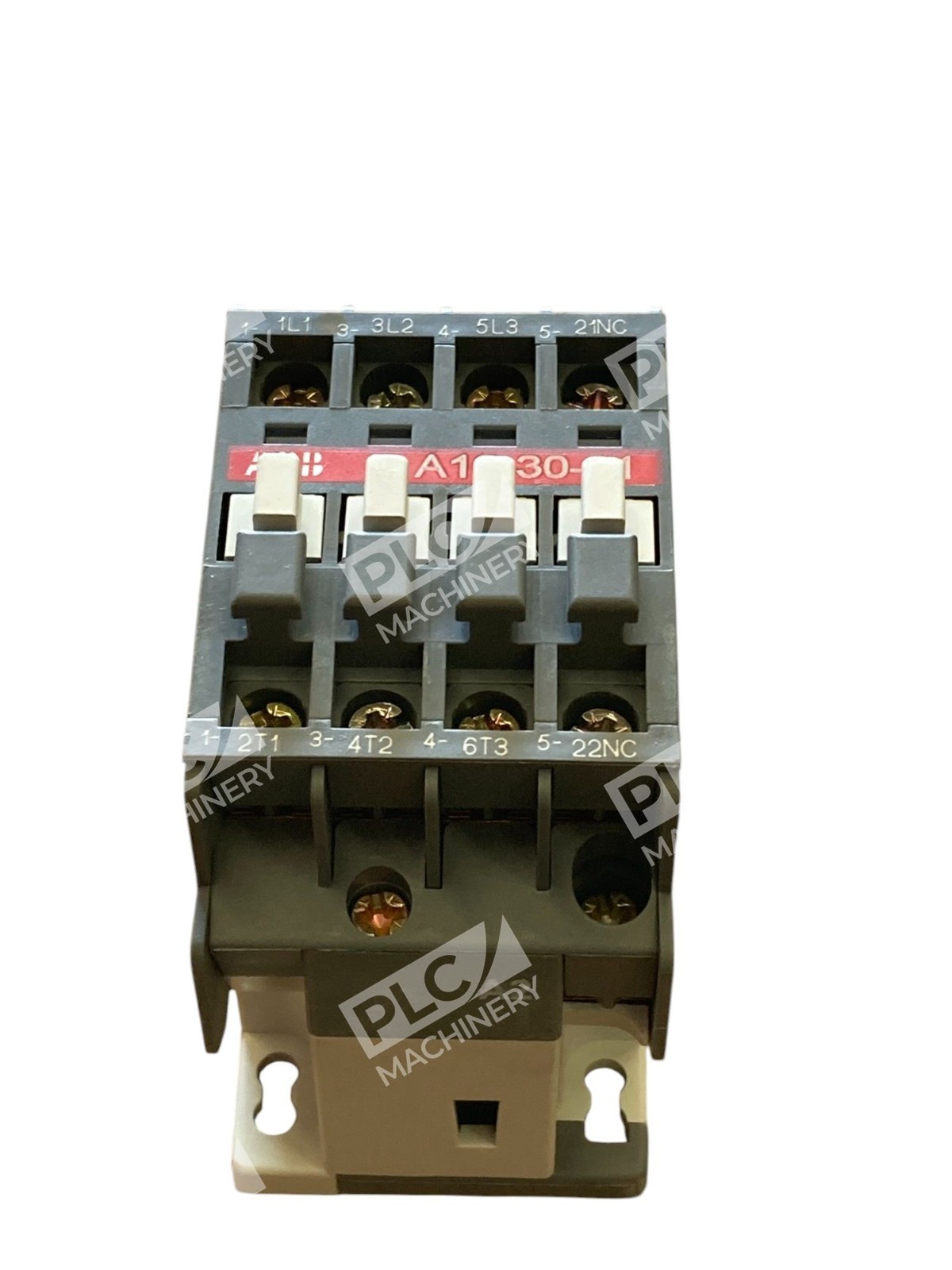

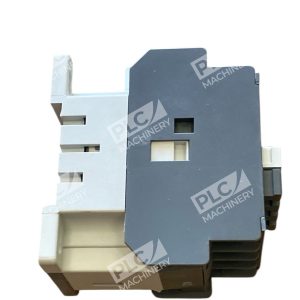

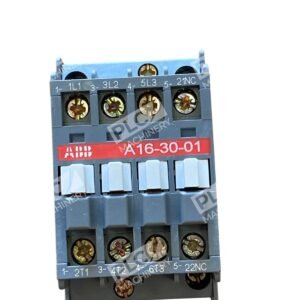

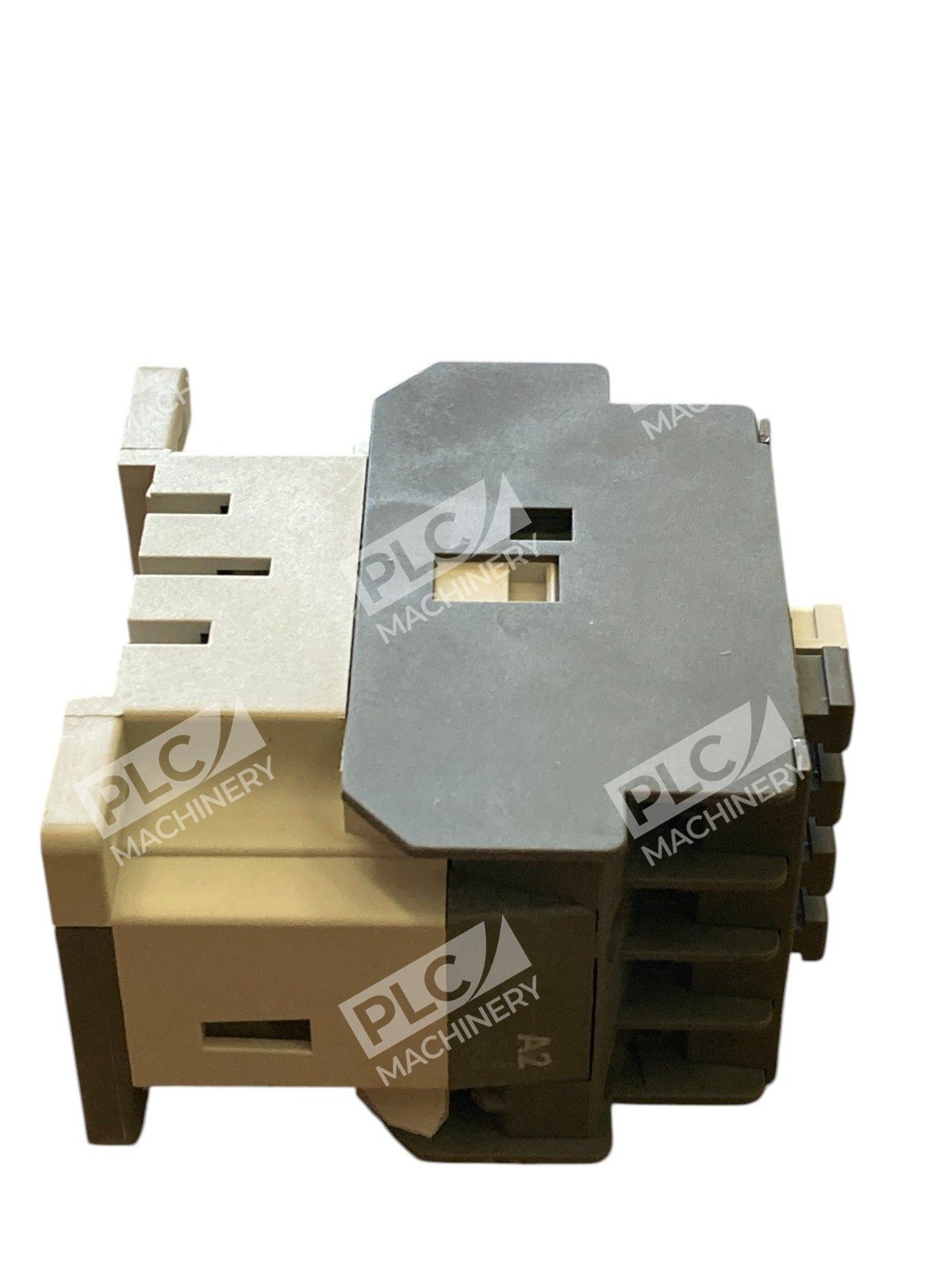

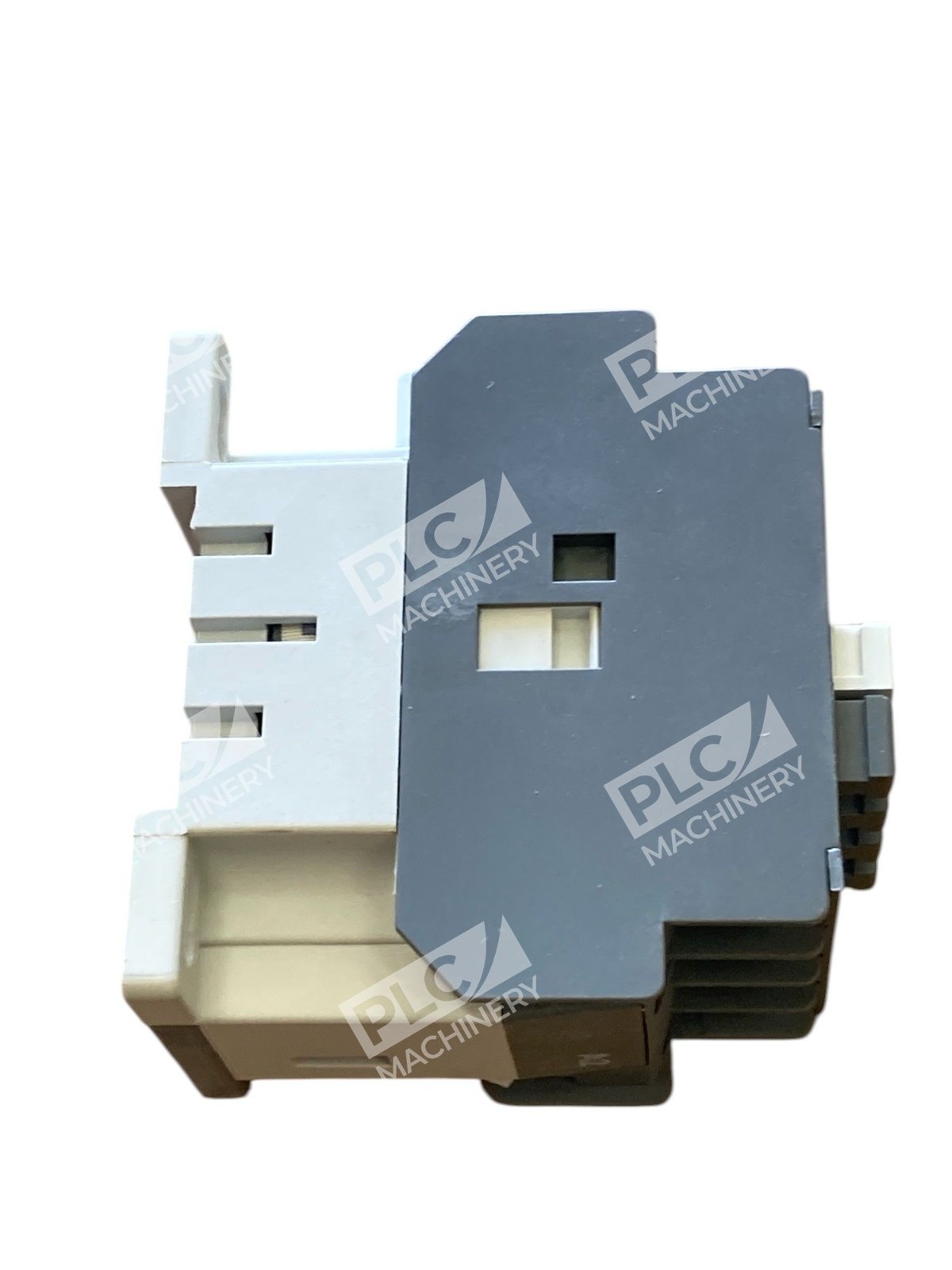

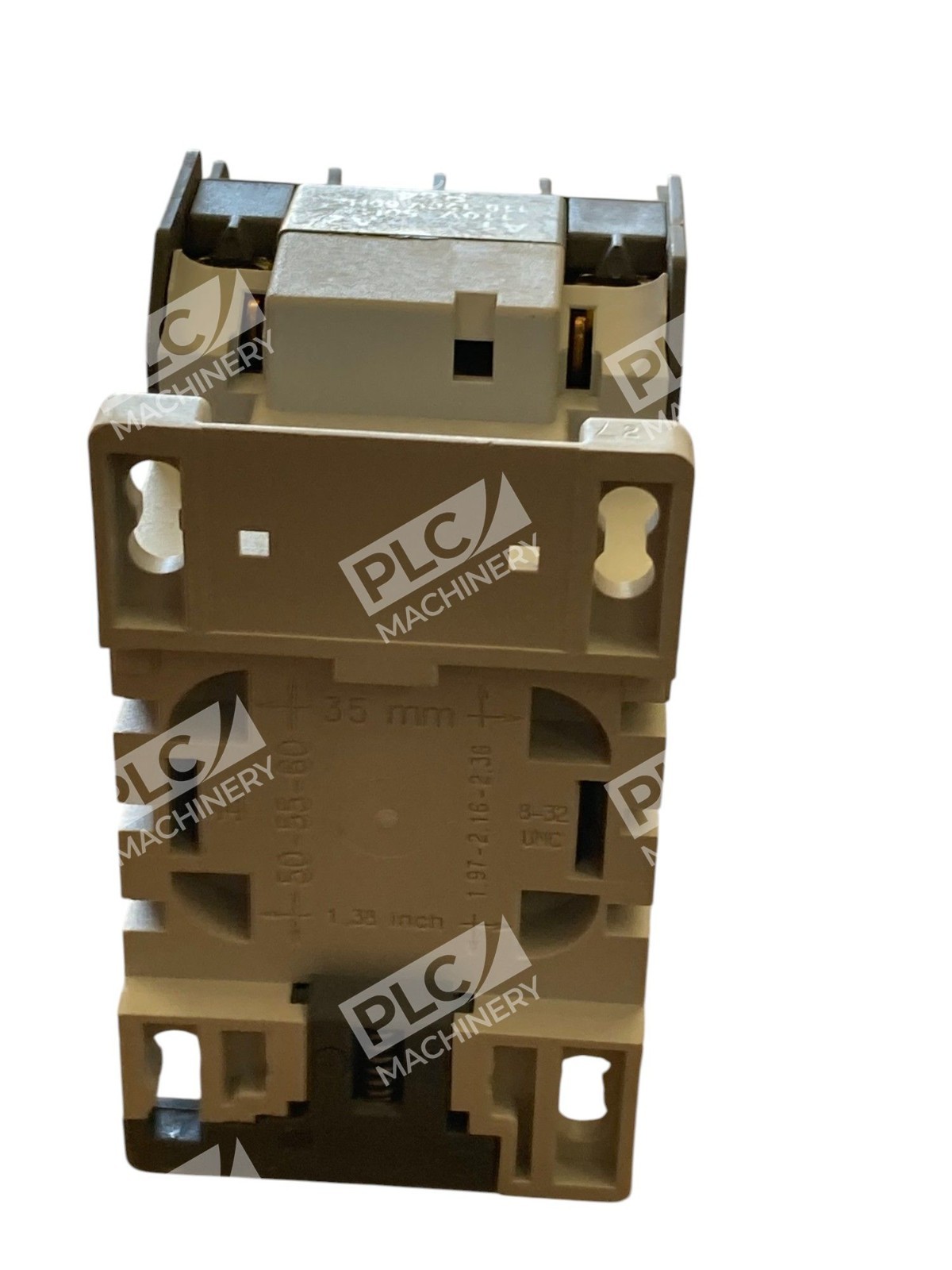

Overview
The ABB A16N0-30-01-84 is a compact NEMA SIZE 0 magnetic contactor designed for across-the-line motor control and industrial automation. This non-reversing, 3-pole contactor delivers 30 A continuous load current with a 110–120 VAC control coil, making it ideal for equipment requiring reliable AC switching at fractional and low horsepower ratings. The A16 series combines proven durability with space-efficient DIN rail mounting for retrofit and new installations alike.
Key Features

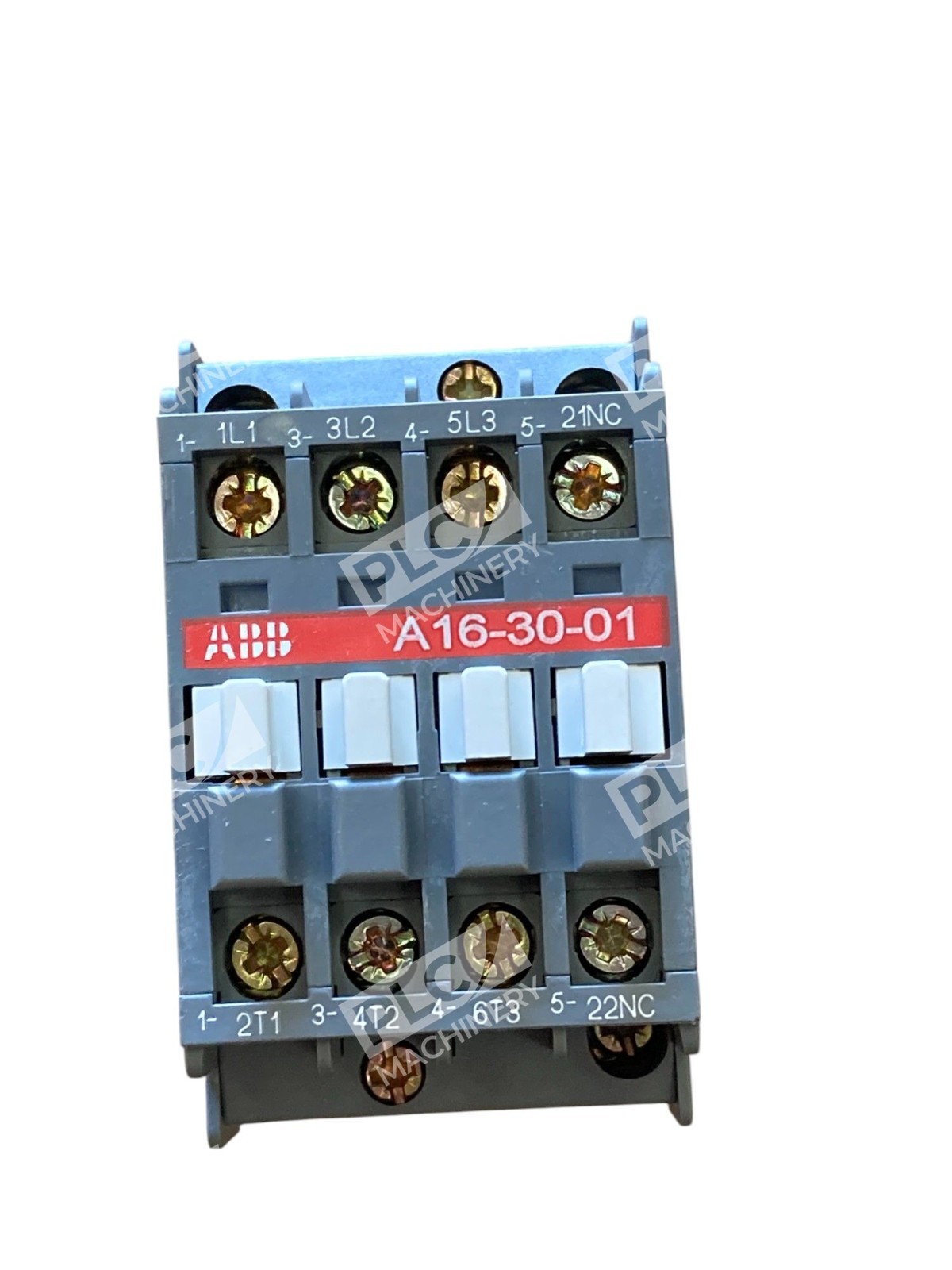

- Non-Reversing Configuration: 3-pole (3NO) with 1NO auxiliary contact block for flexible control logic
- Compact Design: 74 mm H × 44 mm W × 74 mm D allows space-constrained panel mounting
- 600 VAC Contact Rating: Suitable for equipment up to 600 V nominal; 10 kW @ 400 V 3-phase capability
- Extended Coil Voltage Range: Operates reliably at 85–110% of rated 110–120 VAC control voltage
- Touch-Safe Design: All connection terminals protected against accidental contact; open terminals supplied for easy wiring
- Double-Break Contacts: Provides enhanced safety and longer contact life

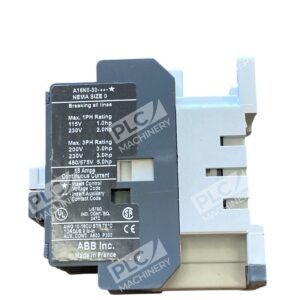

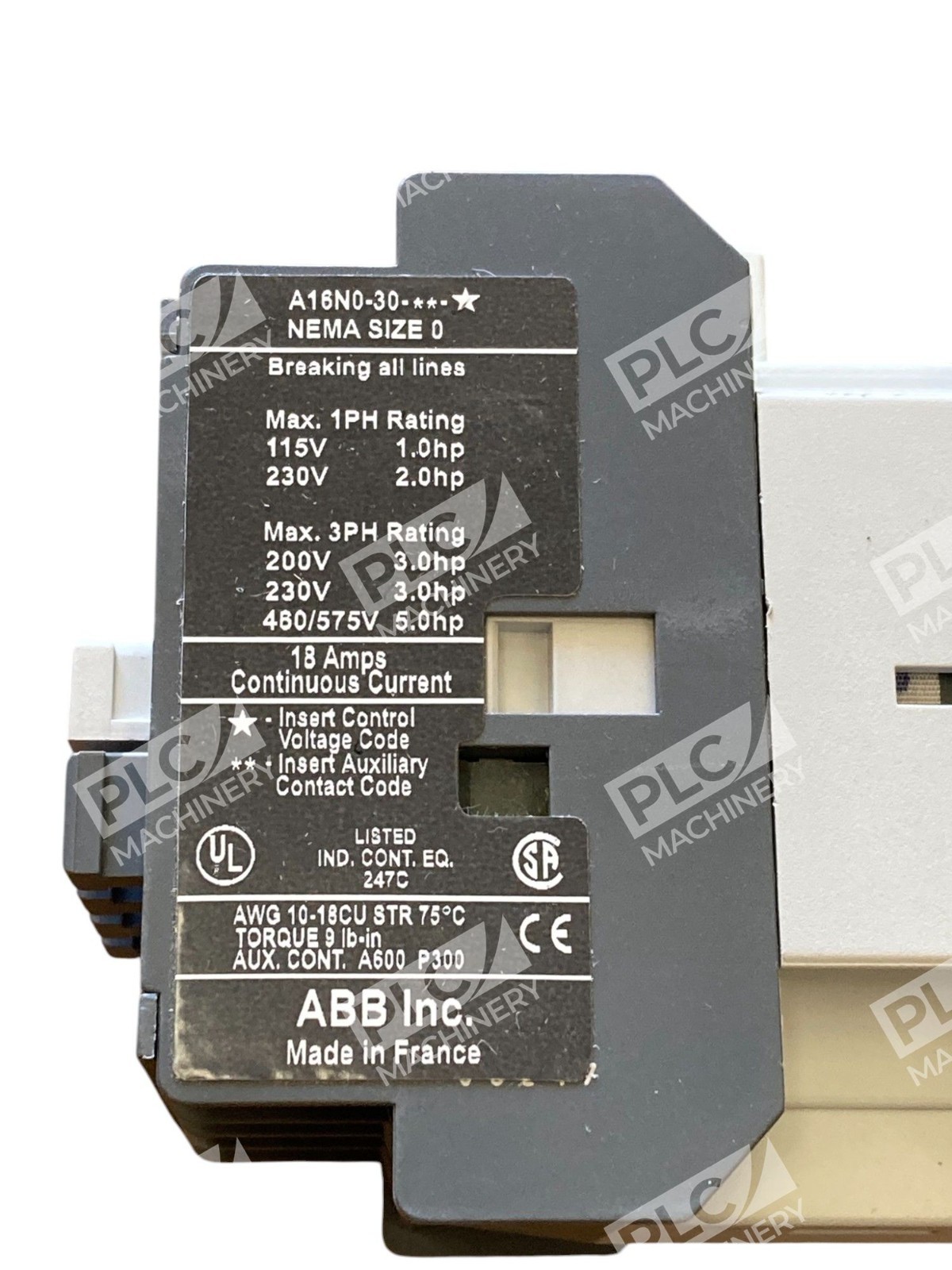

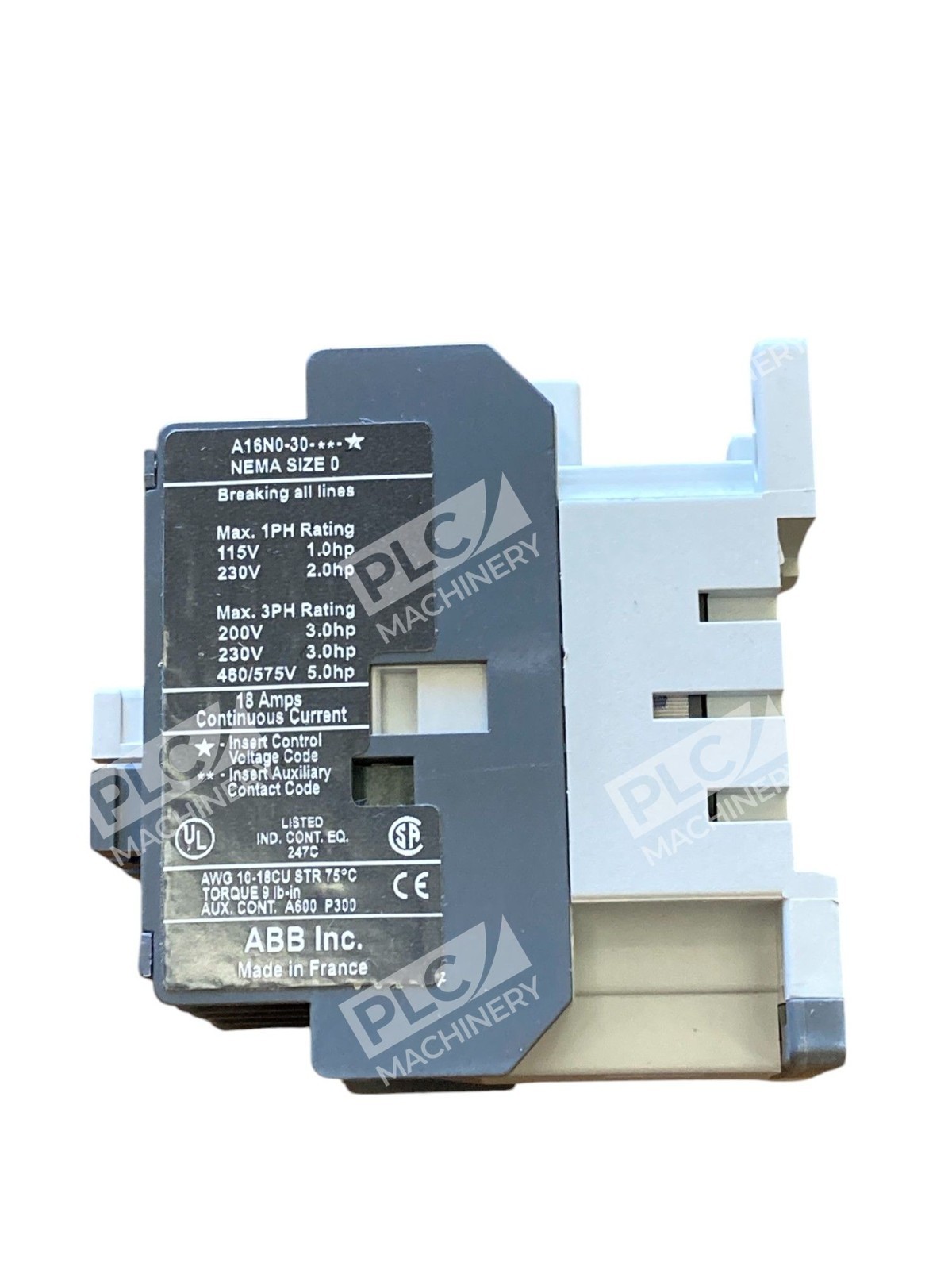

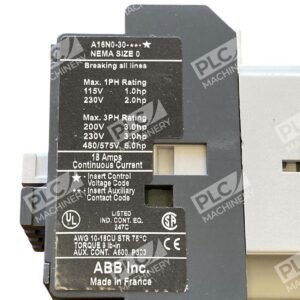

Technical Specifications

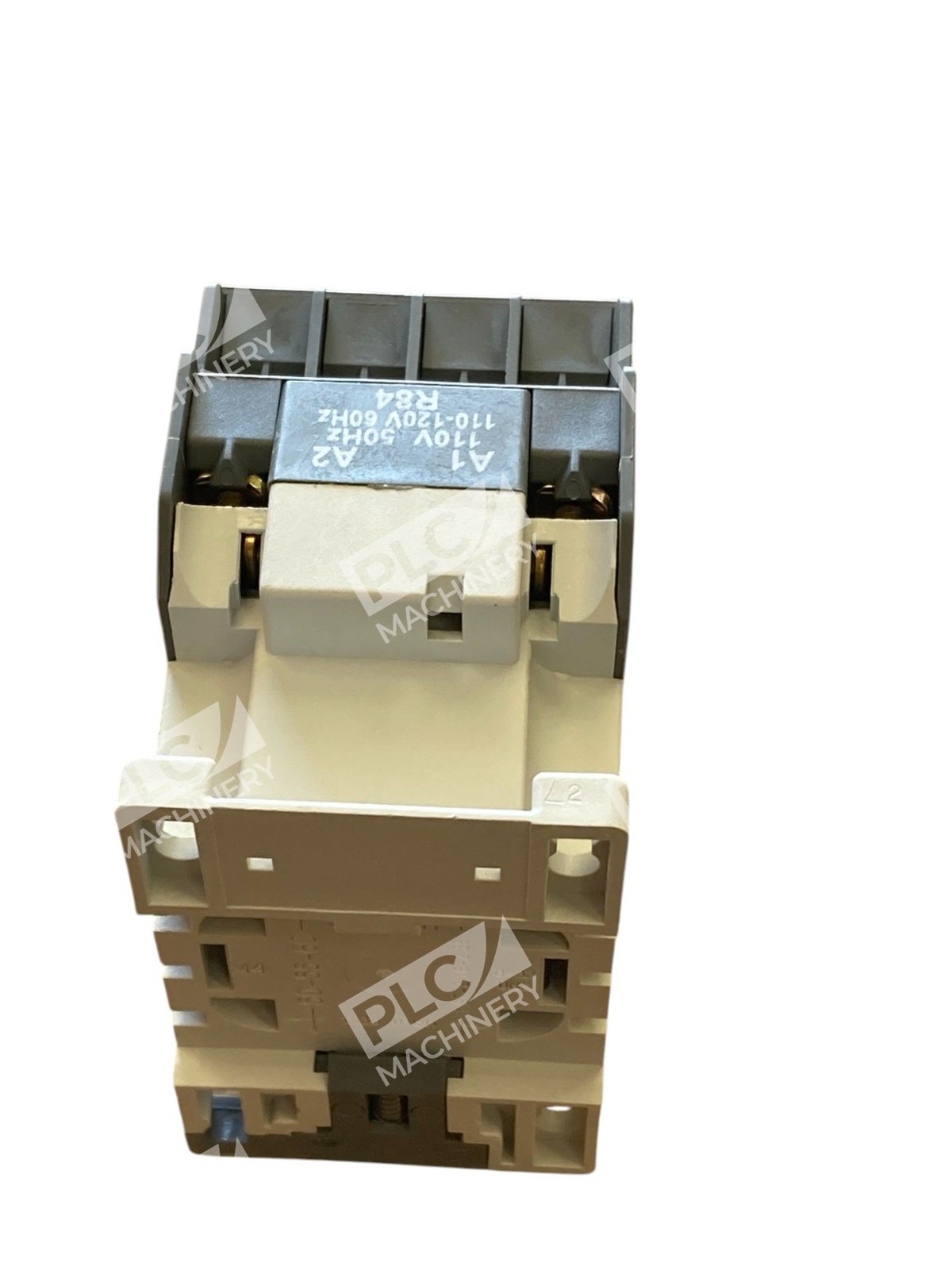

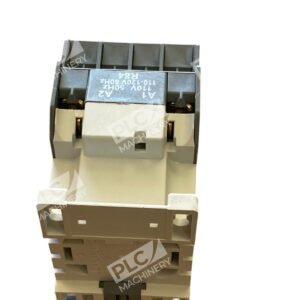

- Coil Voltage: 110–120 VAC, 50/60 Hz
- Continuous Current (Load): 30 A
- Contact Configuration: 3 Poles (3NO) + 1 Auxiliary NO
- Contact Rating: 690 VAC maximum
- Power Rating: 10 kW @ 400 VAC 3-phase; 5 hp @ 200–208 VAC 3-phase
- Coil Power: 70–80 VA pull-in, 8 VA holding
- Operating Frequency: 50/60 Hz

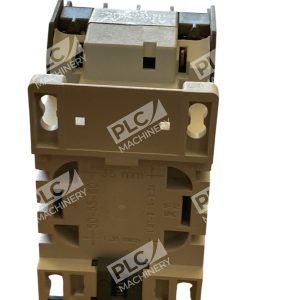

- Mounting: Snap-On/DIN Rail
- Mechanical Life: 3,600 operating cycles minimum
- Operating Temperature: −40 to +70°C
- Enclosure Rating: IP20
- Terminals: Screw-type, open configuration
- Dimensions: 74 mm H × 44 mm W × 74 mm D
Typical Applications
The ABB A16N0-30-01-84 is widely used in:
- Pump and fan motor control circuits
- Compressor and HVAC equipment switching
- Machine tool and manufacturing automation
- Control panels requiring NEMA-rated, IEC-compatible contactors
- Replacement in legacy control systems requiring drop-in compatibility
Compatibility & Replacements
The A16N0-30-01-84 is part of ABB’s A-Line contactor family, which uses standard IEC and NEMA mounting dimensions. It is compatible with ABB auxiliary contact blocks, mechanical interlocks, and standard coil options. Common equivalent or similar devices include ABB A12 series (27 A) and A26 series (40–45 A) contactors, depending on amperage requirements. When replacing legacy contactors, verify coil voltage, auxiliary contact type, and mounting configuration. Consult distributor or ABB technical support for precise substitution guidance.
