Overview

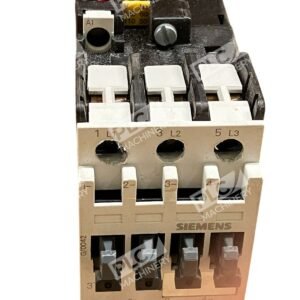

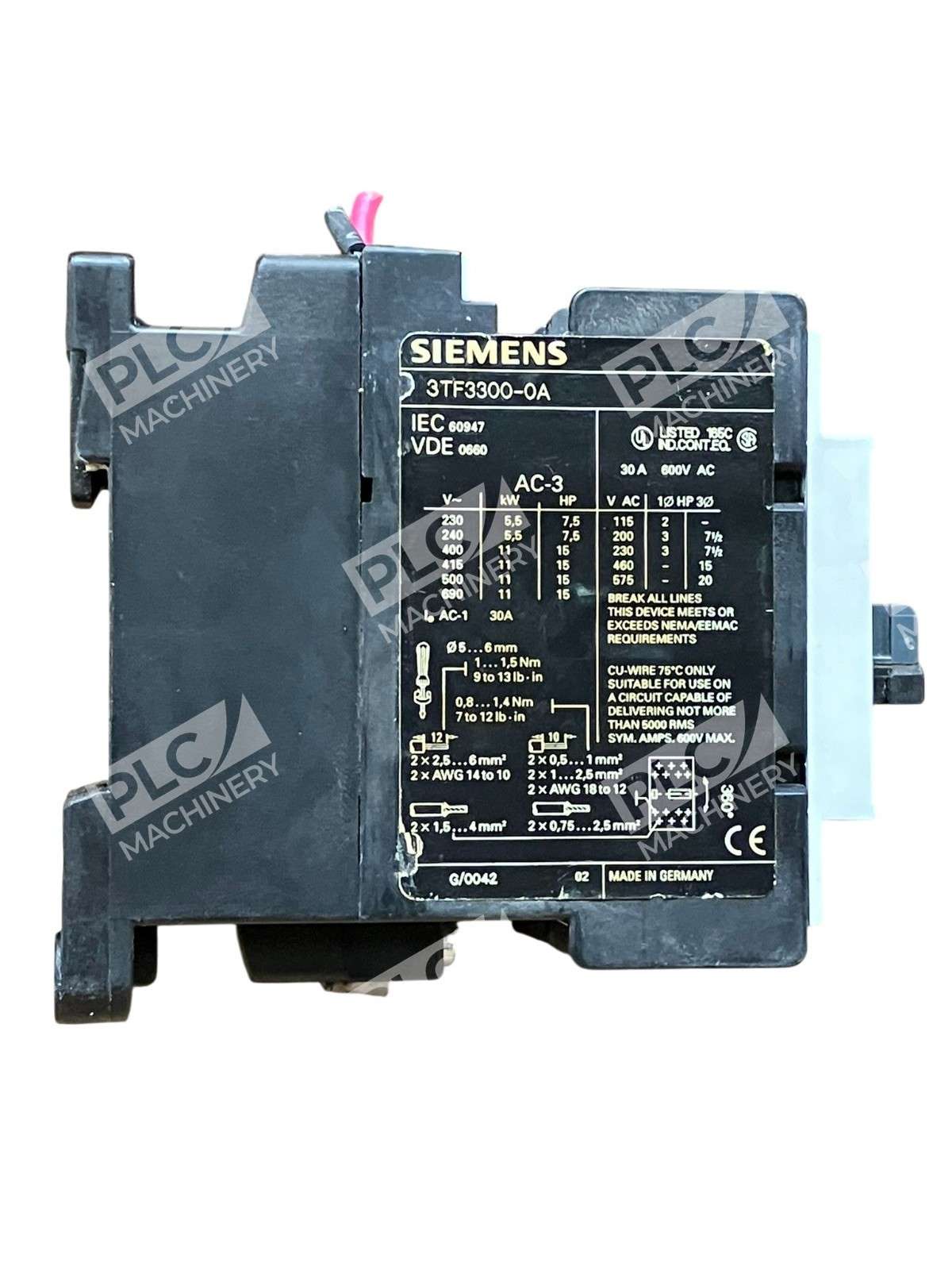

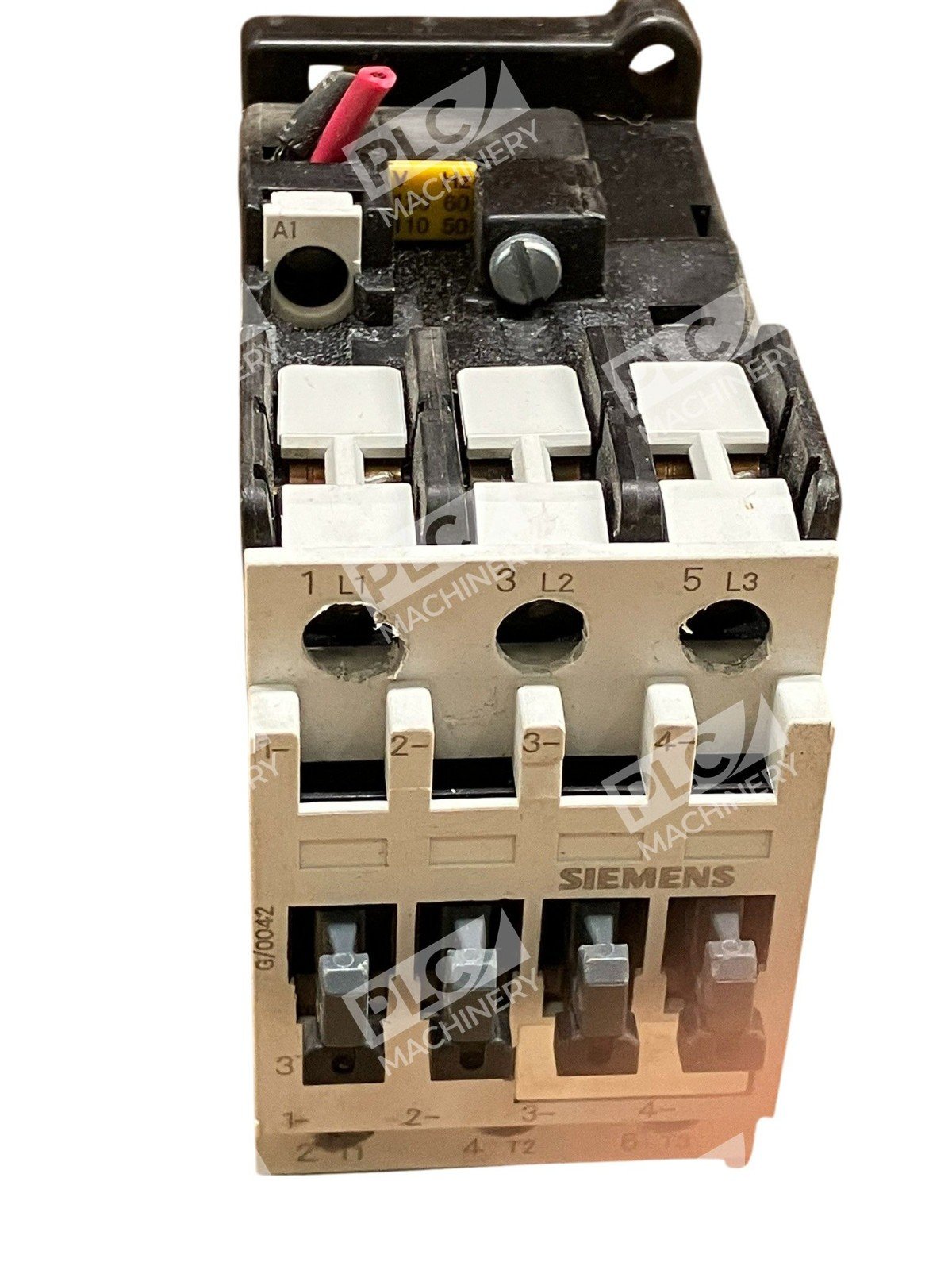

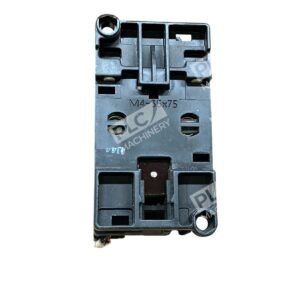

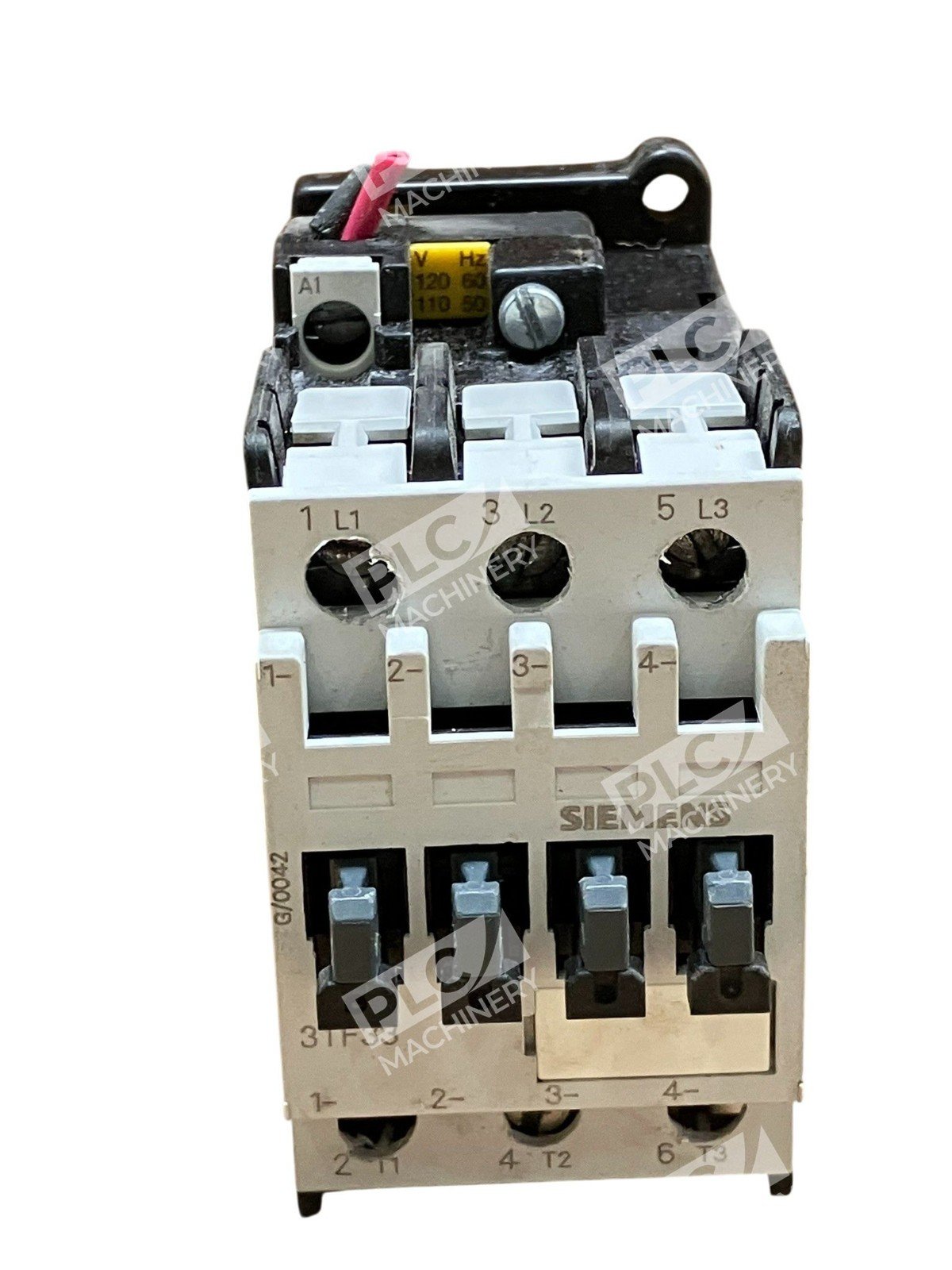

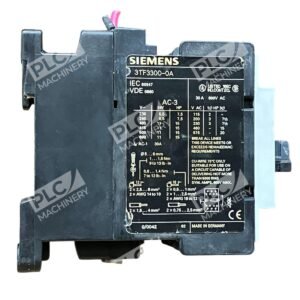

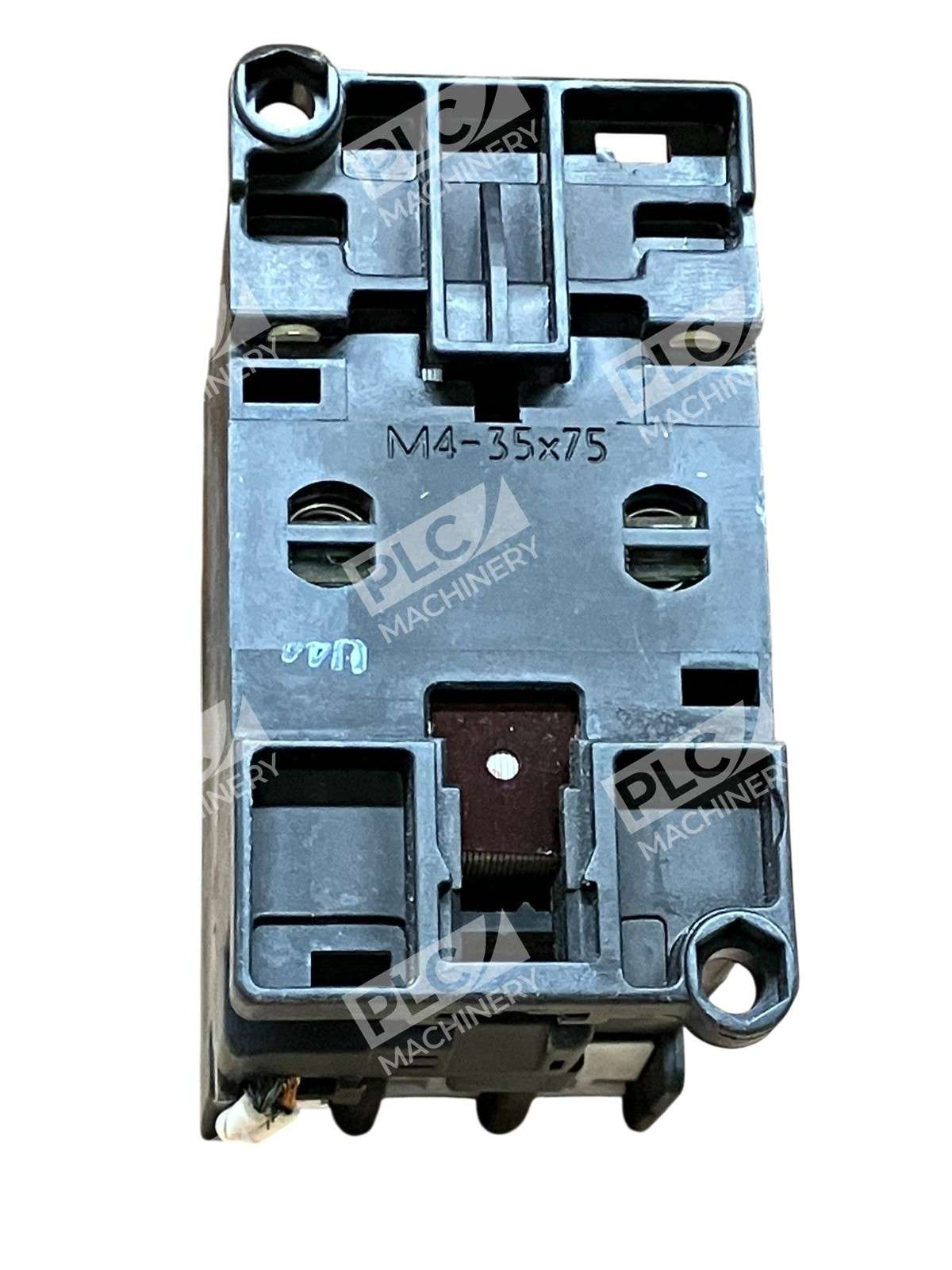

The Siemens 3TF3300-0A is a compact 3-pole AC power contactor built for industrial motor control and switching applications. This IEC-rated contactor provides dependable on/off control for three-phase motors and loads up to 30A at 690V, making it suitable for general industrial use where robust, long-lived switching is critical. Siemens 3TF contactors are engineered to handle demanding duty cycles with minimal maintenance.
Key Features
- 3-Pole Configuration: Full three-phase motor control with integrated contacts
- IEC 60947 Compliance: Meets international standards for industrial contactors
- 30A Rated Current: Suitable for motors rated up to 7.5 HP at 230V and 15 HP at 460V
- 690V Maximum Voltage: Wide voltage range for high-voltage industrial panels
- Low Coil Power Consumption: Efficient AC coil design reduces operating costs
- Modular Design: Compatible with auxiliary contact blocks and accessory modules

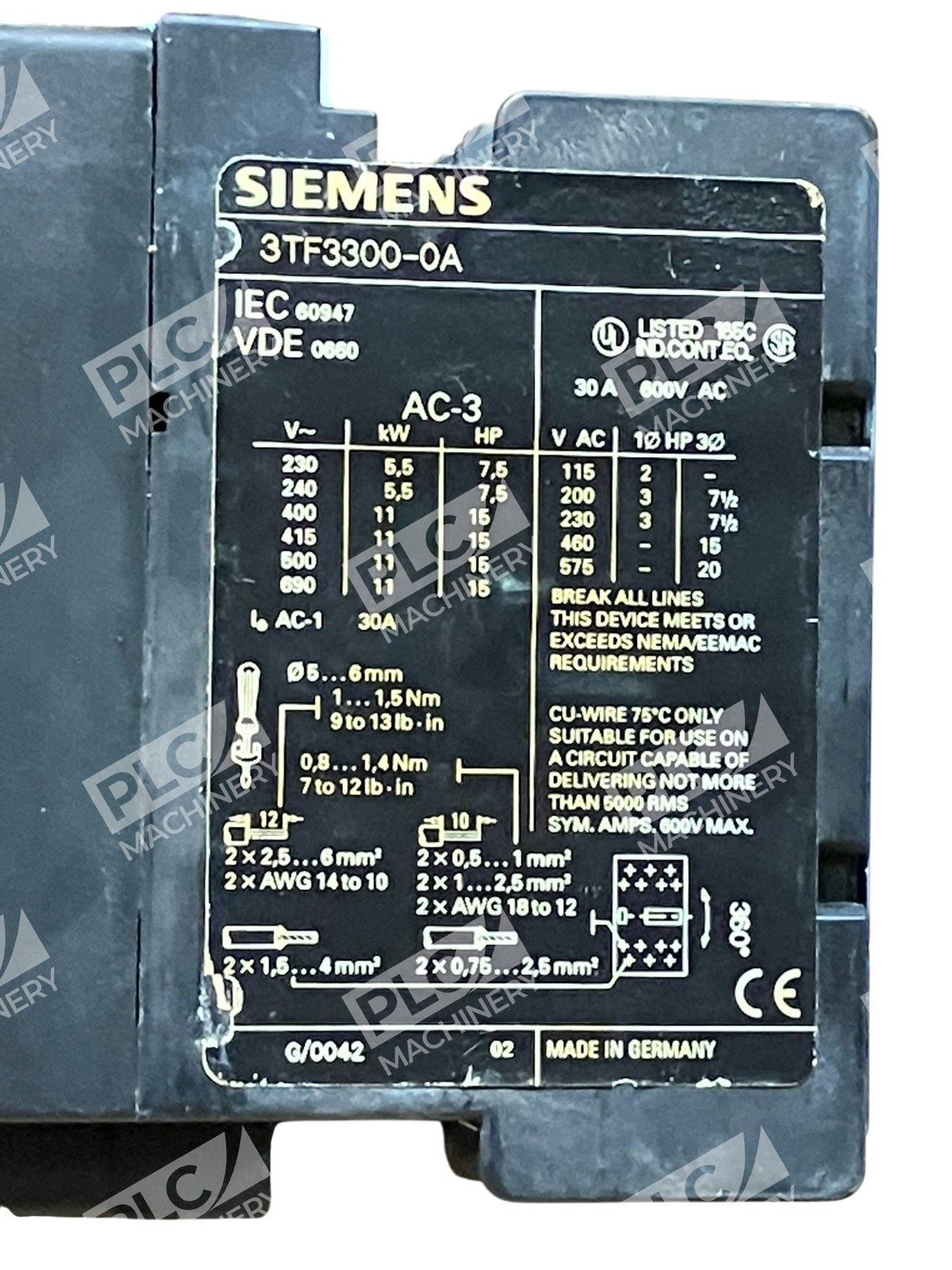

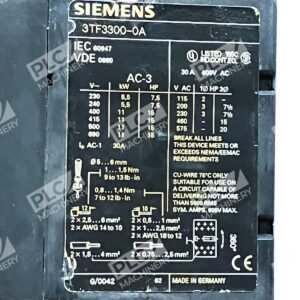

Technical Specifications
- Rated Current: 30A
- Maximum Voltage: 690V AC
- Poles: 3
- Contact Duty: AC-3 / AC-4
- Coil Options: AC 110V/50Hz, 110V/60Hz, 132V/60Hz (varies by suffix)
- Electrical Endurance: High cycle life for frequent switching
- Standards: IEC 60947-4-1, IEC 60946
- Frame Size: Size 1 (compact industrial footprint)
Typical Applications
- Motor control centers (MCCs) and industrial starter panels
- Pump and compressor motor switching
- HVAC equipment control circuits
- Industrial machinery load control
- Power distribution and switchgear assemblies
- AC motor acceleration and reversing circuits
Compatibility & Replacements
The 3TF3300-0A integrates into existing Siemens motor control ecosystems. Auxiliary contact blocks, timer modules, and other 3TF-series accessories mount directly to the contactor frame. When sourcing replacement units or upgrades, verify the exact voltage/frequency suffix (AF0, AP0, etc.) to ensure plug compatibility with control wiring. Related 3TF models (3TF3200-0A, 3TF3310-0A) serve different amperage ratings within the same product family. This unit is commonly used in retrofit and modernization projects where drop-in replacement or expansion of existing control circuits is required.
