Overview

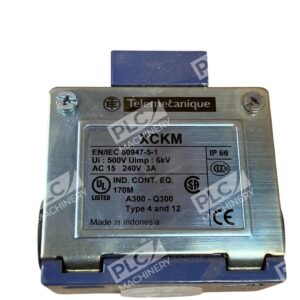

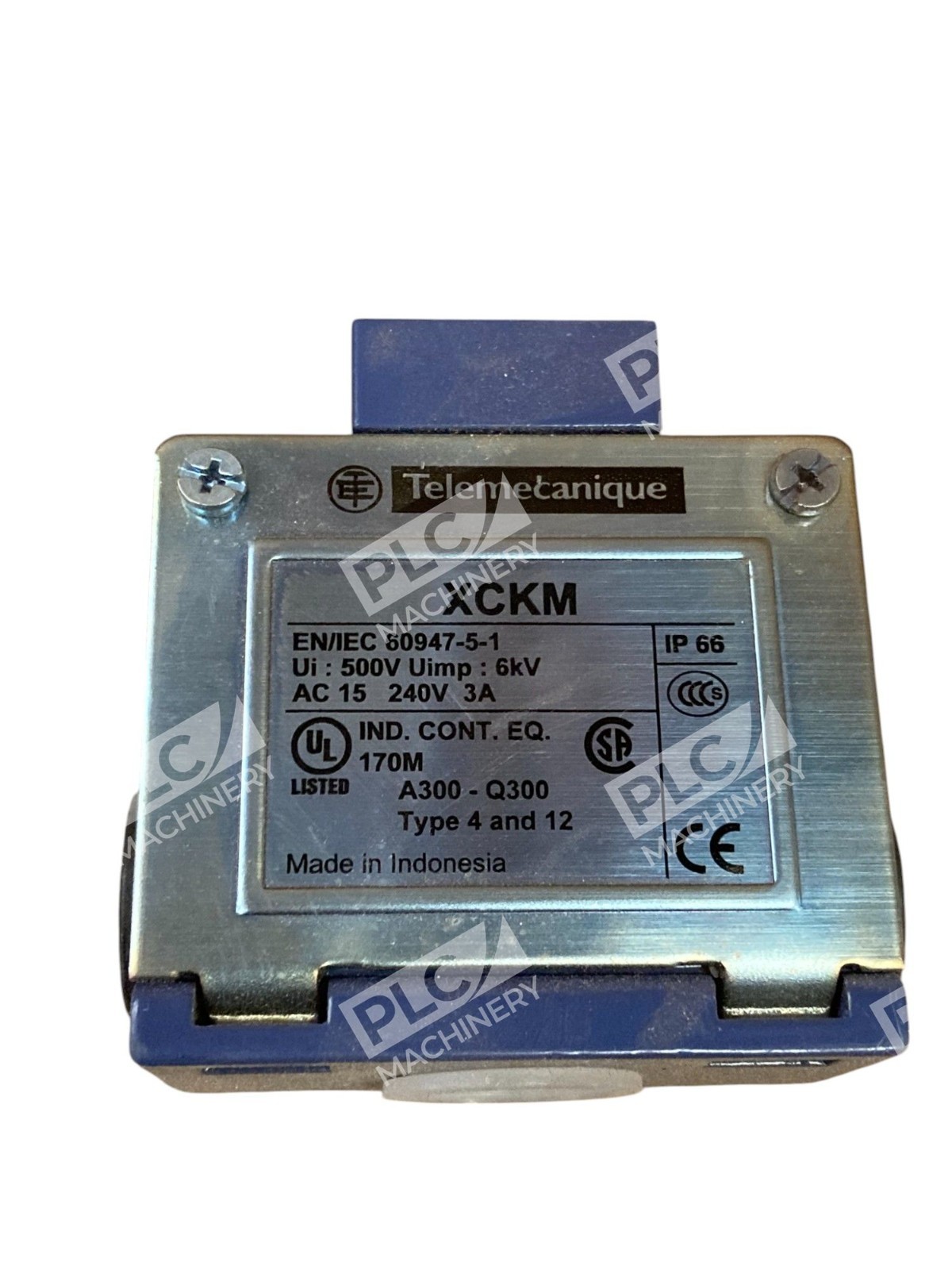

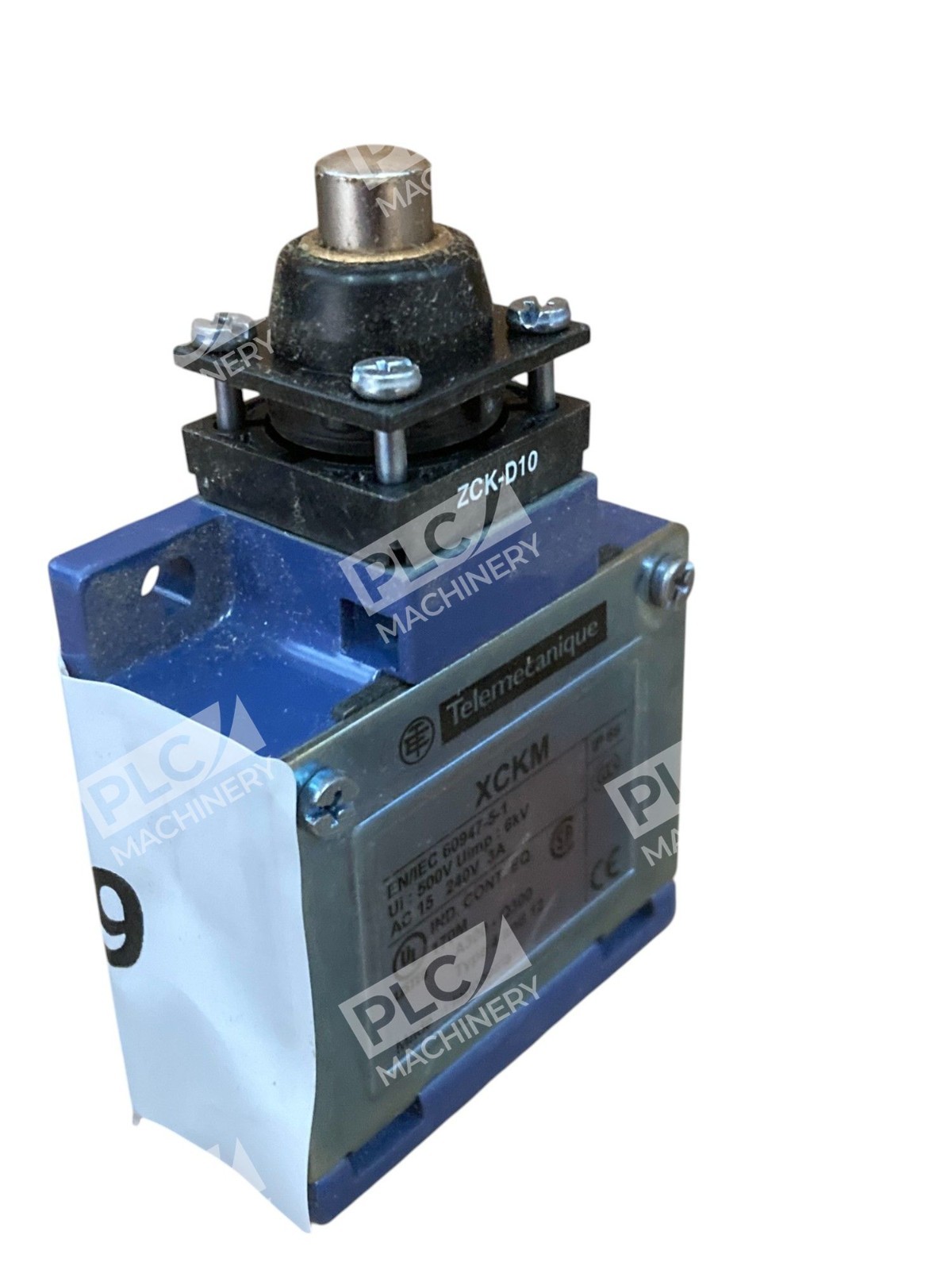

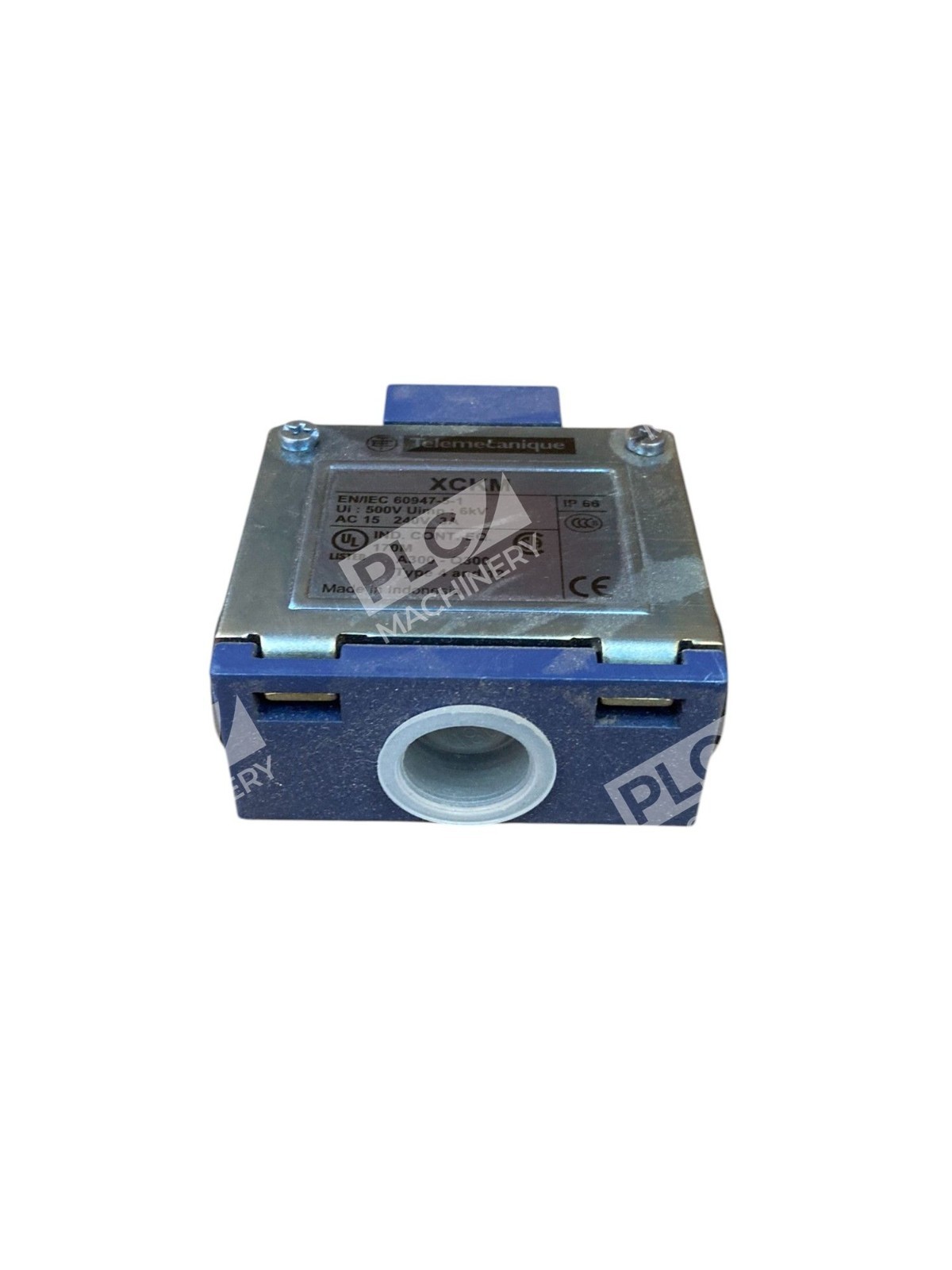

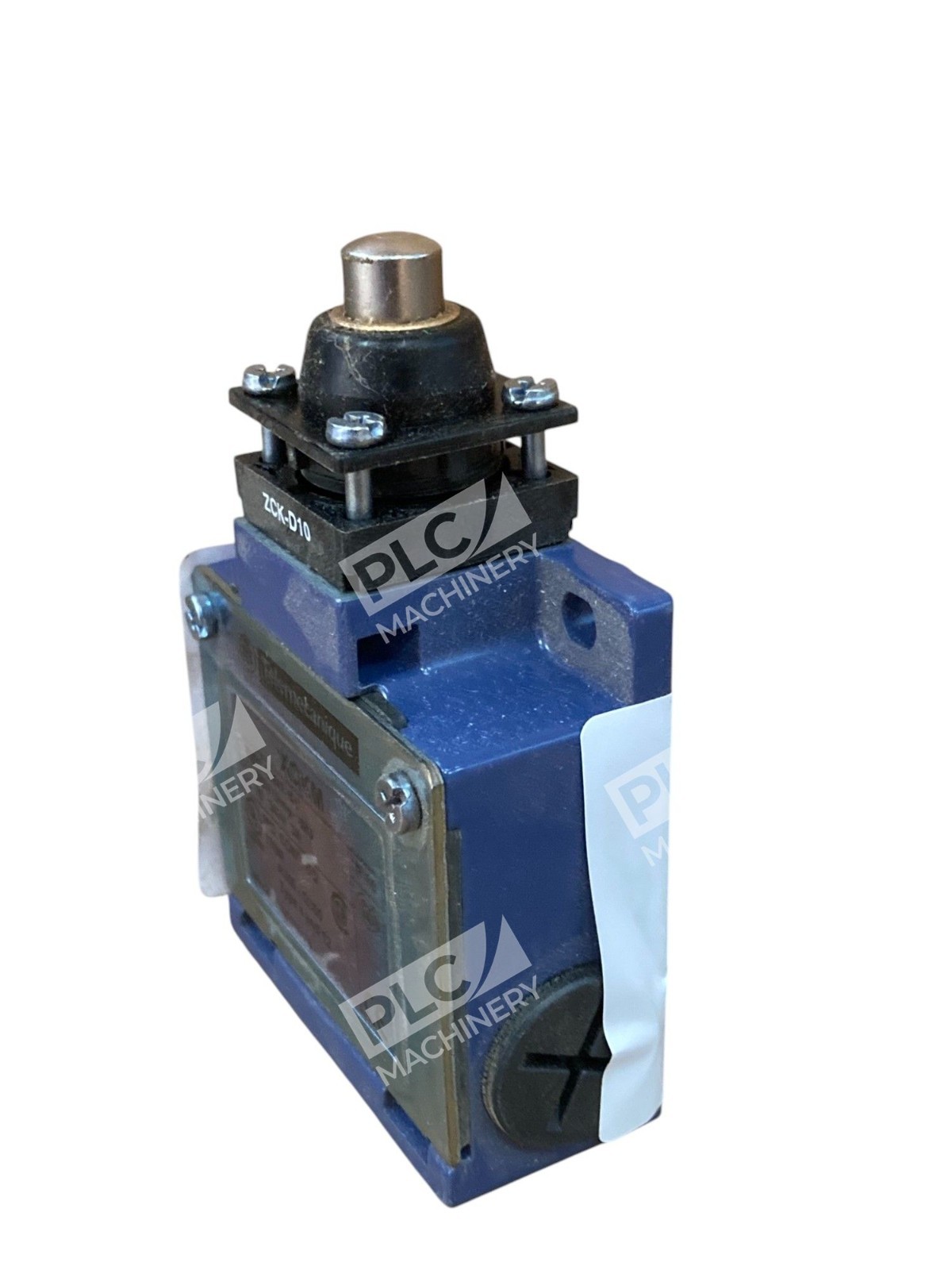

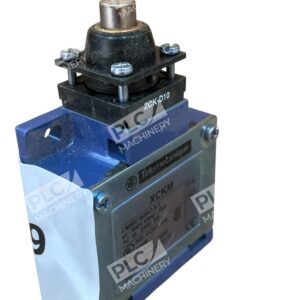

The Telemecanique ZCK-D10 limit switch head is a metal end plunger actuator designed for the OsiSense XC Standard range of limit switches. This head assembly connects to ZCKM and ZCKL series switch bodies to create complete snap-action limit switch units for industrial machinery, conveyors, and process automation. Operating at 240V AC 50/60 Hz with a 3A contact rating, the ZCK-D10 delivers precise electrical switching with positive opening action and spring-return operation.
Key Features
- Metal end plunger with vertical approach for reliable mechanical actuation
- IP65 environmental protection against dust and water ingress
- Snap-action contact closure ensures fast, dependable switching
- Spring-return design for automatic reset after actuation
- Positive opening mechanism for safety-critical applications
- Standard format compatible with all ZCKM and ZCKL switch bodies
Technical Specifications
- Input Voltage: 240V AC, 50/60 Hz
- Contact Rating: 3A @ 240V
- Rated Voltage Insulation: 500V / 6kV impulse
- Enclosure Rating: IP65 (dust and water resistant)
- Operating Head Type: Metal end plunger
- Actuation Mode: Vertical linear approach
- Contact Operation: Snap action with positive opening
- Reset Type: Spring return
- Series: Telemecanique XC Standard / OsiSense XC
- Weight: Approximately 50 g (head only)
- Manufacturer: Telemecanique Sensors (Schneider Electric)
Typical Applications
- Conveyor and material handling equipment limit stop positions
- Industrial press and machine tool safety interlocks
- Door and hatch position sensing on enclosures and cabinets
- Automated machinery travel limit and end-of-stroke detection
- Process equipment valve and damper position monitoring
- Heavy-duty manufacturing and assembly line automation
Compatibility & Replacements
Compatible With
- ZCKM series switch bodies (all variants)
- ZCKL series switch bodies (all variants)
- XCK Metal format limit switch systems
- Telemecanique OsiSense XC Standard range
- Industrial snap-action switching applications up to 500V AC
Replaces / Drop-In Replacement For
- Telemecanique ZCKD10 (alternate part number format)
- Schneider Electric ZCK-D10 (OEM equivalent)
- OsiSense XC metal end plunger limit switch heads of the same class
Works With
- Telemecanique / Schneider Electric limit switch bodies ZCKL1, ZCKL5, ZCKL6, ZCKL7
- Telemecanique ZCK metal format bodies with standard ZCKD head mounting
- Industrial PLC and controller I/O modules via standard 240V AC switching contacts
- IEC 60947-5-5 compliant limit switch installations
- Legacy and modern industrial automation systems
