Overview

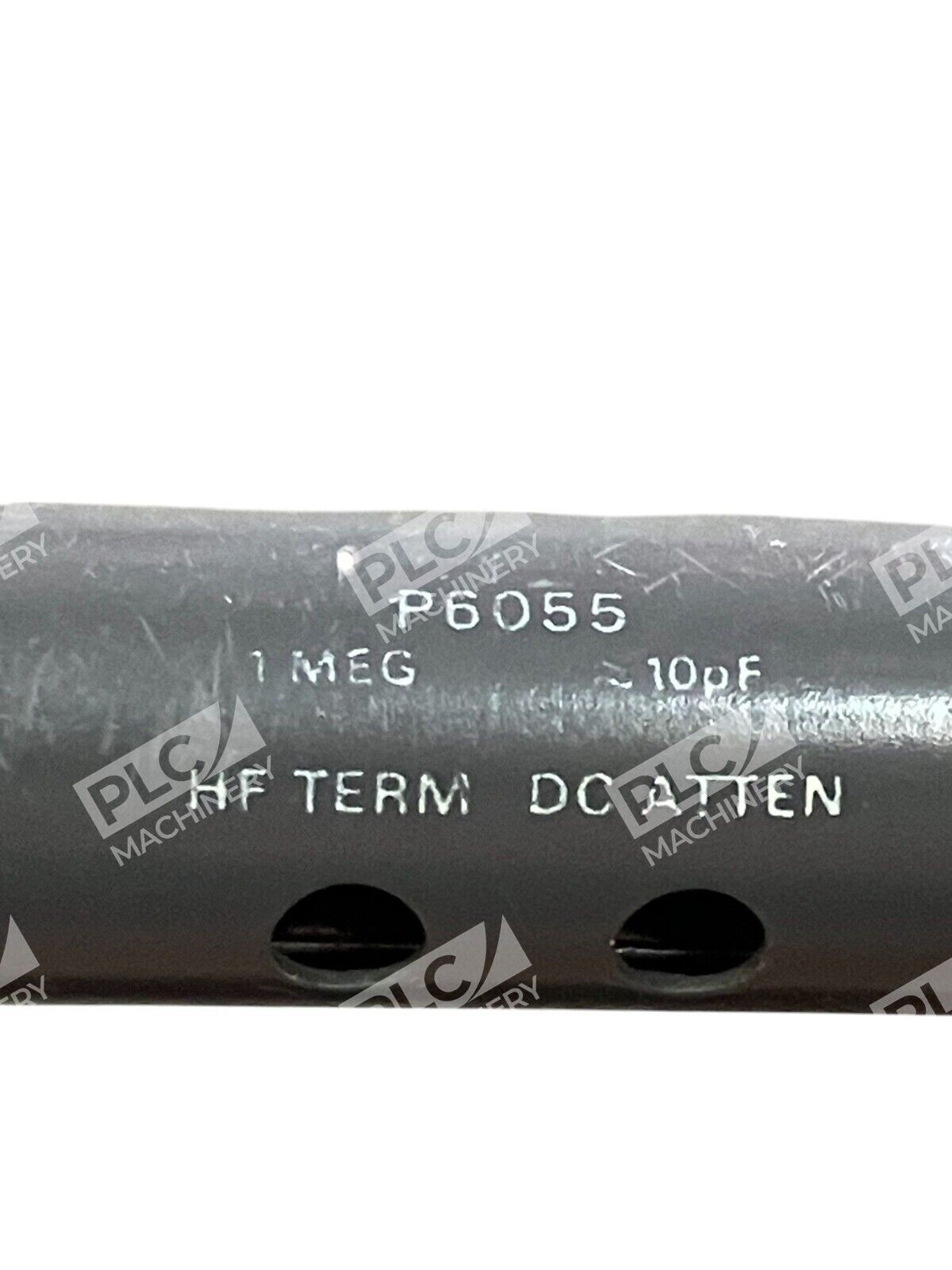

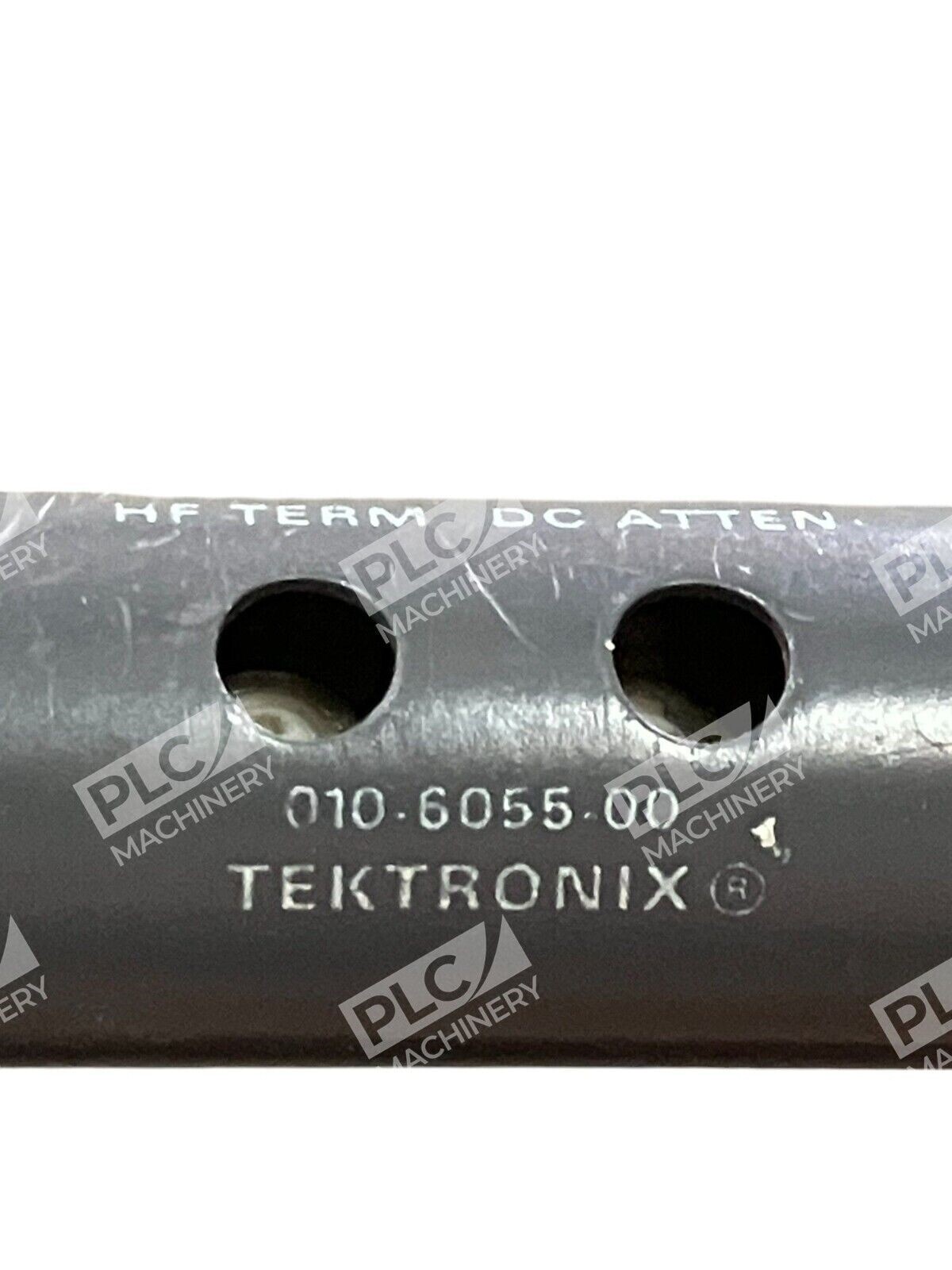

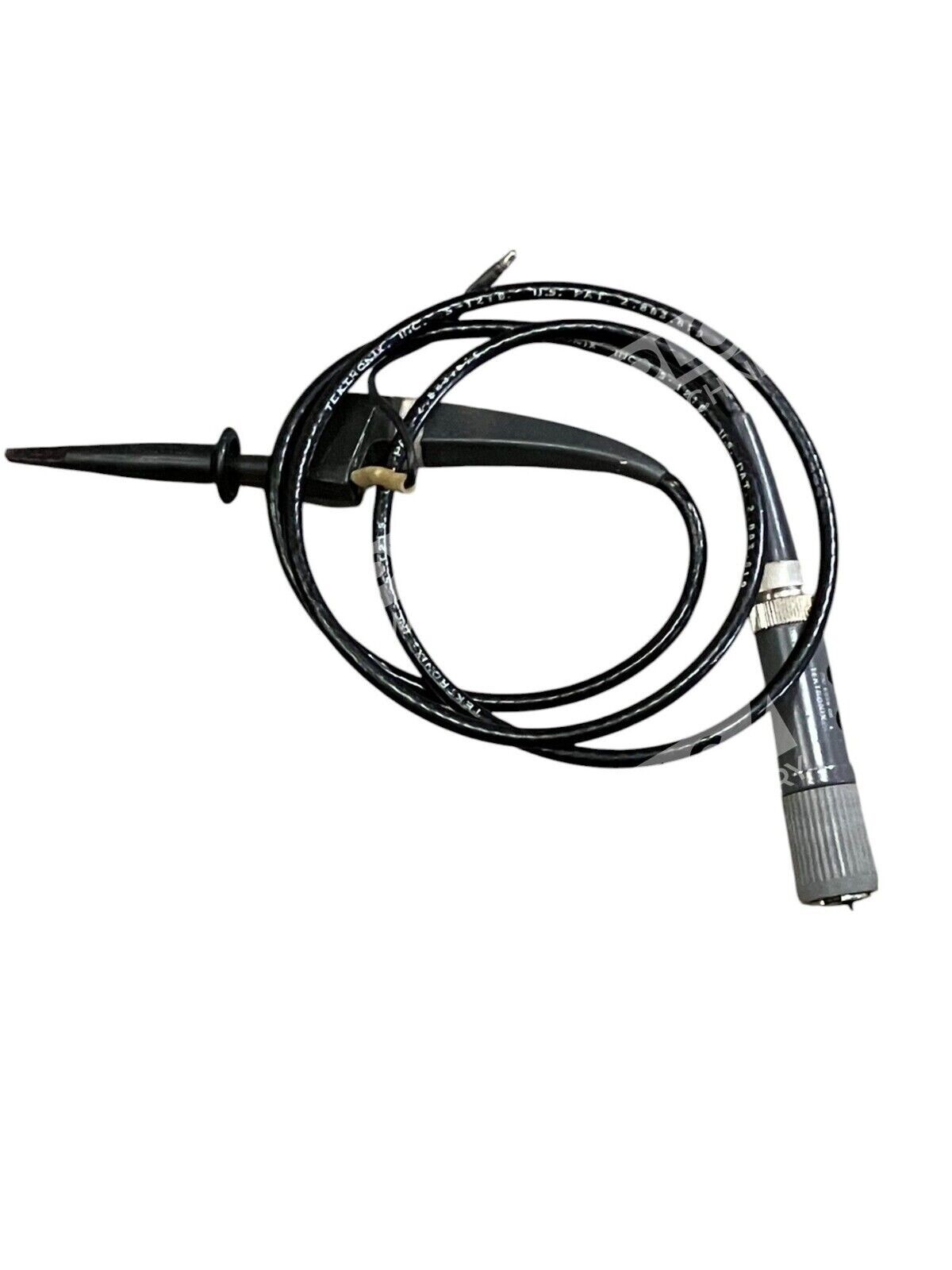

The Tektronix P6055 differential probe (part number 010-6055-00) is a 10× passive probe pair engineered for high-fidelity differential signal measurement. With 1 MΩ input impedance and 10–47 pF input capacitance, the P6055 delivers precise gain matching and low loading effects on measurement circuits. This probe pair is ideal for oscilloscope work requiring exact differential amplifier compensation.
Key Features
- 10× attenuation ratio (adjustable for precise gain matching)
- 1 MΩ input impedance with 10–47 pF input capacitance
- DC-coupled passive design for low noise and minimal circuit loading
- Matched probe pair for superior common-mode rejection ratio (CMRR) improvement
- Compatible with classic Tektronix differential amplifier modules
Technical Specifications
- Model: P6055 | Part Number: 010-6055-00
- Attenuation Ratio: 10×
- Input Impedance: 1 MΩ
- Input Capacitance: 10–47 pF
- Coupling: DC
- Probe Type: Passive differential pair
- Condition: Used, tested and working
Typical Applications
- High-frequency oscilloscope measurements on differential circuits
- Common-mode rejection optimization in analog signal chains
- Precision voltage measurement across low-impedance loads
- Lab and field troubleshooting of balanced signal paths
- Restoration and calibration of vintage Tektronix test equipment
Compatibility & Replacements
Compatible With
- Tektronix 7A13 differential amplifier plug-in
- Tektronix 5A22N differential amplifier
- Tektronix 7D12/M2 sample-and-hold module
- Classic oscilloscope platforms with BNC probe inputs
- Passive probe configurations requiring 1 MΩ input matching
Replaces / Drop-In Replacement For
The P6055 is a matched pair designed specifically for Tektronix vertical amplifier modules and is not a direct replacement for other probe types. Original Tektronix P6055 pairs are functionally equivalent; verify probe condition and impedance matching before substitution.
Works With
- Tektronix analog and digital oscilloscopes with standard BNC connectors
- Passive probe systems requiring DC coupling and adjustable attenuation
- Test benches requiring precision differential measurement without active amplification
