Overview

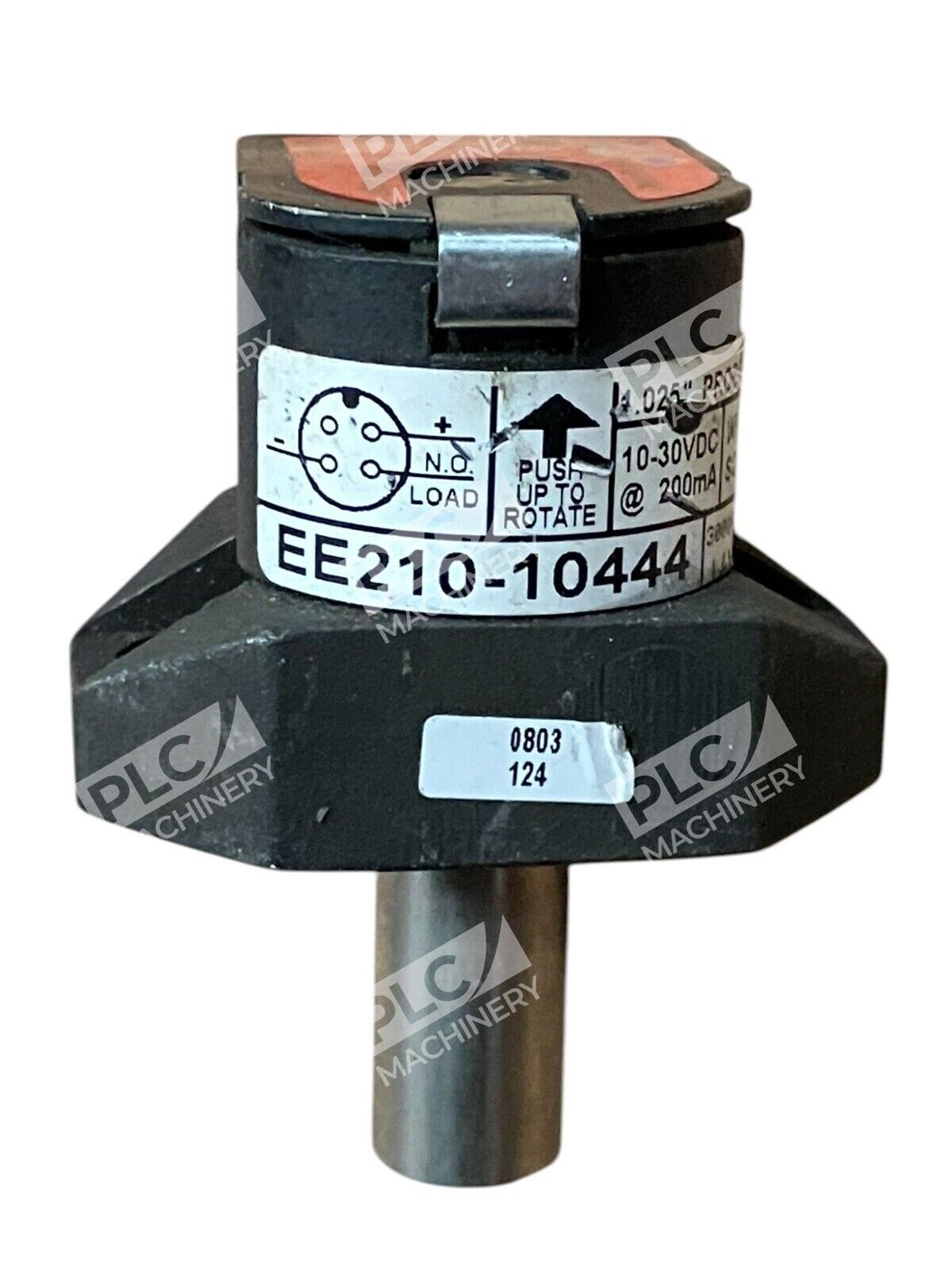

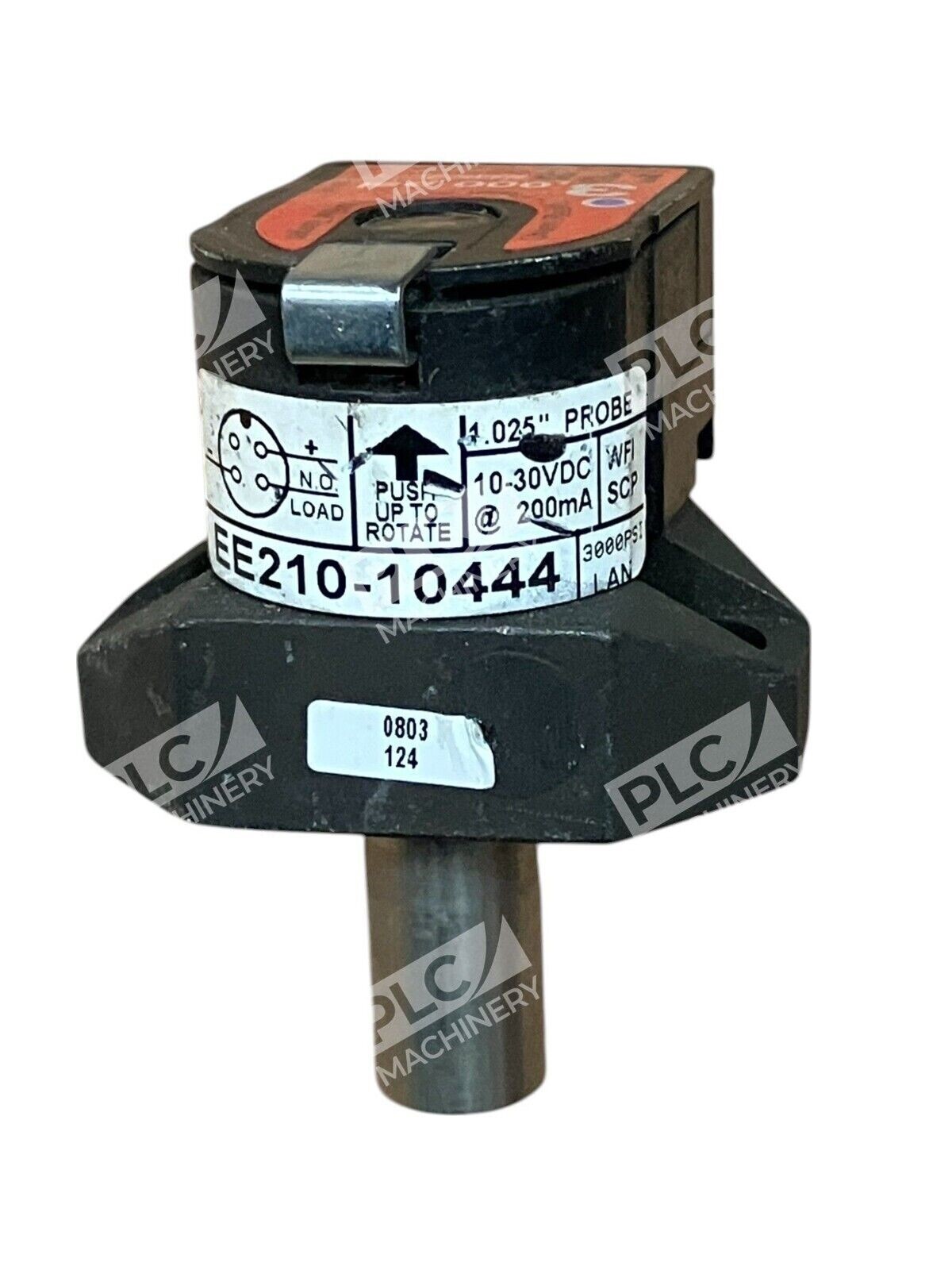

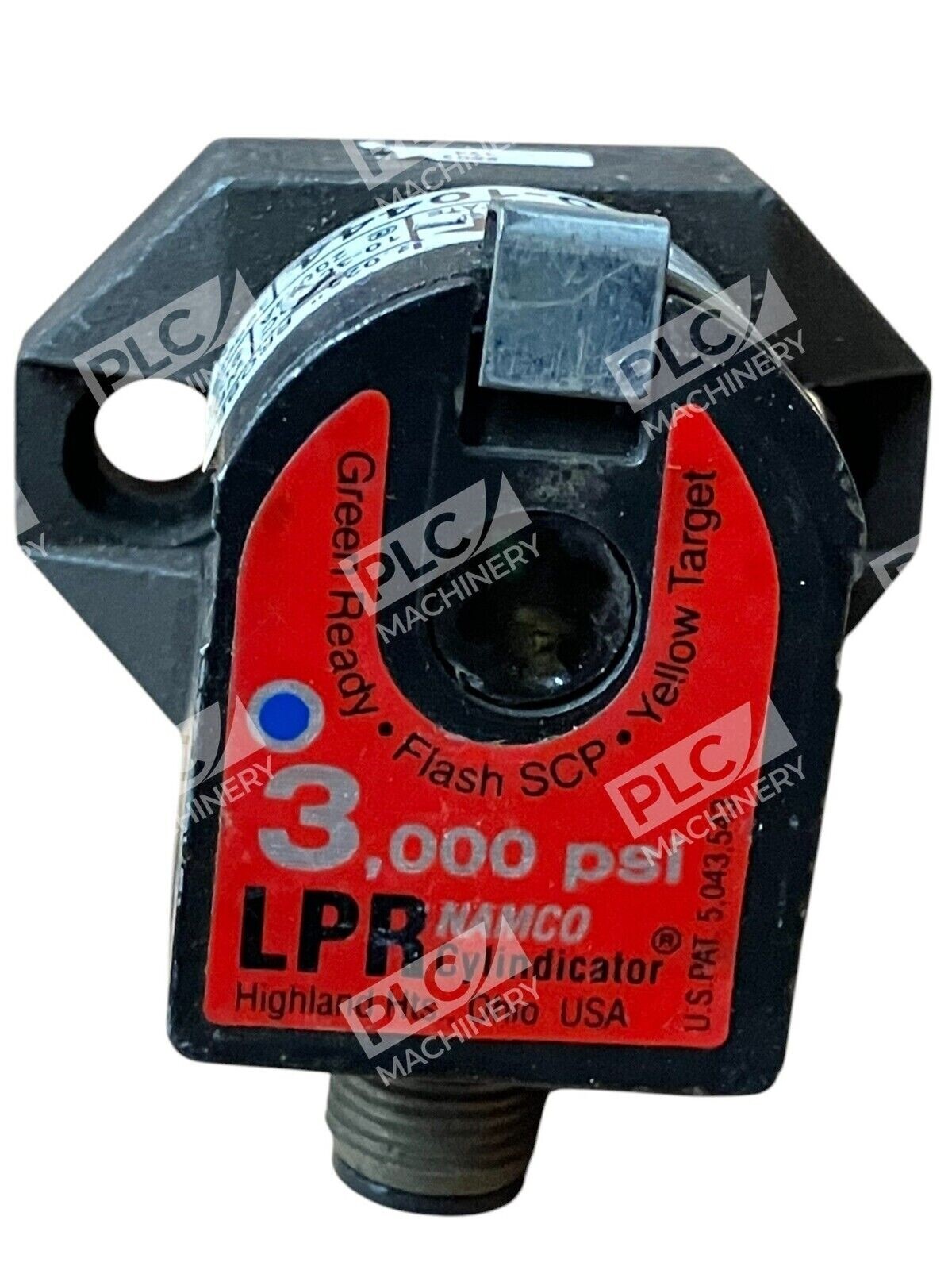

The NAMCO EE210-10444 is a rugged LPR Cylindicator proximity sensor designed for accurate cylinder position detection in high-pressure industrial hydraulic systems. This non-rotatable, inductive proximity switch delivers reliable performance in 3000psi applications and operates across 10-30VDC with 200mA capacity. The 1.025″ probe diameter fits standard cavity hydraulic cylinders. Ideal for OEMs and maintenance teams requiring drop-in replacements for cylinder position sensing.
Key Features
- 3000psi pressure rating for high-pressure hydraulic cylinder mounting
- 1.025″ probe diameter for standard cavity cylinders
- 10-30VDC operation with 200mA capacity
- 4-pin male connector (standard Namco configuration)
- Inductive proximity sensing — no moving parts, high reliability
- Normally Open (N.O.) circuit logic
- Weld field and electrical noise immunity
Technical Specifications
- Pressure Rating: 3000 psi (207 bar)
- Operating Voltage: 10-30 VDC
- Current Rating: 200 mA
- Probe Diameter: 1.025 inches
- Sensing Technology: Inductive Proximity
- Contact Form: Normally Open (N.O.)
- Connector Type: 4-pin male
- Series: EE210
Typical Applications
- Hydraulic cylinder end-of-stroke detection
- Industrial clamping and positioning machinery
- Press brake and metal forming equipment
- Automated assembly line actuator monitoring
- High-pressure injection molding cylinder control
Compatibility & Replacements
Compatible With
- Bosch Rexroth cylinders with standard cavity sensors
- Parker Hannifin cylinder mounting provisions
- Eaton/Vickers hydraulic systems
- Standard 24VDC PLC digital input modules
- Industrial control relay circuits (10-30VDC)
Replaces / Drop-In Replacement For
- NAMCO EE210-10440 (similar 3000psi sensor with alternate connector)
- NAMCO EE210-11344 (1.250″ probe variant)
- Comparable Danaher Controls EE210-series cylindicator sensors
Works With
- Direct mounting on standard cavity hydraulic cylinders
- EtherNet/IP and PROFINET protocols via gateway modules
- Industrial PLC platforms (Allen-Bradley, Siemens, Mitsubishi)
- 24VDC and 12VDC relay logic circuits
- Hydraulic control systems from major OEMs
