Overview

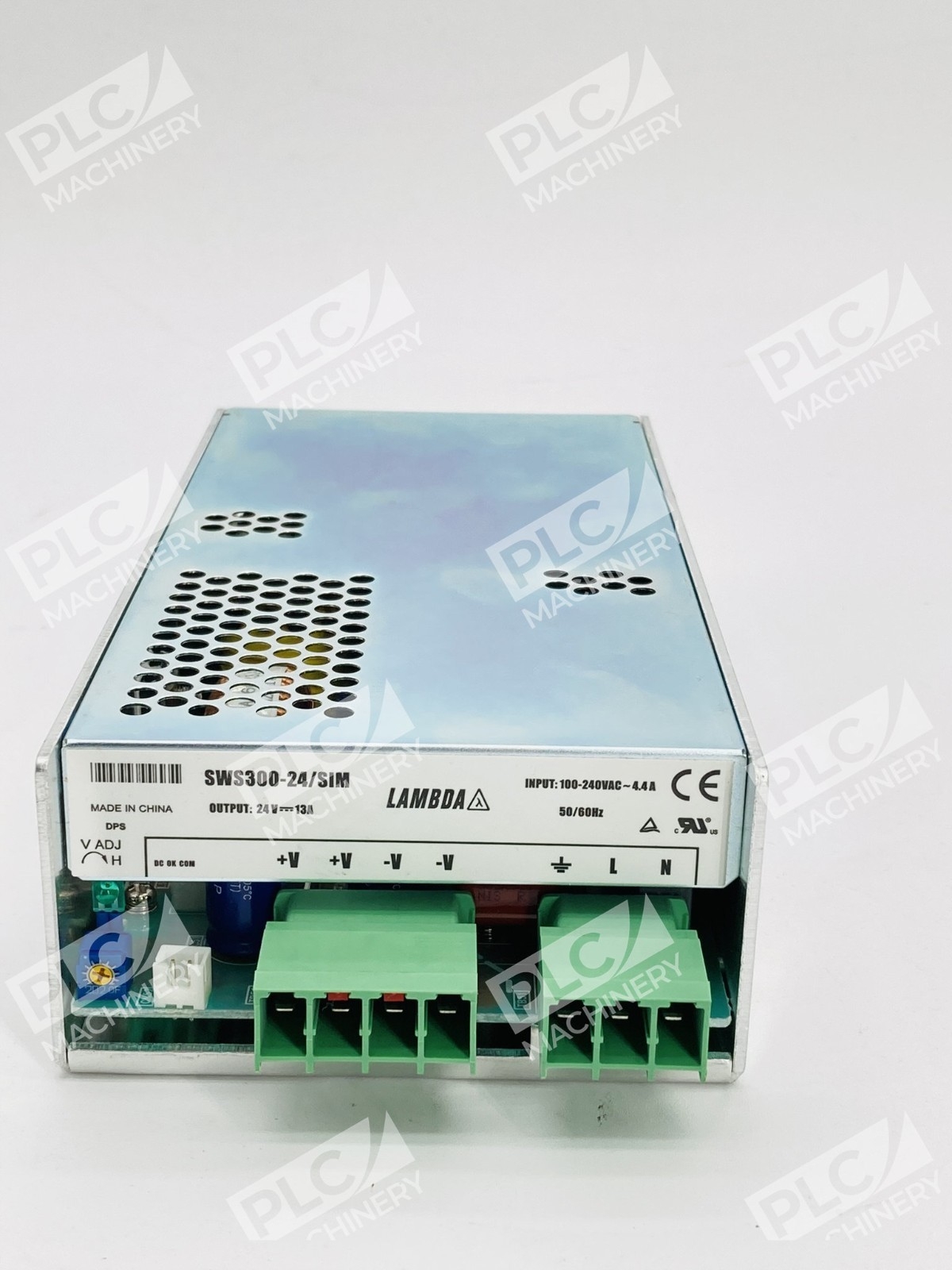

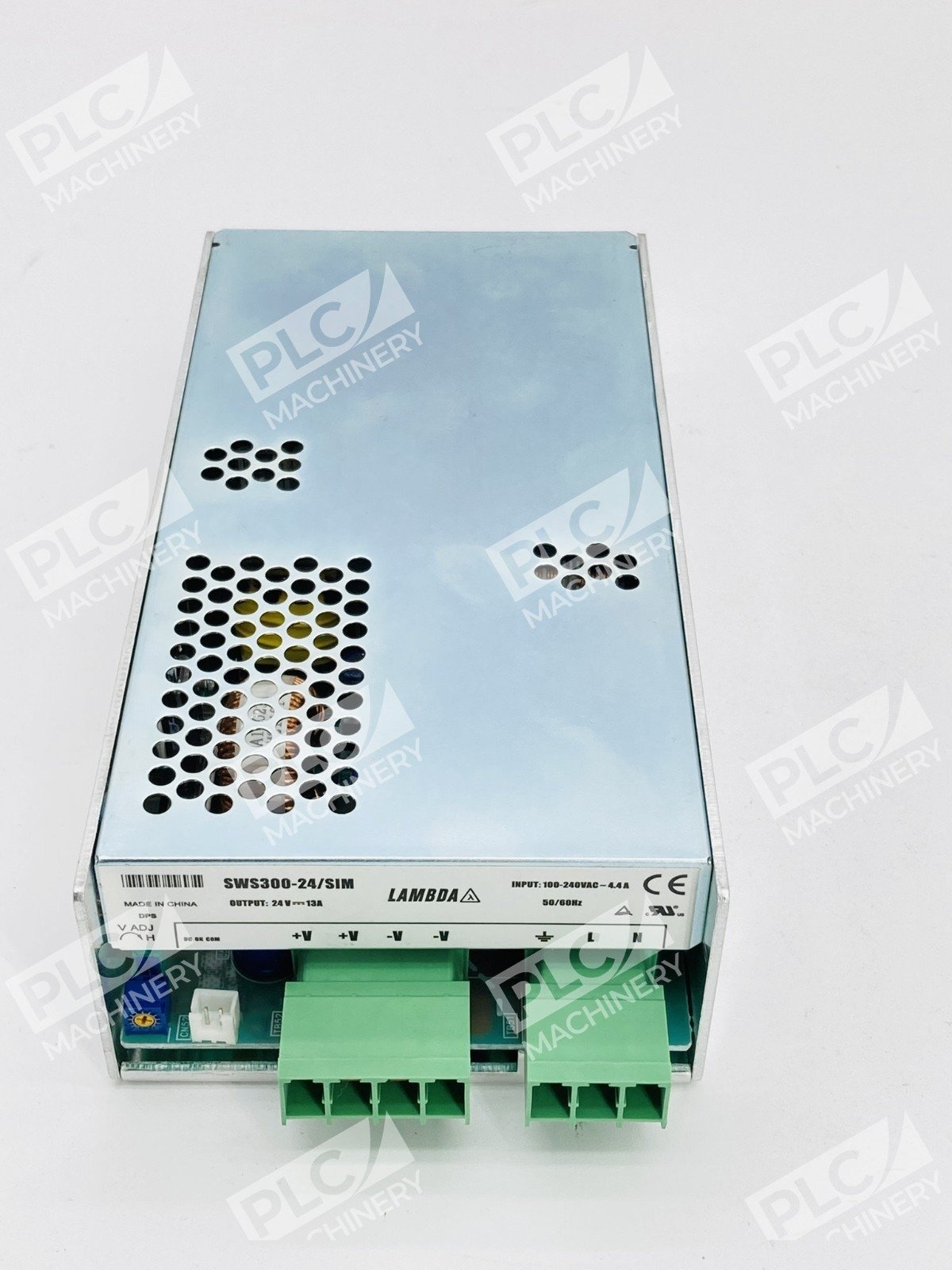

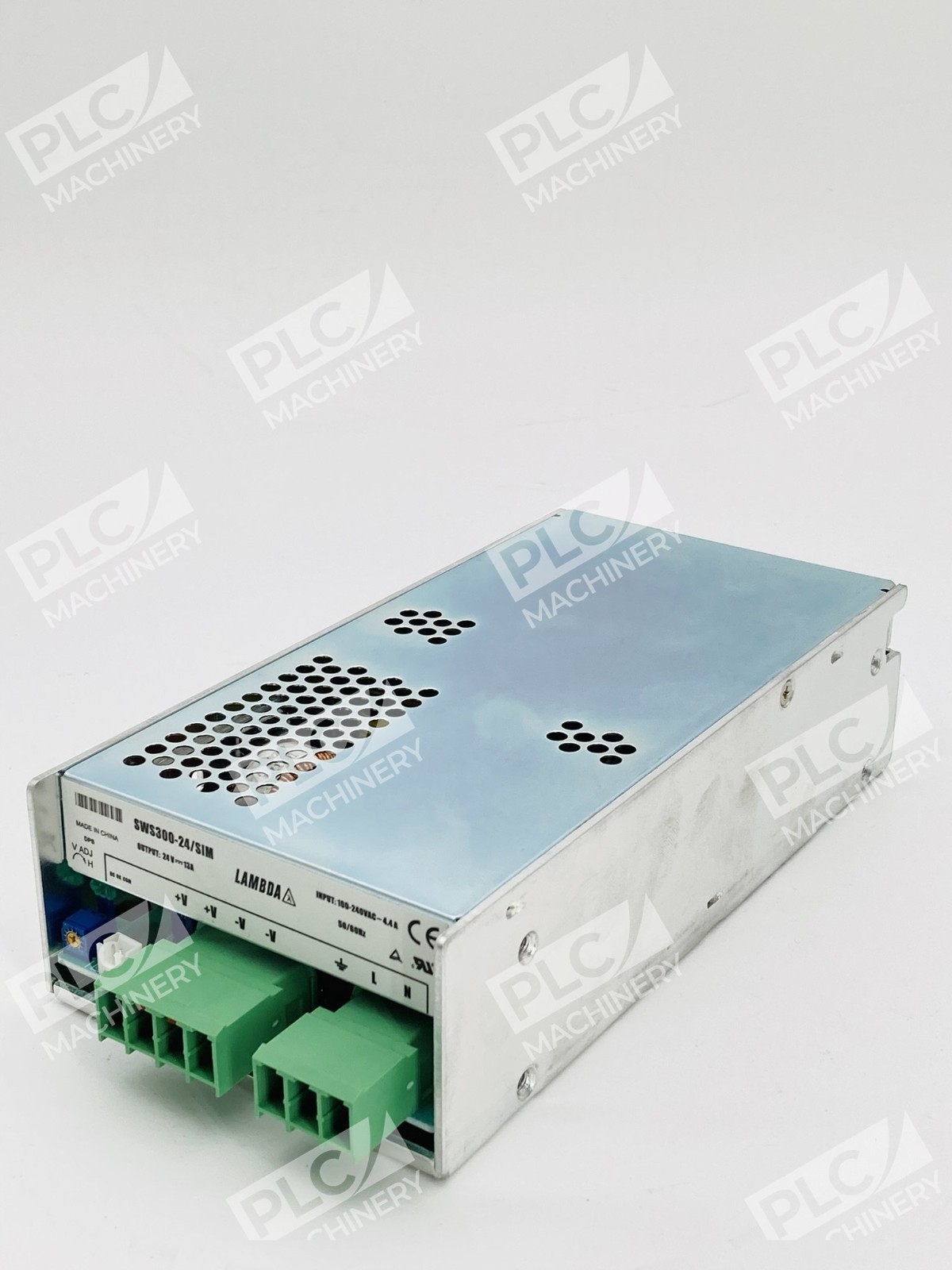

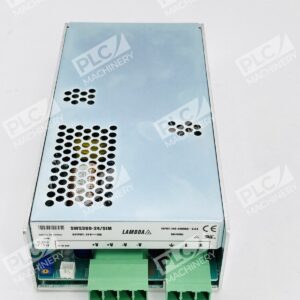

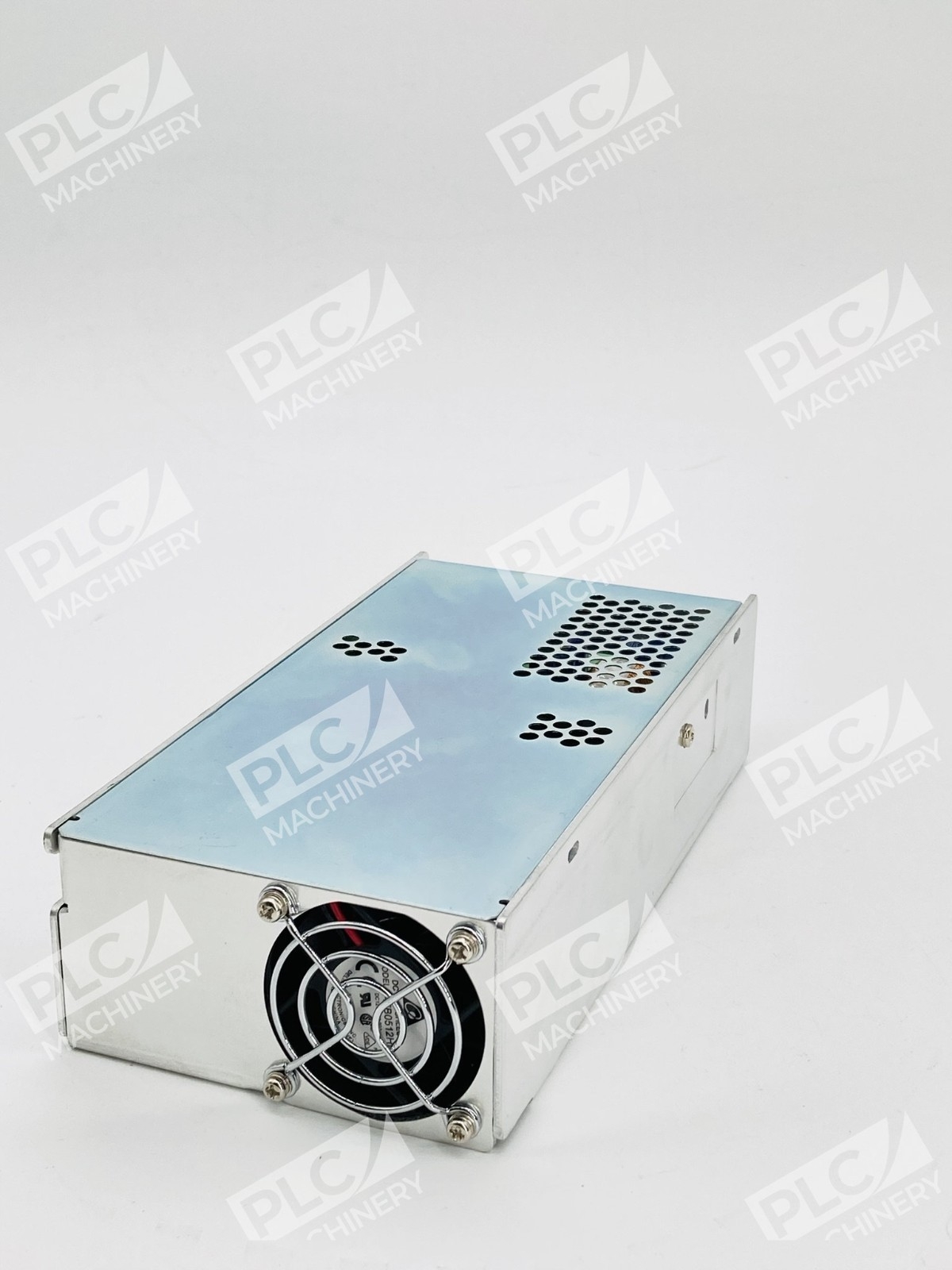

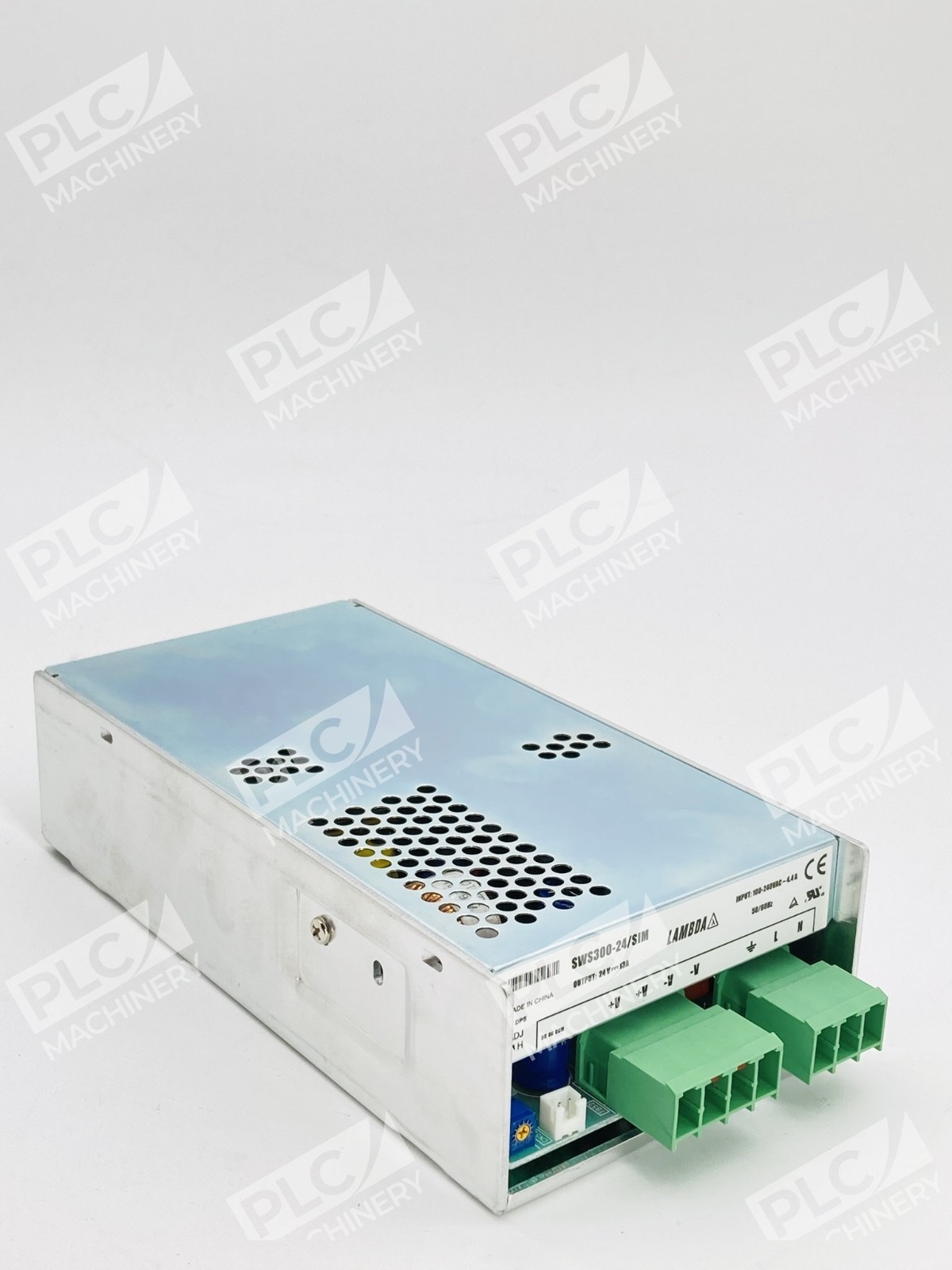

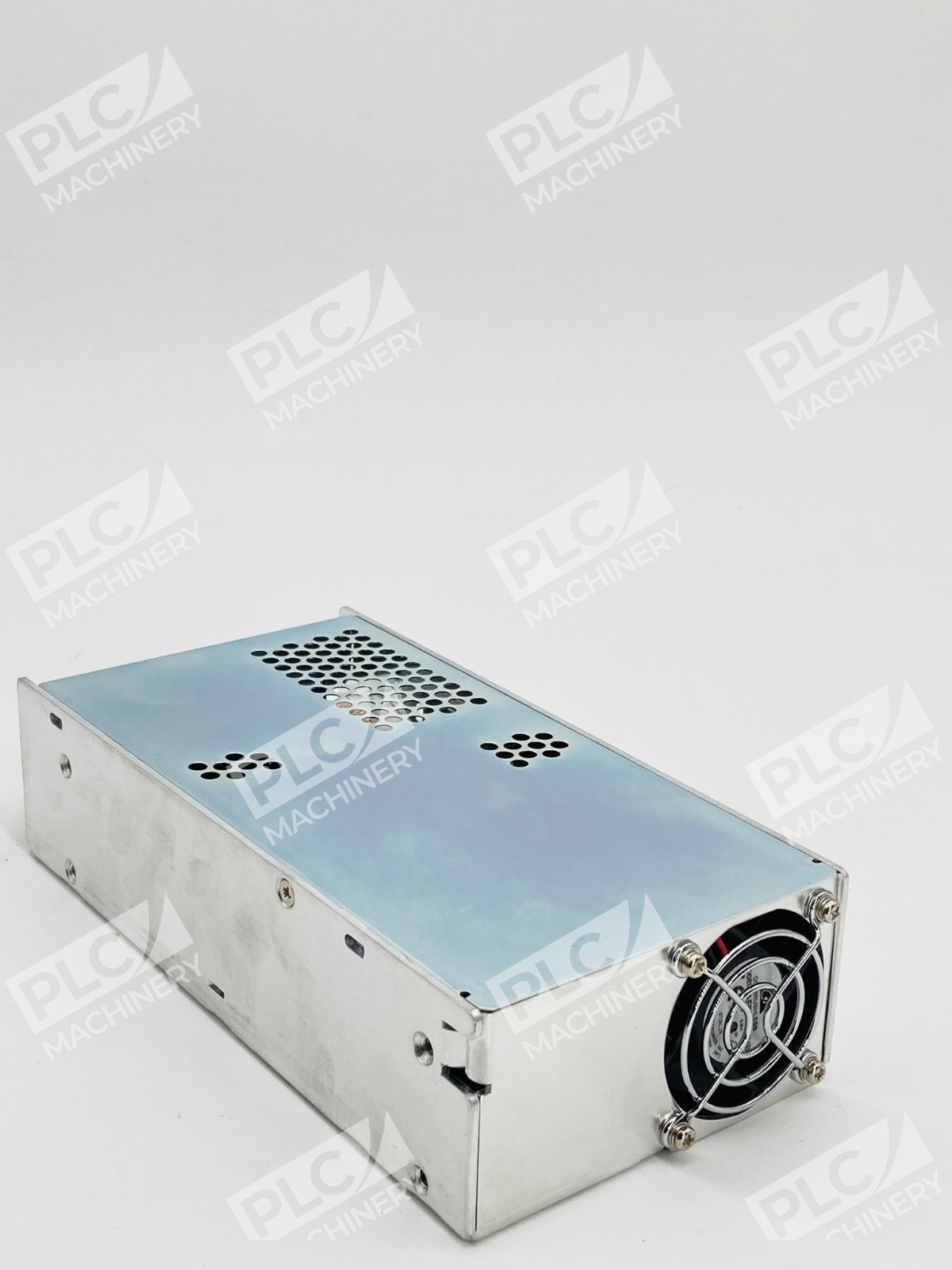

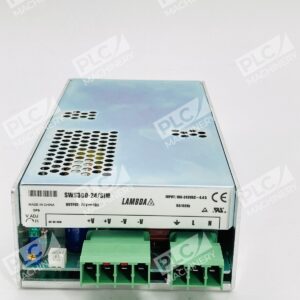

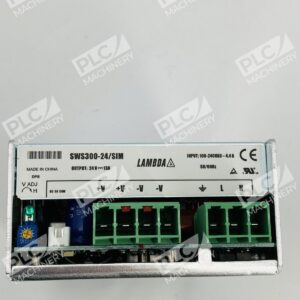

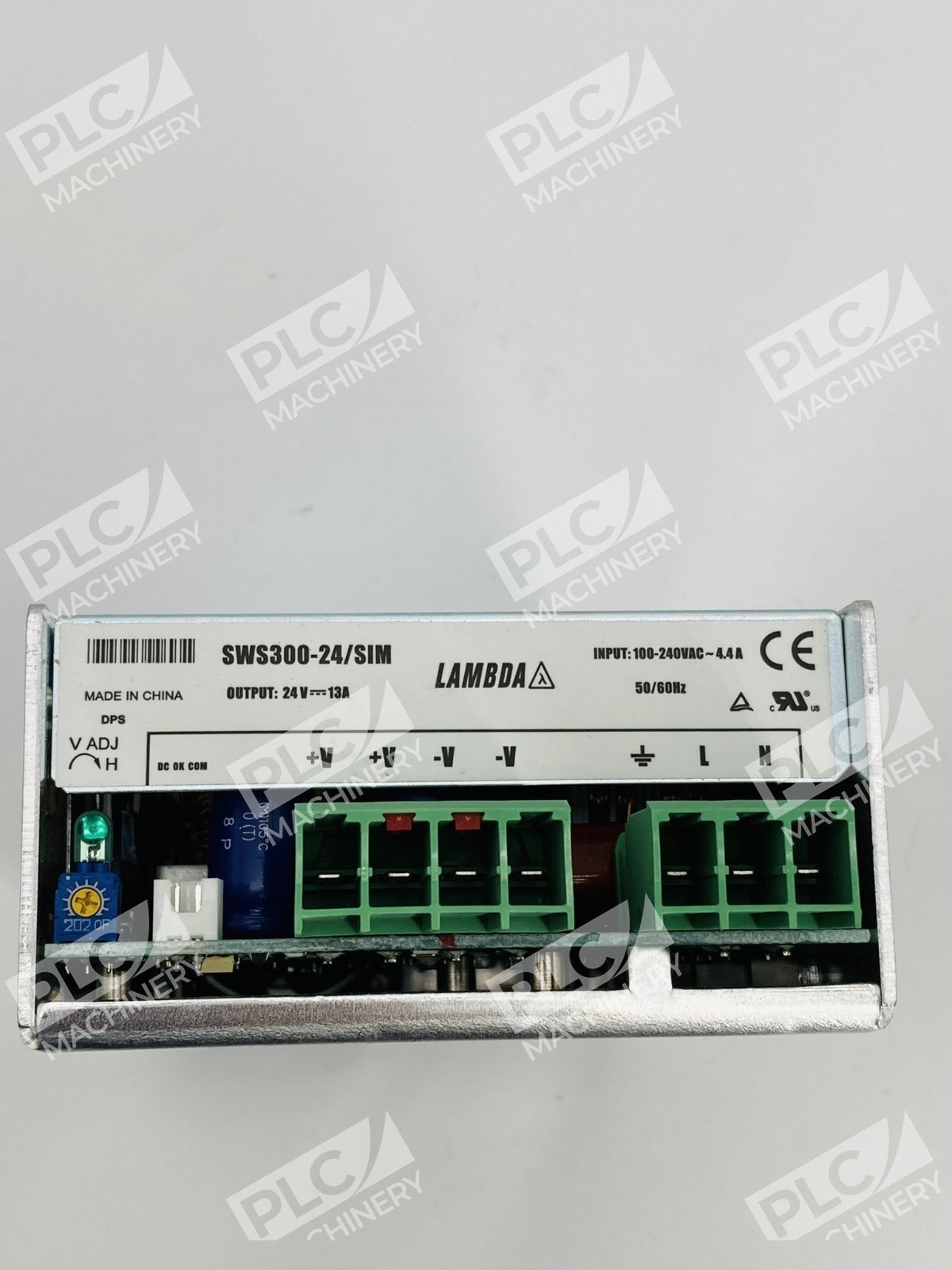

The TDK Lambda SWS300-24 is a single-output AC/DC enclosed power supply designed for industrial automation, control systems, and electronic equipment. This 312W-rated unit delivers 24V at 13A continuous output, making it ideal for powering PLCs, drives, sensors, and distributed I/O systems in factory and process environments. Built with active power factor correction (PFC) and comprehensive protection circuits, it meets global safety and EMC standards.
Key Features
- Single 24V output with 13A rated current and 300W nominal power
- Active Power Factor Correction (PFC) for efficient operation and compliance
- Wide input voltage range: 100–265 VAC, 50/60 Hz (universal mains compatibility)
- Enclosed chassis design for panel, DIN rail, or chassis mounting
- Over-current, over-voltage, and over-temperature protection built-in
- Input transient protected to IEC 61000-4 standard
- RoHS compliant and UL/CSA approved
Technical Specifications
- Output Voltage: 24 VDC ±10% (20–28.8 VDC)
- Output Current: 13 A maximum
- Output Power: 300W nominal, 312W rated
- Voltage Regulation (Line): 48 mV
- Voltage Regulation (Load): 120 mV
- Output Ripple & Noise: 150 mV peak-to-peak
- Input Voltage Range: 100–265 VAC, 50/60 Hz
- Efficiency: 82–84%
- Operating Temperature: −20°C to +65°C
- Isolation Voltage: 3 kV (input-to-output)
- Dimensions: 198 mm (L) × 102 mm (W) × 52 mm (H)
- Weight: 950 g
- Mounting: Enclosed, DIN rail, panel, or chassis mount-compatible
- Safety Certifications: UL, CSA, IEC 61000-4
- RoHS Compliance: Yes
Typical Applications
- Industrial process control and PLC power supplies
- Factory automation and motion control systems
- Sensor and actuator power distribution
- Distributed I/O and fieldbus gateway modules
- Industrial machine vision and test equipment
- Power for remote monitoring and telemetry devices
Compatibility & Replacements
Compatible With
- Allen-Bradley ControlLogix, CompactLogix, and MicroLogix PLCs
- Siemens S7-200, S7-300, S7-400, and S7-1200 control systems
- Mitsubishi FX and Q-Series programmable controllers
- Omron CJ, CP, and NJ-Series industrial controllers
- Schneider Electric Modicon M240, M241, and M251 PLCs
- 24 VDC powered distributed I/O modules and fieldbus gateways
- Ethernet/IP, PROFIBUS, PROFINET, and modular automation networks
Replaces / Drop-In Replacement For
- TDK Lambda SWS300-24/SIM (single-output variant)
- Other SWS-series 24V 300W units requiring identical I/O ratings
- Verify compatibility with your system integrator before ordering.
Works With
- Studio 5000 Logix Designer and TIA Portal automation software
- GX Works and MelsecNet networking protocols
- Omron Sysmac Studio and control suites
- EtherNet/IP, PROFIBUS, and PROFINET networks
- Any 24 VDC industrial automation system requiring ±10% regulated power
