Overview
The Lenze MCS 06C60LRS0B0-A11N-ST5S00N-R2SU is a synchronous servo motor from Lenze’s MCS series, designed for high-performance motion control applications. The 06C frame size operates at 4100 RPM with 400VAC three-phase input, making it ideal for industrial automation, CNC machinery, and servo-driven systems requiring fast settling times and precise positioning.
Key Features
- MCS synchronous servo motor with high dynamic response
- Absolute encoder feedback (SINCOS LRS variant)
- Compact 06C frame design for space-constrained installations

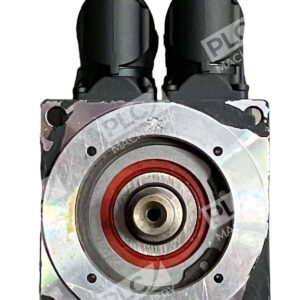

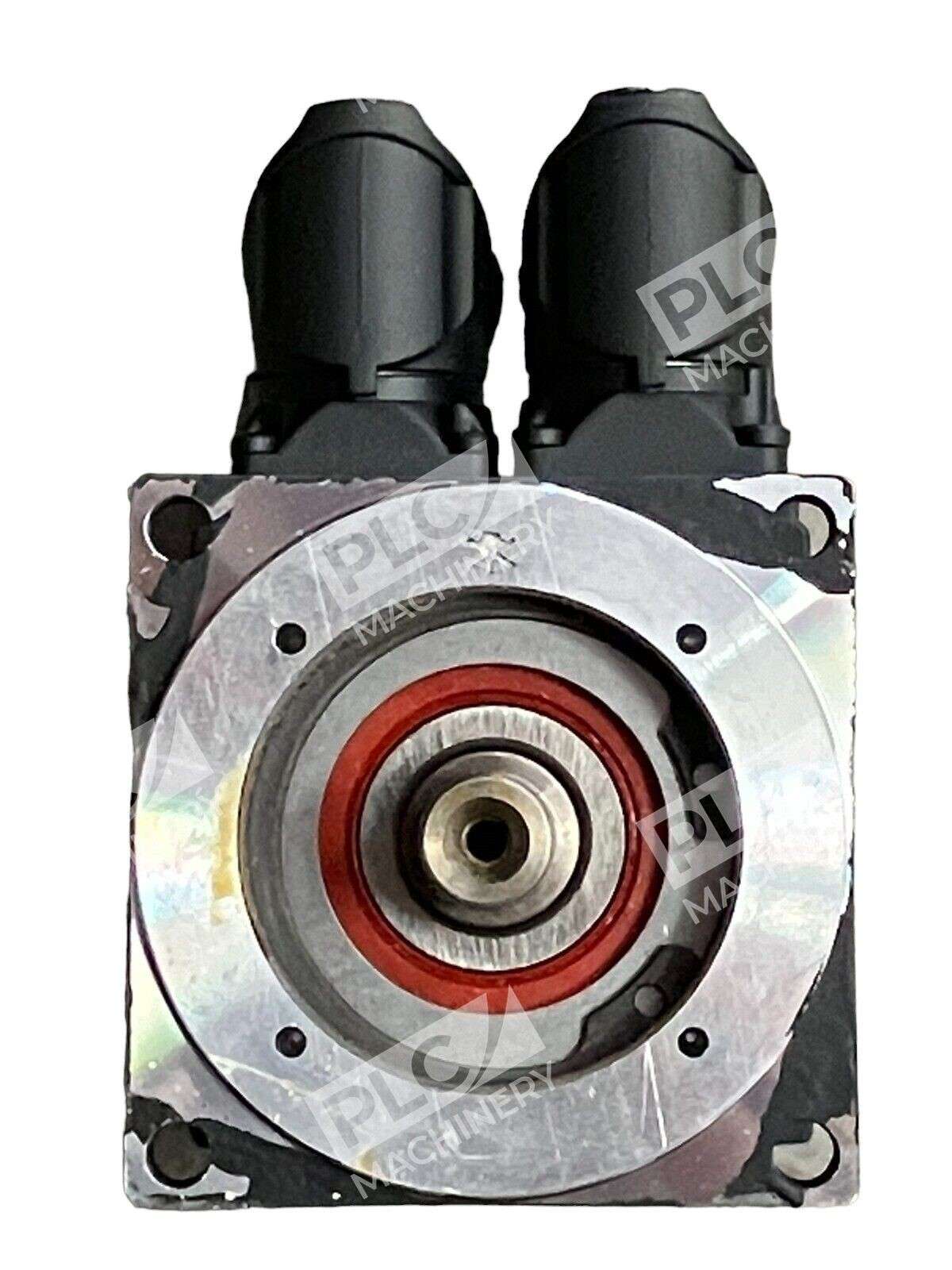

- Standard shaft without keyway; shaft diameter 11 mm
- No integrated brake; external brake solutions compatible
- IP54 protection rating with natural ventilation cooling

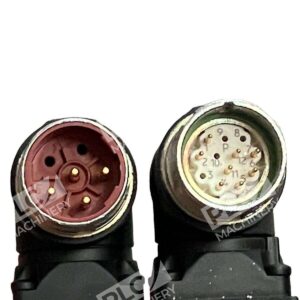

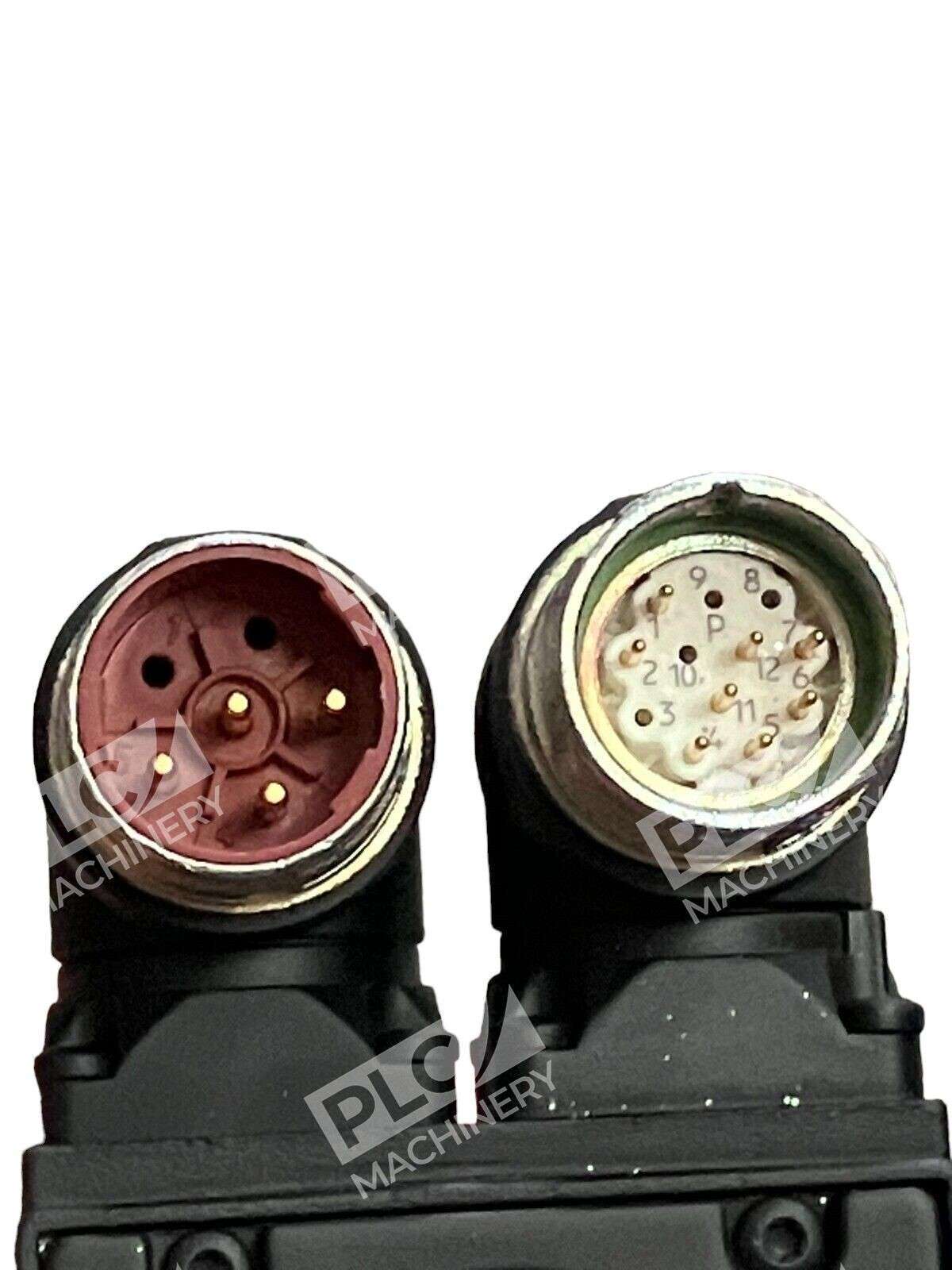

- Round connector plugs for field installation
Technical Specifications
Key operating parameters for integration into servo drives and motion controllers:
- Power Supply: 400VAC, three-phase
- Speed: 4100 RPM (no-load)
- Motor Size: 06C frame
- Feedback: SINCOS absolute encoder (LRS variant)
- Shaft: Standard, 11 mm diameter, without keyway
- Brake: None integrated
- Connectors: Round plugs (ST5S00N configuration)
- Protection Rating: IP54
- Cooling: Natural ventilation
- Estimated Weight: ~4–5 kg (frame dependent)
Typical Applications
- CNC machine tool spindle and feed drives
- Precision positioning and assembly equipment
- Industrial robotics and gantry systems
- High-speed conveyor and material handling
- Packaging and labeling machinery
- Test and measurement automation
Compatibility & Replacements
Compatible With
- Lenze inverter drives and servo controllers
- Third-party 400VAC servo drives supporting SINCOS feedback
- Absolute encoder-capable motion control platforms
- Standard industrial automation frameworks (Siemens TIA, Beckhoff, etc.) via appropriate drive module
Replaces / Drop-In Replacement For
- Similar Lenze MCS 06C models with comparable encoder and brake configurations
- Verify exact encoder type (SINCOS, Resolver, INCLIS) before ordering to ensure seamless integration
Works With
- SINCOS absolute encoder feedback protocols
- Lenze motion control software and firmware
- EtherCAT and CANopen industrial networks (via compatible drive)
