Overview

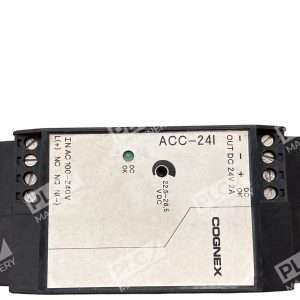

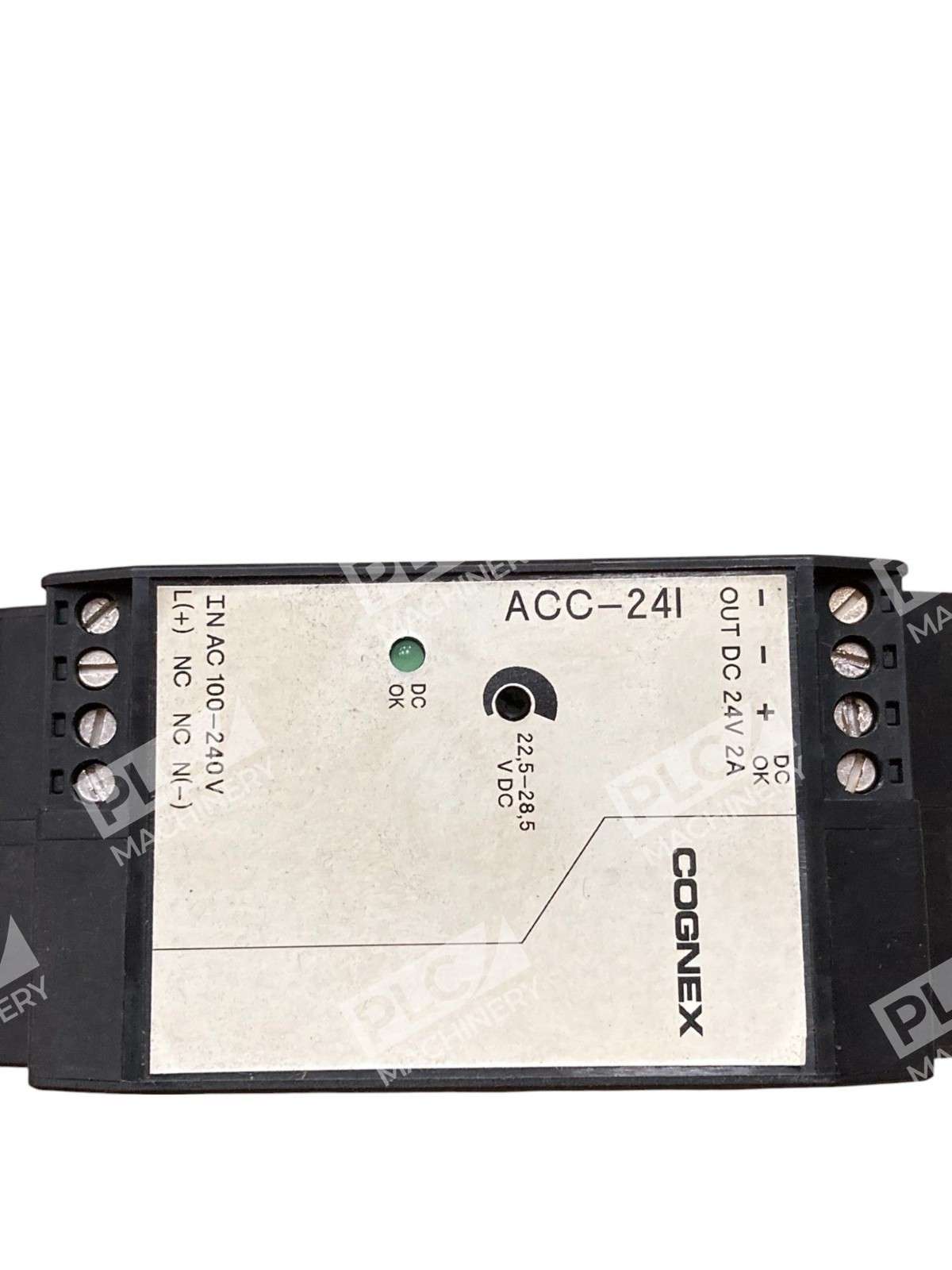

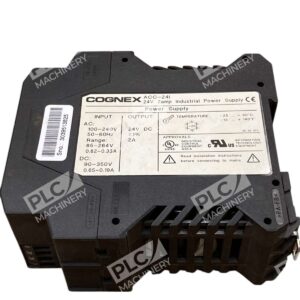

The Cognex ACC-24I is a primary switching mode power supply engineered for industrial machine vision and automation applications. With nominal 24V output at 2A and wide input voltage acceptance, the ACC-24I delivers stable DC power to Cognex vision systems in demanding factory and laboratory environments. Its compact, narrow-design form factor and DIN rail mounting make it a drop-in solution for existing control cabinet configurations.
Key Features
- Wide Input Voltage Range: Accepts both AC and DC inputs for global and multi-voltage applications
- Stable 24VDC Output: 22.5–28.5V output range with current limiting for overload protection
- DIN Rail Mounting: IP20 enclosure fits standard DIN rail installations
- Temperature Rated: Operating range -25…+70 °C handles cold and warm industrial environments
- Safety Certified: Compliant with UL, cULus, EN61558-2-17, EN60950, and other key international standards
- Compact Design: Narrow profile minimizes cabinet space while maintaining 2A output capacity
Technical Specifications
- Output Voltage: 22.5–28.5 VDC
- Output Current: 2A nominal
- Input Voltage (AC): 85–264 VAC (120/220/240 VAC nominal)
- Input Voltage (DC): 90–350 VDC (110/220 VDC nominal)
- Mounting: DIN rail
- Degree of Protection: IP20
- Operating Temperature: -25…+70 °C
- Storage Temperature: -40…+85 °C
- Safety Standards: UL, cULus, EN61558-2-17, EN60950, EN61000-3-2, EN50178, VDE0805, VDE0160, VDE0100-410, DIN VDE0106-101, EN55011
Typical Applications
- Cognex In-Sight 2000 vision systems and integrated barcode readers
- In-Sight 9000 series high-performance machine vision platforms
- Cognex DataMan handheld and fixed-mount industrial imagers
- Factory automation and quality inspection stations
- Warehouse and logistics barcode/label reading systems
- Assembly line monitoring and defect detection
Compatibility & Replacements
Compatible With
- Cognex In-Sight 2000 series vision systems
- Cognex In-Sight 9000 series vision systems
- Cognex DataMan series industrial barcode/image readers
- 24VDC-rated vision system accessories and I/O modules
- Standard DIN rail control cabinets
Replaces / Drop-In Replacement For
- ACC-24V-NA (legacy Cognex model)
Works With
- Standard 24VDC industrial automation systems
- Cognex vision system software (In-Sight Supervisor, EasyBuilder, PatMax tools)
- Profibus, EtherNet/IP, and serial communication interfaces
- Common industrial PLC platforms requiring 24VDC auxiliary power
