Overview

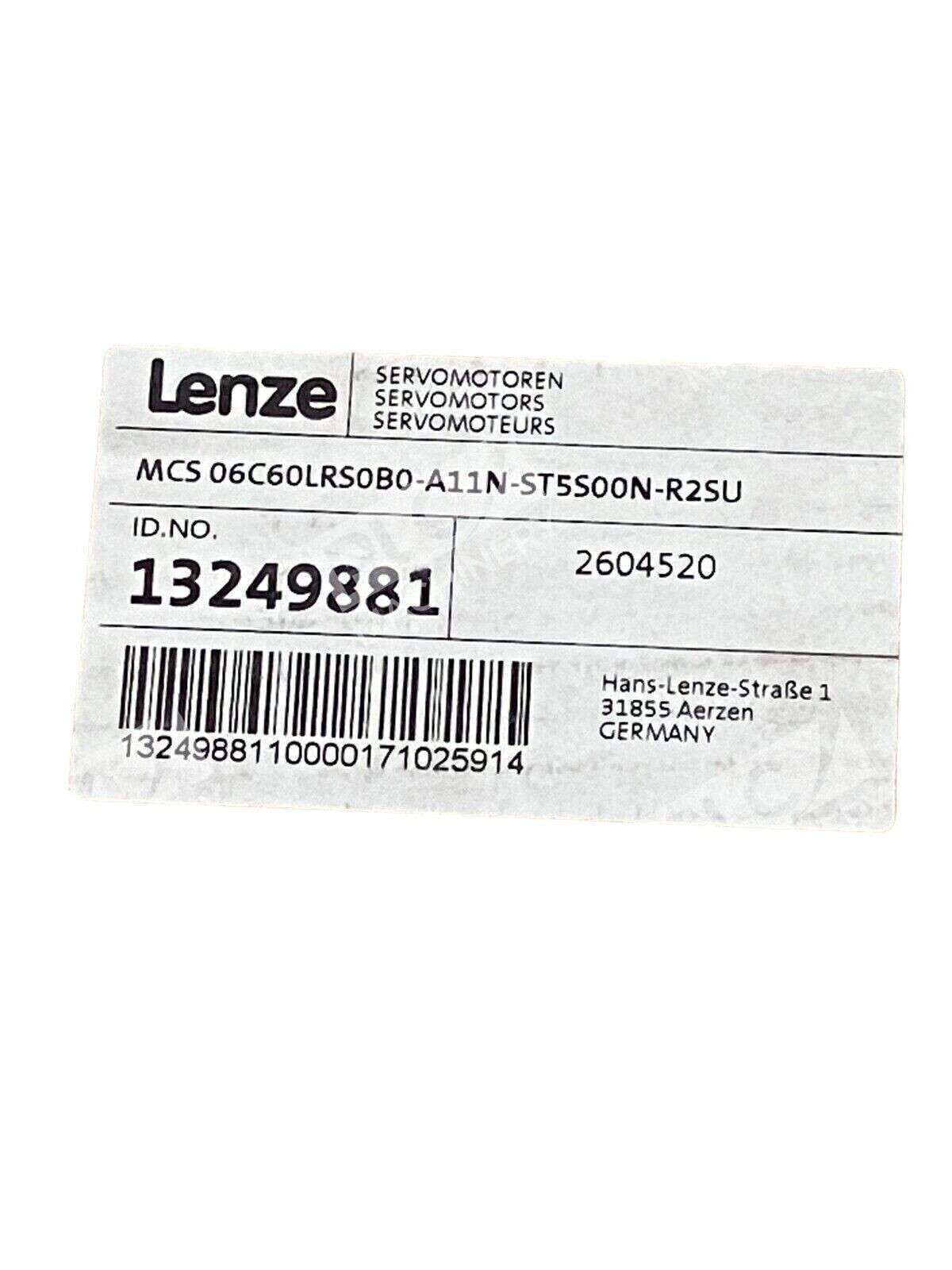

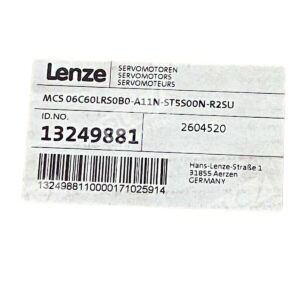

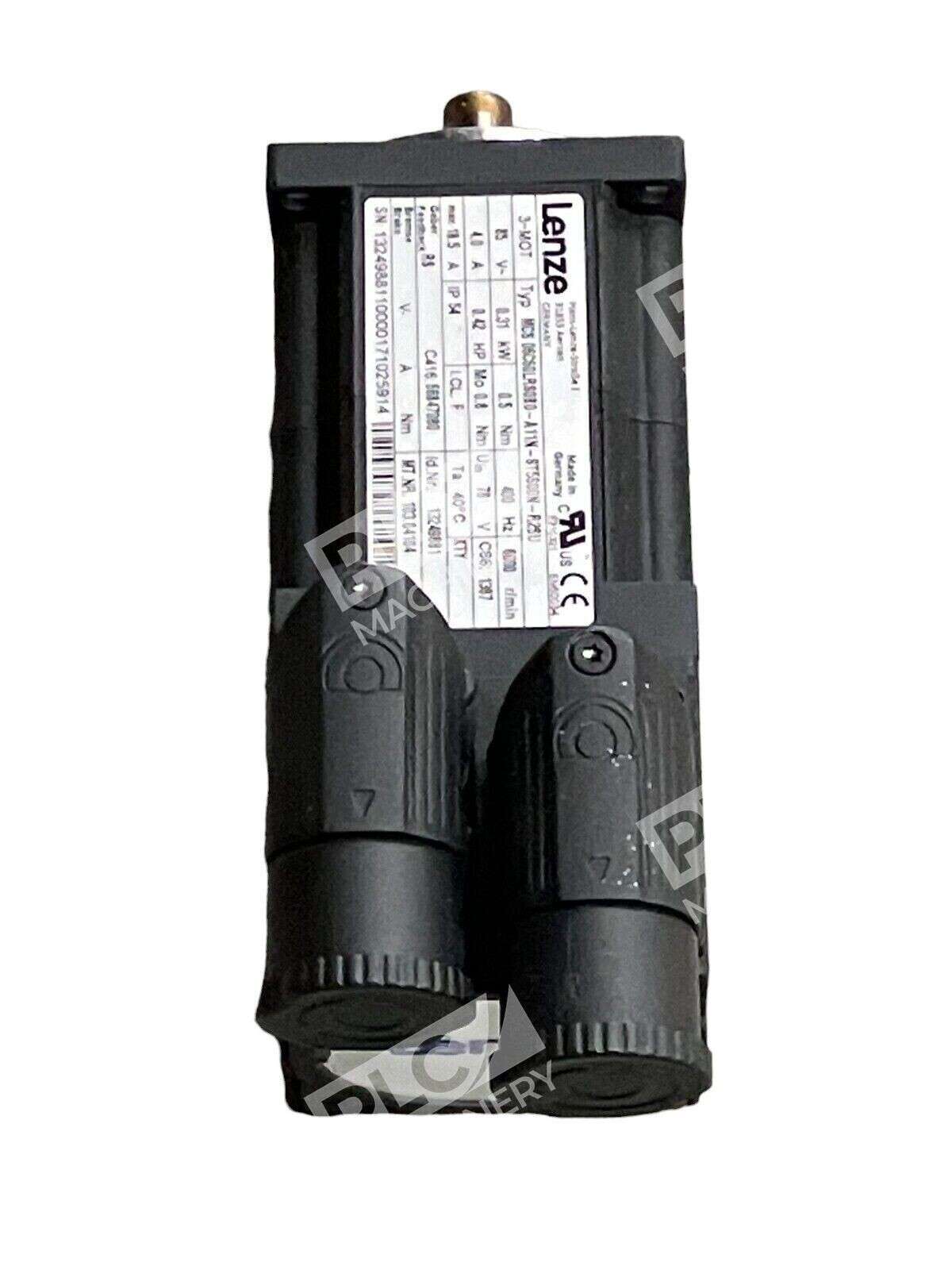

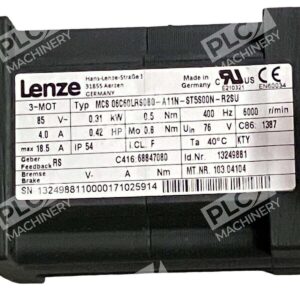

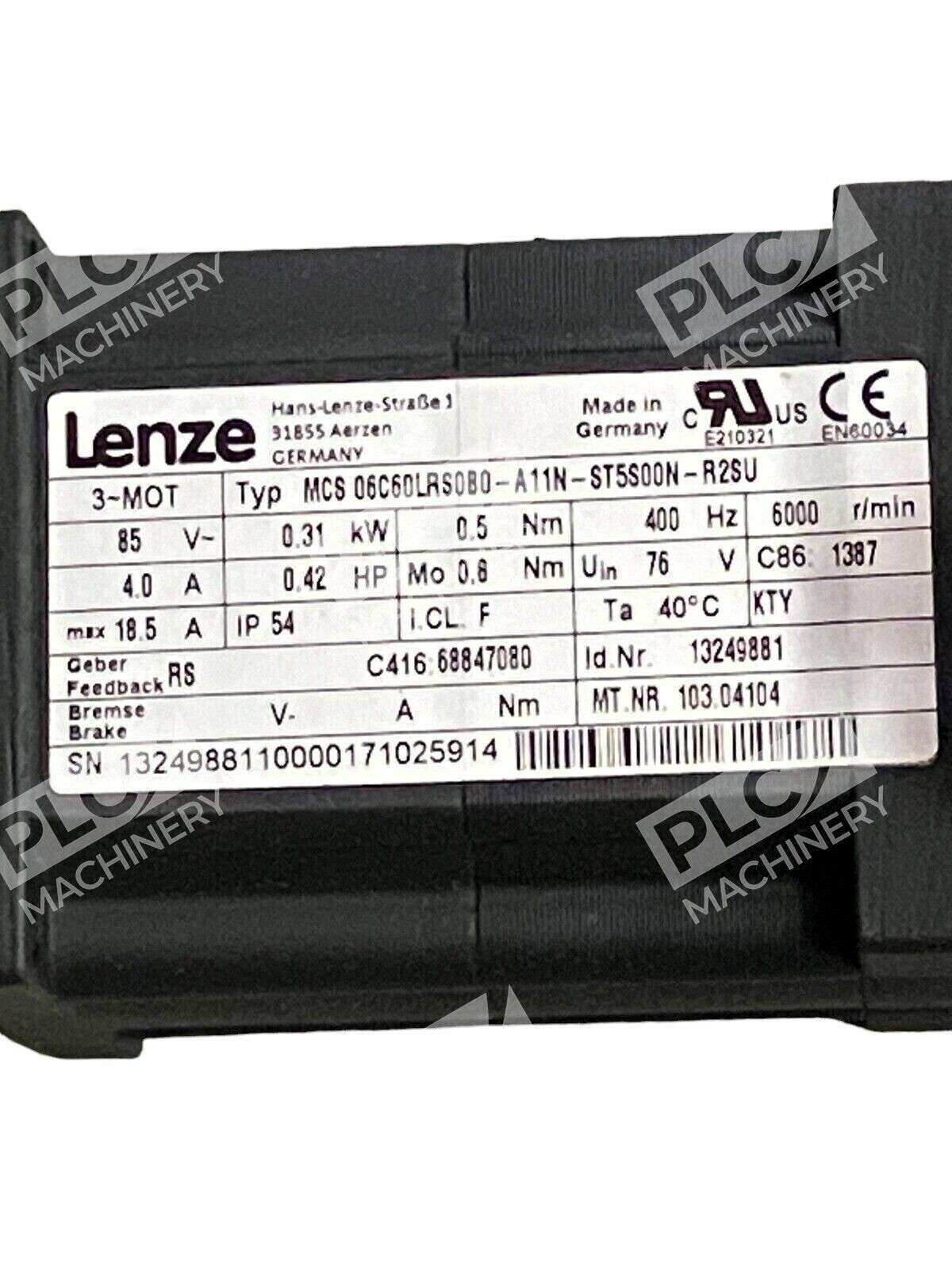

The Lenze MCS 06C60LRS0B0-A11N-ST5S00N-R2SU servo motor is a synchronous servo motor engineered for applications demanding high dynamic response, precision, and compact physical dimensions. Part of Lenze’s established MCS series, this 06C motor size unit incorporates an absolute value encoder for position feedback and is manufactured to the reliability standards expected in industrial automation, machine tools, and production line equipment.
Key Features
- Absolute Value Encoder: SINCOS or similar absolute feedback system for precise position and speed control without homing routines
- Synchronous Design: Low cogging, smooth torque delivery across the operating range
- Compact 06C Frame Size: Space-efficient profile suitable for integrated machine designs

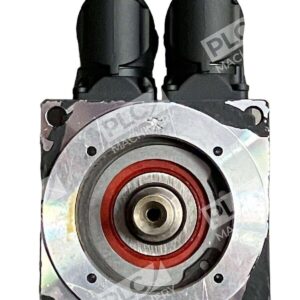

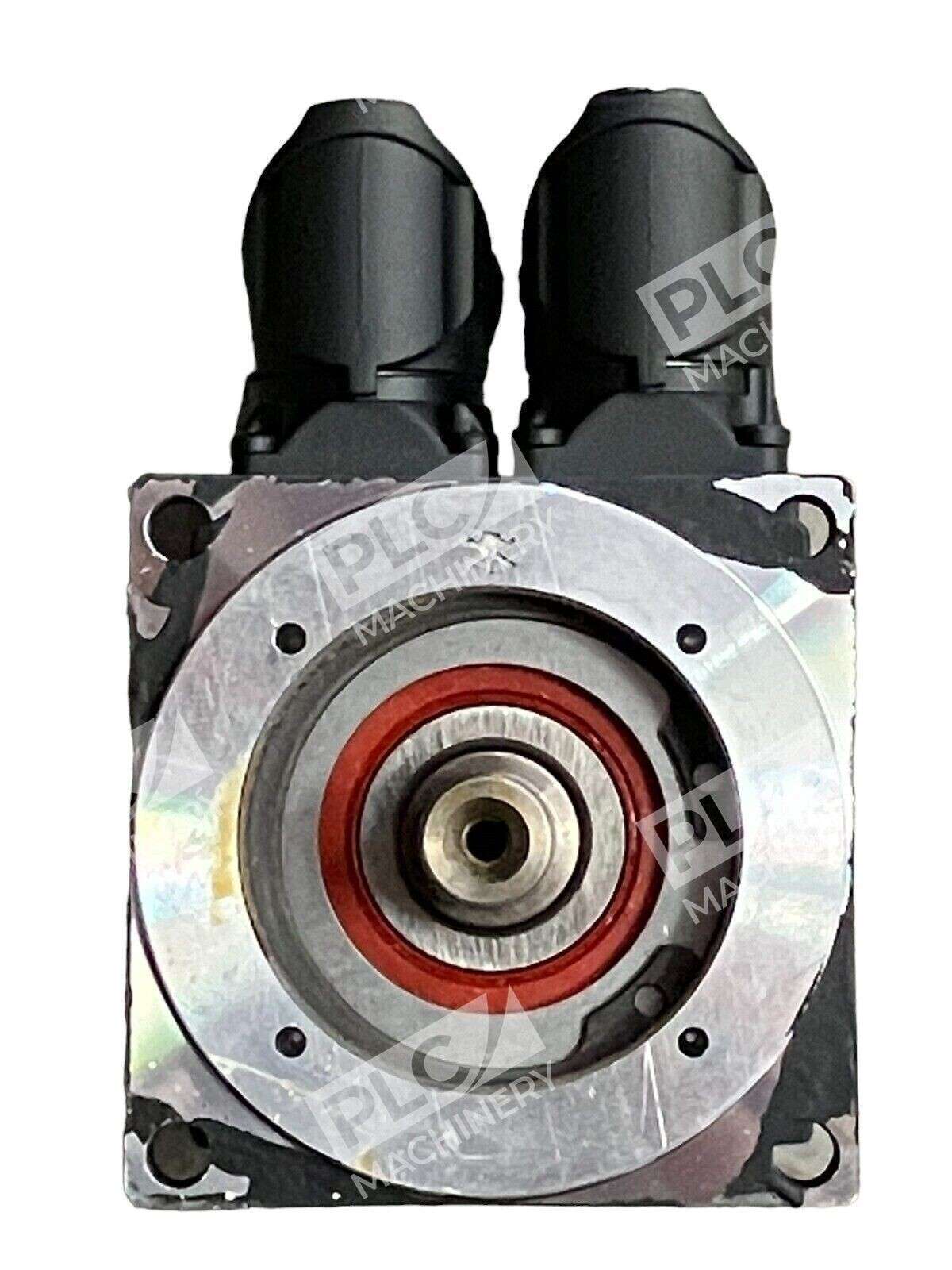

- Standard Shaft Configuration: Shaft without key for flexible coupling and mounting options
- IP54 Protection Rating: Dust-tight enclosure suitable for shop-floor environments

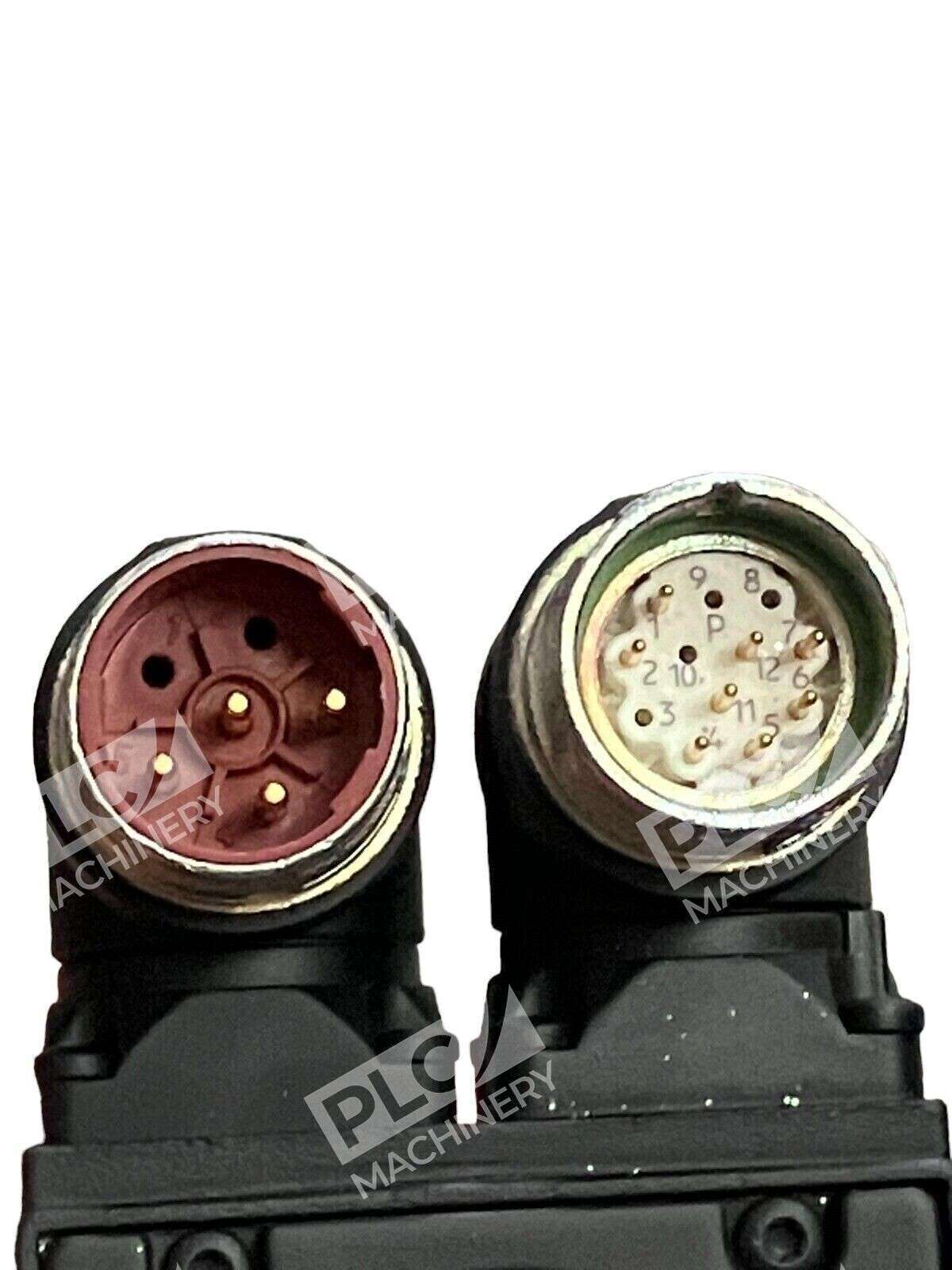

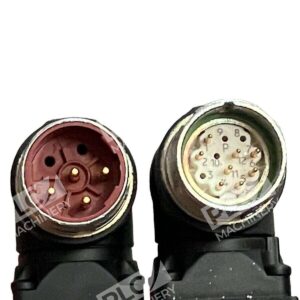

- Round Connector Plugs: Industrial-grade circular M23 connectors for reliable field wiring

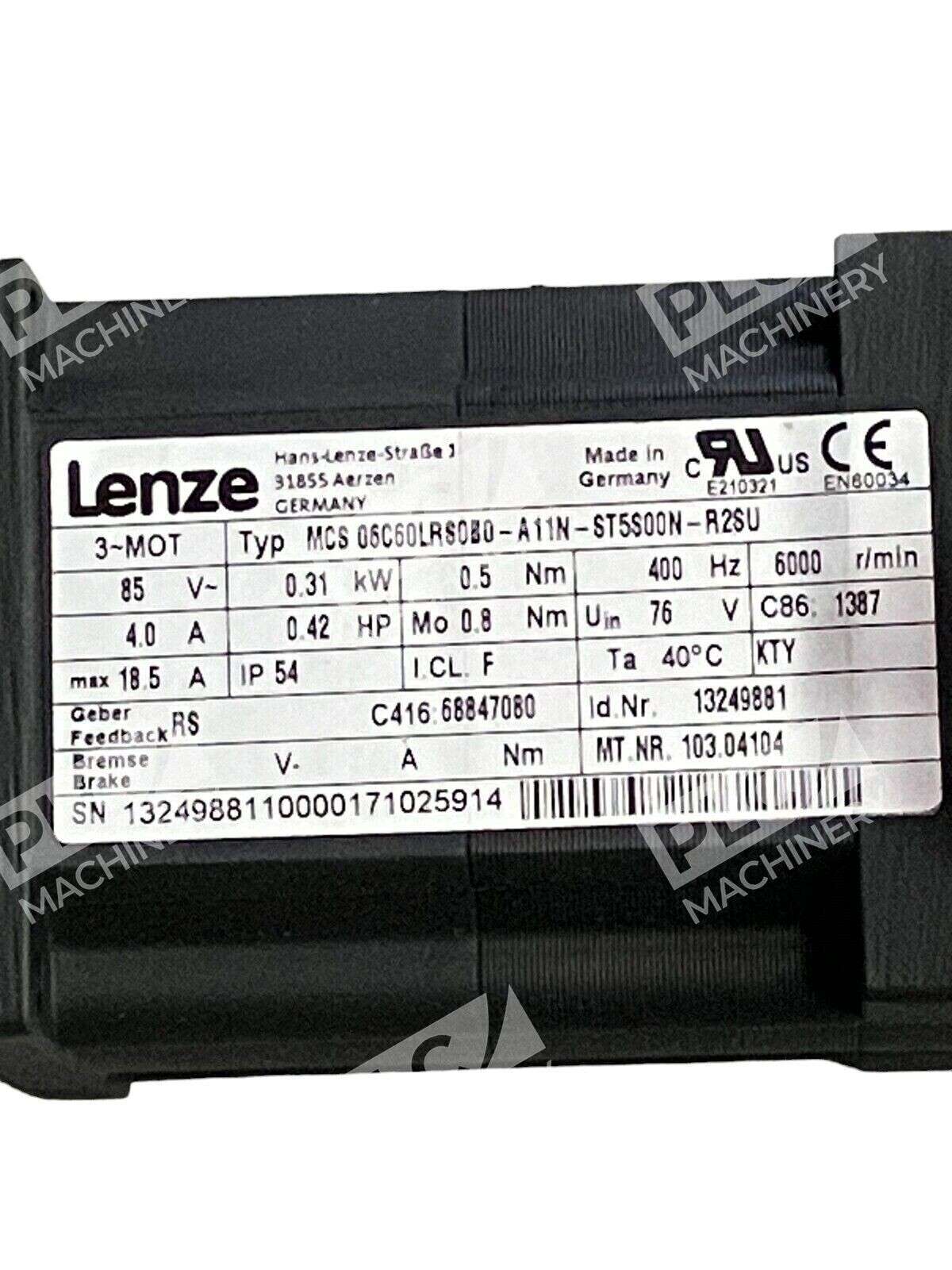

Technical Specifications
- Motor Type: MCS Synchronous Servo Motor
- Frame Size: 06C
- Rated Speed: 4100 RPM (typical for MCS 06C series)
- Nominal Voltage: 400 VAC (3-phase)
- Feedback System: Absolute Encoder (SINCOS or equivalent)
- Brake: None
- Shaft Diameter: 11 mm (standard)
- Shaft Configuration: Standard, without key
- Connector Type: Round plugs (M23)
- Protection Class: IP54 (dust-tight)
- Cooling Method: Natural convection ventilation
- Manufacturer: Lenze AG (Germany)
Typical Applications
- Machine tool spindle drives and rotary axes
- Packaging machinery motion control
- Textile and printing equipment servo positioning
- Automation systems requiring dynamic torque response
- Precision robotic arm joint drives
- Industrial conveyor and material handling systems with synchronized motion
Compatibility & Replacements
Compatible With
- Lenze inverters and servo drives (G500 series, S700 series, and compatible models)
- SINCOS absolute encoder protocols and similar fieldbus systems
- CANopen, EtherCAT, and Profibus communication standards (when paired with appropriate drive controller)
- Industrial control systems and motion control platforms supporting 400 VAC, 3-phase servo motor architecture
- Standard 19 mm shaft couplings and flexible coupling mounts
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering, as servo motor replacement often requires encoder recalibration and drive parameter updates
- Consult Lenze cross-reference documentation for equivalent discontinued models in the MCS 06C family
Works With
- Lenze motion control software and commissioning tools
- SINCOS absolute feedback protocol
- Standard industrial servo drives accepting 400 VAC 3-phase motor inputs
- CANopen, EtherCAT, and PROFINET fieldbus integration (via compatible drive)
