Overview

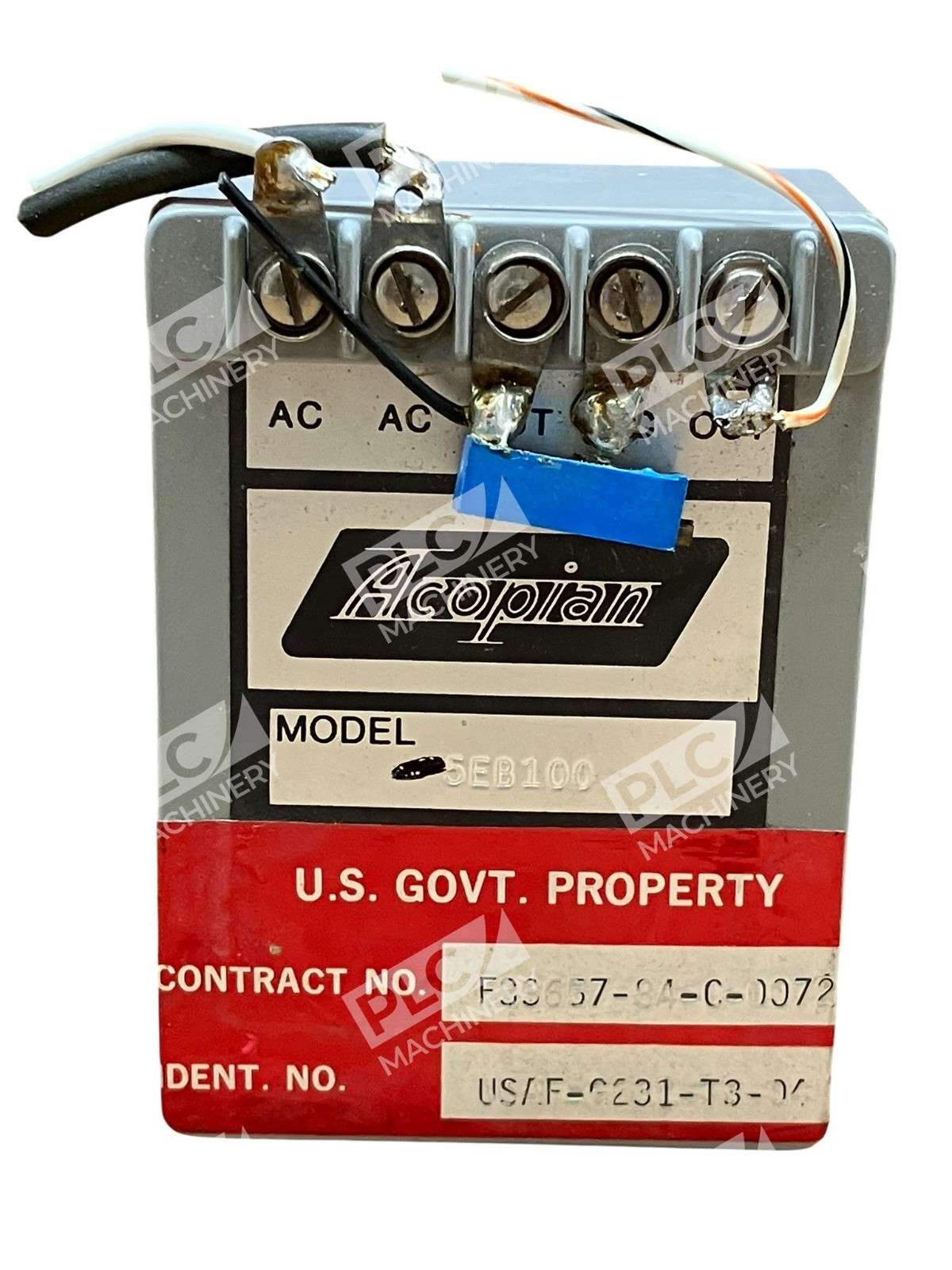

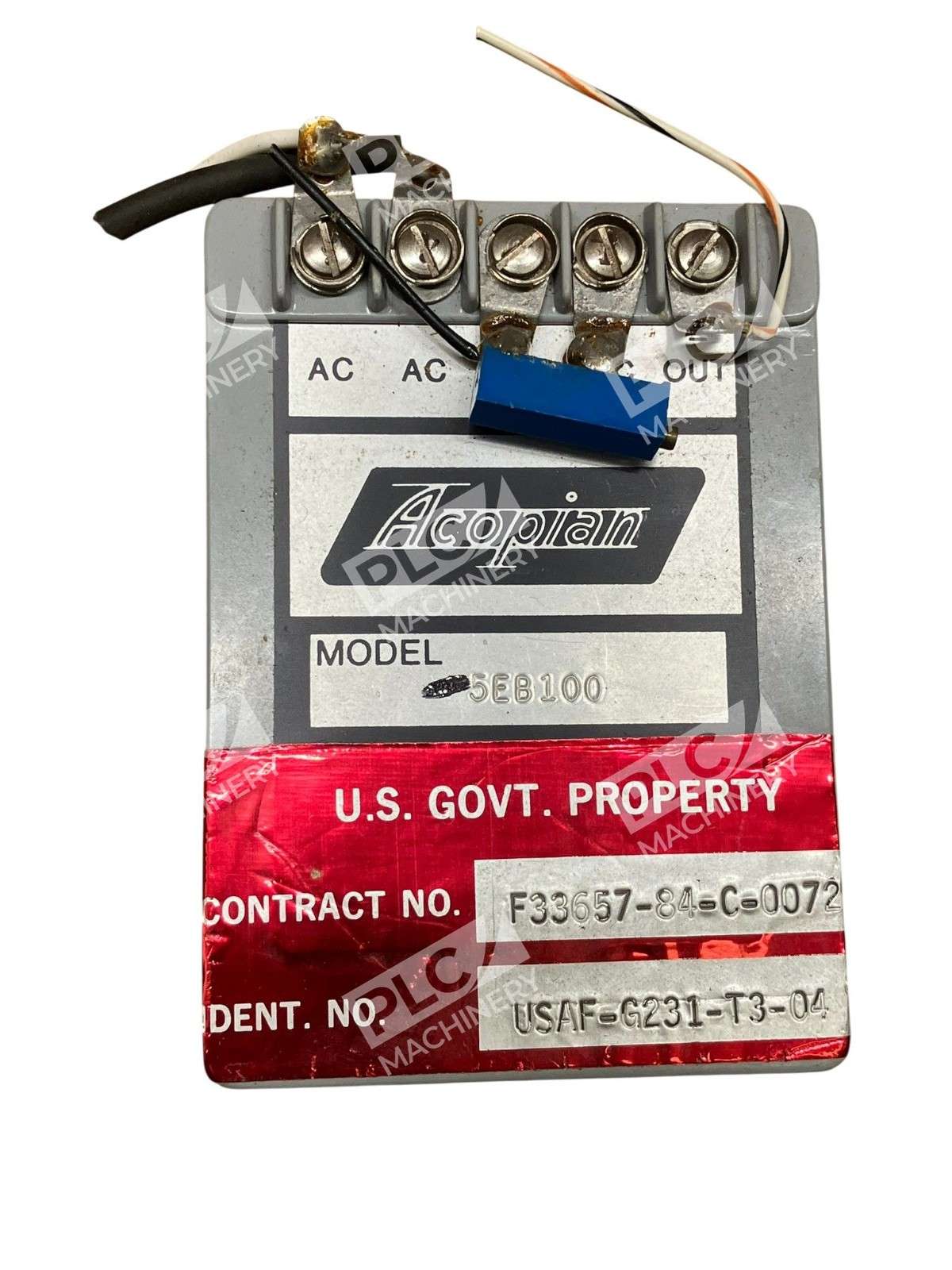

The Acopian 5EB100 is a compact, highly reliable linear AC-to-DC power supply module engineered for instrumentation, control systems, and electronic equipment requiring stable low-voltage DC power. Built with proven linear regulation technology, the 5EB100 delivers clean and consistent DC output with minimal ripple and excellent voltage stability. This encapsulated module features screw terminals for secure connections and is suitable for both industrial and research environments.
Key Features
- Linear regulated output with minimal ripple for sensitive instrumentation
- Compact EB-13 case size — mini-encapsulated design for space-constrained applications
- Floating output terminal allows either output to be grounded or operated at elevated potential
- Screw terminal connections for reliable wiring
- Adjustable output voltage (1V to 185V available on variants)
- Optional 230V input configuration available (suffix “-230”)
Technical Specifications
- Nominal Output Voltage: 5V DC
- Output Current: 1A
- Input Voltage Range: 105–125 VAC (standard); 210–250 VAC (optional)
- Input Frequency: 47–420 Hz
- Case Size: EB-13 (mini-encapsulated)
- Terminal Type: Screw terminals
- Output Configuration: Single output, floating
- Supply Type: 3-day delivery standard
- Weight: Approximately 1.25–1.27 lbs
- Dimensions: 3.5 × 2.5 × 1.75 inches (typical)
Typical Applications
The Acopian 5EB100 is widely used in:
- Laboratory and test instrumentation requiring stable DC power
- Control system auxiliary power supplies
- Electronic equipment needing low-voltage regulated power
- Industrial sensor and transducer excitation
- Precision measurement systems
- DIN-rail mounted control enclosures (with optional mounting kit)
Compatibility & Replacements
Compatible With
- Standard 105–125 VAC industrial mains power
- Equipment requiring 5V DC regulated power at up to 1 amp load
- PC-board mounting applications
- DIN-rail systems (with optional EB35DIN mounting kit)
- Wall-mounted enclosures (with optional EB4A mounting kit)
Replaces / Drop-In Replacement For
- Other Acopian 5V/1A EB-13 encapsulated models
- Equivalent regulated 5V supplies in similar form factors
- Verify compatibility with your system integrator before ordering.
Works With
- AC mains 105–125 VAC (47–420 Hz) standard configuration
- AC mains 210–250 VAC optional variant (5EB100-230)
- PC-board mounting sockets and terminal blocks
- Optional mounting kits: EB35DIN (DIN-rail) and EB4A (wall-mount)
