Overview

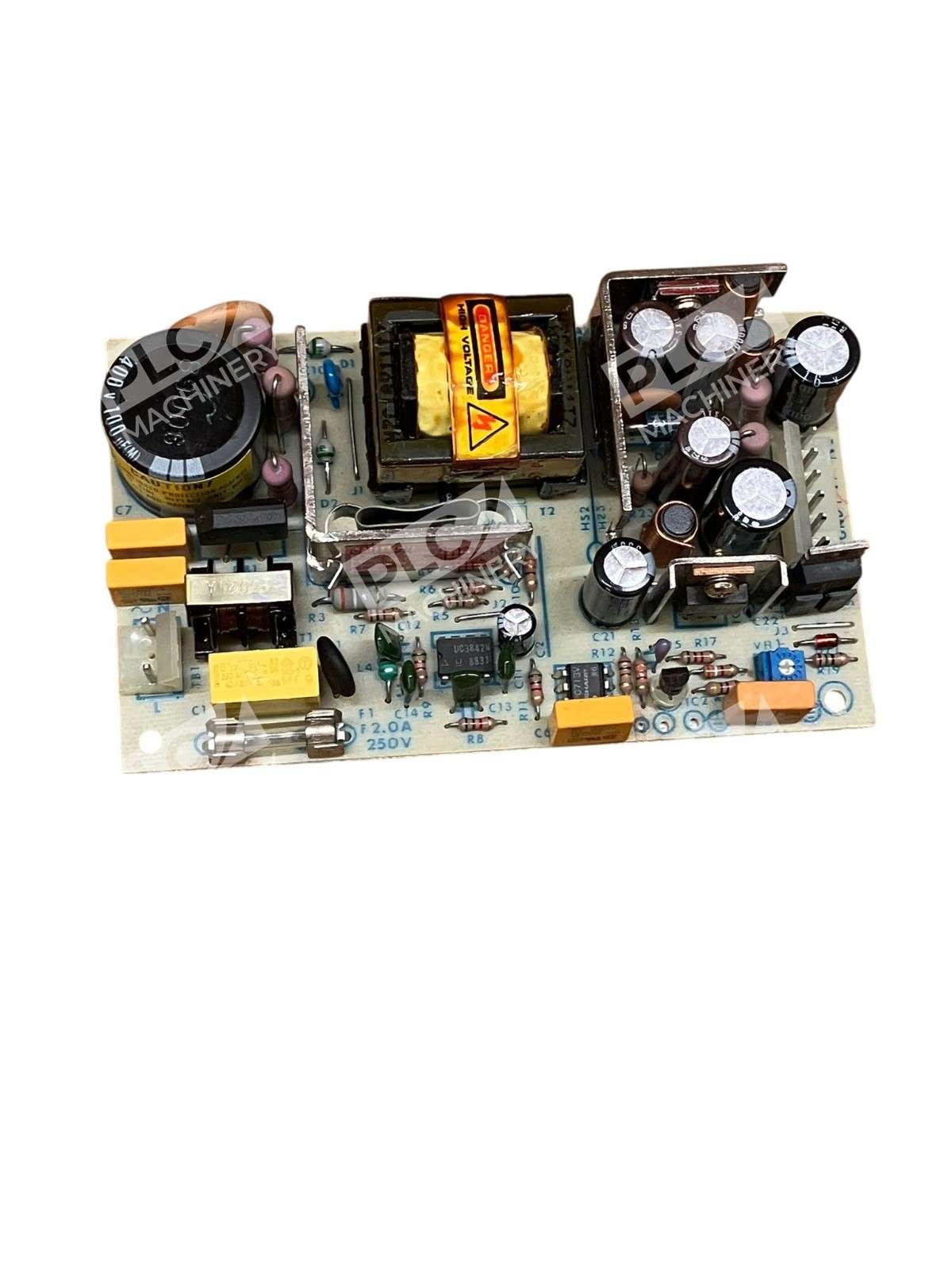

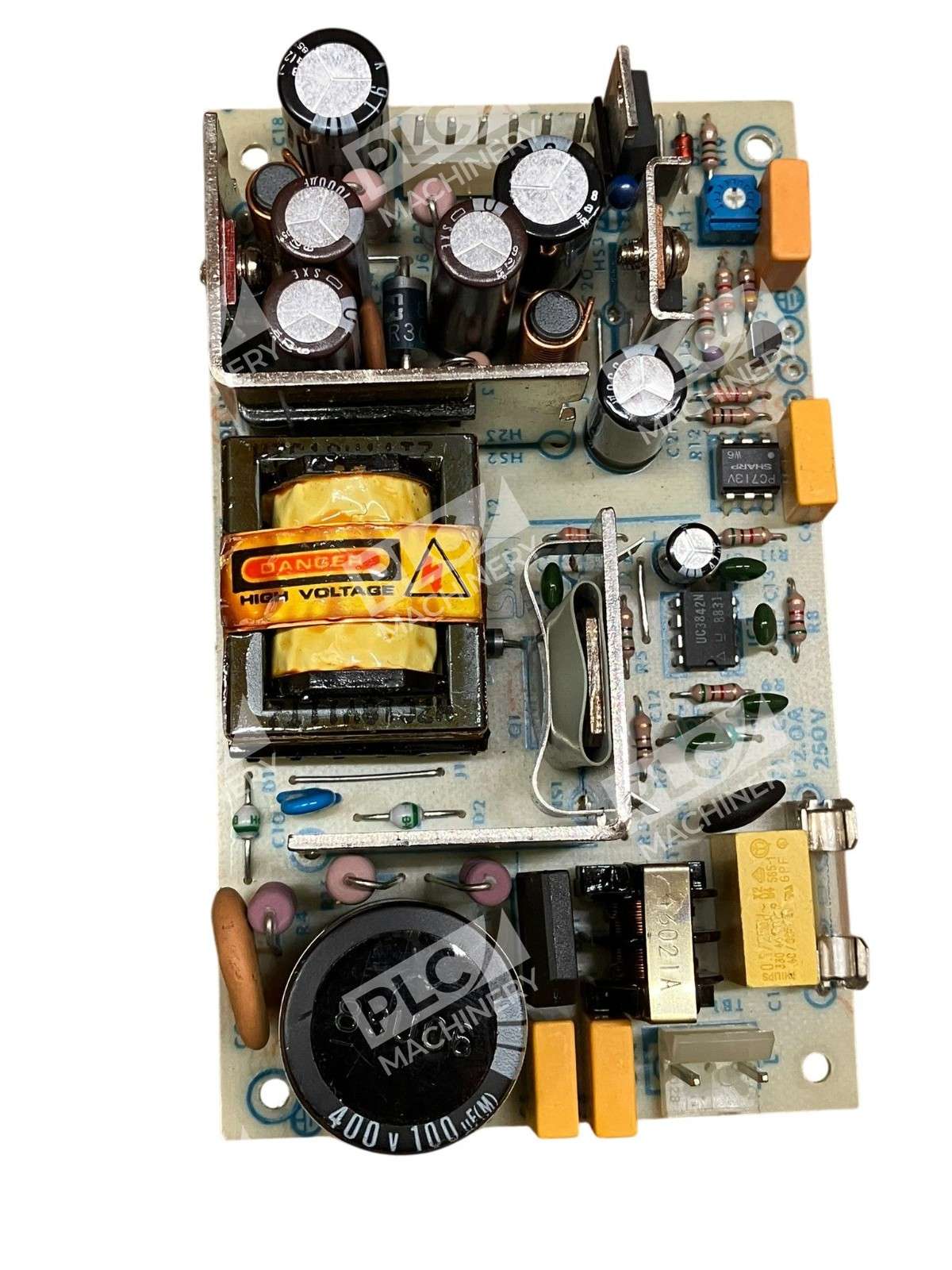

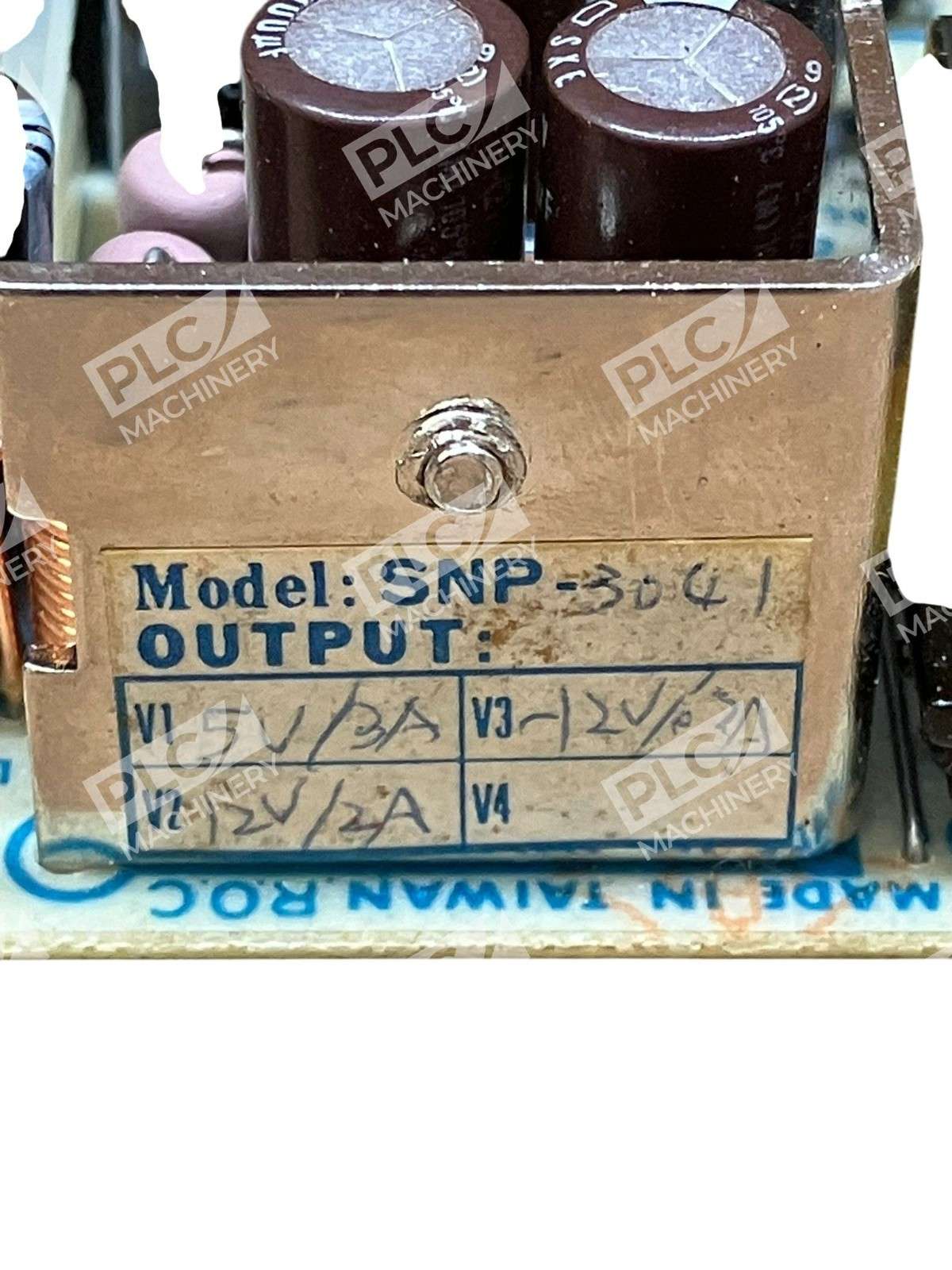

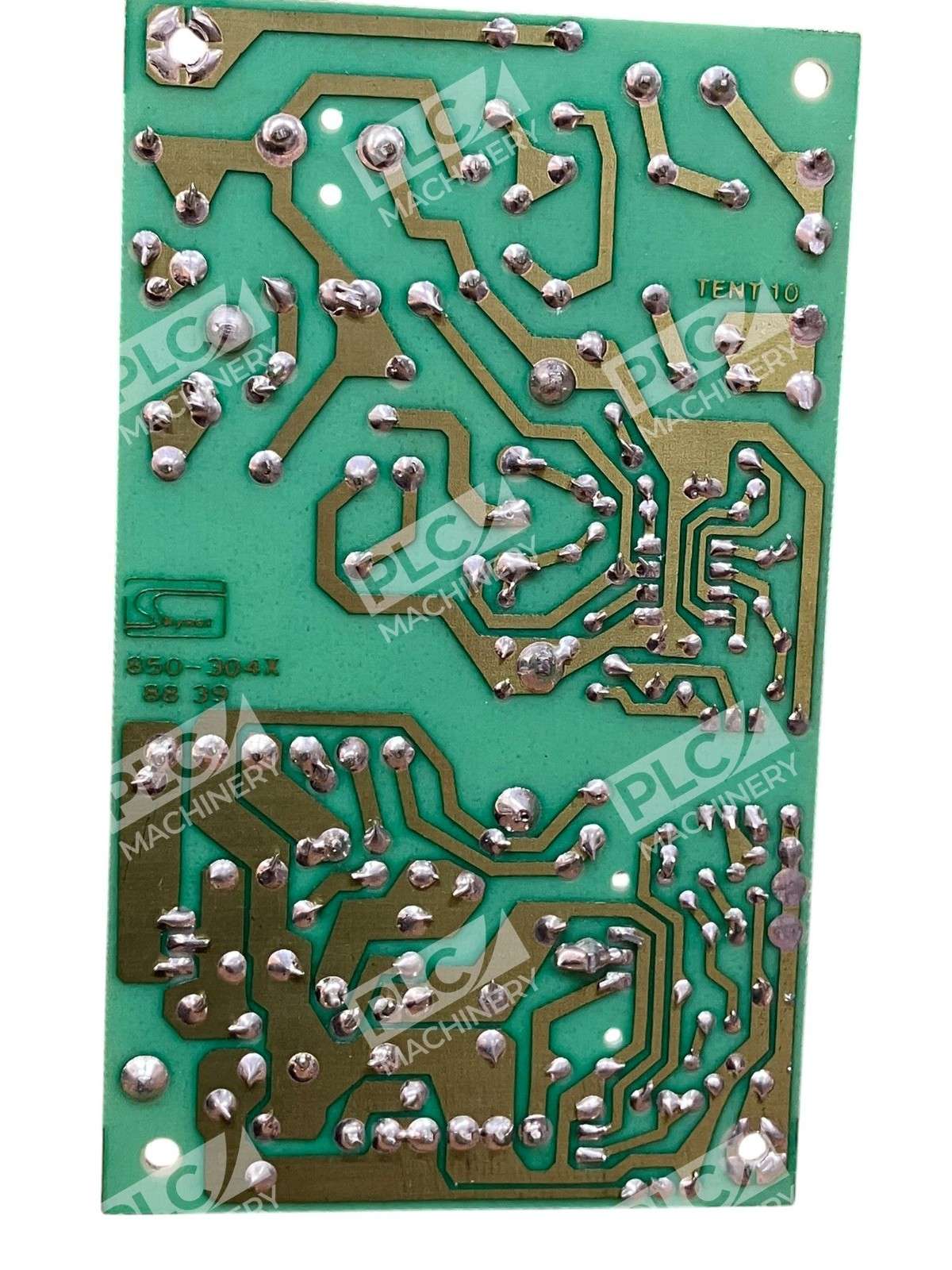

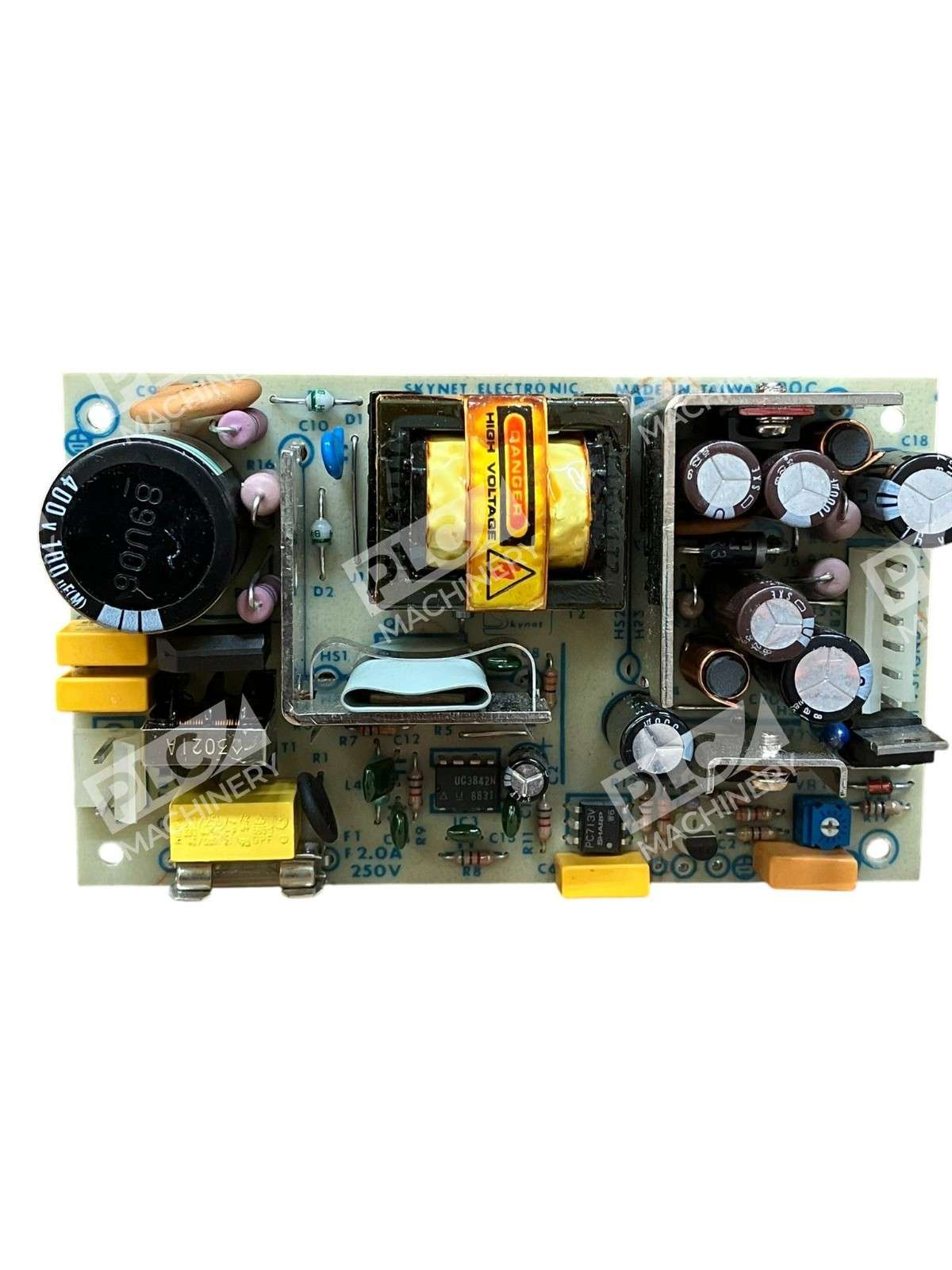

The Skynet SNP-3041 is a compact 40W switching mode power supply engineered for reliable operation in industrial, telecommunications, and embedded system applications. This dual-output unit delivers regulated +5V at 3A and +12V at 2A, plus a regulated -12V at 0.3A auxiliary output. The SNP-3041 accepts a wide AC input range of 90–260VAC and 47–63Hz, making it compatible with most global electrical standards without requiring manual voltage selection.
Key Features
- Dual main outputs: +5V/3A and +12V/2A with -12V/0.3A auxiliary
- Wide AC input: 90–260VAC, 47–63Hz — no voltage selector required
- Compact switching design delivers 40W rated output
- Built-in protection: overload, short-circuit, and overvoltage shutdown
- Industrial-grade reliability for continuous operation
Technical Specifications
- Rated Power: 40W
- Input Voltage: 90–260VAC
- Input Frequency: 47–63Hz
- Output 1: +5V, 3A
- Output 2: +12V, 2A
- Output 3: -12V, 0.3A
- Protection: Overload, short-circuit, overvoltage protection with auto-recovery
- Hold-up Time: Typically 16ms at rated load
- Operating Temperature: See datasheet for full temperature range
- Type: Enclosed switching power supply
Typical Applications
The Skynet SNP-3041 is widely used in industrial control systems, PLCs, networking equipment, telecom infrastructure, and embedded computer systems where dual-voltage supply rails are required. Its wide input range and rugged design make it suitable for factory automation, process control, and distributed sensing applications.
Compatibility & Replacements
Compatible With
- Industrial PLC systems requiring dual rail (5V and 12V) power
- Networking equipment and switches
- Embedded controllers and single-board computers
- Telecom and datacom cabinet installations
- Test and measurement instruments
Replaces / Drop-In Replacement For
Verify part compatibility with your system integrator or equipment manufacturer before ordering. The Skynet SNP-3041 is a direct replacement for other Skynet dual-output 40W supplies with identical pinout and output ratings.
Works With
- Standard 90–260VAC 3-wire AC input (live, neutral, ground)
- Typical industrial DIN-rail or panel-mount installation
- Any system requiring isolated +5V, +12V, and -12V supply
