Overview

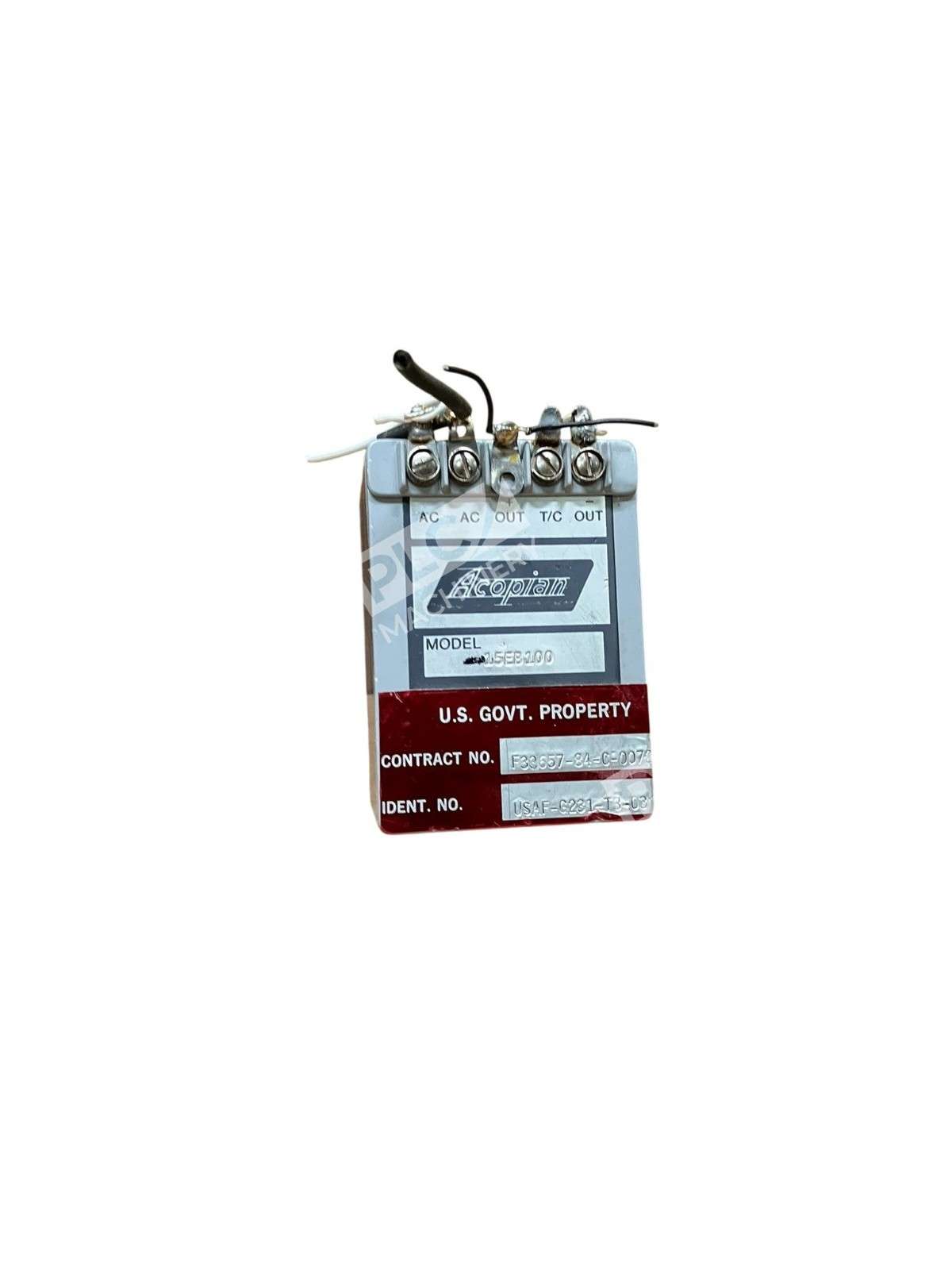

The Acopian 15EB100 is a mini-encapsulated linear regulated AC-DC power supply module rated for 15V output at 1A continuous current. This compact unit features screw terminal connections and is housed in an EB-20 case form factor. Designed for industrial control applications, laboratory equipment, and process automation systems, the 15EB100 delivers stable, regulated voltage output with minimal noise and excellent line/load regulation.
Key Features
- Linear regulated output ensures low noise and clean DC voltage for sensitive instrumentation
- Screw terminal connectors provide secure, maintenance-friendly termination
- Compact EB-20 case design fits space-constrained control cabinets and enclosures
- Wide input frequency range (47-420 Hz) supports global power infrastructure
- Optional 230V input variant available for international deployments
- Available mounting kits for DIN rail and wall mounting applications
Technical Specifications
- Nominal Output Voltage: 15 VDC
- Output Current: 1 A (continuous)
- Input Voltage Range: 105–125 VAC
- Input Frequency: 47–420 Hz, single phase
- Case Size: EB-20
- Output Voltage Setting: Factory preset to ±1%
- Ambient Operating Temperature: –20°C to +71°C, no derating required
- Storage Temperature: –55°C to +85°C
- Connector Type: Screw terminals
- Warranty: 1 year (mini-encapsulated device)
Typical Applications
- Industrial automation control circuits and PLC auxiliary power
- Laboratory test equipment and bench instrumentation
- Process control valve solenoid drives
- Sensor excitation and signal conditioning modules
- Distributed control system power distribution
- Equipment requiring stable low-noise DC output
Compatibility & Replacements
Compatible With
- Industrial control cabinets and panel assemblies
- DIN rail mounting systems (with optional EB35DIN mounting kit)
- Wall mounting enclosures (with optional EB4A mounting kit)
- Equipment requiring 15V regulated DC input at 1A or less
Replaces / Drop-In Replacement For
- Other Acopian EB-series 15V 1A models
- Generic 15V 1A linear regulated supplies with screw terminals
- Legacy power supply modules in similar form factor
Works With
- All standard 105–125 VAC, 47–420 Hz power grids
- Industrial machinery and control systems rated for 15V DC auxiliary power
- Screw-terminal connector systems and distribution blocks
- Optional Acopian mounting hardware (EB35DIN for DIN rail, EB4A for wall mount)
