Overview

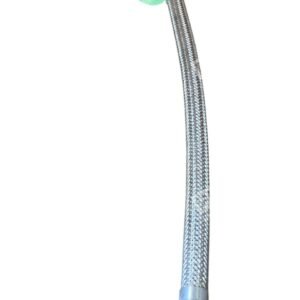

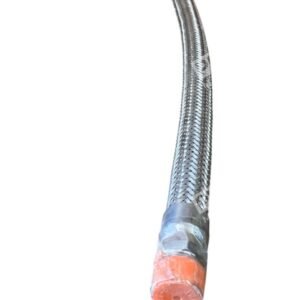

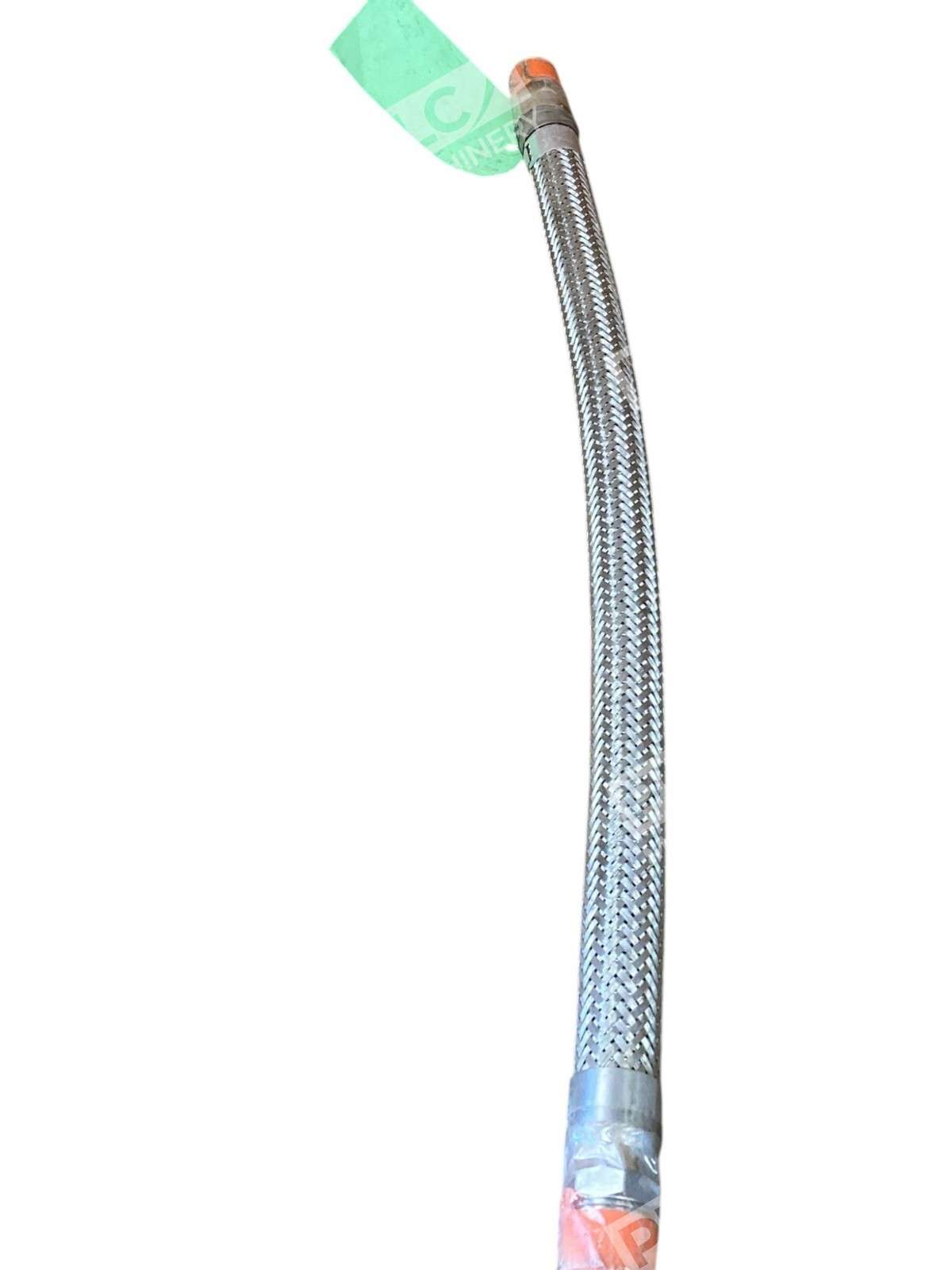

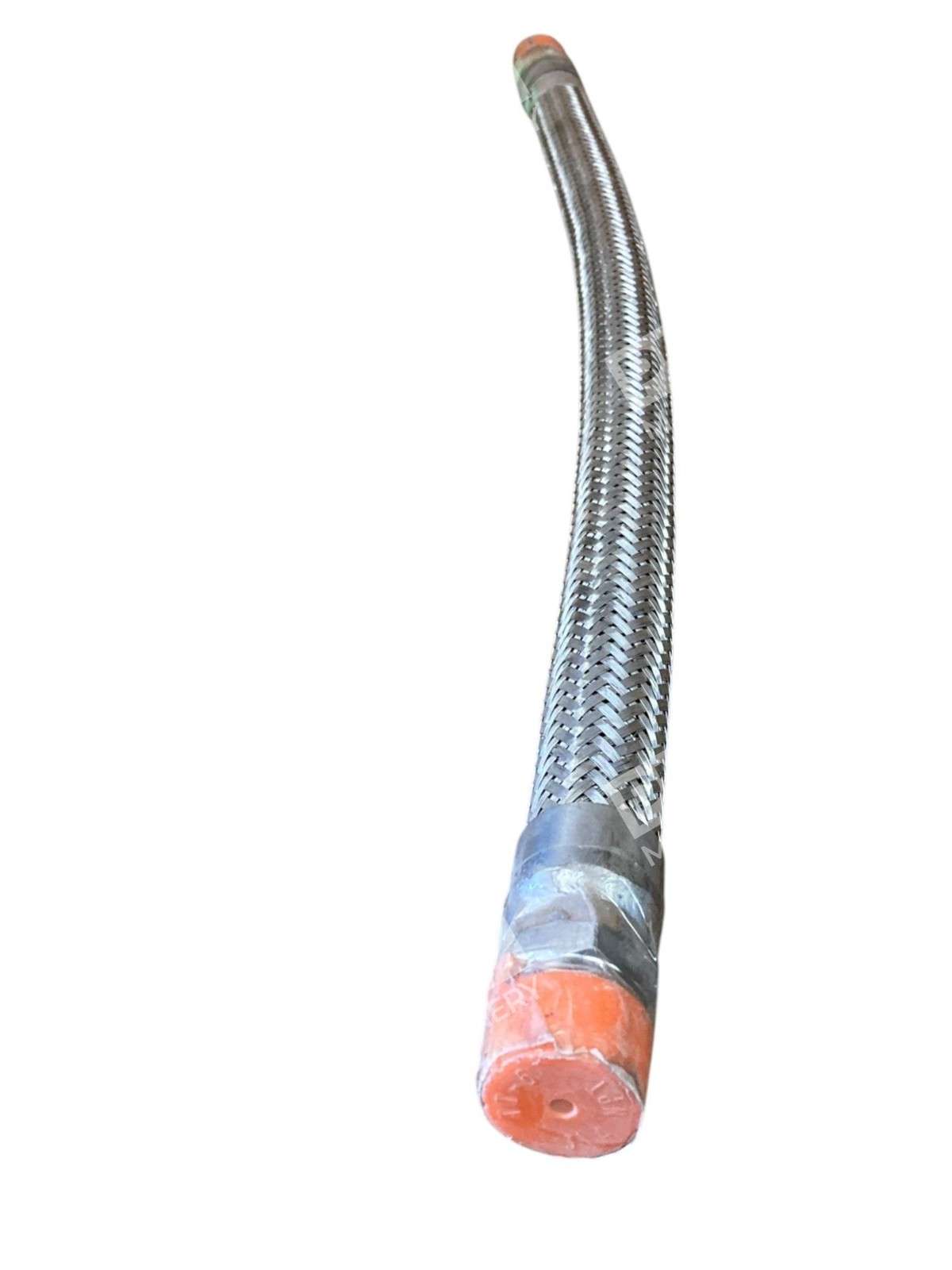

The Swagelok 1X24-SS braided hose assembly combines proven Swagelok compression-fitting reliability with industrial-grade stainless steel construction. This hose features male NPT threads on both ends and a 24-inch nominal working length, making it ideal for direct integration into fluid systems, vacuum lines, and high-pressure fluid transfer applications where corrosion resistance and sealed connections are critical.
Key Features
- Stainless Steel Braid: 316L or 304 stainless steel outer braid resists corrosion and mechanical abrasion in harsh industrial environments.
- Male NPT Thread Both Ends: Provides direct connection to NPT-ported components without need for adapter fittings, reducing system complexity.
- PTFE or Convoluted Core: Smooth-bore core material options support both chemical compatibility and general-purpose hydraulic/pneumatic applications.
- Two-Ferrule Compression Fittings: Swagelok’s precision-manufactured compression design ensures gas-tight, metal-on-metal seals without torque transmission to the hose core.
- Leak-Free Service: Rated for vacuum to 1600+ psig operating range (exact rating depends on core material), with temperature capability from −65°F to 200°F and higher.
- Industry Standard: Meets ASME and FDA standards; polished surfaces minimize system contamination in critical applications.
Technical Specifications
- Hose Diameter (OD): 1 inch
- Length: 24 inches
- End Connections: Male NPT thread, both ends
- Core Material: PTFE-lined (T-Series) or convoluted 316L stainless steel (FM/FJ-Series)
- Outer Braid: 316L or 304 stainless steel, single-layer
- Working Pressure Range: Vacuum to 1600 psig (typical; verify per series)
- Temperature Range: −65°F to 200°F (−53°C to 93°C); higher temps available on specific series
- Certifications: ASME Boiler and Pressure Vessel Code Section IX; FDA-compliant (PTFE cores)
- Material Grade: 316L and 304 stainless steel
- Fitting Design: Two-ferrule compression type, silver-plated nut threads
Typical Applications
- Hydraulic fluid transfer lines in industrial machinery and mobile equipment
- Pneumatic and vacuum system connections requiring corrosion resistance
- Chemical and process fluid transfer in pharmaceutical, food, and laboratory settings
- High-pressure gas distribution and fuel applications
- CNC and precision manufacturing equipment fluid circuits
- Instrumentation and control system fluid lines
Compatibility & Replacements
Compatible With
- Hydraulic pumps and motors with male NPT ports
- Pneumatic and air compressor systems with 1-inch male NPT fittings
- Pressure gauges and instrumentation with standard NPT thread ports
- Industrial fluid power manifolds and valve blocks rated for 1-inch hose assemblies
- Swagelok tube fitting systems and adapter networks
- ASME-compliant pressure vessels and process systems
Replaces / Drop-In Replacement For
The Swagelok 1X24-SS is a standard stainless steel braided hose assembly in the Swagelok product line. Direct equivalent part numbers may vary by series (T-Series PTFE-lined, FM-Series convoluted, or FJ-Series general-purpose). Consult Swagelok’s product catalog or distributor reference for exact cross-references. Always verify part number and specification sheet before ordering to ensure compatibility with your original system design.
Works With
- Swagelok compression-type tube fittings and adapters (NPT, tube fittings, and specialty end connections)
- Industrial hydraulic and pneumatic control systems
- Vacuum and inert-gas handling equipment
- ASME-certified fluid power systems and pressure vessels
- Laboratory and analytical instrumentation networks
- FDA-regulated pharmaceutical and food-processing equipment (PTFE-core variants)
