Overview

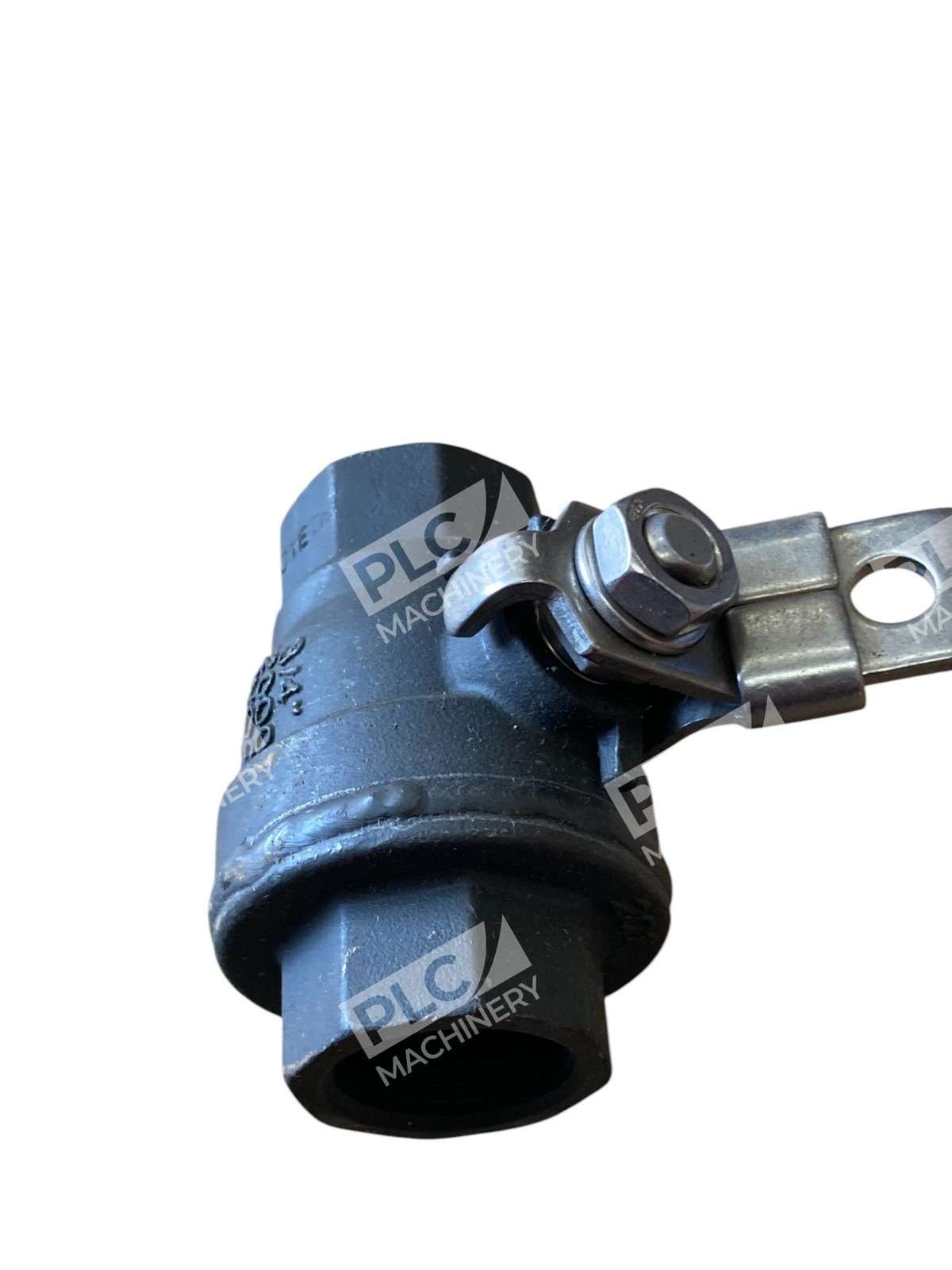

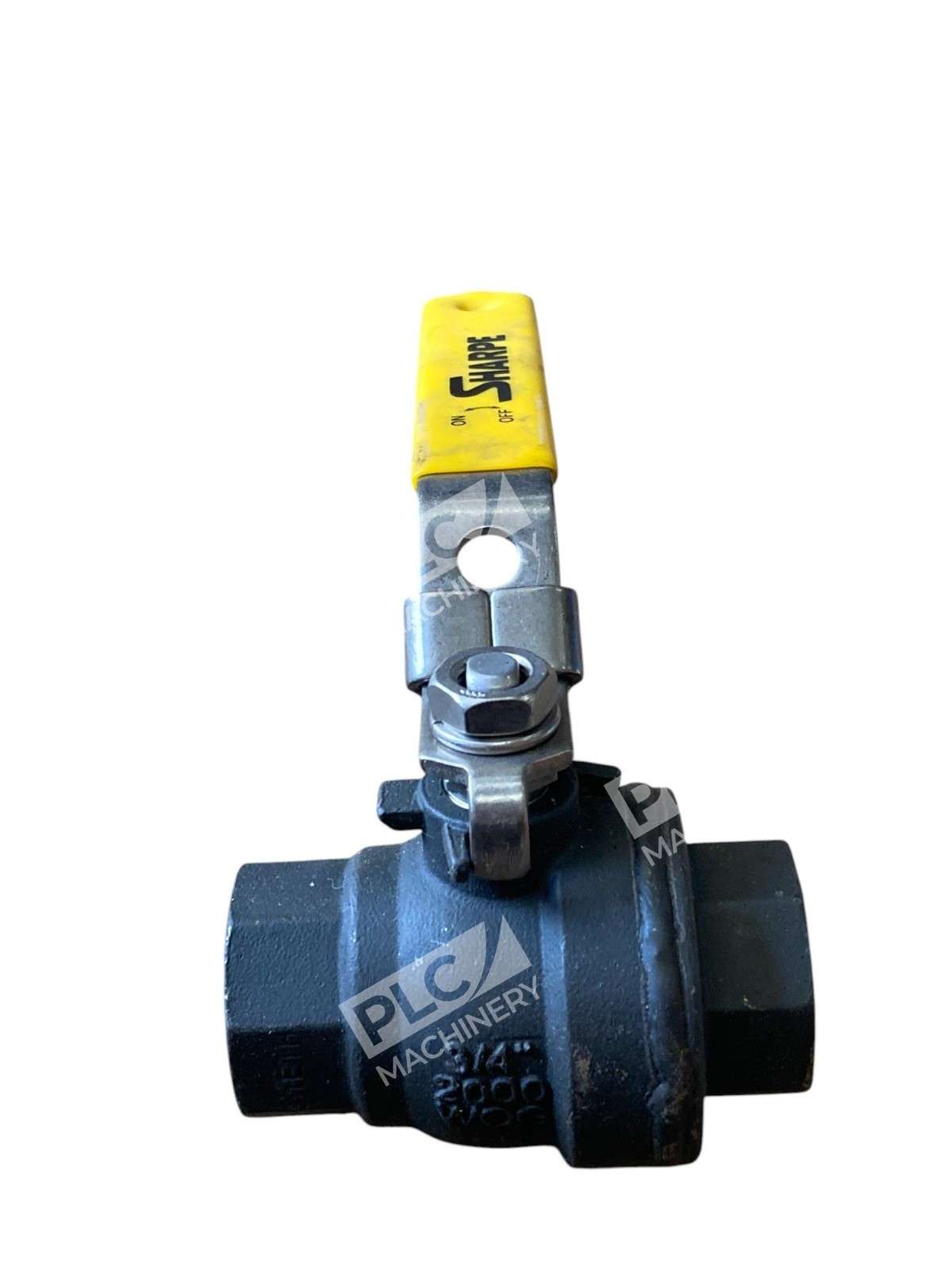

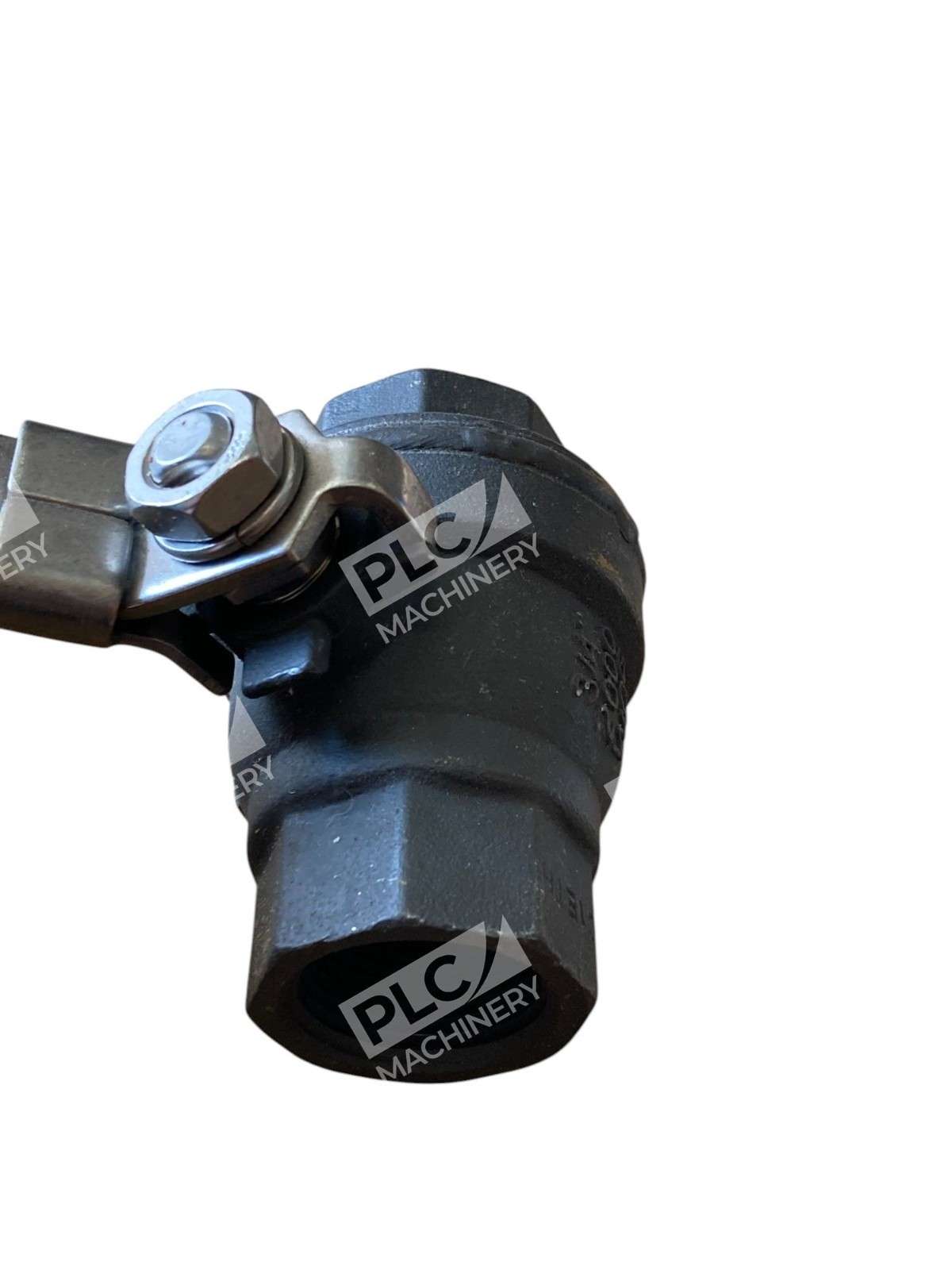

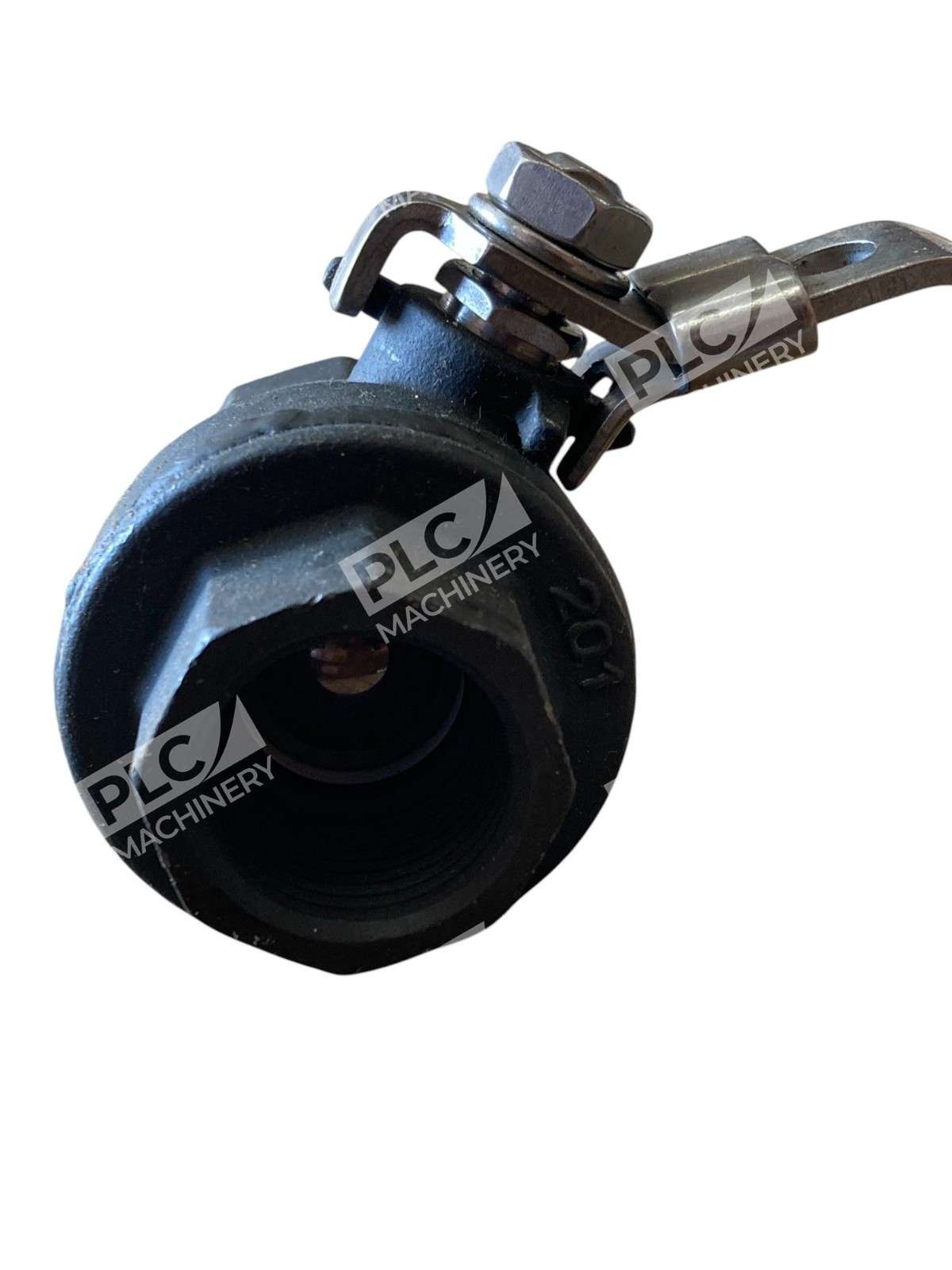

The Sharpe SV50B74010 is a two-piece ball valve from the 50B74 series, sized at 1 inch with threaded NPT end connections. Designed for critical industrial applications, this full-port valve delivers 2000 psi CWP (Cold Working Pressure) with seal-welded construction for maximum reliability and durability.
Key Features
- Full-port design minimizes pressure drop and provides unrestricted flow
- Blow-out proof stem prevents unintended stem ejection under pressure
- Seal-welded construction for enhanced structural integrity

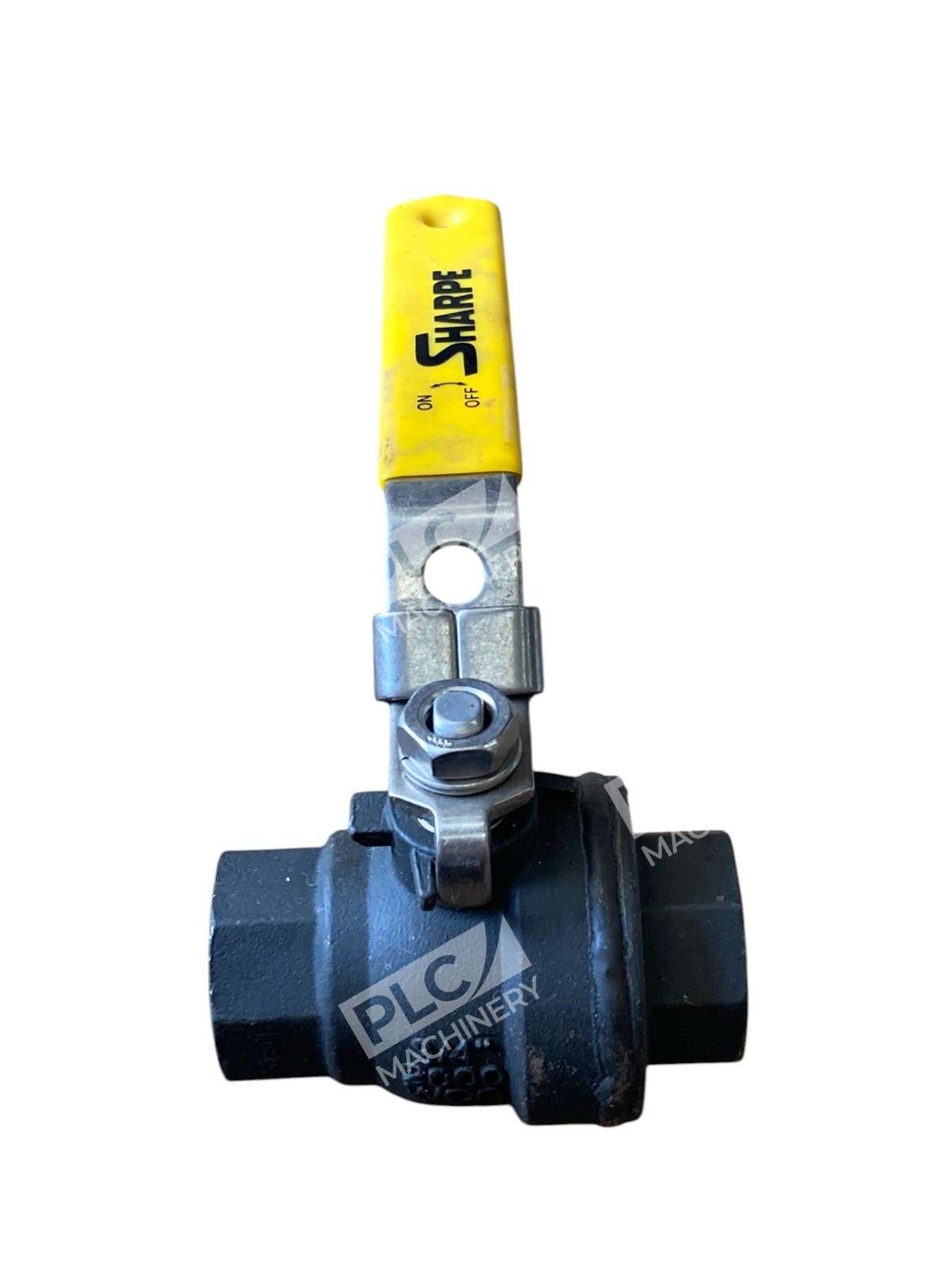

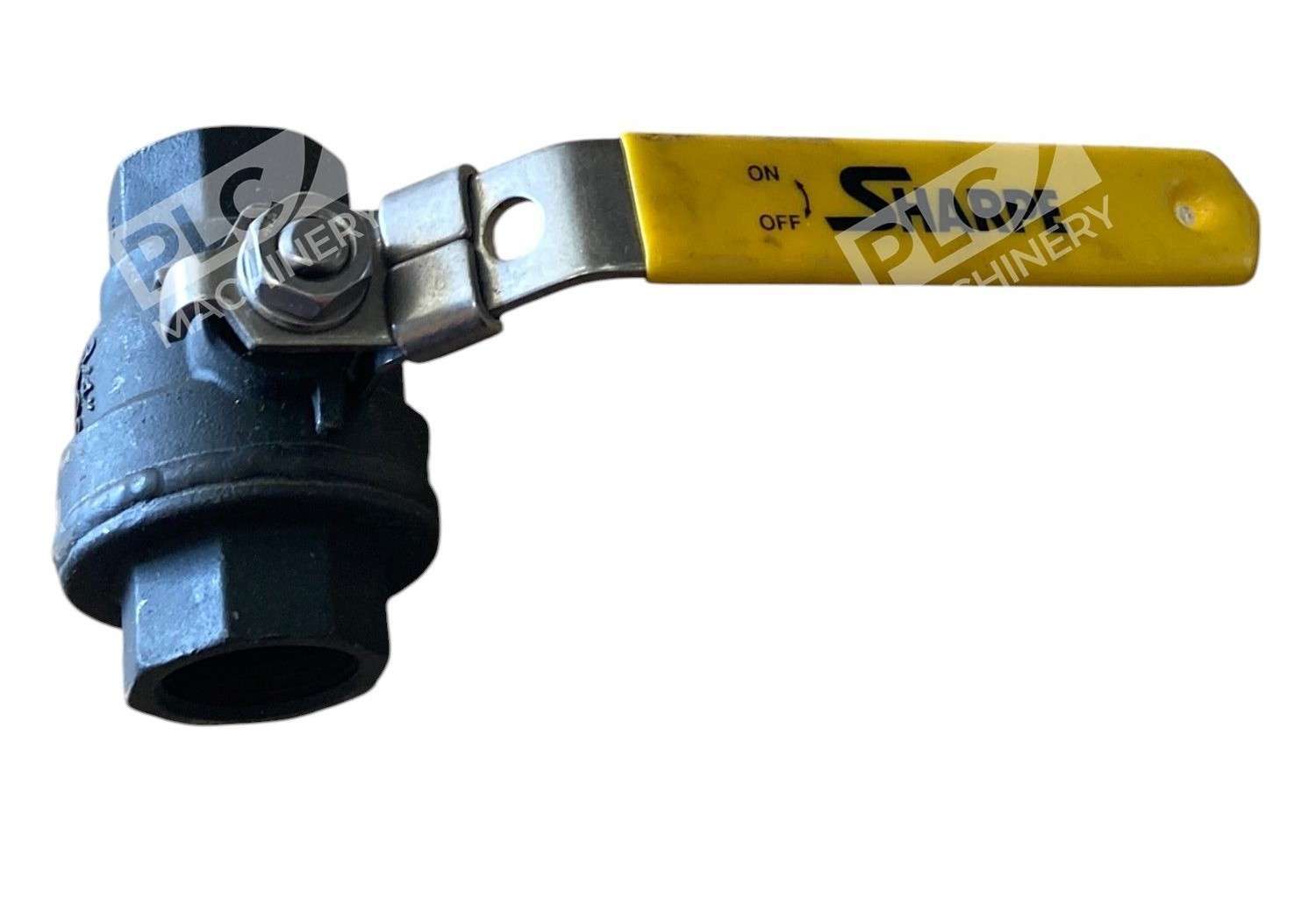

- Locking lever handle ensures secure on/off positioning
- PTFE softgoods and RTFE seat material provide excellent chemical resistance
- 2-piece cavity design simplifies disassembly for maintenance
Technical Specifications
- Nominal Size: 1 inch
- End Connection: NPT Threaded

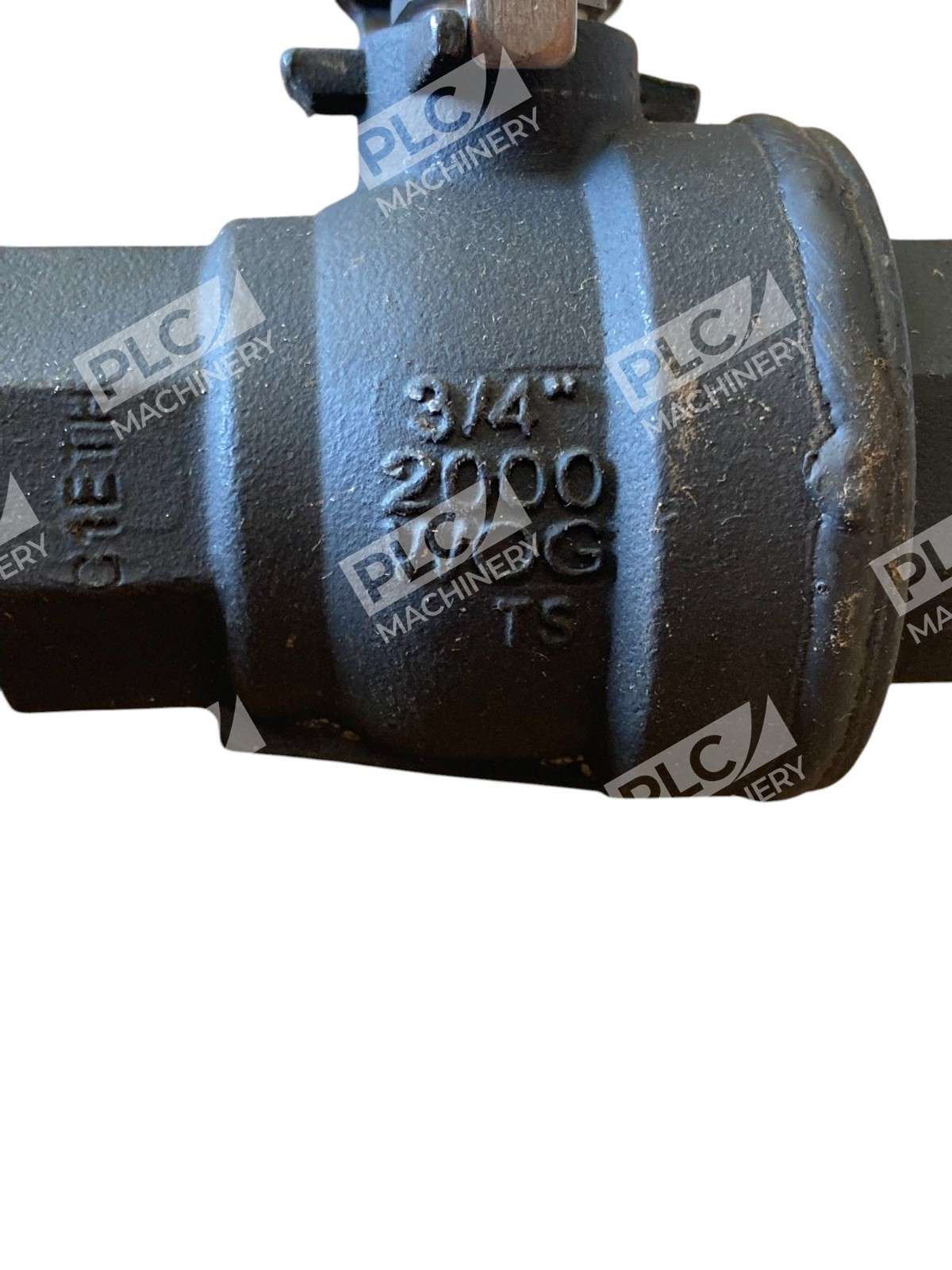

- Pressure Rating: 2000 psi CWP

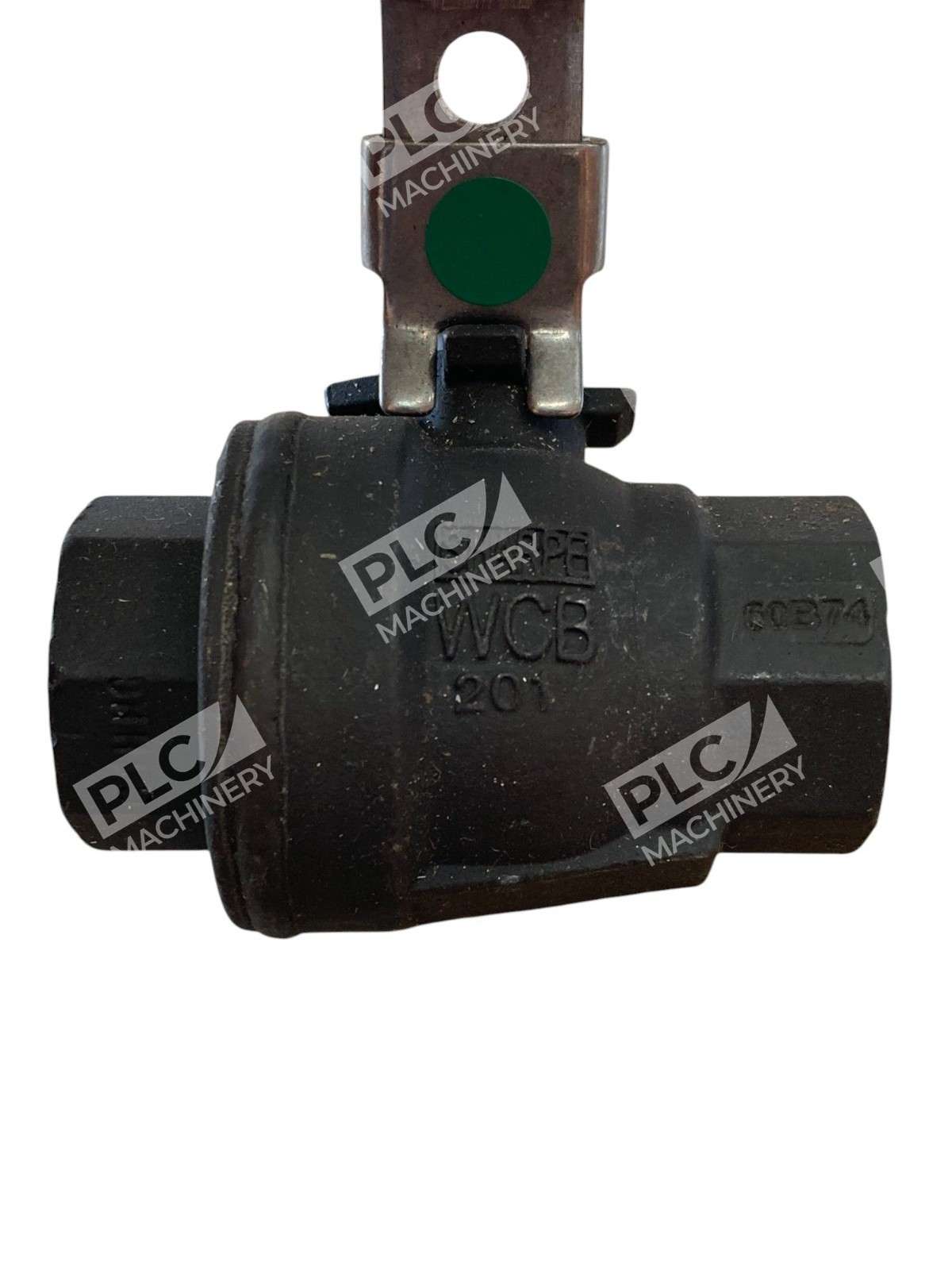

- Body Material: Cast carbon steel
- Ball Material: 316 stainless steel
- Stem Material: 316 stainless steel
- Seat Material: RTFE (reinforced PTFE)
- Port Type: Full port
- Packing: PTFE with PTFE body seal
- Configuration: 2-piece cavity design
- Temperature Range: -320°F to 450°F (-196°C to 232°C)
- Valve Type: Manual ball valve
Typical Applications
The Sharpe SV50B74010 is ideal for steam systems, hot water distribution, hydraulic fluid control, process gas applications, and general industrial piping where reliable shutoff and full flow capacity are required. Its carbon steel body with stainless internals handles corrosive and high-temperature fluids, making it suitable for petrochemical, power generation, and manufacturing operations.
Compatibility & Replacements
Compatible With
- 1-inch NPT threaded piping systems
- Industrial process control systems
- Steam and hot water lines
- Oil, gas, and fluid distribution networks
- Chemical and petrochemical applications (with compatible fluid media)
Replaces / Drop-In Replacement For
The SV50B74010 is the 1-inch model in the Sharpe 50B74 series. Related size options in this series include the SV50B74004 (1/2″), SV50B74006 (3/4″), and larger variants. Verify compatibility with your specific piping configuration and pressure requirements before ordering.
Works With
- 1-inch male NPT (MNPT) and female NPT (FNPT) threaded connections
- Standard industrial piping schedules (40 and higher)
- Manual actuators and hand levers (as equipped)
- Optional pneumatic or electric actuators (verify mounting pad compatibility)
