Overview

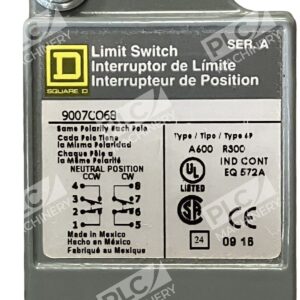

The Square D 9007CO68 is a standard limit switch body designed for integration with Type 9007 C limit switches. This 2NO/2NC (2 Normally Open / 2 Normally Closed) contact configuration provides flexible switching logic for motion control, position detection, and equipment protection in industrial applications. Its plug-in connection design simplifies installation and replacement in existing systems.
Key Features
- 2NO/2NC dual-contact configuration for flexible control logic
- Plug-in electrical connection for fast, tool-free installation
- Rated for 10A @ 600V AC for reliable performance in demand circuits
- NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for diverse industrial environments
- IP 65/66/67 rating ensures dust and moisture protection
- Compact, die-cast construction with grey epoxy powder finish
Technical Specifications

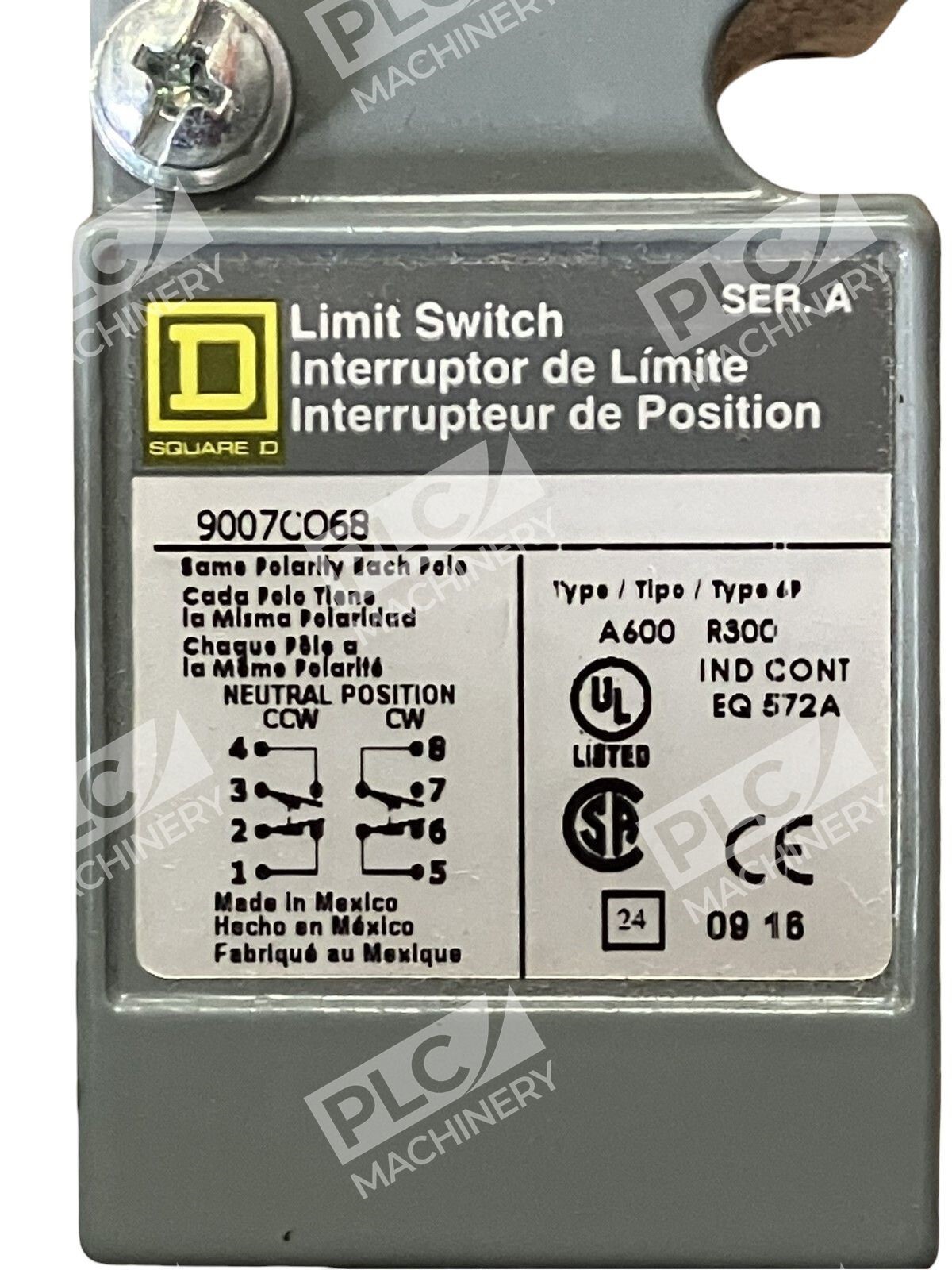

- Contact Configuration: 2NO/2NC
- AC Contact Rating: 10A @ 600V AC

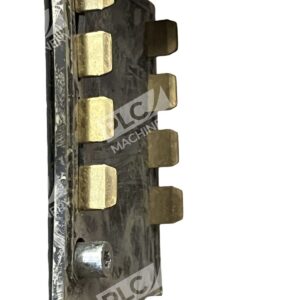

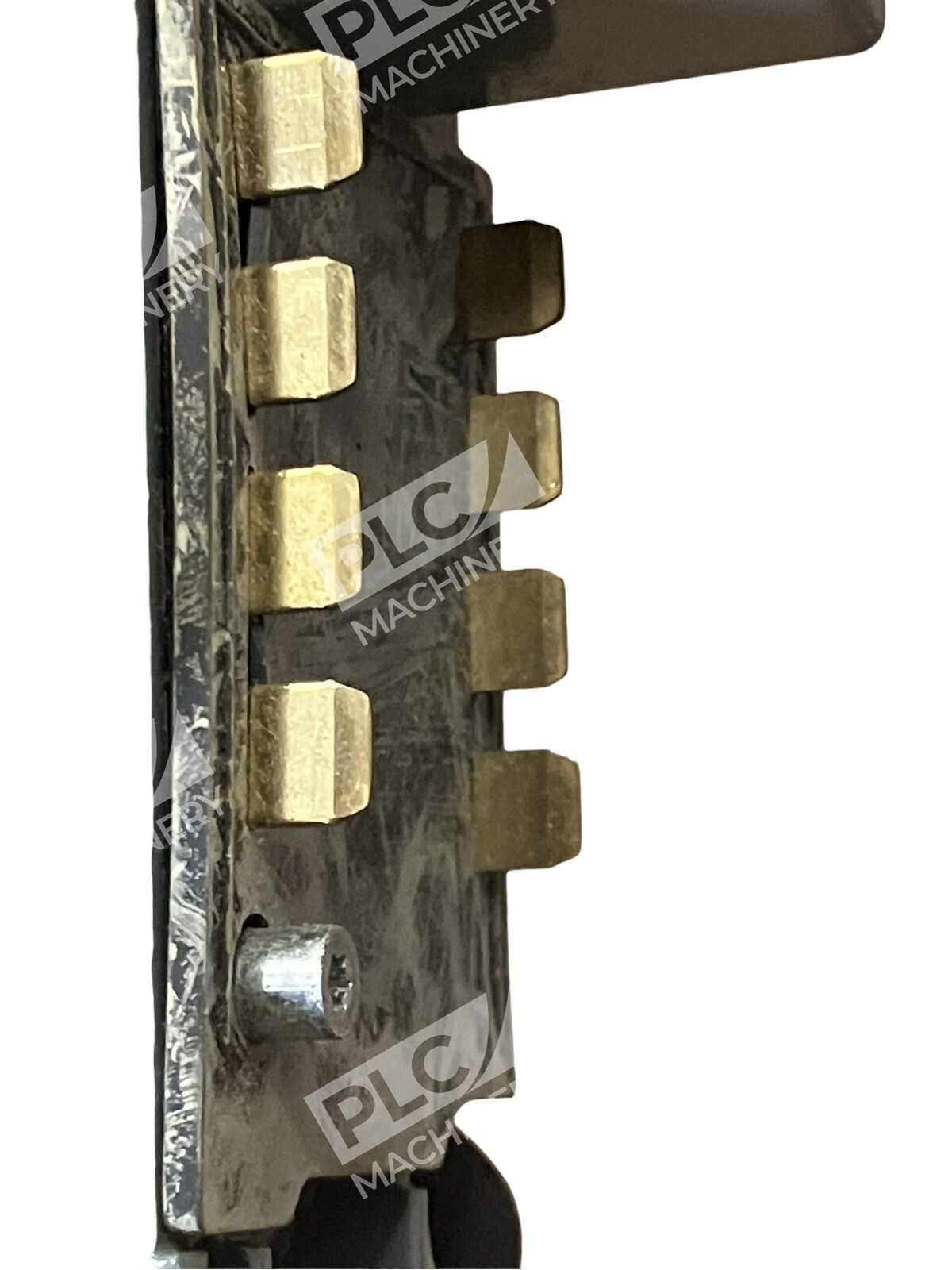

- Electrical Connection: Plug-In
- NEMA Ratings: 1, 2, 4, 6, 6P, 12, 13
- IP Rating: 65, 66, 67
- Operating Temperature Range: 0°F to 185°F (-17.8°C to 85°C)
- Standards: CE, CSA, UL
- Part Number: 9007CO68
- Manufacturer: Square D (Schneider Electric)
Typical Applications
The 9007CO68 limit switch body is widely used in:
- Machine tool position sensing and end-of-travel detection
- Conveyor and automation equipment control
- Pump and motor interlocking circuits
- Door and gate position monitoring
- Industrial process equipment with dual-circuit logic requirements
Compatibility & Replacements
Compatible With
- Type 9007 C Standard Limit Switches (all variants)
- Square D Class 9007 switch heads and actuators
- Industrial control systems requiring 600V, 10A rated switches
- NEMA-rated industrial enclosures and panels
Replaces / Drop-In Replacement For
- Existing Square D 9007CO68 units in service
- Verify compatibility with your system integrator before ordering
Works With
- Square D Class 9007 rotary spring return heads
- Standard lever, plunger, and wobble-stick actuators
- Telemecanique Sensors 9007C series (with compatibility verification)
- Industrial control relay circuits and PLC discrete I/O modules
