Overview

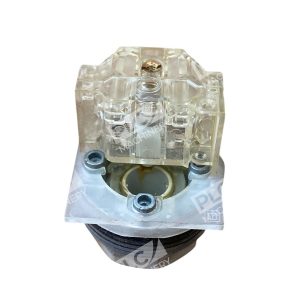

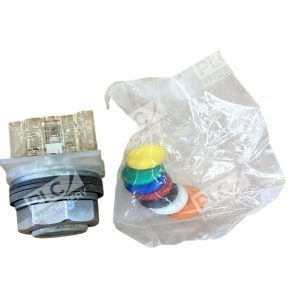

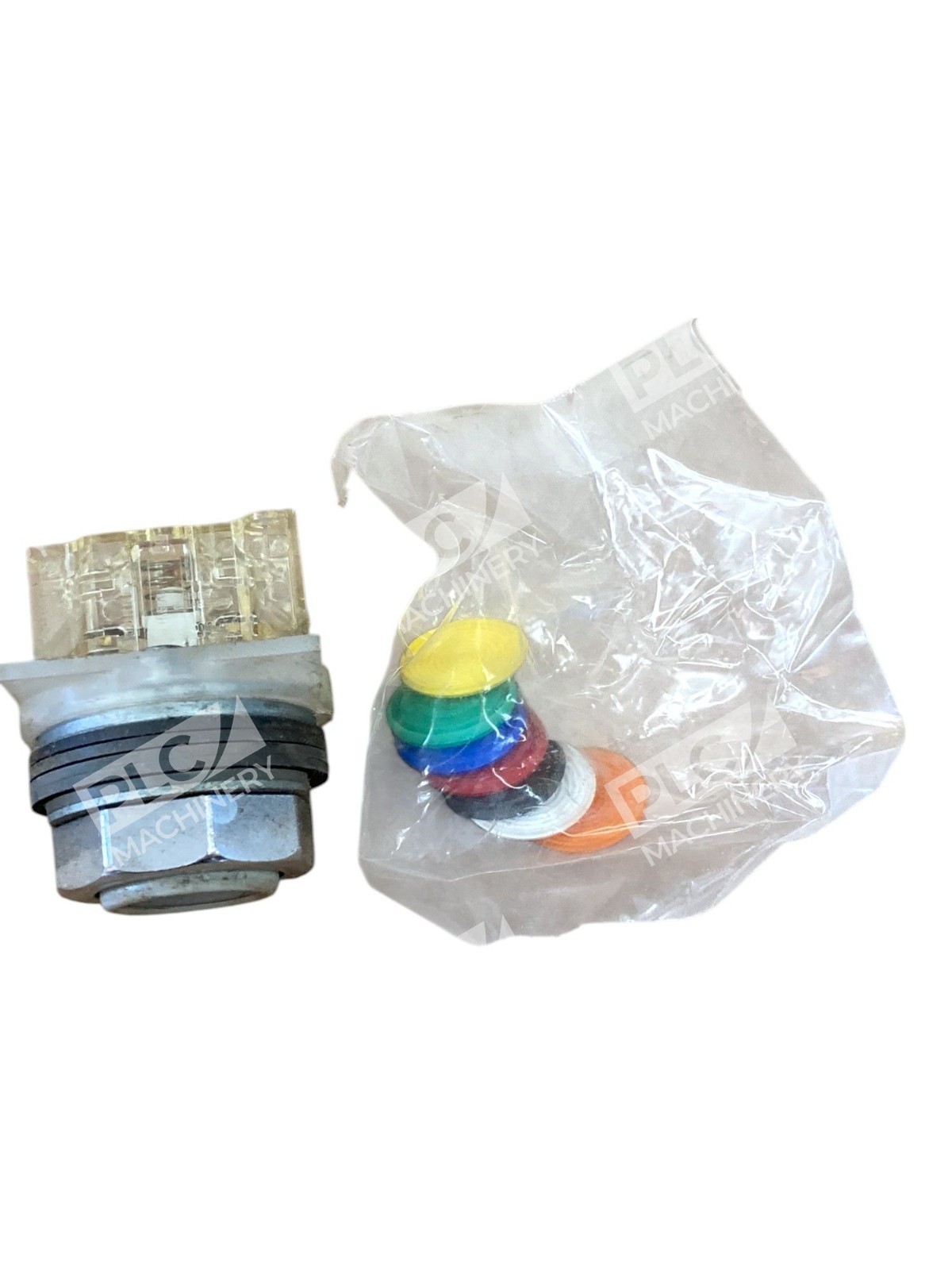

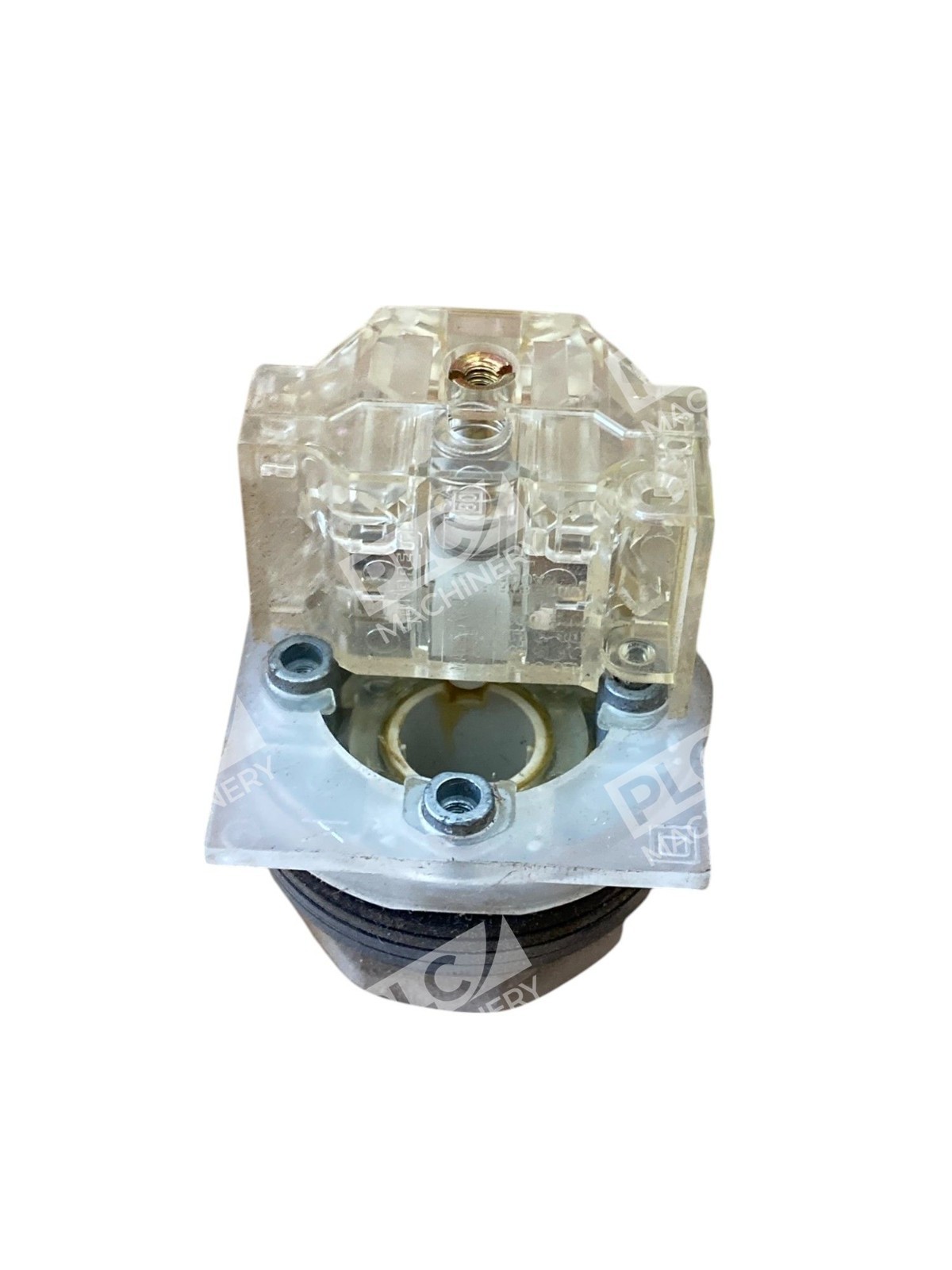

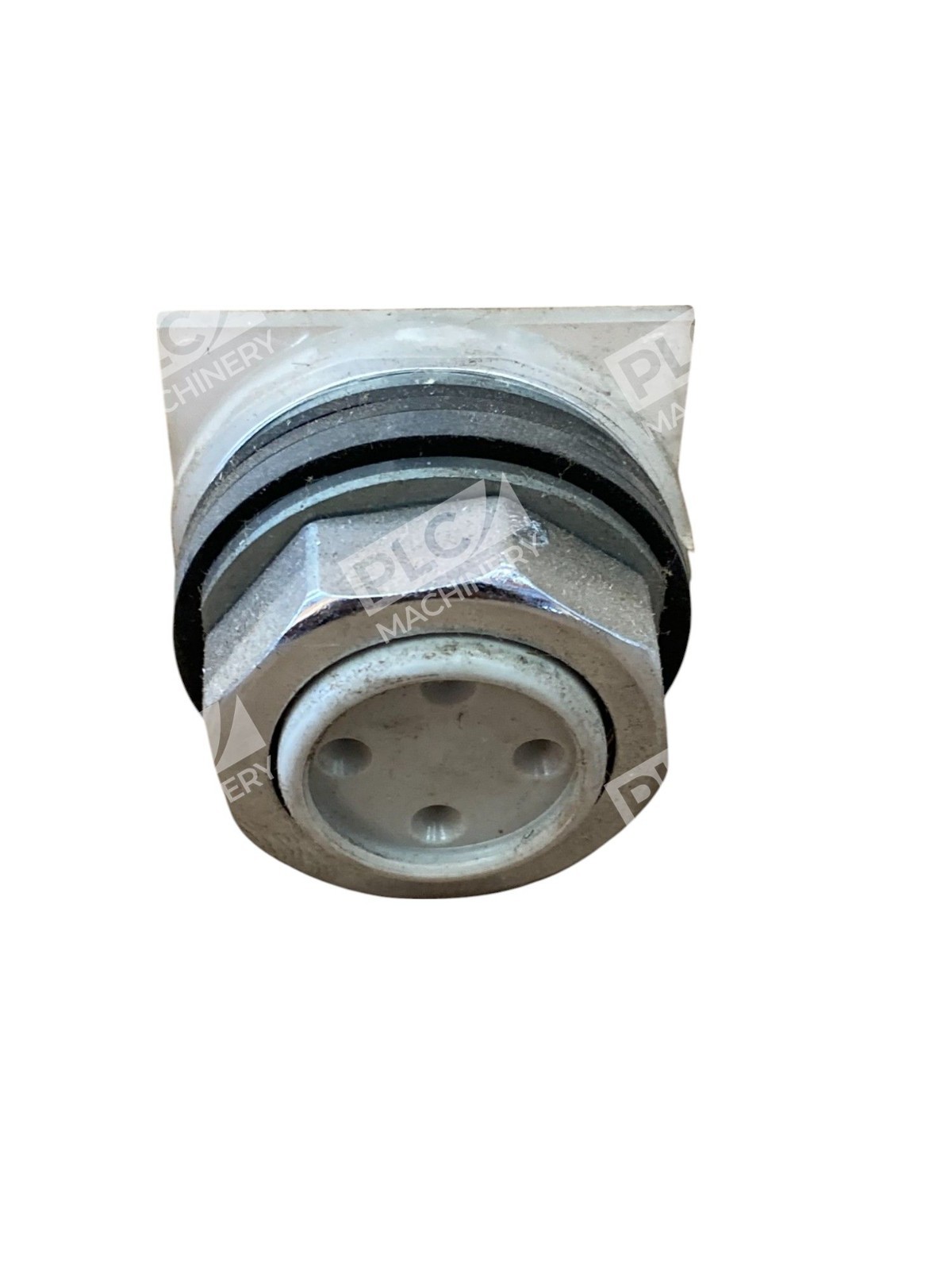

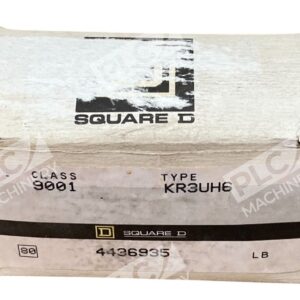

The Square D 9001 KR3UH6 pushbutton is a robust 30mm operator designed for demanding industrial control applications. This Type K pushbutton features a round head with extended stem, chrome-plated metal enclosure base, and automatic self-grounding design requiring no additional wiring. As part of the Schneider Electric Harmony® 9001 series, it delivers proven reliability in machine tool, automotive, material handling, and petrochemical environments.
Key Features
- Type K Metal Operator: Chrome-plated steel enclosure base with integral self-grounding—no external ground wires needed
- Environmental Sealing: Water-tight, dust-tight, and oil-tight construction rated IP66 and NEMA 4 without requiring protective boots
- High Current Capacity: 600V rated, 10A maximum contact rating for reliable switching of control circuits
- Modular Design: Interchangeable light modules, contact blocks, and operator heads reduce spares inventory and support field customization
- ABS Certified & Standards Compliant: Meets IEC, UL, CSA, EN, and NOM specifications; CE marked for global markets
- Extended Stem: Long push button stem design (KR3) allows easier actuation through guards and enclosures
Technical Specifications
- Voltage Rating: 600V AC maximum
- Current Rating: 10A (contact rating)
- Operator Type: Type K, round head, single position push
- Stem Length: Extended (KR3 designation)
- Enclosure Base: Chrome-plated metal ring nut
- Environmental Rating: IP66, NEMA 4 (water-tight, dust-tight, oil-tight)
- Self-Grounding: Yes, integral contact grounding, no external wiring required
- Certifications: ABS, IEC, UL, CSA, EN, NOM, CE marked
- Series: Schneider Electric Harmony® 9001
- Bezel Style: Chrome-plated, corrosion-resistant plating
Typical Applications
The 9001 KR3UH6 is widely used across heavy-duty industrial sectors including:
- Machine tools, CNC equipment, and automated manufacturing
- Crane and hoist control systems
- Automotive production and assembly lines
- Food and beverage processing equipment
- Petrochemical and chemical processing plants
- Material handling and conveyor systems
- Wastewater treatment facilities and water pumps
- Outdoor and corrosive environment control cabinets
Compatibility & Replacements
The Square D 9001 KR3UH6 is fully compatible with the Schneider Electric Harmony® 9001 series ecosystem. Its modular construction allows field replacement of contact blocks, light modules, and operator heads without purchasing a complete new assembly. For applications requiring different stem lengths, colors, or operator types, the 9001 series offers variants including 9001KR (standard stem), 9001SKR (plastic base for corrosion resistance), and 9001KX (square bezels for multi-function operation). Verify contact block and light module compatibility when specifying accessories. This unit is a direct equivalent to vintage Square D 9001 pushbuttons and compatible with modern Schneider Electric Harmony 9001 modules.
