Overview

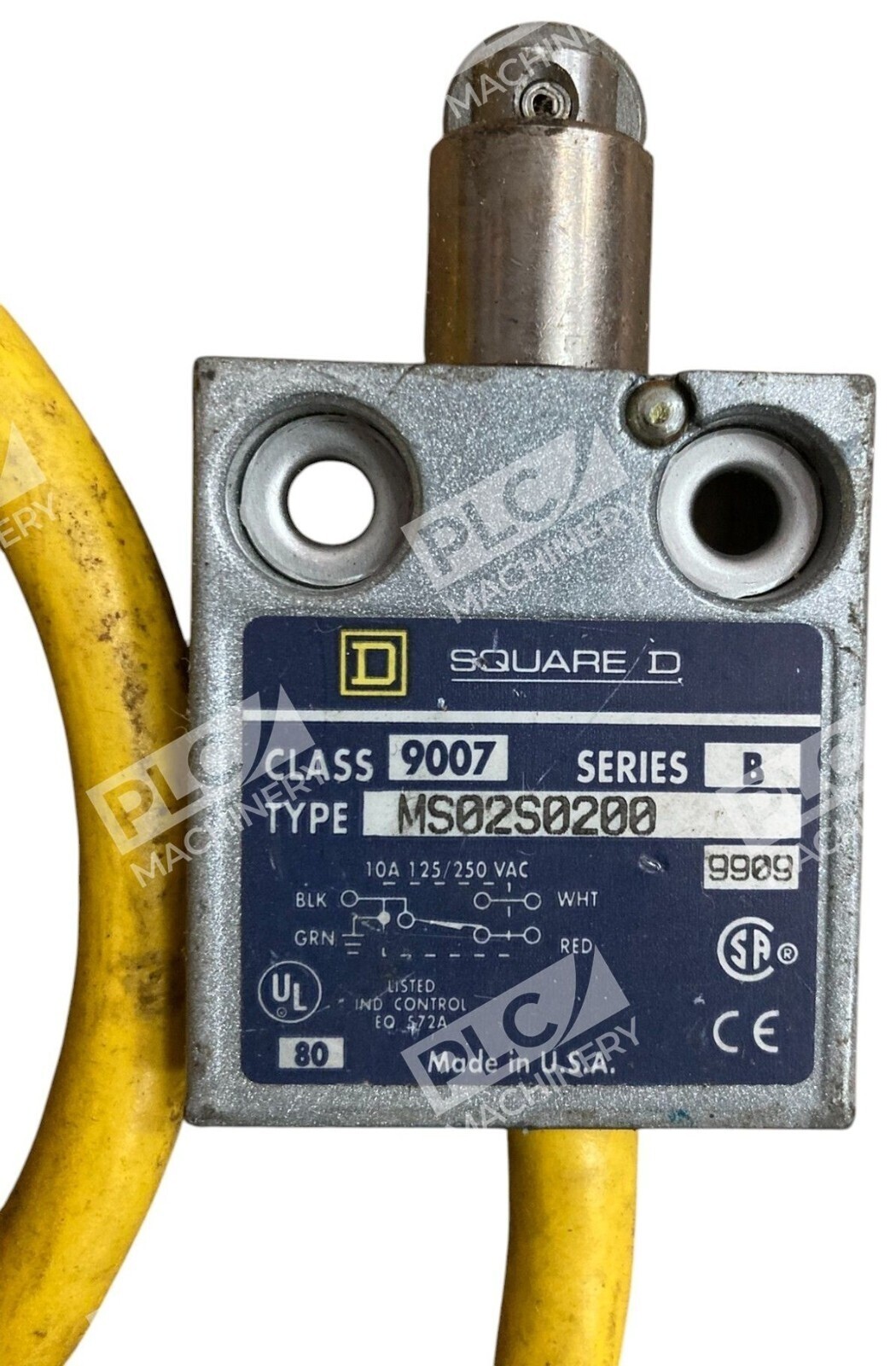

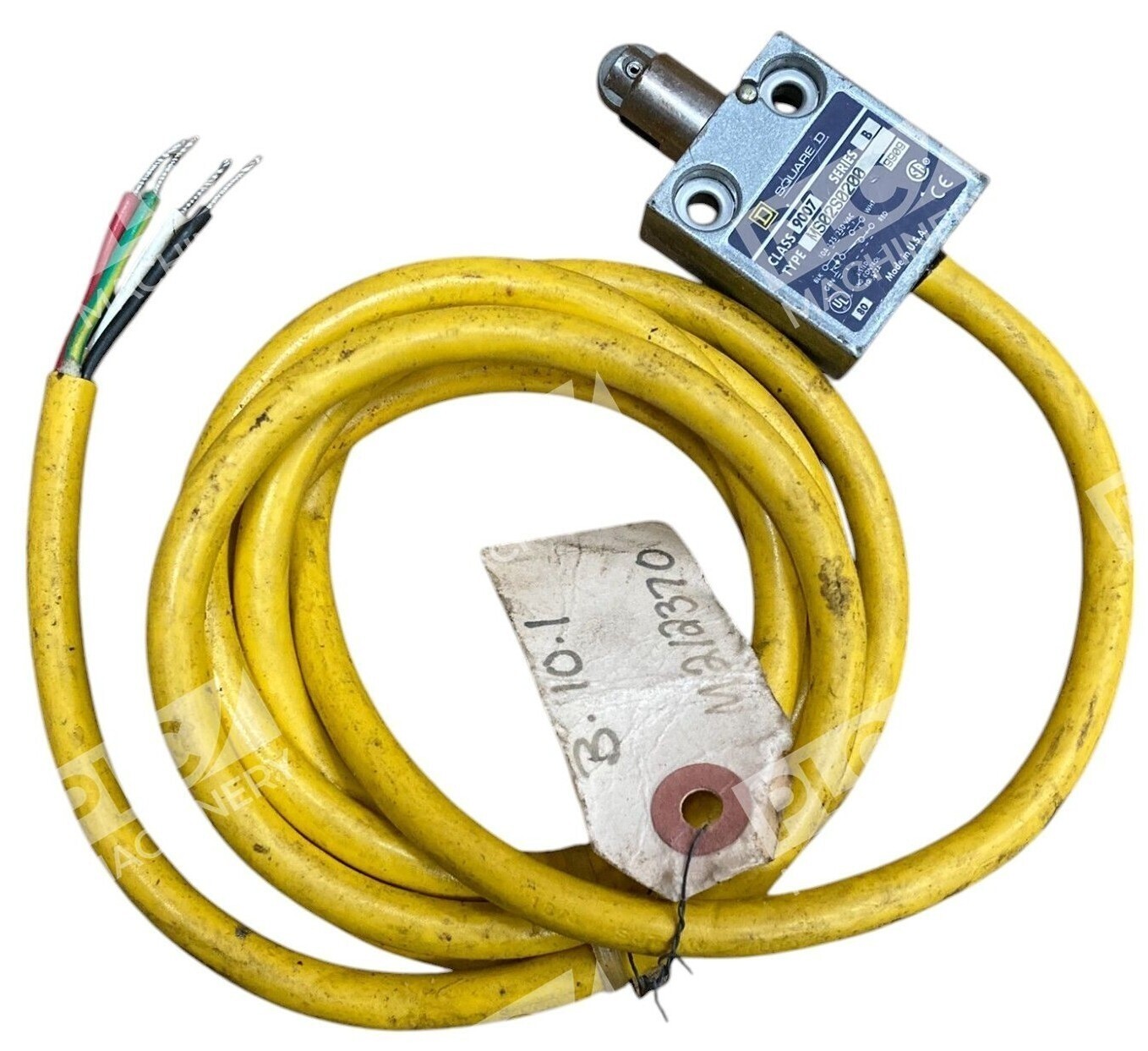

The Square D 9007-MS02S0200 is a heavy-duty miniature limit switch from the 9007 Series B family designed for industrial control and machinery automation. This encapsulated switch features a 39mm metal body, potted and pre-wired with cable, making it ready for immediate installation. The unit is an IP67 snap action limit switch with a plunger actuator, die-cast zinc construction, and NO/NC contact configuration rated at 240V.
Key Features
- Factory pre-wiring with industrial-grade cable (type SJTO) eliminates the need to remove the cover to wire the switch
- Symmetrical design with top mounting holes for easy gang mounting of multiple switches
- Viton® O-ring seal on the plunger keeps liquids from entering the switch cavity and includes epoxy compound seal around electrical cable connections
- Certified by UL, CSA and CE; complies with UL 508, NEMA A600 and C22-2-14 standards
- The 9007 series limit switches can withstand the impact of heavy industry and comply with US and international standards
Technical Specifications
- Contact Rating: 10A at 125/250 VAC
- Voltage: 240V AC
- Actuator Type: Plunger
- Enclosure Material: Die-cast zinc construction with electrostatically deposited grey epoxy powder paint finish
- Protection Rating: IP67
- Contact Configuration: NO/NC
- Wiring: 4-wire configuration
- Dimensions: 39.62mm (width) x 15.75mm (depth) x 44.45mm (height)
- Weight: 0.54kg
- Seal Type: Oil-tight, dust-tight, water-tight and drip-tight; meets NEMA 2, 4 & 13
Typical Applications
This limit switch is suitable for use in packaging machinery such as packaging machines and shrink wrap, food and beverage machinery applications such as bottling and canning, and process machinery such as machine tools, plastic, rubber and moulding. The sealed plunger design and industrial-grade construction make it ideal for harsh factory environments, conveyor systems, and automated production equipment where position sensing and machine interlocking are critical.
Compatibility & Replacements
Compatible With
- Industrial control systems requiring 240VAC snap-action limit switches
- Machinery with standard mounting hole spacing for limit switch ganging
- Applications using SJTO industrial-grade cable connections
- Systems requiring NEMA 2, 4, or 13 sealed enclosures
Replaces / Drop-In Replacement For
The 9007-MS02S0200 is a specific model designation within the 9007 Series B family. Direct drop-in replacements share the same electrical specifications (10A 240VAC) and physical footprint. Verify compatibility with your system integrator before ordering to ensure correct cable length and connector configuration for your application.
Works With
- PLC and automation controller inputs (24VDC or higher logic compatible)
- Industrial relay circuits and control logic
- Position sensing and machine interlocking systems
- Standard industrial electrical cabinets and enclosures
- Gang-mounted switch arrays for multi-position detection
