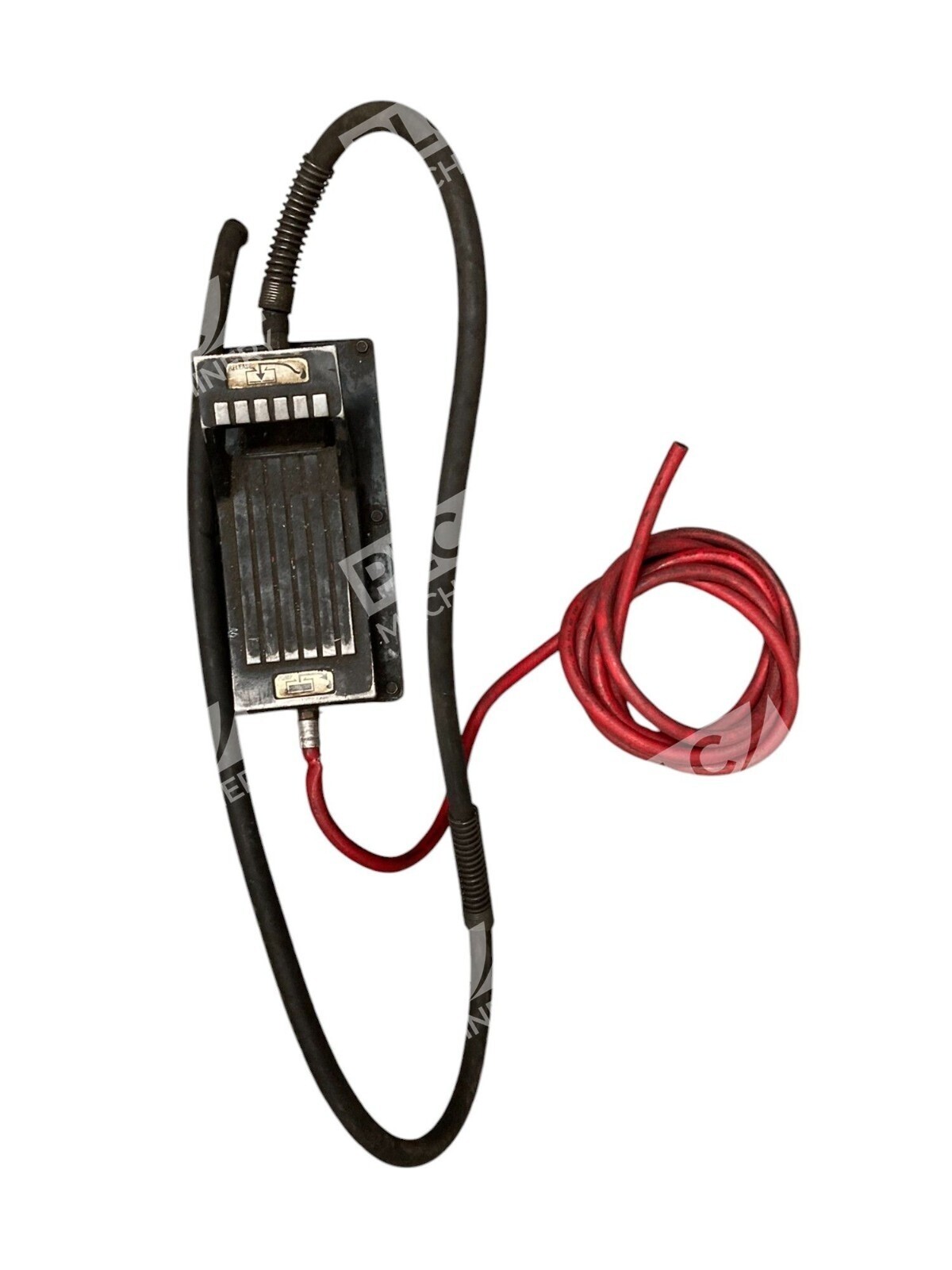

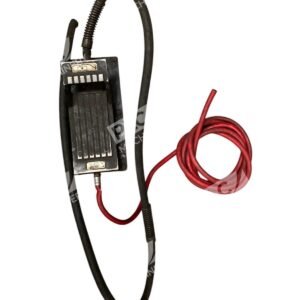

SPX PA6M Air Over Hydraulic Foot Pedal W/ Hoses Model F

Overview

The SPX PA6M Air Over Hydraulic Foot Pedal Model F is a compact, portable, single-speed hydraulic pump system designed to operate single-acting cylinders in demanding industrial environments. This unit operates on compressed air and is foot-pedal activated, providing intuitive operator control for hydraulic actuation. The included hoses eliminate ordering delays and simplify setup for immediate deployment on auto body repair equipment, frame straighteners, and custom hydraulic systems.

Key Features

• Foot-pedal activated operation for precise operator control
• Compressed air powered (40–120 psi supply required)
• Single-acting pump design for straightforward cylinder control
• Lightweight, portable construction suitable for mobile shops
• Includes hydraulic hoses for quick installation
• Relief valve protection at 10,100–10,700 psi standard setting

Technical Specifications

Typical Applications

• Auto body and collision repair frame straighteners
• Hydraulic cylinder actuation in portable press systems
• General industrial single-acting cylinder control
• Mobile and portable hydraulic tool operation
• Equipment manufacturers requiring compact, air-powered hydraulics

Compatibility & Replacements

Compatible With

• Single-acting hydraulic cylinders rated for 10,100–10,700 psi relief pressure
• Standard hydraulic quick-coupler connections
• Pneumatic systems supplying 40–120 psi compressed air
• Auto body shop hydraulic infrastructure
• Industrial portable press and straightening systems

Replaces / Drop-In Replacement For

• PA6M-1 (1-gallon reservoir variant)
• PA6M-2 (2-gallon reservoir variant)
• Earlier or damaged SPX Power Team Model F single-acting air pumps

Works With

• Standard ISO hydraulic hoses and fittings
• Hydraulic quick-disconnect couplers (flat-face or poppet style)
• Any air compressor or pneumatic supply system (40–120 psi output)
• Single-acting cylinder control systems and manifolds
