Overview

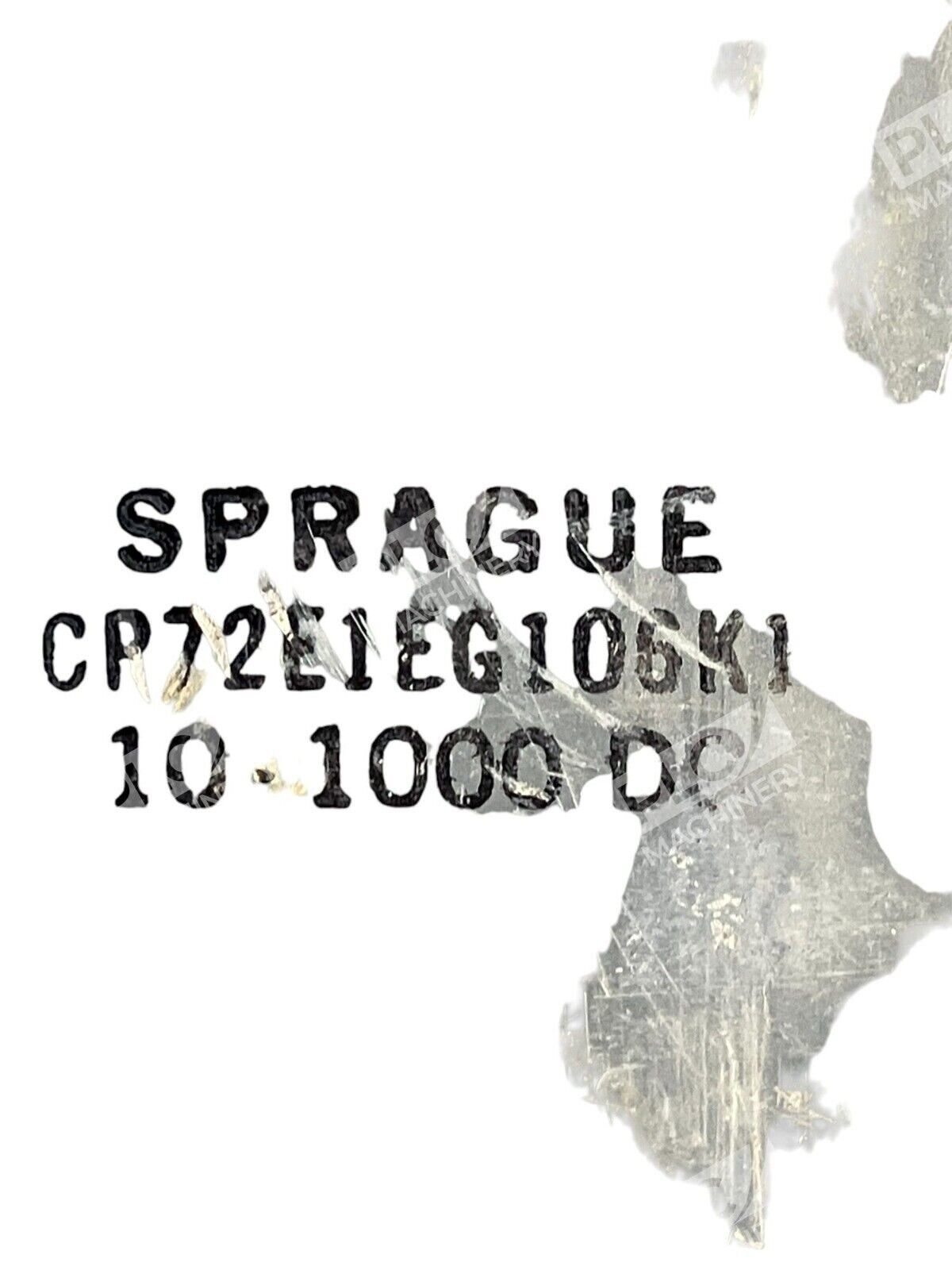

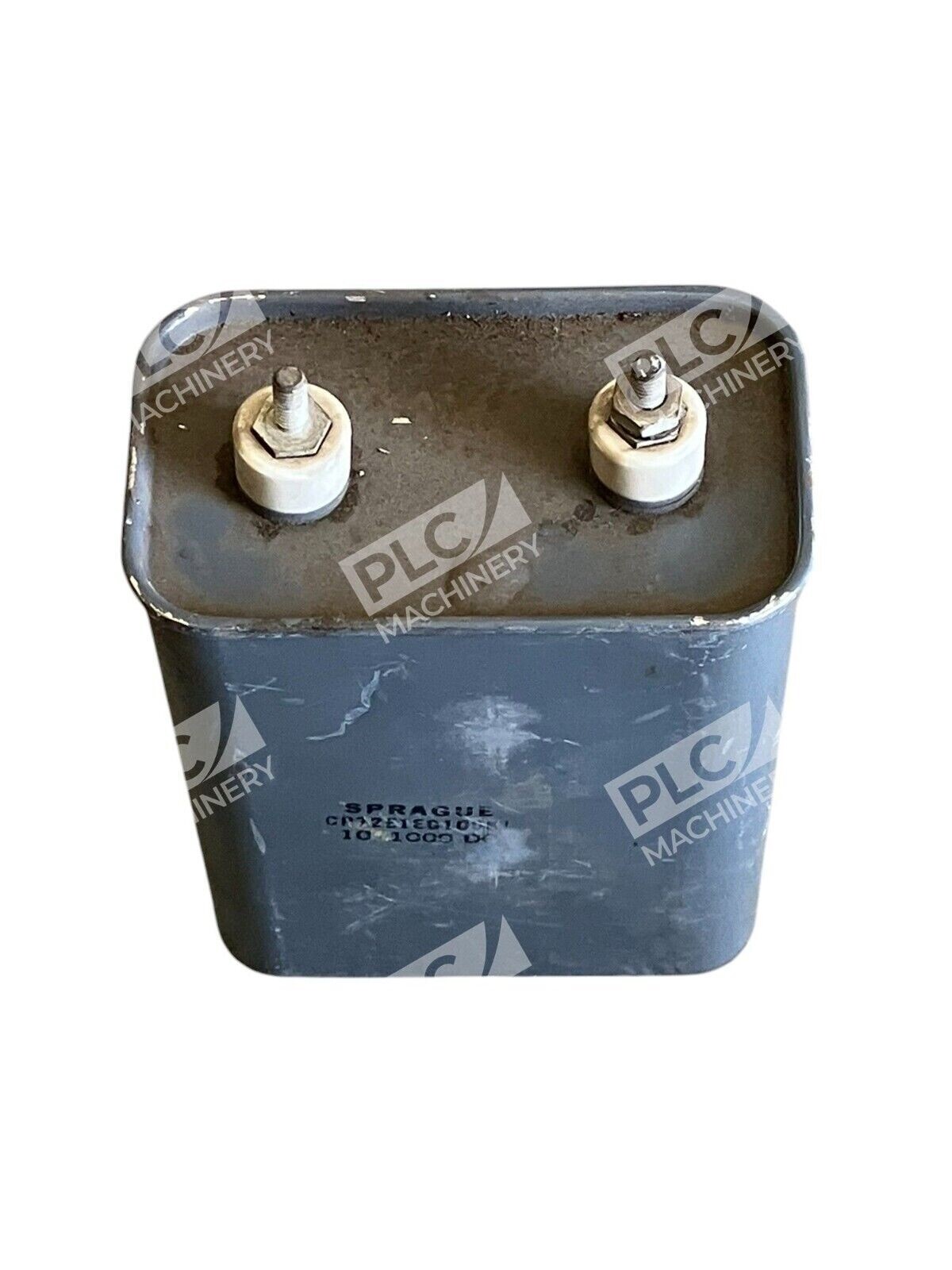

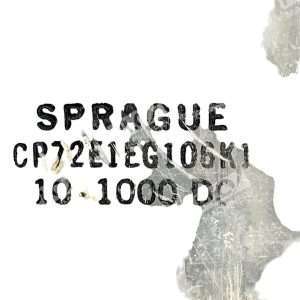

The Sprague CP72E1EG106K1 is a high-voltage oil-filled hermetically sealed radial capacitor rated at 10µF and 1000V DC. Originally manufactured by Sprague Electric, this classic component is widely found in industrial motor drives, power supplies, legacy control systems, and UPS equipment. The hermetically sealed design with oil dielectric provides excellent voltage handling and long service life in demanding applications.
Key Features
- 10µF capacitance with 1000V DC rating
- Hermetically sealed construction with oil dielectric
- Radial lead configuration for PCB mounting
- Designed for industrial and legacy electronics applications
- Form-fit-function replacement for system maintenance
Technical Specifications
- Capacitance: 10µF
- Voltage Rating: 1000V DC
- Dielectric: Oil (Hermetically Sealed)
- Lead Configuration: Radial
- Manufacturer: Sprague Electric
- Condition: Used, tested and fully functional
Typical Applications
- Industrial motor drive capacitors and DC filtering
- Legacy uninterruptible power supply (UPS) systems
- High-voltage DC power supplies and voltage regulators
- Older Allen-Bradley and GE industrial control equipment
- Military and defense equipment requiring form-fit-function replacements
Compatibility & Replacements
Compatible With
- Industrial motor drive systems
- Legacy power supply circuits
- UPS DC bus and filtering stages
- High-voltage DC power electronics
- Vintage industrial control systems
Replaces / Drop-In Replacement For
- Original Sprague CP72E1EG106K1 units
- Equivalent-rated legacy oil-filled high-voltage capacitors
- Verify compatibility with your system integrator or original equipment documentation before ordering
Works With
- Vishay equivalents (Vishay acquired Sprague Electric in 1992)
- Legacy industrial control systems and power equipment
- Custom high-voltage DC filtering circuits requiring form-fit-function replacements
