Overview

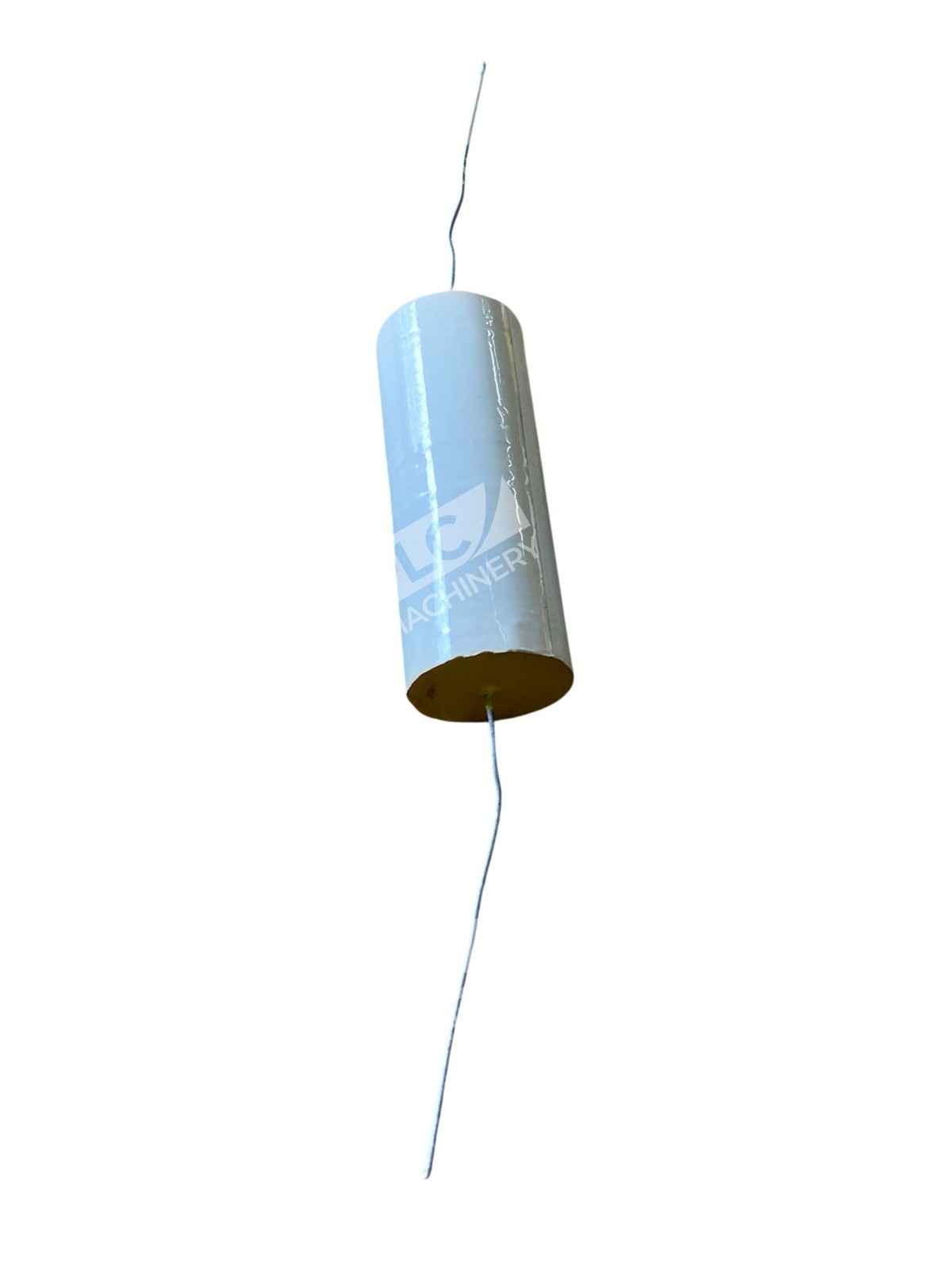

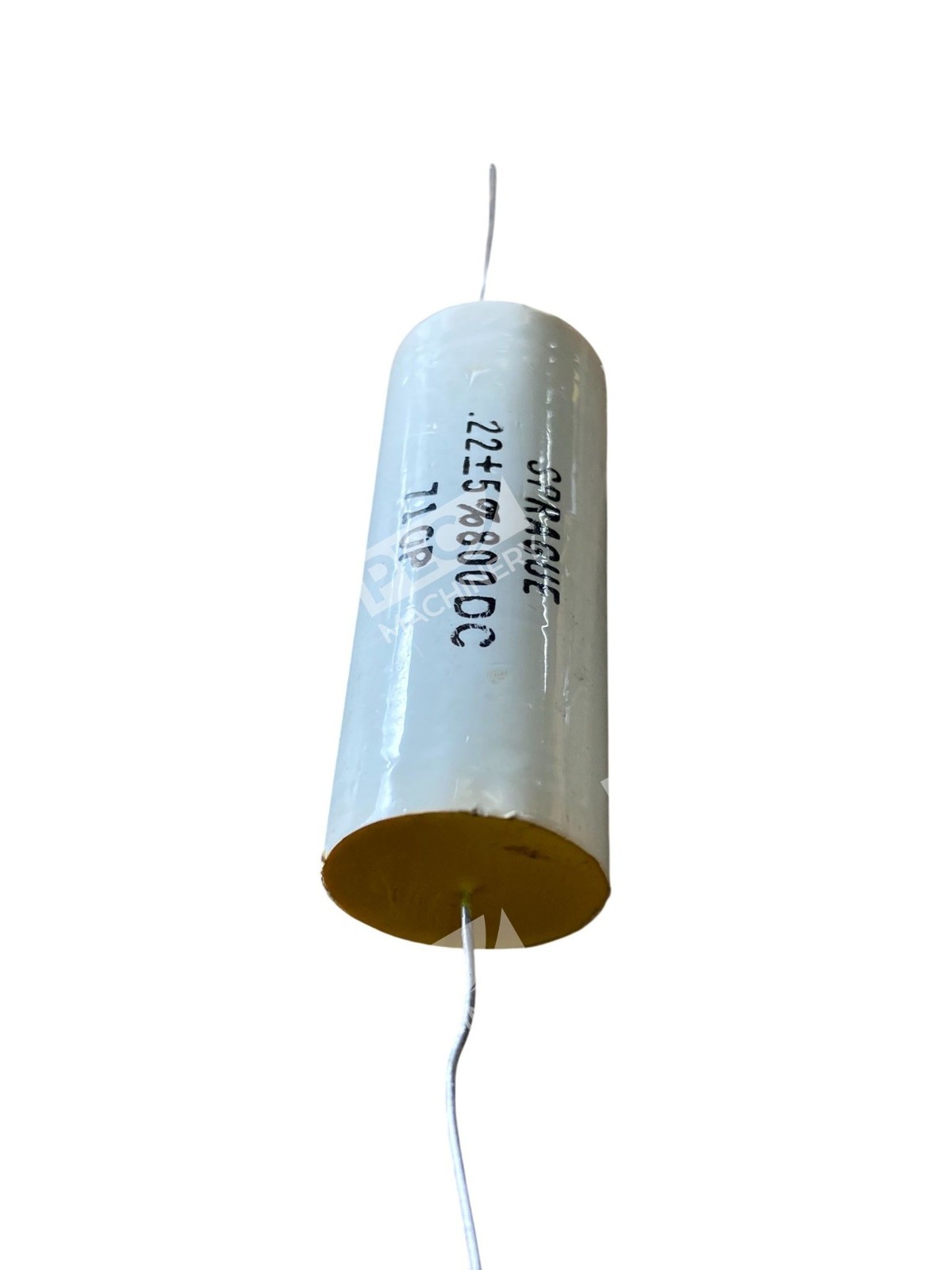

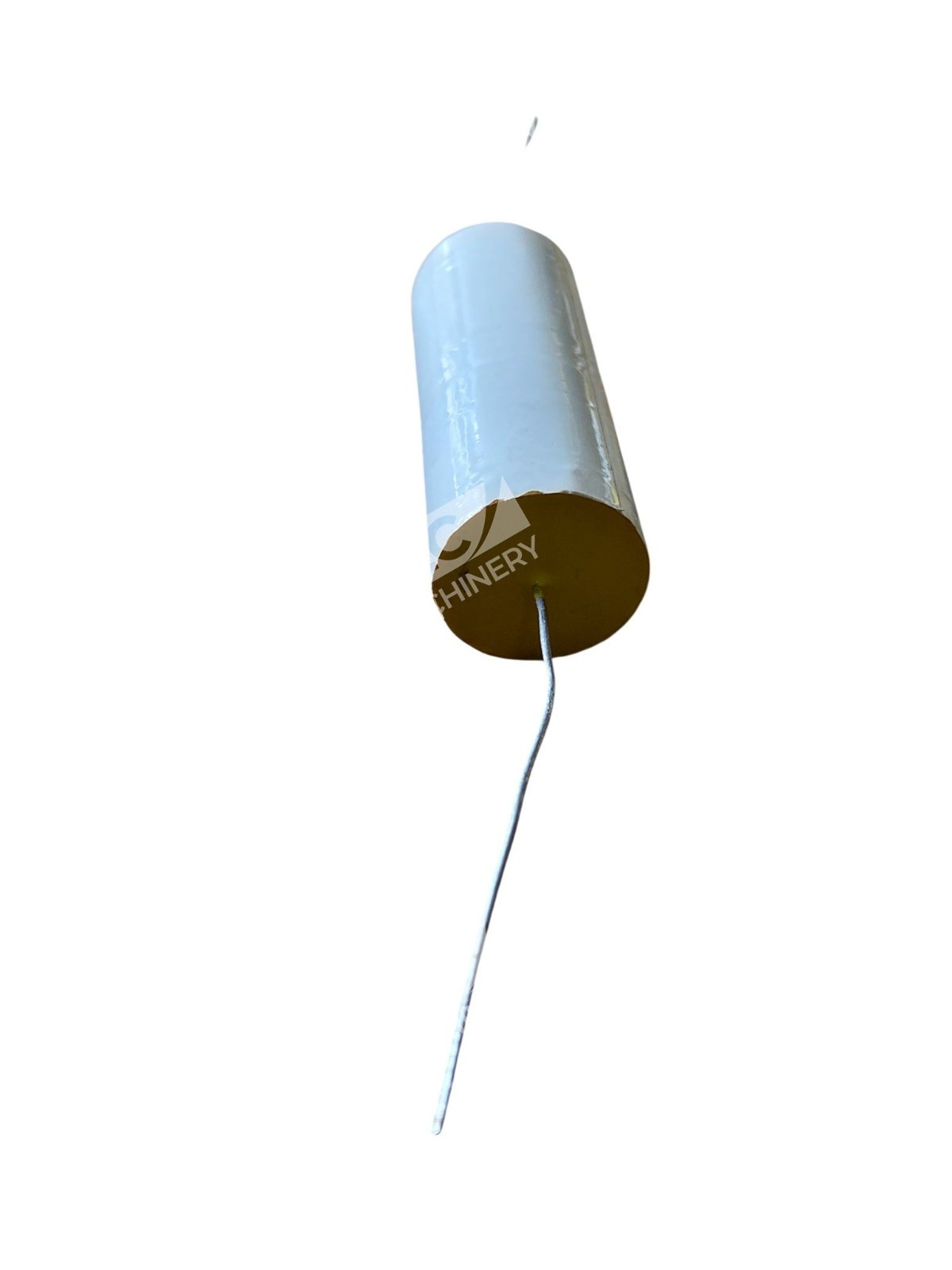

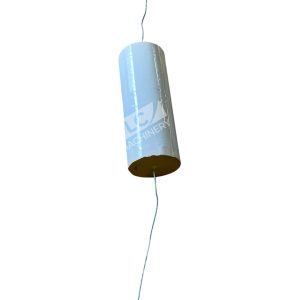

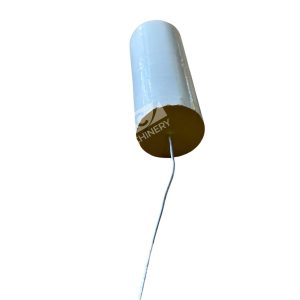

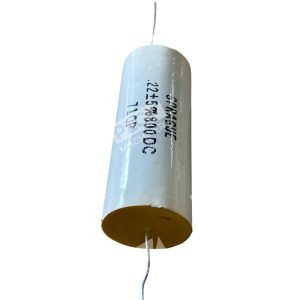

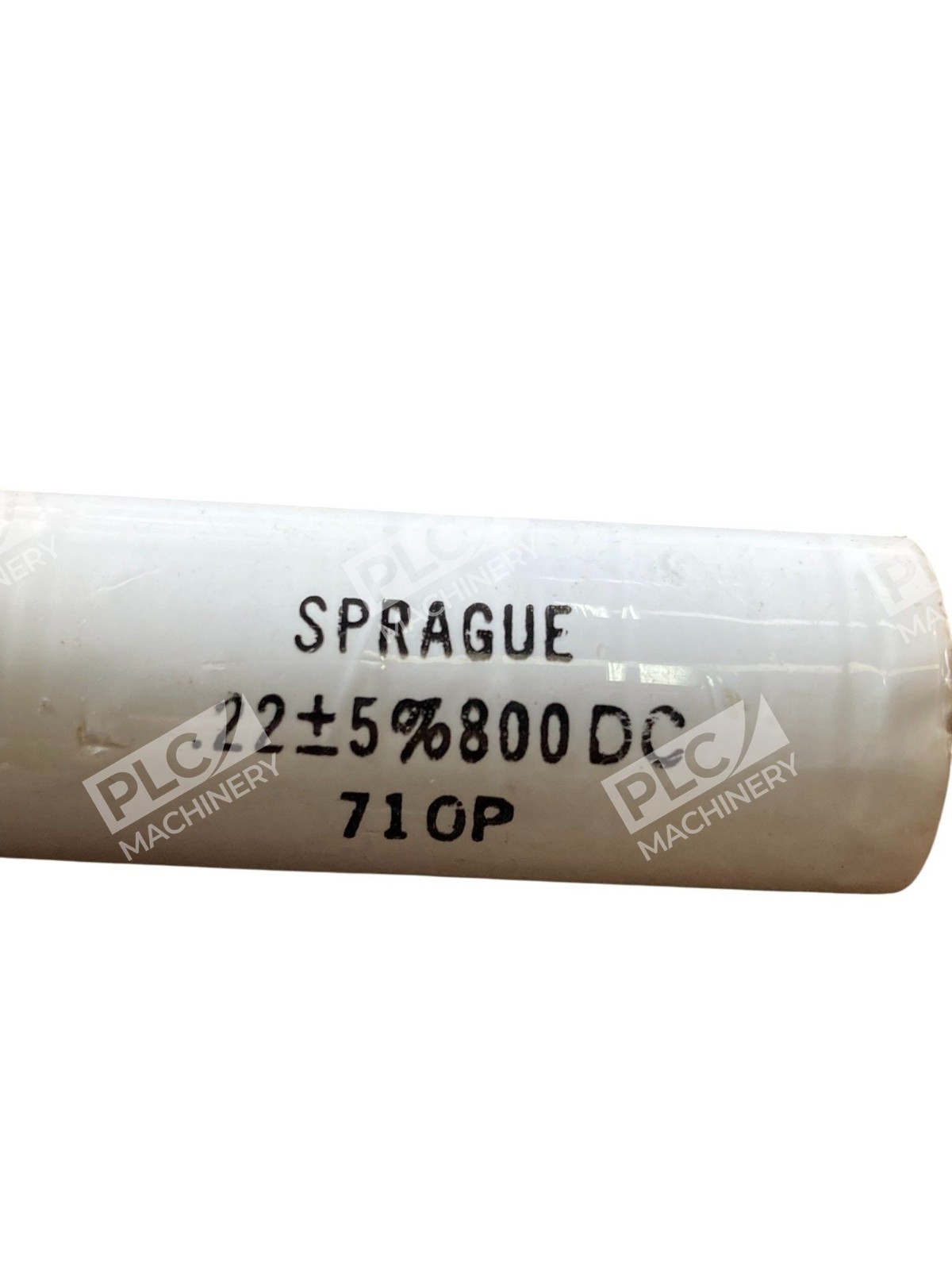

The Sprague 710P is a 0.22uF film capacitor rated for 800VDC operation. Manufactured by Sprague (now Vishay), this component delivers stable capacitance with low dissipation factor, making it ideal for demanding applications requiring precision and reliability. The 710P series features proven performance in industrial control circuits, power supplies, and electronic equipment where high voltage stability is critical.
Key Features
- Capacitance: 0.22µF with tight tolerance
- Voltage Rating: 800VDC — suitable for high-voltage applications
- Film dielectric construction — low dissipation and excellent temperature stability
- Axial lead package for standard PCB mounting
- Proven long-term reliability in industrial environments
Technical Specifications
- Capacitance: 0.22µF
- Voltage Rating: 800VDC
- Dielectric Type: Film (Polypropylene)
- Package Style: Axial Lead
- Series: 710P
- Manufacturer: Sprague (Vishay)
Typical Applications
- High-voltage power supply circuits
- Industrial motor control and servo systems
- Test and measurement equipment
- Audio and RF filtering circuits
- DC blocking and coupling applications
- Energy storage in precision analog circuits
Compatibility & Replacements
Compatible With
- Industrial control systems requiring 800VDC capacitors
- Legacy and modern test equipment
- Power electronics and switching applications
- Audio amplifier circuits
- High-voltage precision measurement systems
Replaces / Drop-In Replacement For
Verify compatibility with your specific application, as film capacitors have tight manufacturing tolerances. Consult your system documentation or contact our engineering team for direct replacement guidance.
Works With
- Standard PCB assembly and rework processes
- Hand-soldering and wave-soldering equipment
- Vintage and modern electronic test instruments
- Custom circuit board designs requiring high-voltage DC blocking
