Overview

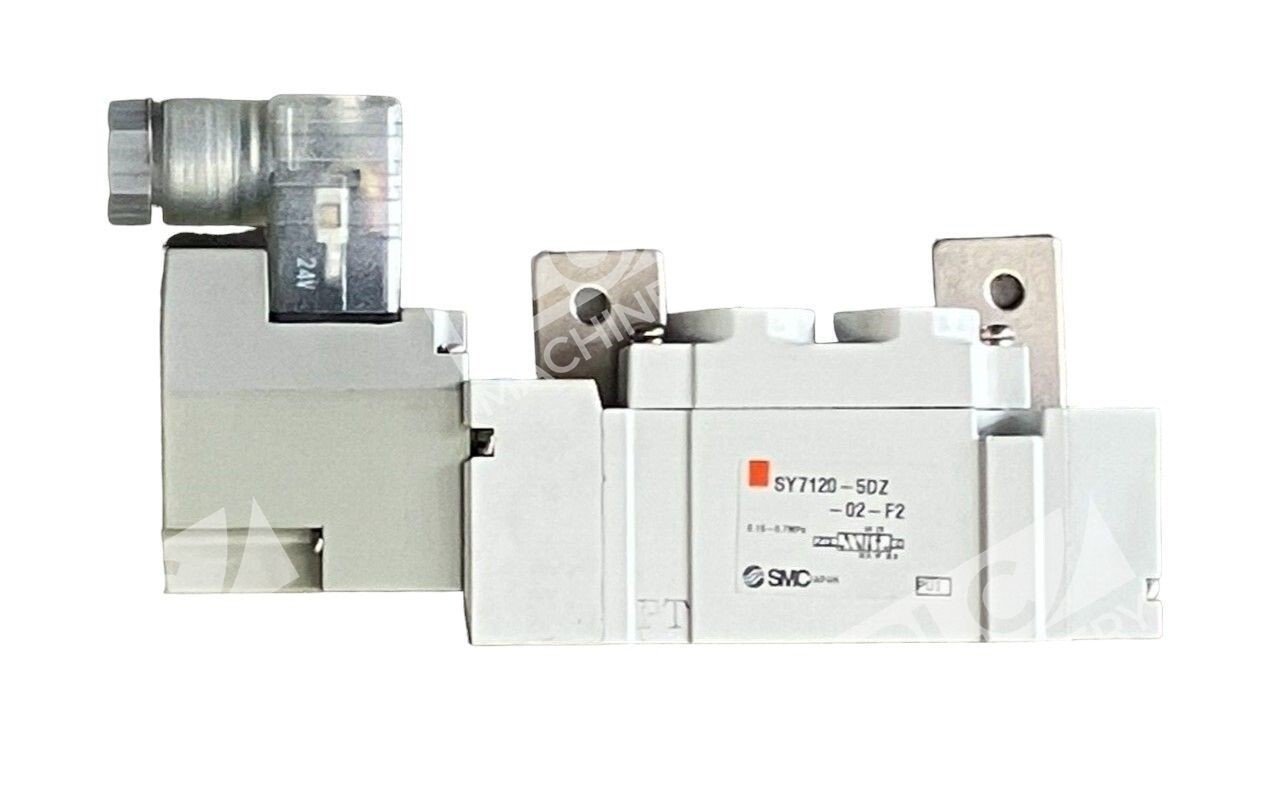

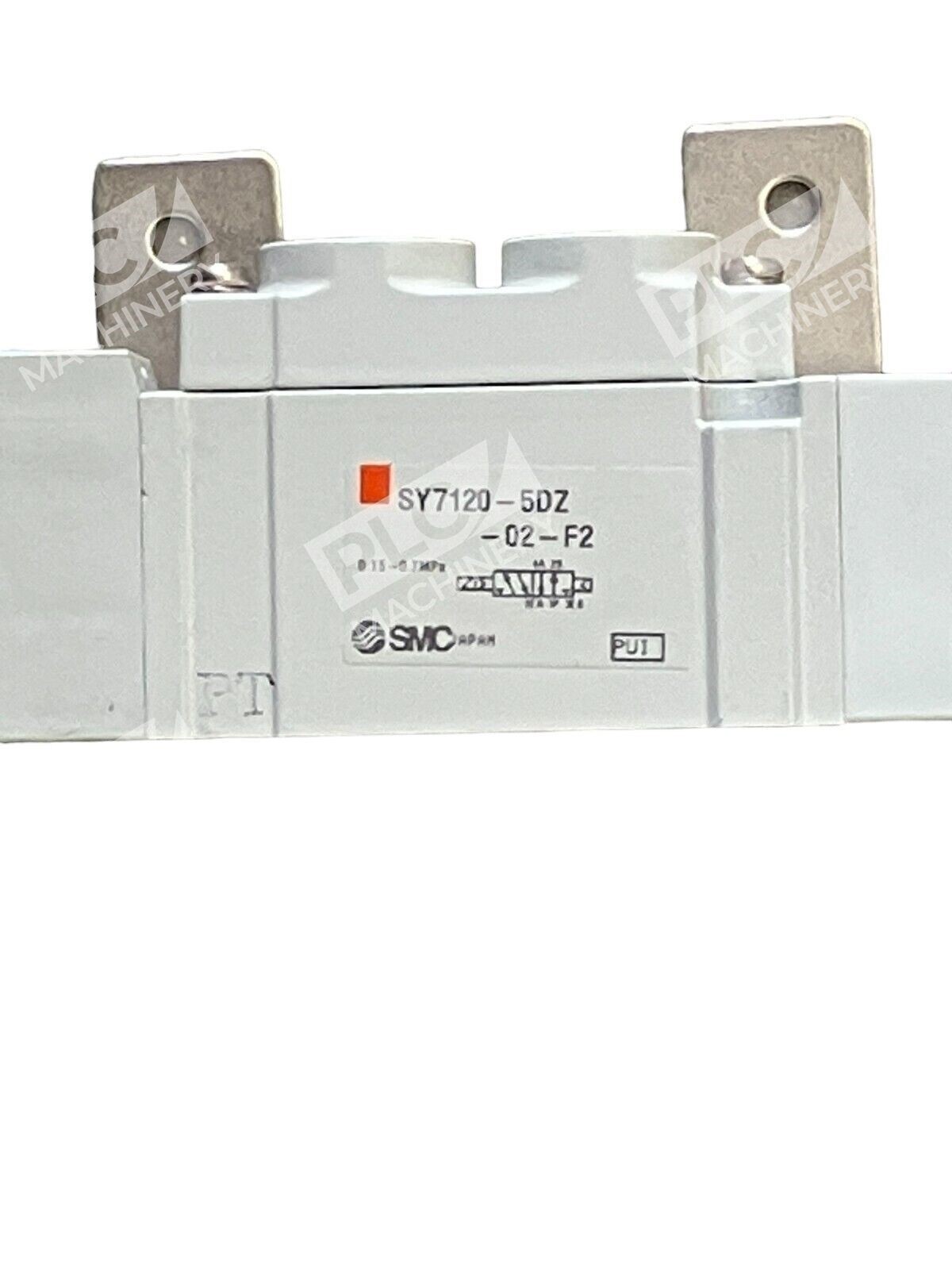

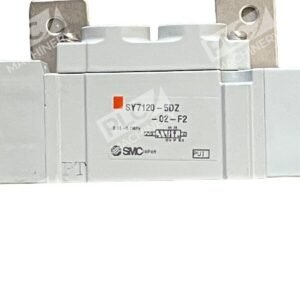

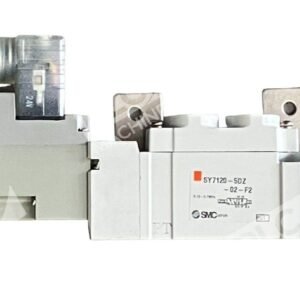

The SMC SY7120-5DZ-02-F2 is a compact 5-port solenoid valve from SMC’s SY7000 series, designed for pneumatic control applications. This body-ported, single-unit valve delivers reliable 2-position single actuation at 24 VDC with integrated light and surge voltage suppression. The 1/4-inch RC-threaded ports and side bracket mounting provide flexible installation in automated systems, making this valve a practical drop-in solution for OEMs and system integrators managing pneumatic circuits.
Key Features
- 5-port, body-ported configuration for direct manifold integration
- 2-position single actuation with low power consumption (0.1 W with power-saving circuit)

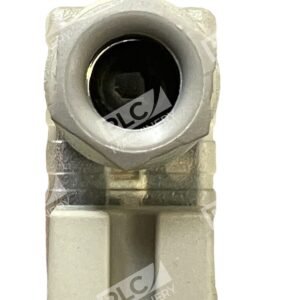

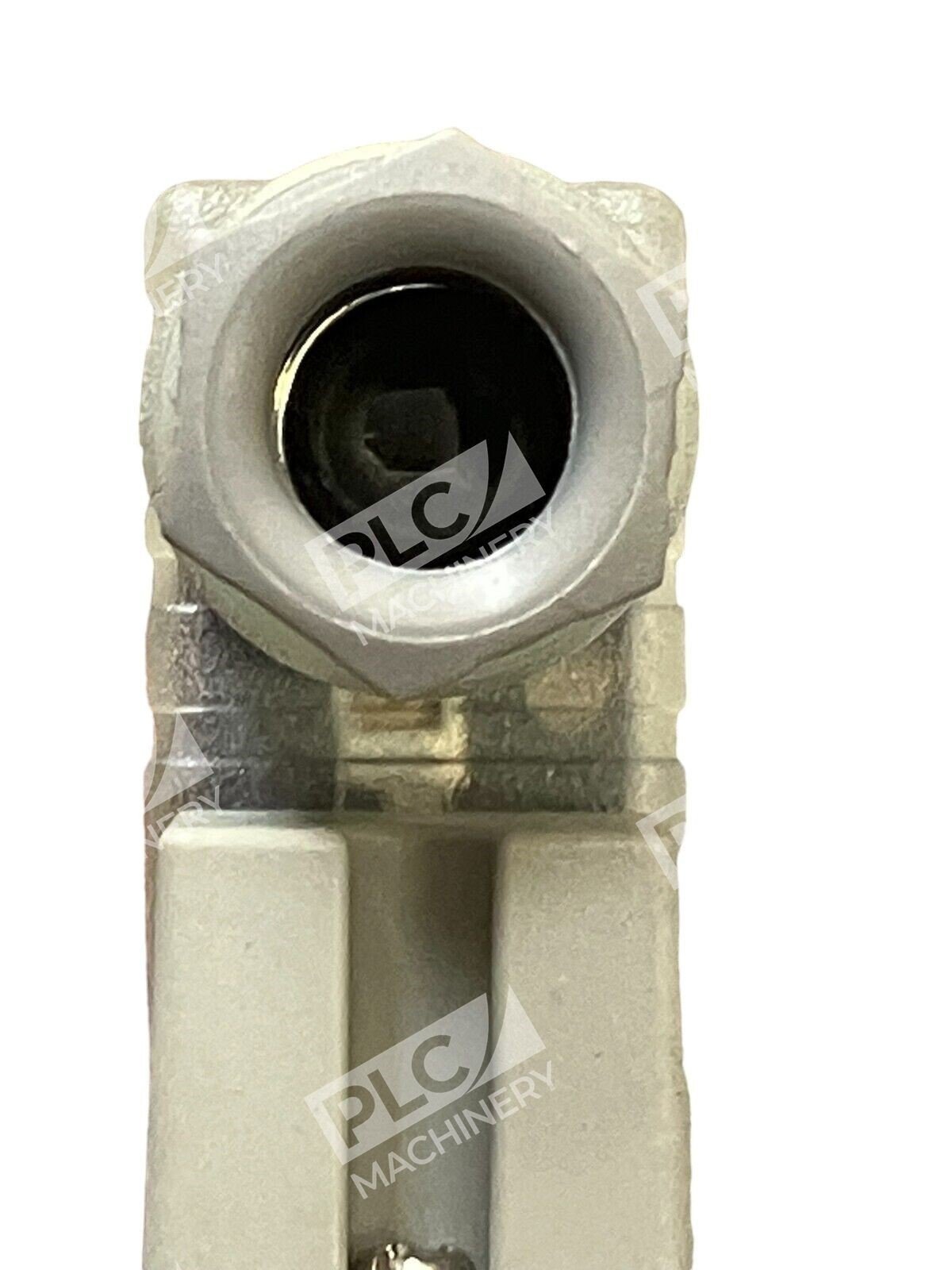

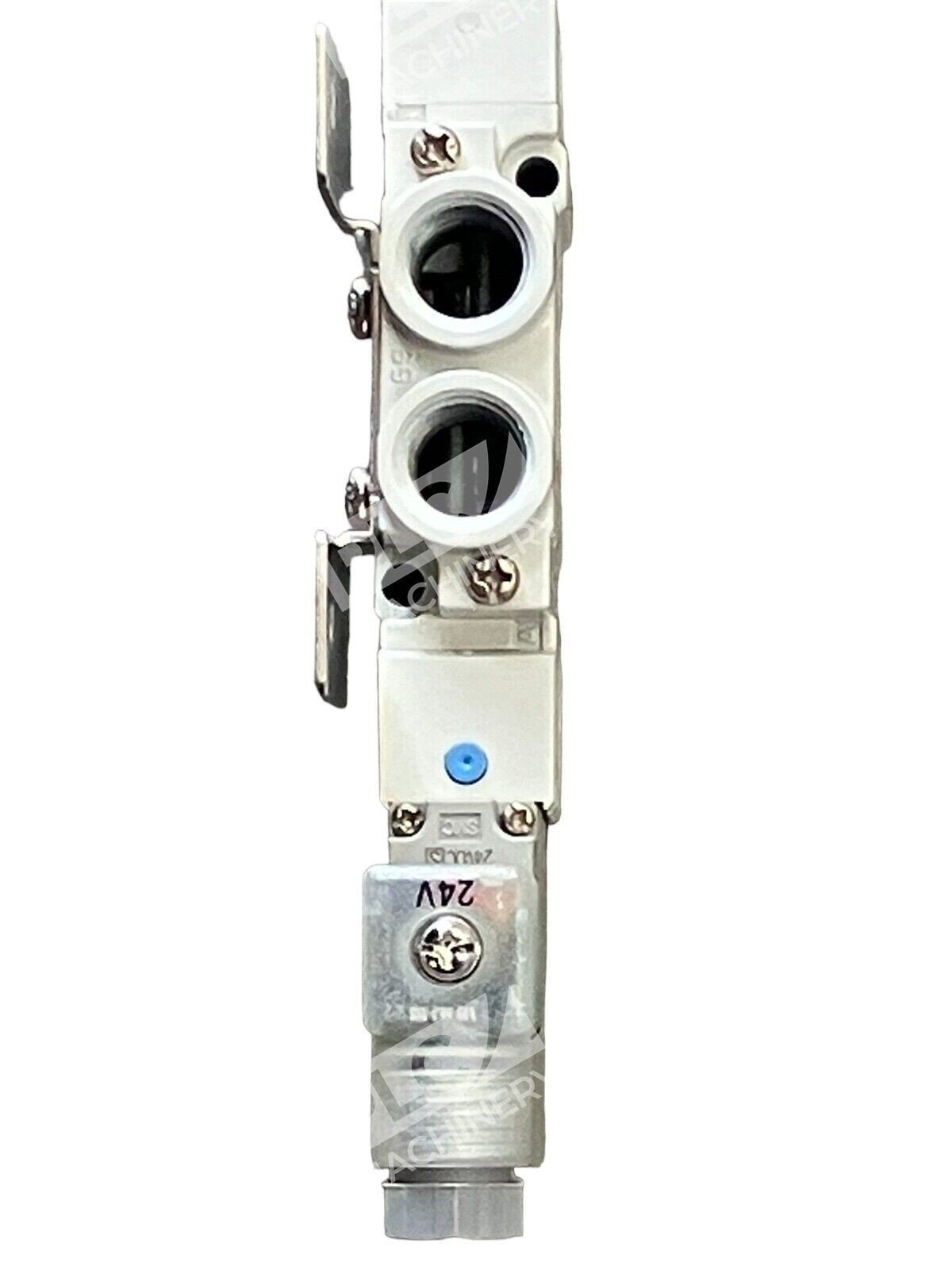

- 24 VDC coil with DIN terminal connector and light/surge voltage suppressor
- Non-locking push-style manual override for emergency operation

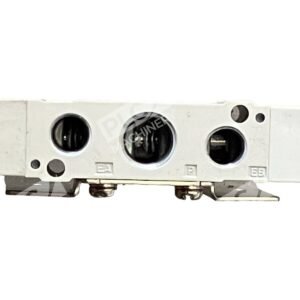

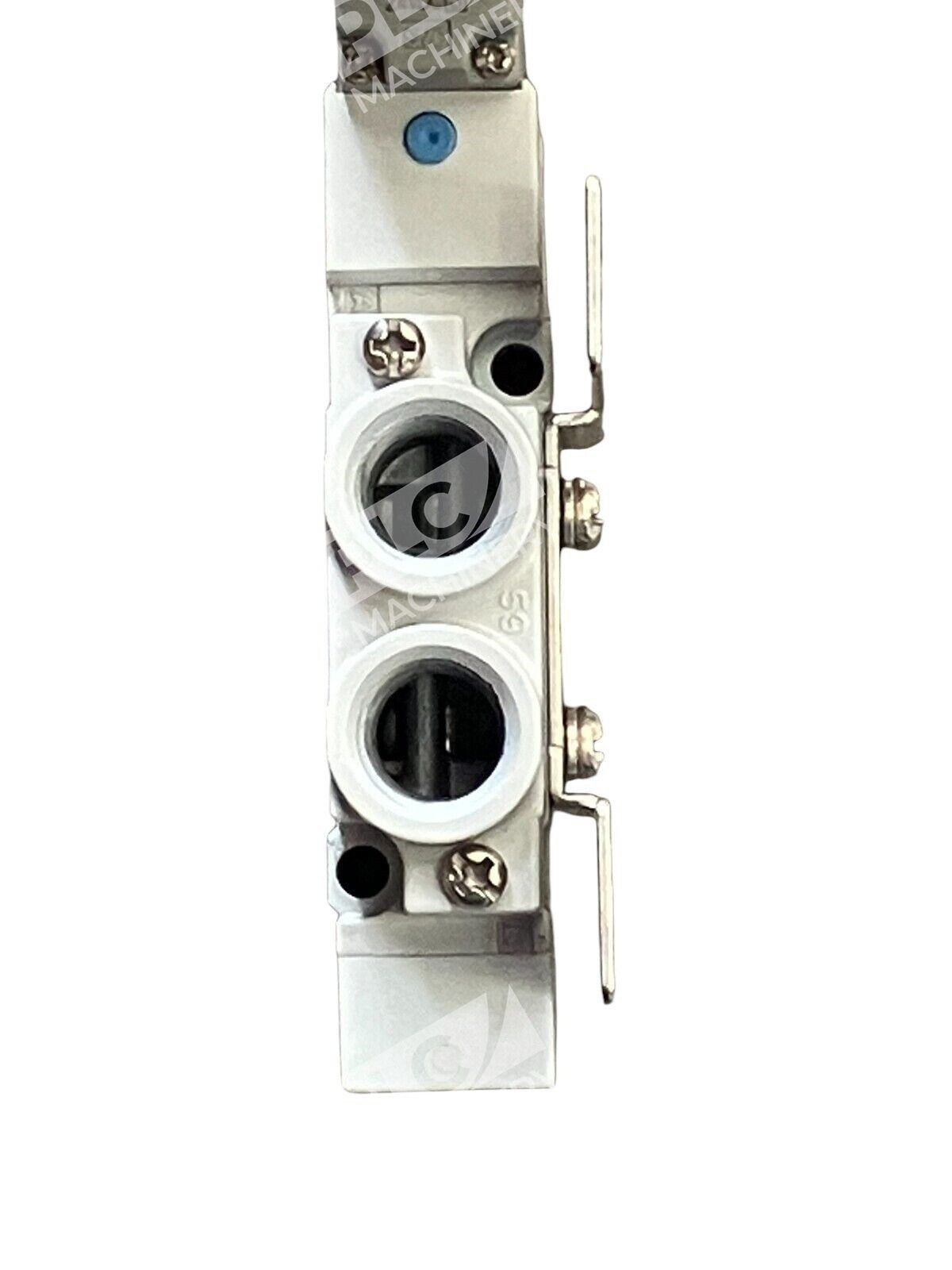

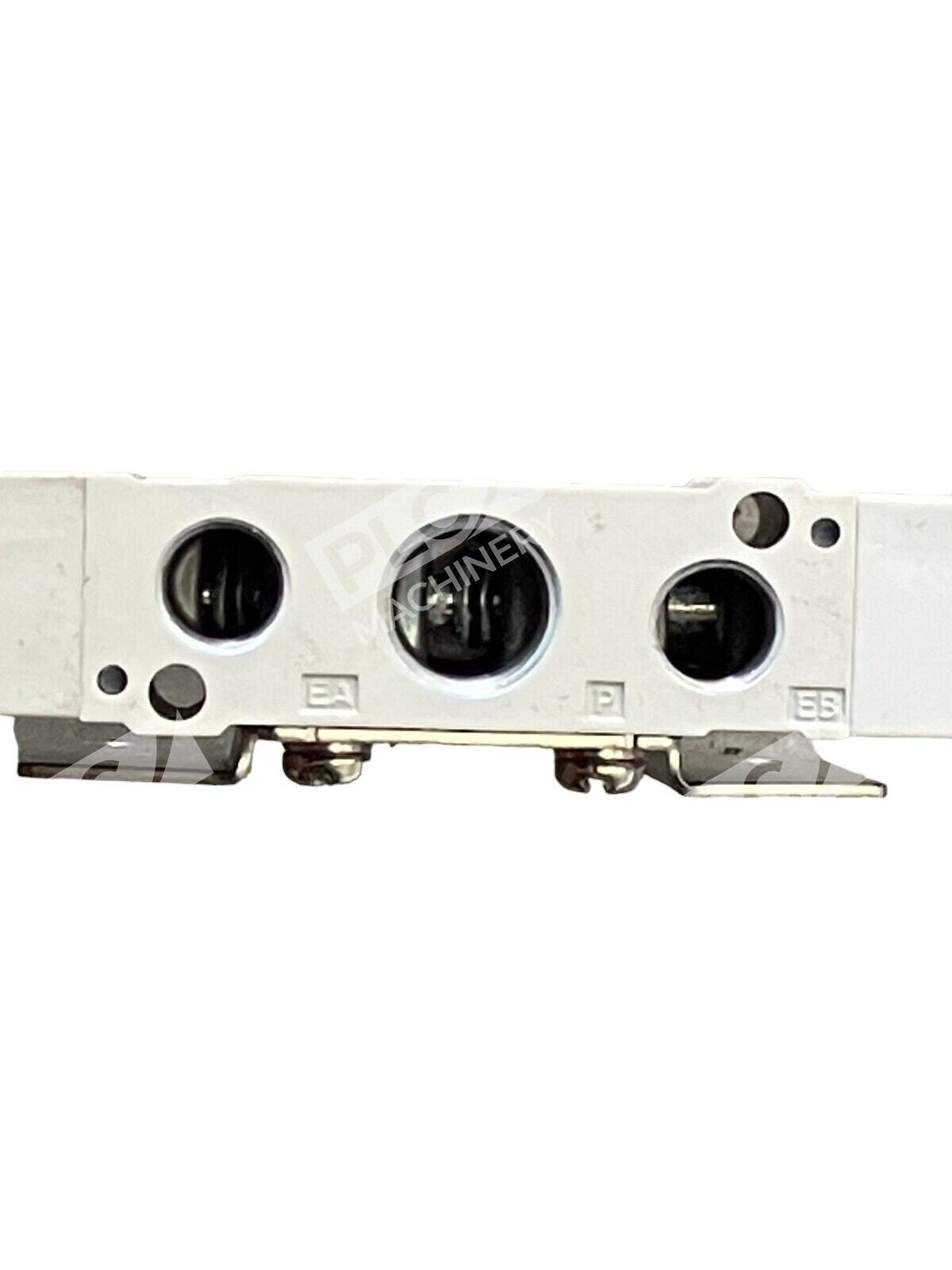

- 1/4-inch RC-threaded ports with integrated side bracket mounting
- Combined mounting compatibility with 3-port and 5-port valves on shared manifolds
Technical Specifications
- Series: SY7000
- Valve Type: 5-Port, Body-Ported
- Actuation: 2-Position Single
- Coil Voltage: 24 VDC
- Electrical Entry: DIN Terminal with Connector
- Pilot Operation: Internal Pilot
- Port Size: 1/4 inch
- Thread Type: RC (Rc)
- Surge Suppression: Light/Surge Voltage Suppressor
- Manual Override: Non-Locking Push Style
- Mounting: Side Bracket
- Power Consumption: 0.1 W (with power-saving circuit)
- Operating Pressure Range: 0.1 – 0.7 MPa (internal pilot)
- Fluid Medium: Compressed Air
- Weight: 0.276 lb
Typical Applications
The SY7120-5DZ-02-F2 excels in factory automation, material handling systems, packaging machinery, and pneumatic circuit control where space-efficient, low-power valve switching is required. Its modular design and manifold compatibility make it ideal for multi-valve installations, OEM equipment builders, and retrofit projects. Industries spanning automotive assembly, food and beverage processing, and general industrial automation rely on this valve series for consistent, cost-effective pneumatic control.
Compatibility & Replacements
Compatible With
- SMC SY7000, SY5000, SY3000, and SY9000 series manifolds
- SS5Y3, SS5Y5, SS5Y7, and SS5Y9 manifold platforms
- Aluminum body manifolds, DIN rail-mounted assemblies, and stacking-type manifolds
- 24 VDC pneumatic control systems with DIN connector wiring
- Standard industrial compressed-air networks (0.1–0.7 MPa)
Replaces / Drop-In Replacement For
- SMC SY7120-5DZ-02-F2 (exact part)
- Compatible with SY7120 series variants using DIN terminal and RC thread configuration
- Verify thread type (RC vs. NPT/NPTF) and electrical entry specifications before substituting alternative models
Works With
- 24 VDC solenoid coil circuits with integrated suppression
- Pneumatic control networks (ISO 4401 5/3 and 5/2 manifold standards)
- Industrial PLC and relay-based control systems
- Air compressor and FRL (filter-regulator-lubricator) assemblies
- SMC integrated valve assemblies and custom manifold configurations
