Overview

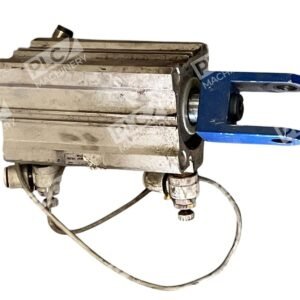

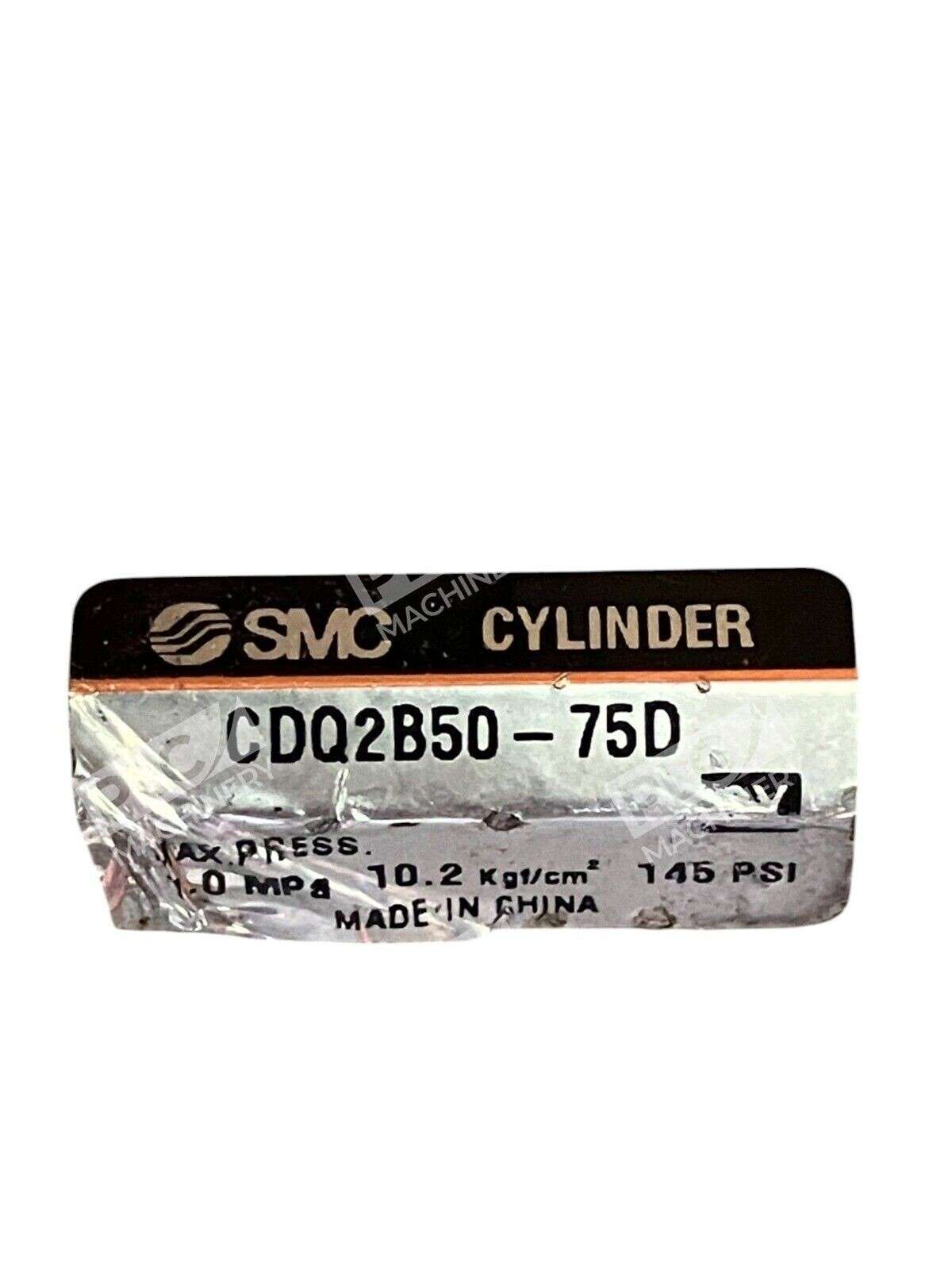

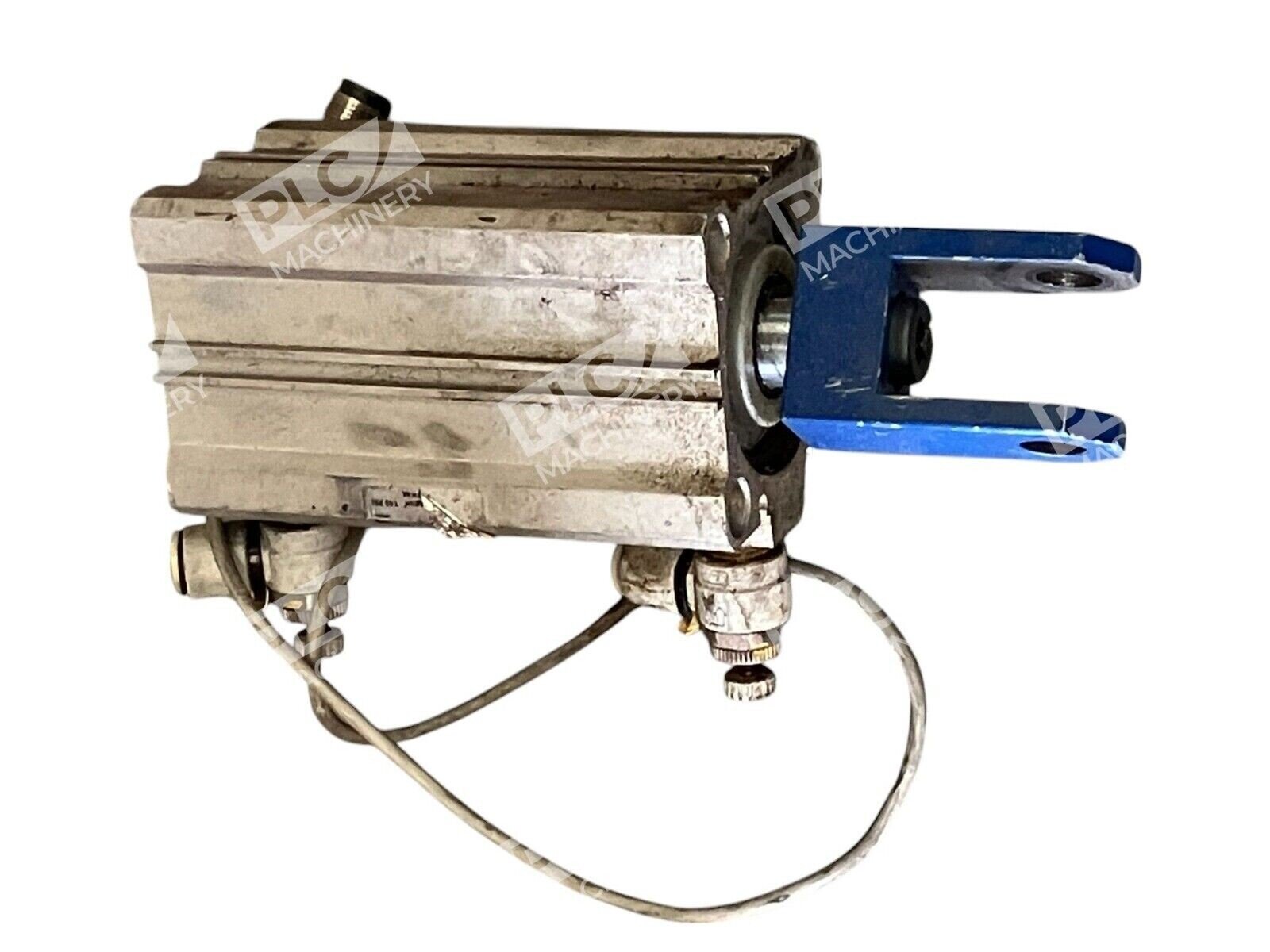

The SMC CDQ2B50-75D is a space-saving compact cylinder from SMC’s CQ2 series, engineered for dual-direction pneumatic actuation. With a 50mm bore and 75mm stroke, this double-acting cylinder delivers consistent force output in both extension and retraction. The CDQ2B variant supports through-hole mounting via optional bolts, making it suitable for tight integration in control systems where dimensional constraints are critical.
Key Features
- Double-Acting Design: Provides power in both directions for bidirectional motion control
- Compact Body: Space-efficient profile ideal for confined mounting spaces
- Single Rod Configuration: Standard piston rod design for straightforward piping and actuation
- Optional Through-Hole Mounting: Available with chromium molybdenum steel bolts (M3 x 35L) for secure, flush integration
- Versatile Port Design: Configured for standard M5 x 0.8 piping connections
Technical Specifications
- Bore Diameter: 50 mm (ø50)
- Stroke Length: 75 mm
- Acting Type: Double-Acting, Single Rod
- Port Thread Size: M5 x 0.8 (standard configuration)
- Rod End Termination: Male thread (standard)
- Mounting Style: Tapped head and clevis options; through-hole bolt mounting available
- Rod Material: Chrome plated for corrosion resistance
- Operating Pressure Range: Consult SMC datasheet for exact pressure ratings (typical CQ2 range up to 1 MPa)
Typical Applications
- Machine tool clamping and workholding systems
- Manufacturing automation and transfer lines
- Food processing and packaging machinery
- Inspection and testing equipment requiring position control
- Press operations and stamping fixtures
- Industrial robots and pick-and-place systems
Compatibility & Replacements
Compatible With
- Standard pneumatic supply systems (0.5–1.0 MPa typical)
- FESTO, Parker, and other major pneumatic component ecosystems
- Proportional and directional solenoid control valves
- Automated position sensing and auto switch integration
- Both SAE and ISO-ported industrial manifold systems
Replaces / Drop-In Replacement For
- Earlier CQ2 series 50mm bore cylinders with identical bore and stroke
- OEM pneumatic actuators in original equipment matching 50/75 bore/stroke specifications
- Verify exact mounting and porting requirements with your system integrator before ordering to ensure fit
Works With
- SMC solenoid valve libraries (directional control, flow control)
- ISO 4401 (CETOP) and SAE cavity standard manifolds
- Programmable logic controllers (PLCs) and motion control systems via pneumatic relay logic or electronic proportional control
- Auto switch signal conditioning and position feedback systems
- Standard industrial pneumatic tubing and fittings (M5 connections)
