Overview

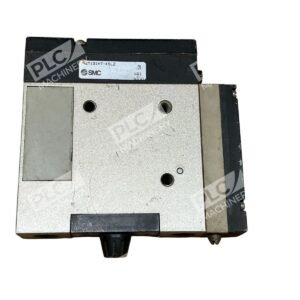

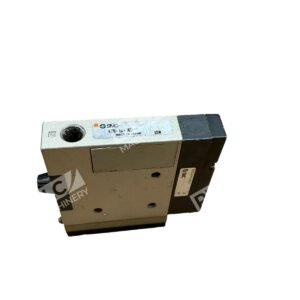

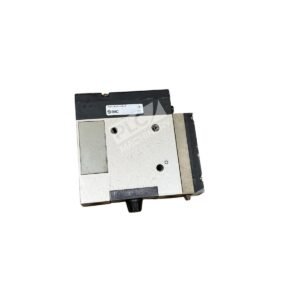

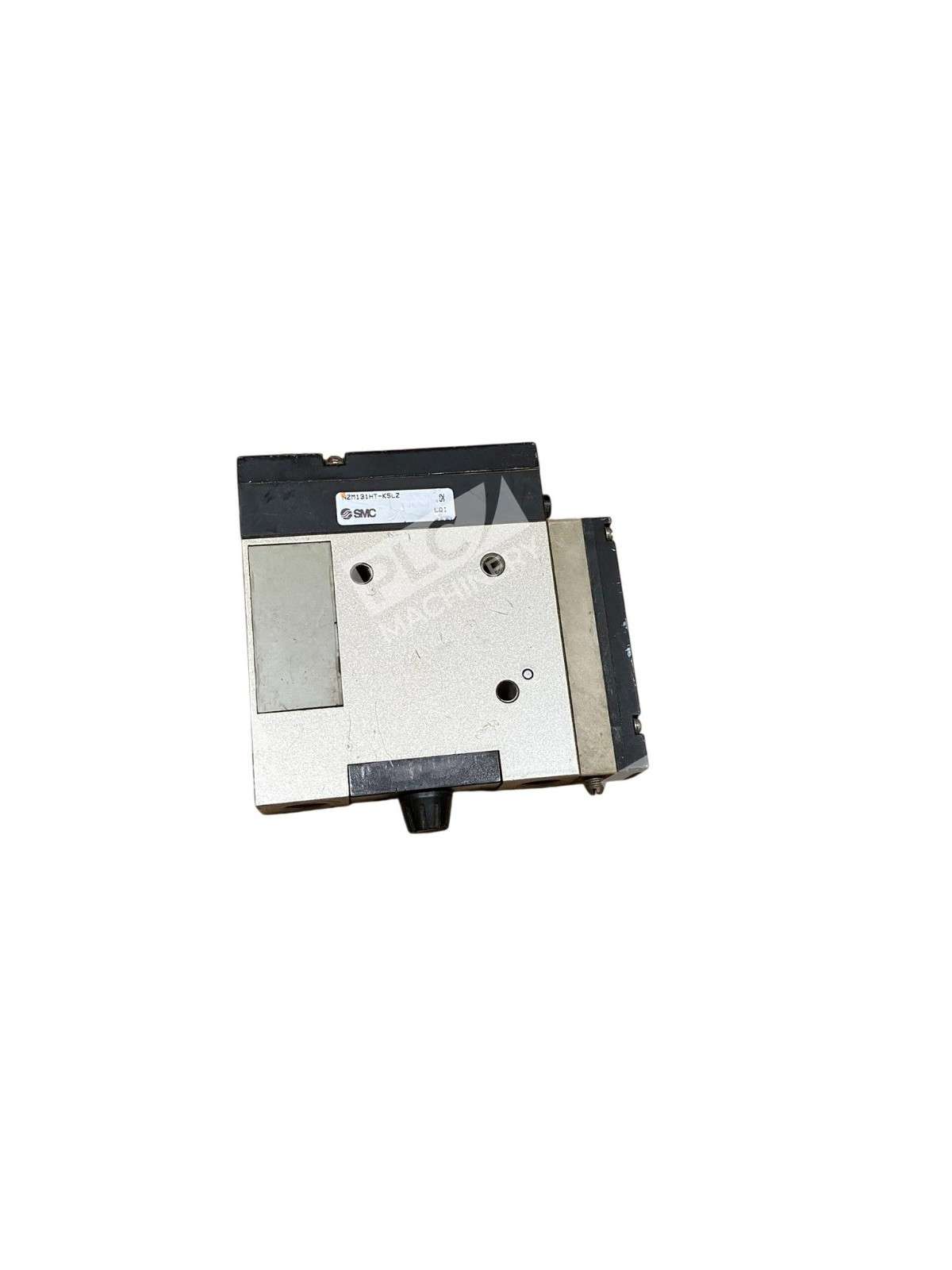

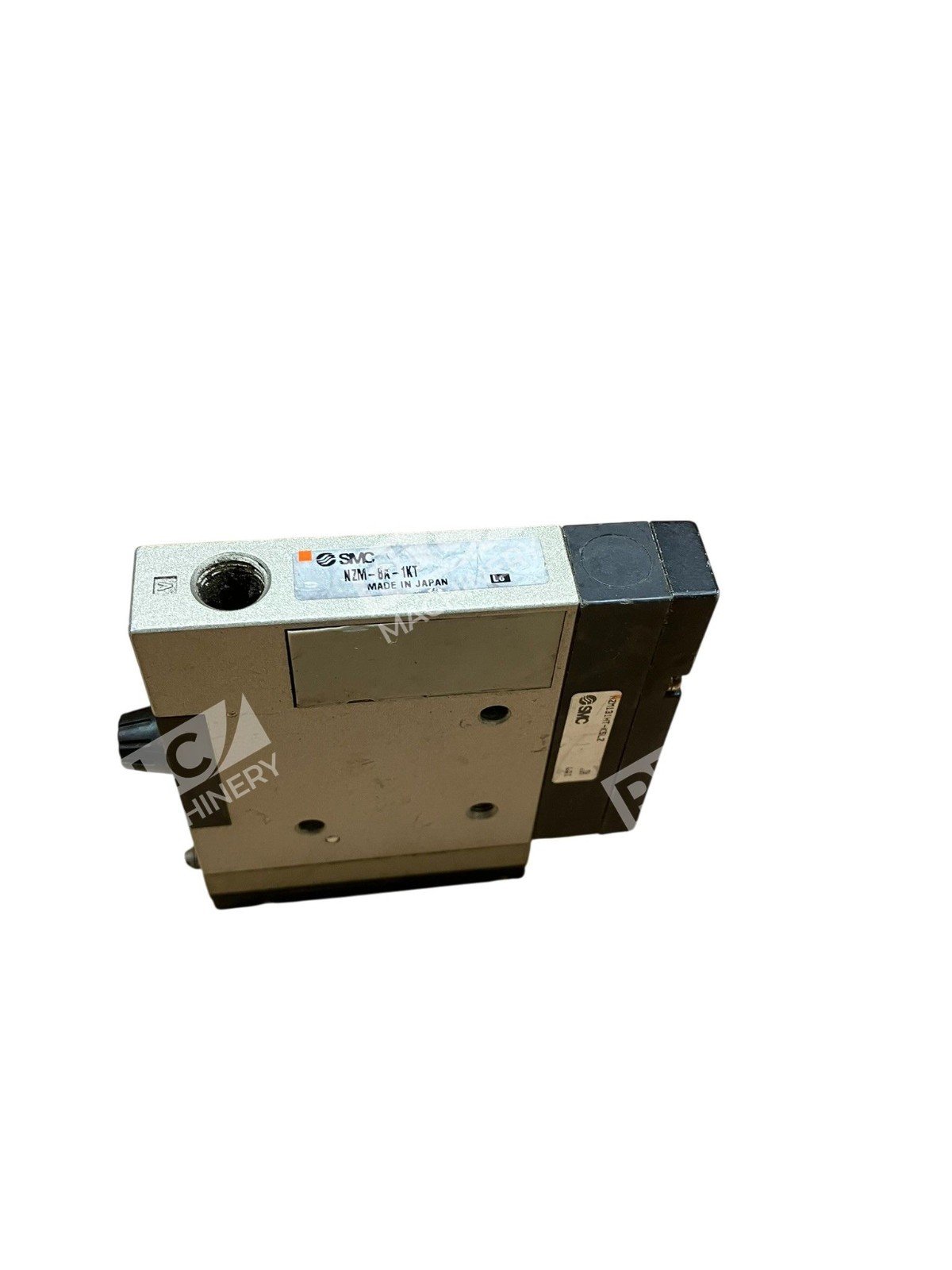

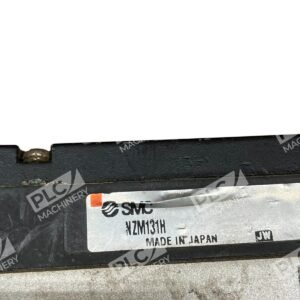

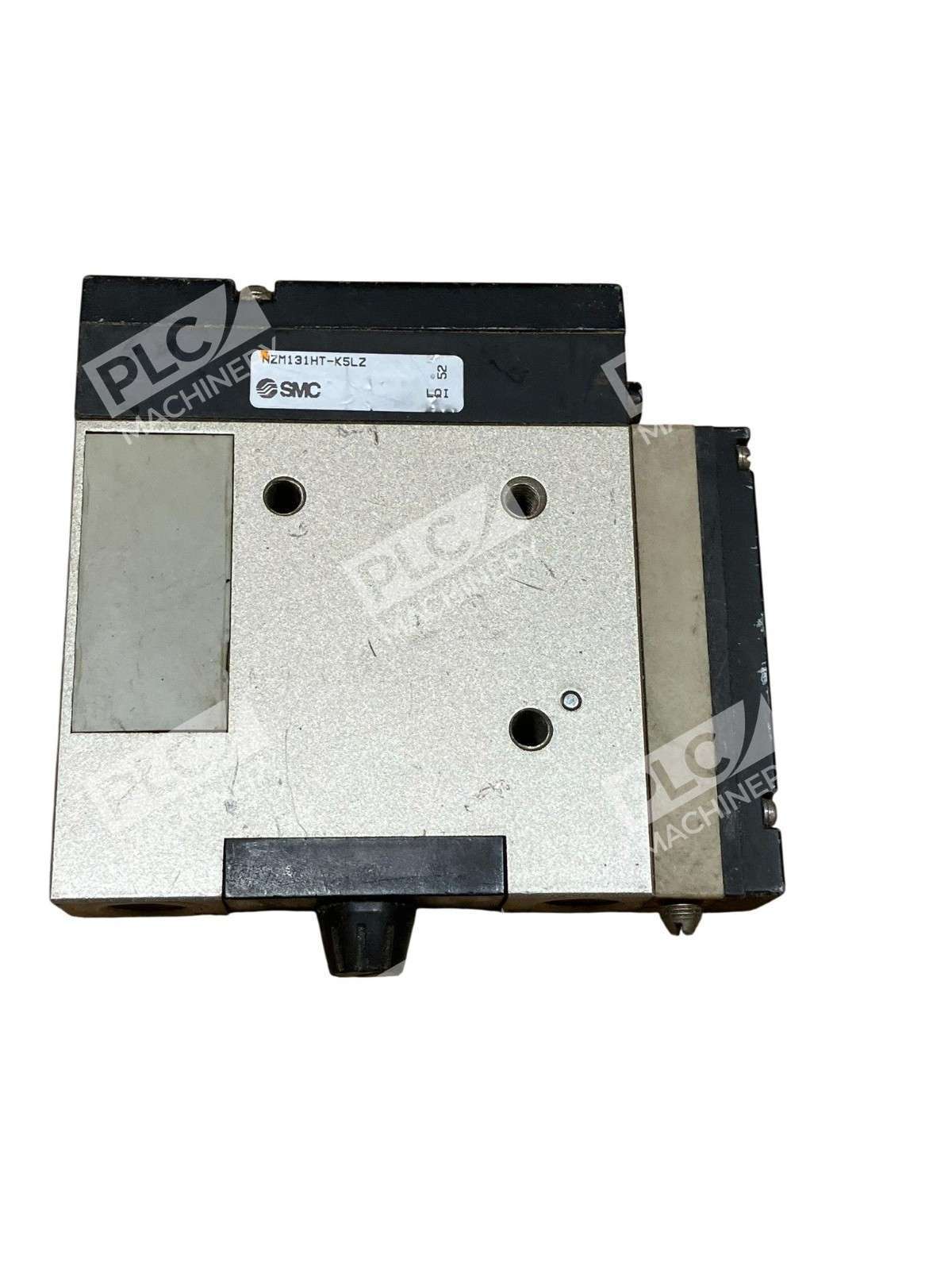

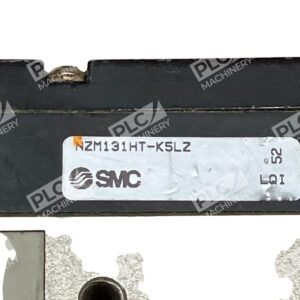

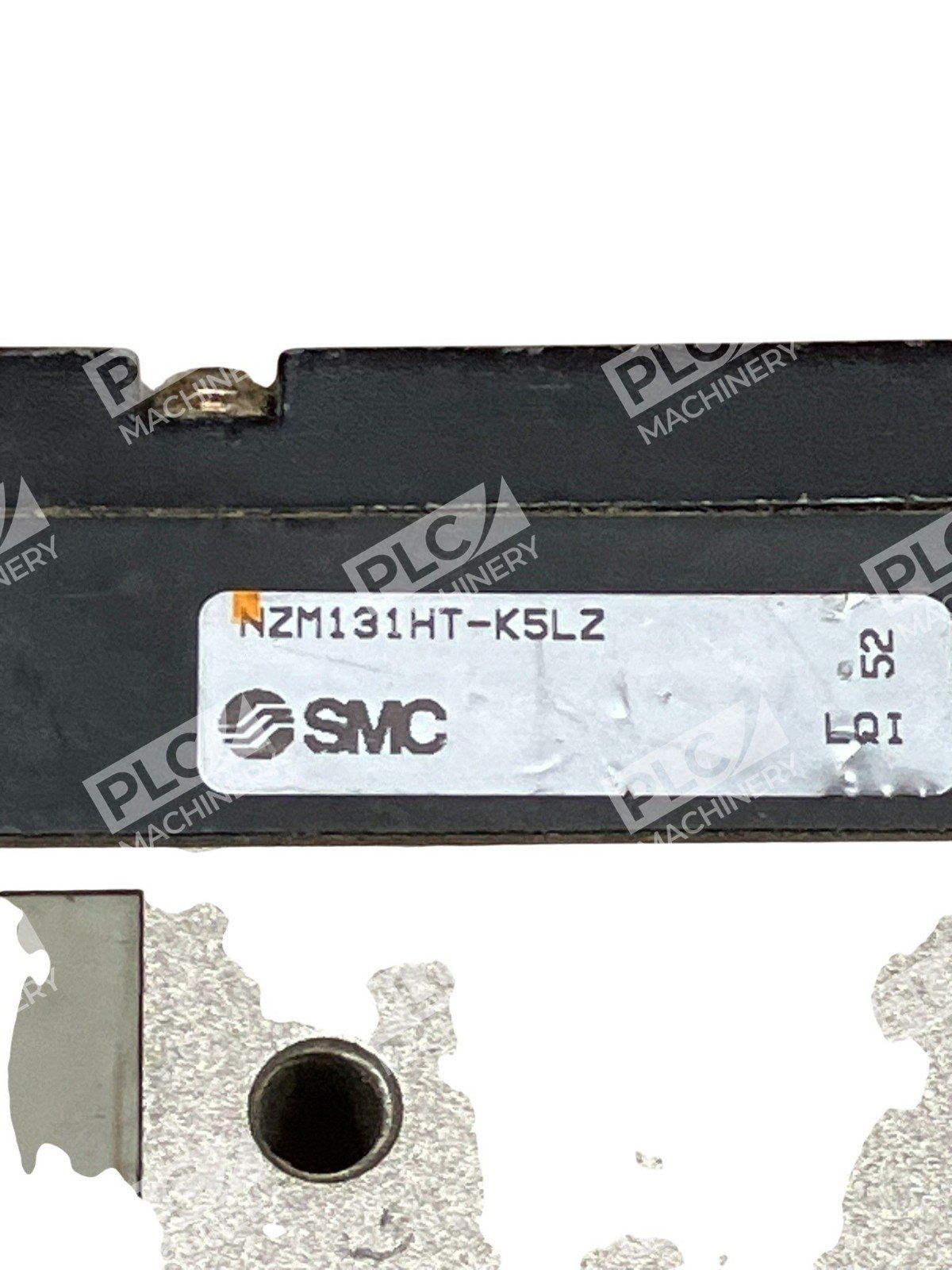

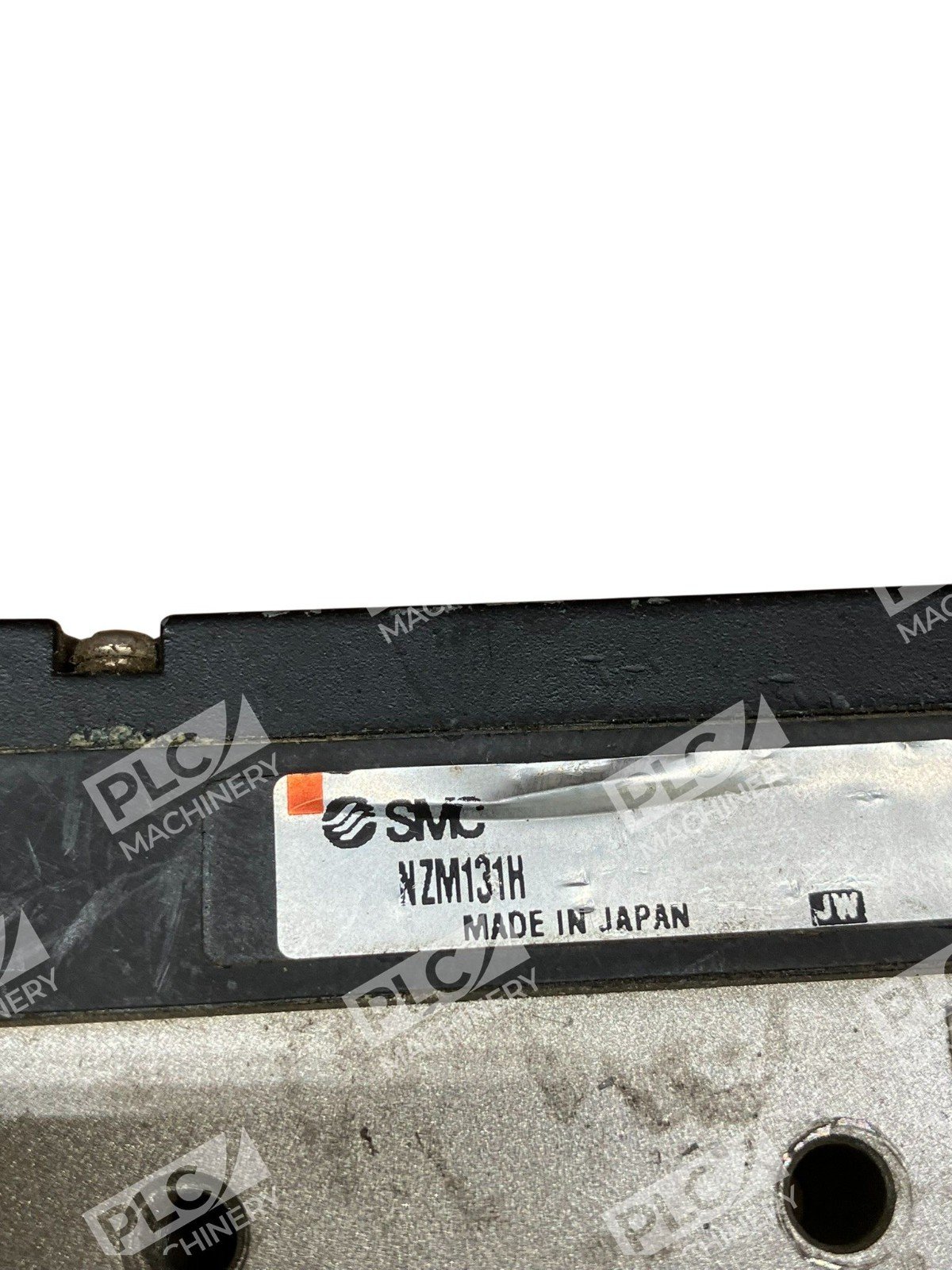

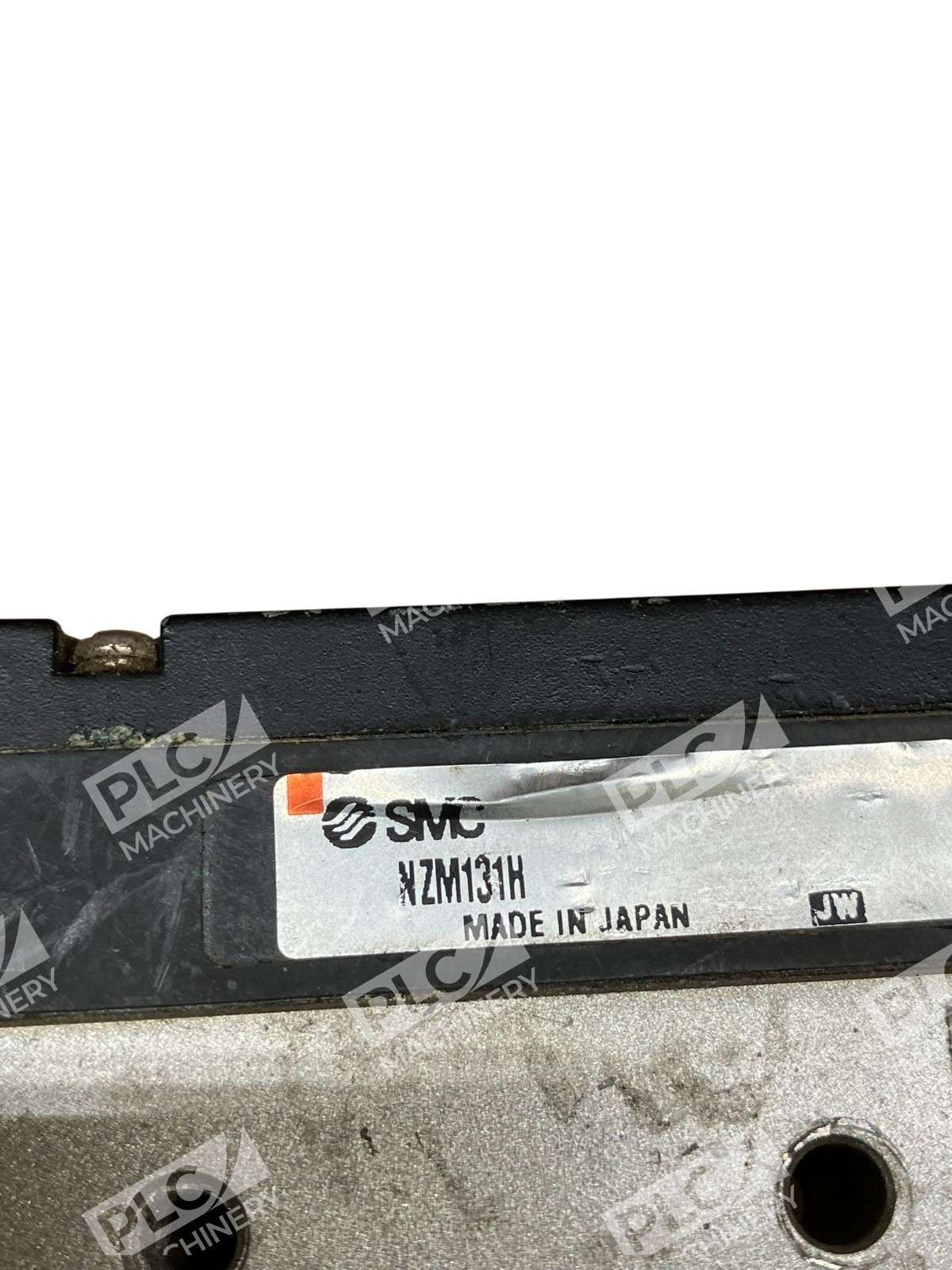

The SMC NZM131HT-K5LZ is a high-pressure vacuum generator designed for compact pneumatic applications requiring controlled vacuum generation. This single-stage vacuum ejector features a 1.3mm nozzle diameter and integrates supply and release valves with a 24VDC solenoid interface, making it ideal for pick-and-place, material handling, and automated assembly systems. The unit includes a standard silencer for noise reduction and arrives with integral electronics and surge suppression.
Key Features
- 1.3mm nozzle diameter for high vacuum performance in compact spaces
- Integrated 24VDC solenoid control with indicator light option
- Supply (normally closed) and release valve integrated into single manifold
- Standard silencer to reduce exhaust noise
- Low power consumption: 1W standard, 1.05W with indicator light
- L-type connector with 0.3m lead wire and surge suppression
- NPT threaded ports for quick system integration
Technical Specifications
- Supply Pressure Range: 35–72 PSI (0.24–0.50 MPa)
- Nozzle Diameter: 1.3mm
- Port Connections: 1/8″ NPT (Pressure, Vacuum, Exhaust)
- Control Voltage: 24VDC ±10%
- Power Consumption: 1W nominal (1.05W with light)
- Connector Type: L-type DIN plug with integral surge suppressor
- Lead Wire Length: 0.3m (approximately 1 foot)
- Silencer: Standard muffler exhaust silencer included
- Manifold Configuration: Single-unit with integrated supply (NC) and release valves
Typical Applications
- Pick-and-place automation systems for light components
- Material handling and part positioning in assembly lines
- Vacuum gripper control in robotic and CNC automation
- Pneumatic clamping and holding applications
- Laboratory and test equipment requiring controlled vacuum
Compatibility & Replacements
Compatible With
- Standard 24VDC control systems and PLCs
- Pneumatic systems operating at 35–72 PSI
- NPT-threaded vacuum lines and fittings
- Solenoid-controlled pneumatic manifolds
- Industrial automation platforms using 24VDC logic control
Replaces / Drop-In Replacement For
- ZM131HT-K5LZ (base model without NZM designation)
- Other SMC single-stage 1.3mm nozzle vacuum ejectors in the K5LZ series
- Verify exact compatibility with your system integrator before ordering for identical mounting and electrical specifications
Works With
- 24VDC programmable logic controllers (PLCs) and control relays
- Standard pneumatic circuit design software and CAD tools
- Industrial automation frameworks using discrete 24VDC signaling
- Vacuum pressure monitoring sensors (0–0.5 MPa range)
