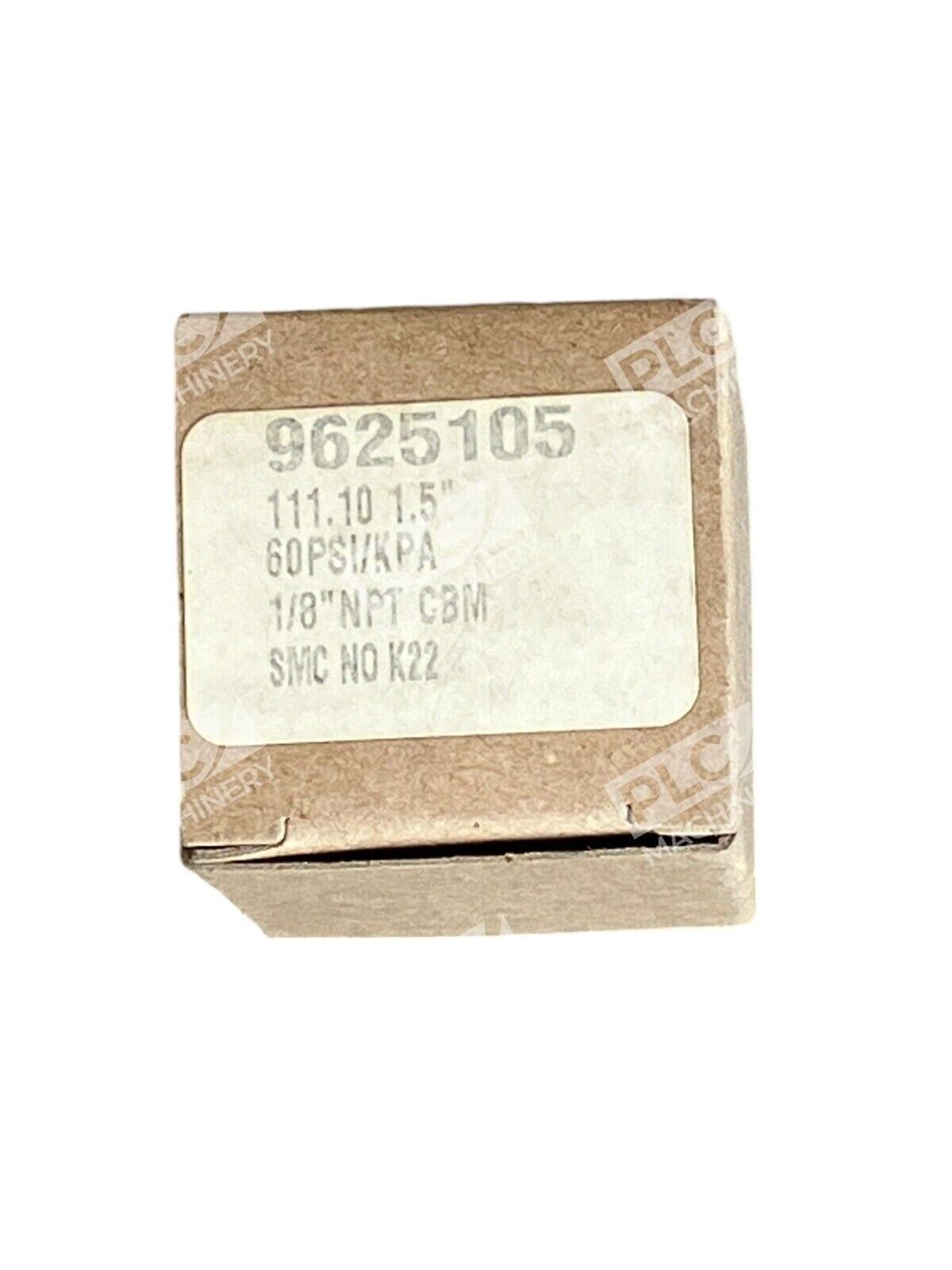

SMC Gauge 111.10 1.5″ 60PSI/KPA 1/8″ NPT CBM N0 K22 9625105

Overview

The SMC 9625105 is a standard pressure gauge engineered for pneumatic control systems, air compressors, and modular F.R.L. (filter/regulator/lubricator) assemblies. With a 1.5″ (40mm) ABS case and dual-scale dial (0–60 PSI / KPA), this gauge delivers reliable pressure monitoring with ±5% full-span indication accuracy. The 1/8″ NPT back-mount port makes it ideal for inline installation in air circuit headers and pressure regulators.

Key Features

• 1.5″ (40mm) ABS plastic case with brass internals
• Dual-scale dial: 0–60 PSI and KPA markings
• 1/8″ NPT back-mount connection
• ±5% F.S. (full span) indication accuracy
• Bourdon tube mechanism for reliable performance
• Operating temperature range: 23°C ±5°C (guaranteed)
• New in box condition; directly compatible with SMC modular systems

Technical Specifications

Typical Applications

• Pneumatic compressor outlet pressure monitoring
• Air regulator and filter manifold assemblies
• F.R.L. (filter/regulator/lubricator) unit integration
• Industrial automation and control circuits
• Machine tool air supply verification
• Pneumatic test equipment and pressure stations

Compatibility & Replacements

Compatible With

• SMC modular pneumatic components (regulators, filters, lubricators)
• Standard 1/8″ NPT pneumatic circuits
• General-purpose air compressor systems
• Industrial pneumatic manifolds and headers
• Laboratory and test pressure vessels

Replaces / Drop-In Replacement For

• Direct replacement for SMC gauge model 9625105 (exact match)
• Compatible with other SMC 1.5″ back-mount gauges in 0–60 PSI range
• Verify connection thread (1/8″ NPT) and mounting orientation before ordering alternative units

Works With

• SMC pneumatic controllers and regulators (G series, R series)
• Standard 1/8″ NPT threaded manifold ports
• Any 0–60 PSI pneumatic system operating within specified temperature range
• Manual and automatic air control systems
