Overview

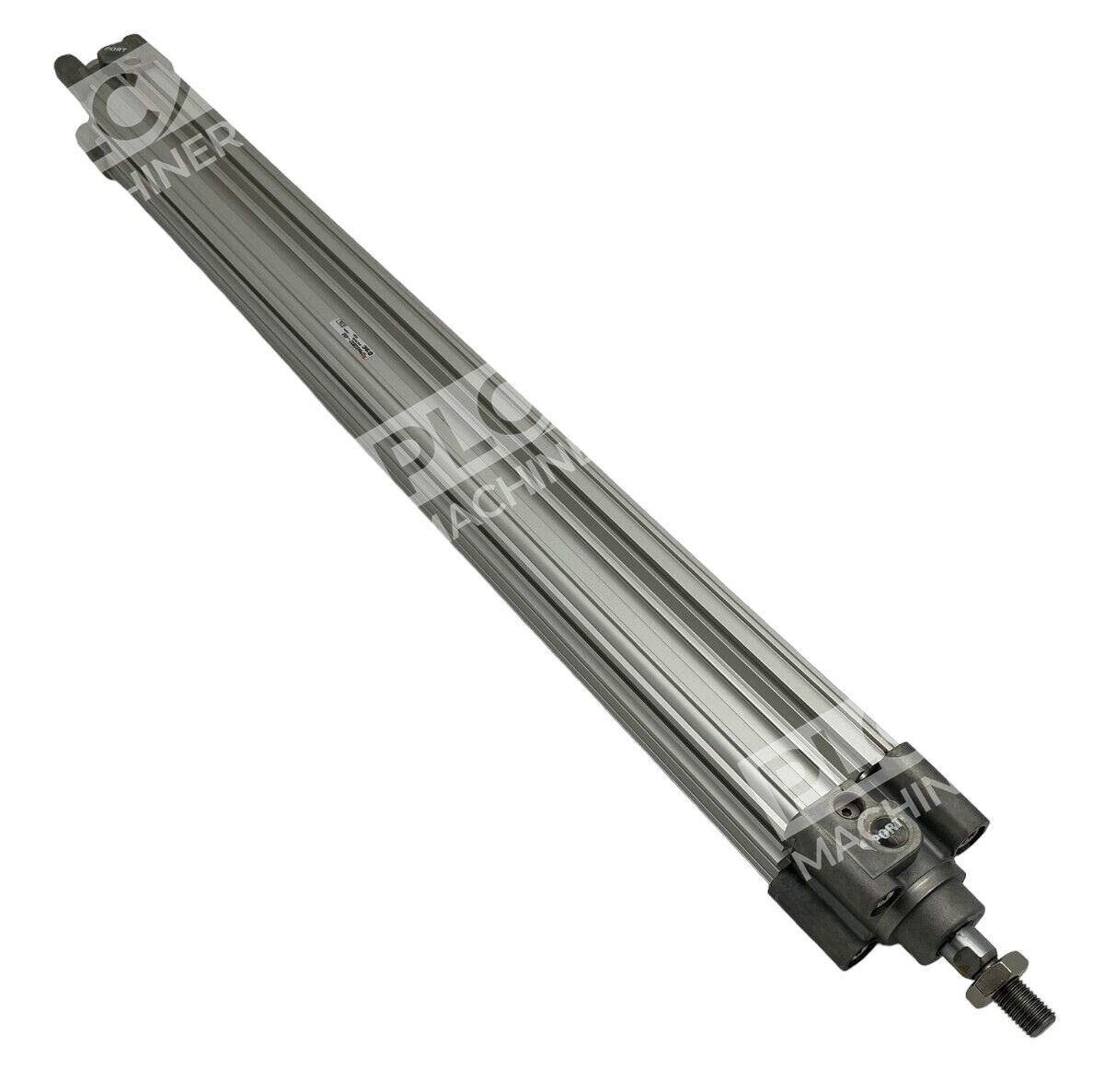

The SMC CP96SDB32-450 is a double-acting pneumatic tie rod cylinder in the CP96 series. Designed to ISO 15552 standards, this cylinder features enclosed tie rods and a compact profile design suitable for applications requiring precision positioning and rigidity. The 32mm bore with 450mm stroke configuration delivers reliable performance in industrial automation and fluid power systems.
Key Features
- Double-acting pneumatic cylinder with profile design
- 32mm bore diameter with 450mm stroke length
- Enclosed tie rod construction for corrosion resistance and durability
- High-accuracy covers and tie rod nuts for precise mounting
- End-of-stroke cushioning for smooth deceleration
- ISO 15552 standard compliance
- Available in new condition, ready for immediate deployment
Technical Specifications
- Series: CP96 (ISO Profile Tie Rod Cylinder)
- Bore Size: 32 mm
- Stroke: 450 mm
- Mounting Style: Basic tie rod mount
- Cushioning: End-of-stroke cushion (both ports)
- Operating Principle: Double-acting
- Design Standard: ISO 15552
- Rod Diameter: Precision-ground piston rod
- Weight: Approximately 1.06 kg
Typical Applications
The SMC CP96SDB32-450 is well-suited for:
- Mechanical clamping and holding applications
- Production line automation and material handling
- Drilling, punching, and pressing operations
- Assembly and packaging machinery
- Industrial process control systems
- Machinery requiring compact, rigid actuators
Compatibility & Replacements
Compatible With
- Standard pneumatic valve manifolds with SAE or ISO porting
- 0–10 bar operating pressure systems (typical)
- Industrial PLC and motion control systems
- Proportional and directional control valves
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The SMC CP96SDB32-450 may be replaced by newer CP96SDB32-450C variants with updated cushioning and bumper technology for reduced cycle time and noise.
Works With
- SMC pneumatic valve systems (directional, proportional, solenoid)
- Standard pneumatic hose and fittings (G 1/4, G 1/8 ports)
- Industrial air treatment equipment (filter, regulator, lubricator)
- ISO-compliant tie rod cylinder mounting hardware
