Overview

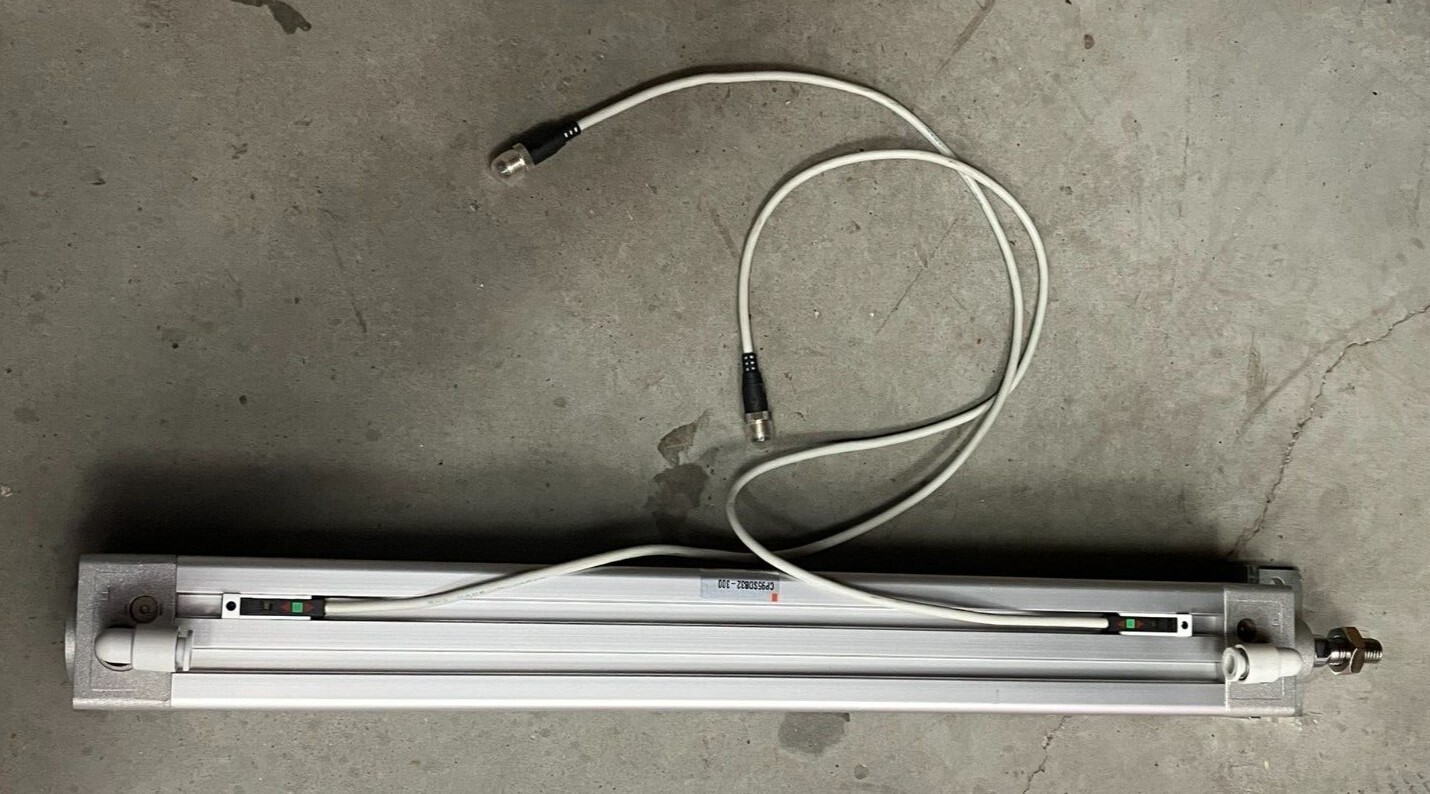

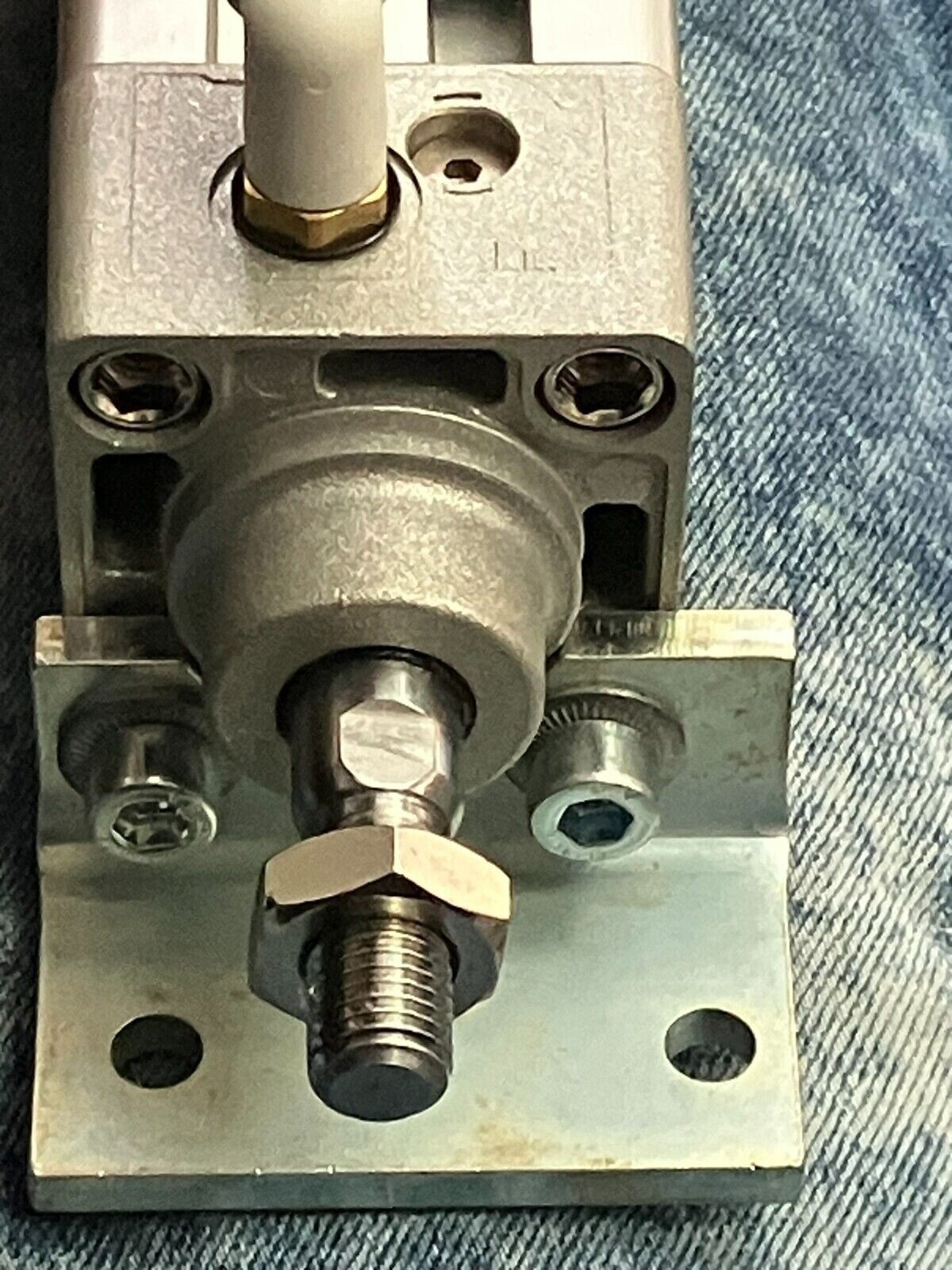

The SMC CP95SDB32-300 is a double-acting pneumatic profile cylinder designed for reliable actuation in industrial automation and machinery control applications. The 32mm bore and 300mm stroke configuration provides precise, repeatable linear motion for a wide range of positioning, clamping, and transfer tasks. This new, no-box surplus unit offers OEM-quality performance at competitive pricing.
Key Features
- Double-acting design allows both push and pull motion with compressed air
- Profile cylinder construction ensures compact footprint and lightweight operation
- 32mm bore diameter suitable for moderate to high-force automation tasks
- Extended 300mm stroke for longer-travel positioning applications
- Compact, rod-and-base configuration for versatile mounting orientations
- Aluminum construction provides excellent strength-to-weight ratio
Technical Specifications

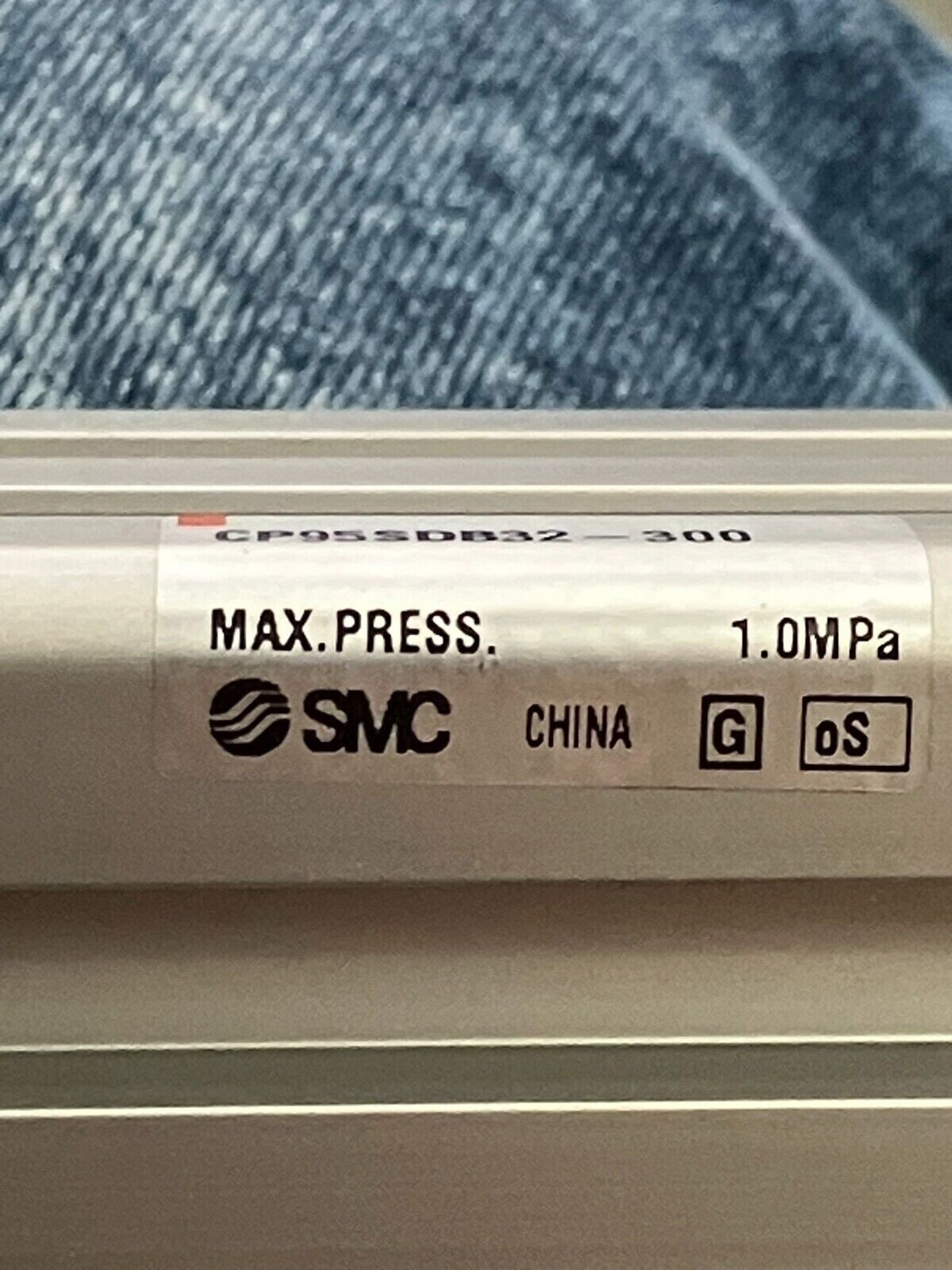

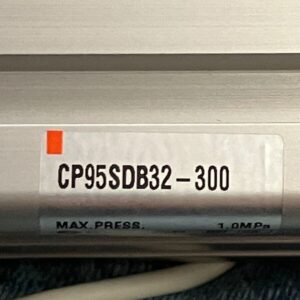

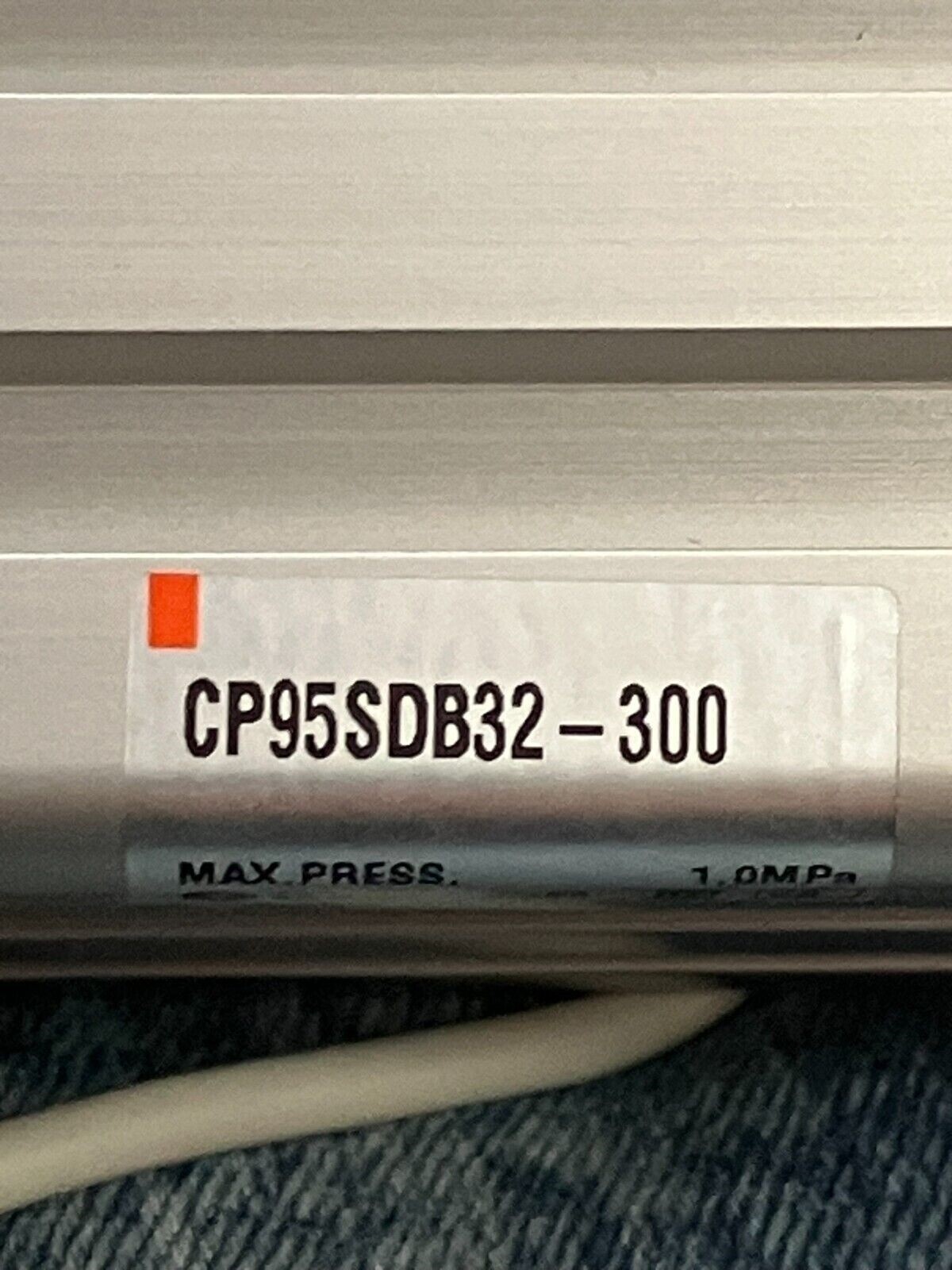

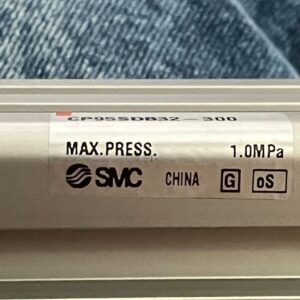

SMC CP95 series profile cylinders operate on standard compressed air systems. The CP95SDB32-300 delivers consistent force output across its full 300mm stroke range. Standard working pressure for SMC CP95 cylinders is 0.5 to 1.0 MPa (5 to 10 bar), with typical maximum service pressure rated at 1.0 MPa. Bore diameter is precisely machined at 32mm, and the double-rod-base design allows for simple port connections on both ends.
Typical Applications
- Assembly line positioning and material transfer
- Part clamping and workholding in CNC and press operations
- Ejection and stripper applications in molding machines
- Conveyor diverting and sorting systems
- Industrial fixture actuation and automation
- Pneumatic press and stamping operations
Compatibility & Replacements
Compatible With
- Standard compressed air systems (ISO 1219-1 pneumatic circuits)
- Industrial automation platforms and PLC control systems
- Pneumatic solenoid valves (5/3, 4/3, 4/2 directional control valves)
- Flow control regulators and exhaust silencers
- SMC standard mounting brackets and accessories
Replaces / Drop-In Replacement For
The CP95SDB32-300 is a direct replacement for equivalent CP95 series profile cylinders with 32mm bore and 300mm stroke designation. Verify compatibility with your system integrator before ordering for specific mounting orientation and port configuration requirements.
Works With
- ISO 4401 (CETOP) and ISO 1219-1 pneumatic standard circuits
- SMC solenoid valve series (SY series, SV series)
- Industrial PLC and automation controllers with pneumatic interfaces
- Proportional and directional control valve systems
- Standard industrial air preparation units (regulators, filters, lubricators)
