Overview

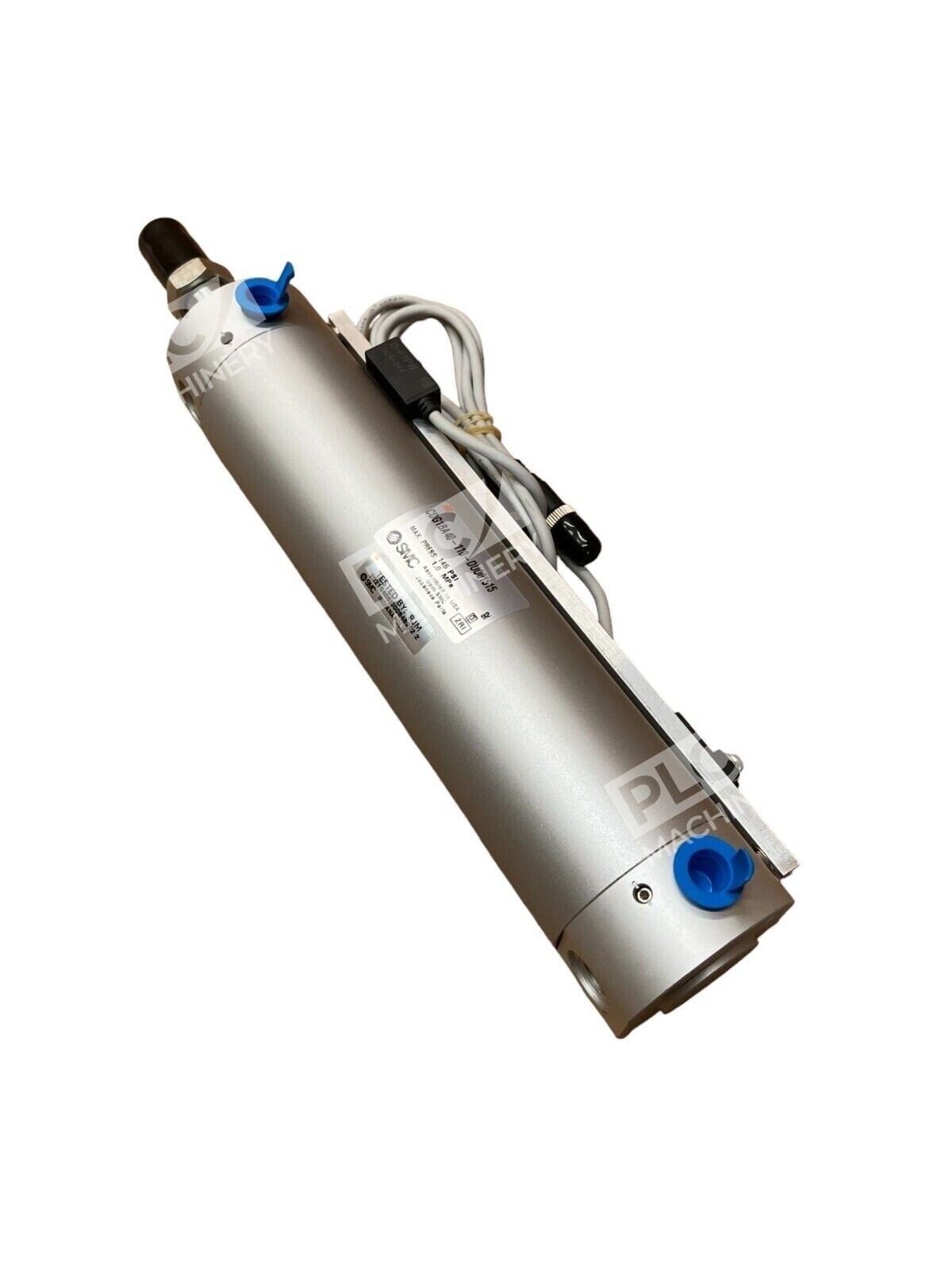

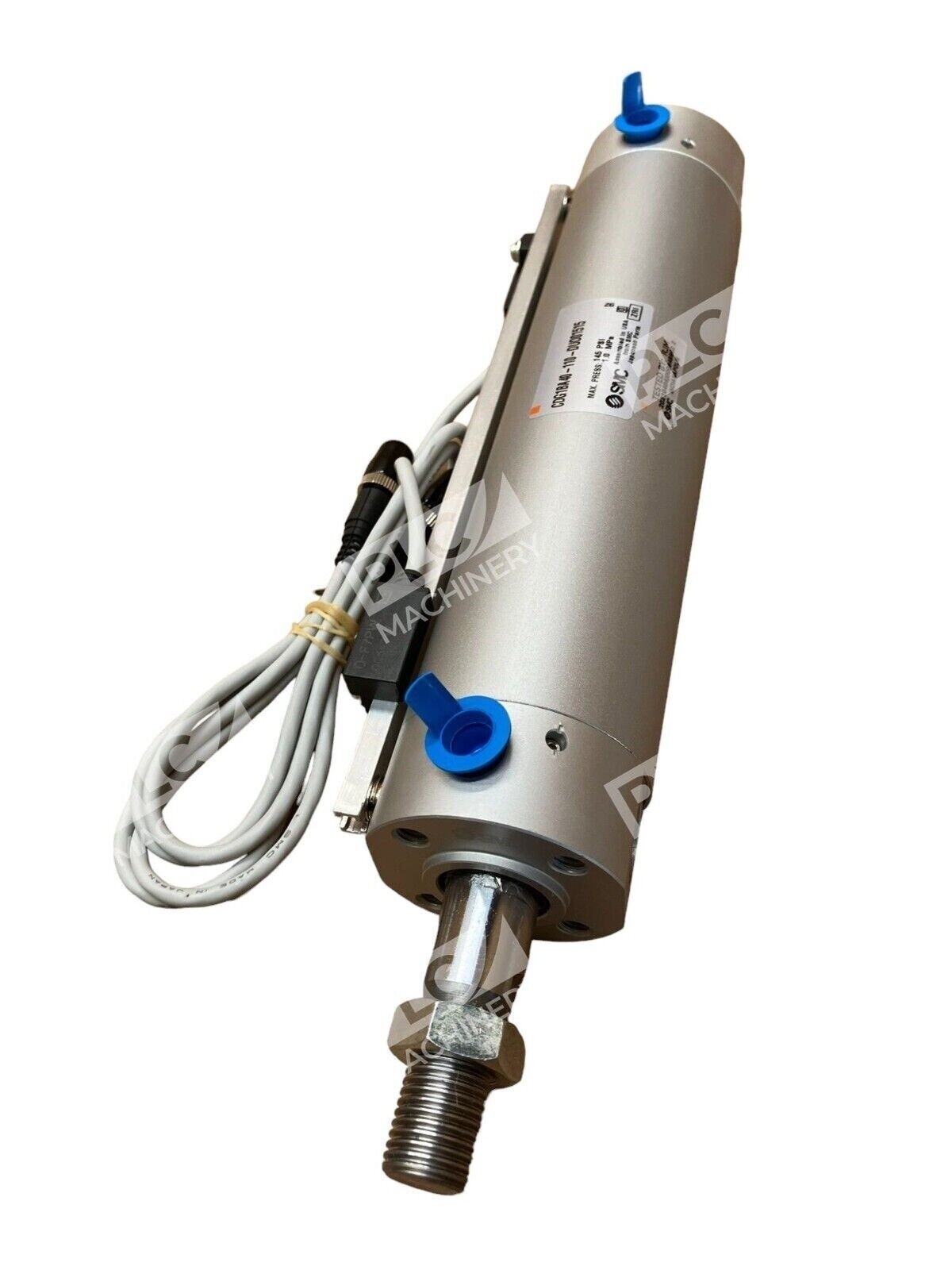

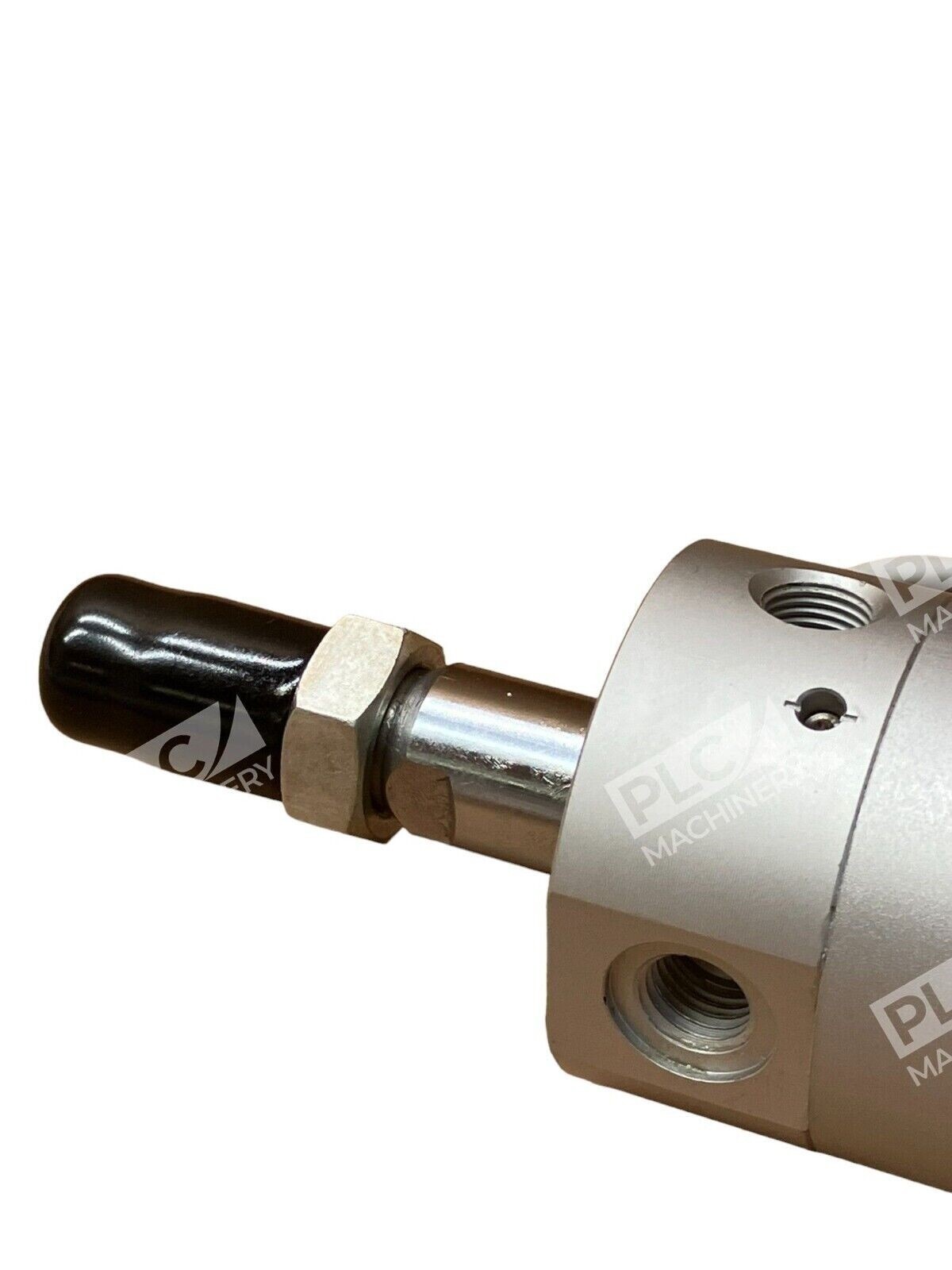

The SMC CDG1BA40-110-DUO01515 is a compact guide cylinder engineered for industrial pneumatic applications requiring precision and reliability. This double-acting, single-rod cylinder delivers smooth motion with integrated magnetic piston and air cushion for controlled extension and retraction. The 40mm bore and 110mm stroke configuration suits a wide range of automation, assembly, and material handling systems.
Key Features
- Double-acting design with single rod for unidirectional loads
- 40mm bore with 110mm stroke length
- Integrated air cushion for shock-free operation at end of stroke
- Built-in magnet compatible with proximity switches
- Auto-switch positioning capability for position feedback
- Compact footprint ideal for space-constrained installations
Technical Specifications
- Bore Diameter: 40mm
- Stroke Length: 110mm
- Rod Type: Single rod, standard
- Action Type: Double-acting
- Cushioning: Air cushion (both ends)
- Built-in Features: Magnet for proximity detection
- Auto-Switch: Integrated positioning capability
- Series: CG1 (Compact Guide Cylinder)

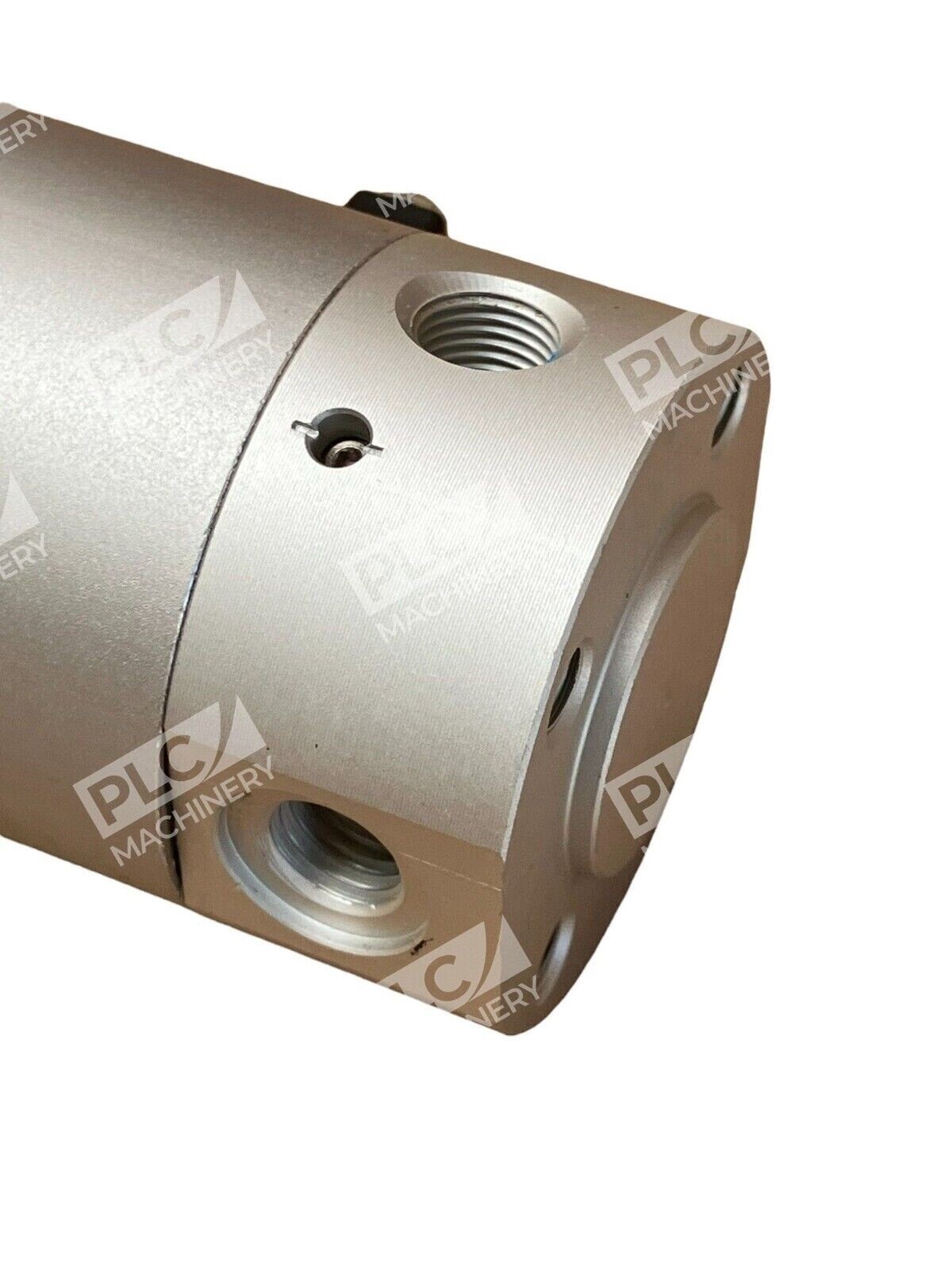

- Port Type: Rc or NPT (verify with your configuration)
- Operating Principle: Pneumatic (compressed air)
Typical Applications
The SMC CDG1BA40-110-DUO01515 is well-suited for:
- Automated assembly and packaging systems
- Pick-and-place and material transfer equipment
- Linear motion in confined spaces
- Clamping and workholding fixtures
- Precision positioning in manufacturing automation
- Equipment retrofits and upgrades in existing pneumatic systems
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems using compressed air
- PLC and automation controllers with solenoid valve interface
- Proximity switch sensors for position feedback
- Manifold mounting systems for compact integration
- ISO/CETOP-compliant valve stations
Replaces / Drop-In Replacement For
The SMC CDG1BA40-110-DUO01515 shares common mechanical and pneumatic interfaces with other SMC CG1 series cylinders featuring 40mm bore and 110mm stroke. Verify exact compatibility with your system integrator before ordering, as specific port configurations and mounting variations may differ. Alternative SMC models in the same performance class include other CDG1BA40 variants with different stroke lengths.
Works With
- SMC solenoid valve systems and pneumatic control modules
- Industrial proximity switches (inductive, capacitive, magnetic)
- Pneumatic hoses and fittings (Rc or NPT threads)
- Air prep units (filter, regulator, lubricator)
- Exhaust silencers and flow controls
