Overview

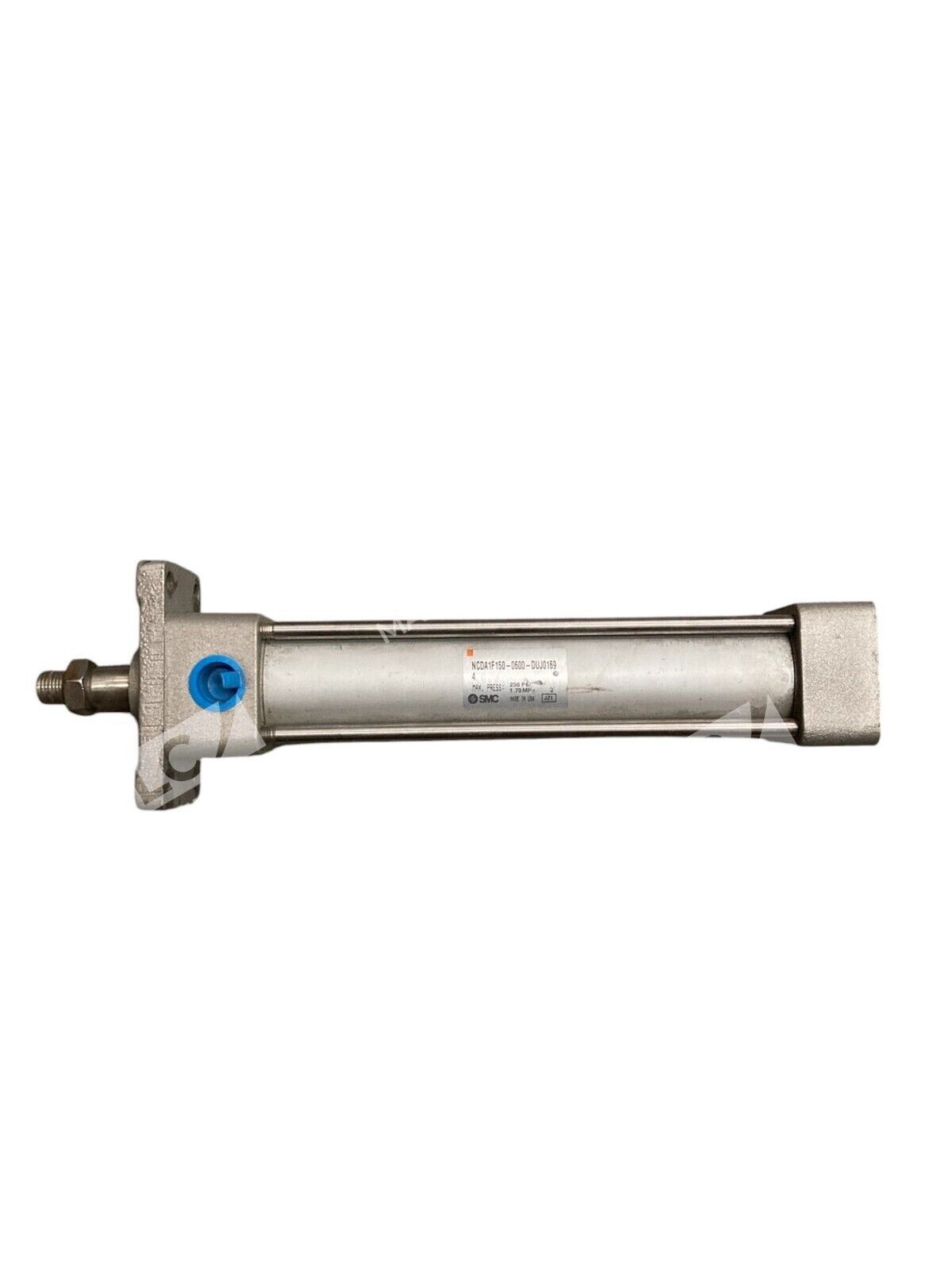

The SMC NCDA1F150-0600-DUJ01694 is a used, medium-duty NFPA-interchangeable tie-rod pneumatic cylinder rated for a maximum operating pressure of 250 psi (1.70 MPa). This double-acting pneumatic actuator features a 1.5-inch bore and 6-inch stroke, offering proven performance for linear motion and force applications across manufacturing, automation, and industrial control systems. The NCDA series combines reliability with compact dimensions, making it suitable for both OEM and aftermarket replacement roles.
Key Features
- Double-acting tie-rod design with NFPA dimensional interchangeability
- Built-in piston rod magnet for autoswitch (proximity sensor) capability
- Head and rod end cushioning for smooth deceleration
- Front flange mount (MF) configuration for panel and manifold integration
- NBR seals rated for standard industrial pneumatic service
- Piston speed range: 50–500 mm/s (2–20 in/s)
Technical Specifications
The following specifications are based on SMC’s NCDA/NCA1 series standard engineering data:
- Bore Diameter: 1.5 inches (38 mm)
- Stroke Length: 6 inches (152 mm)

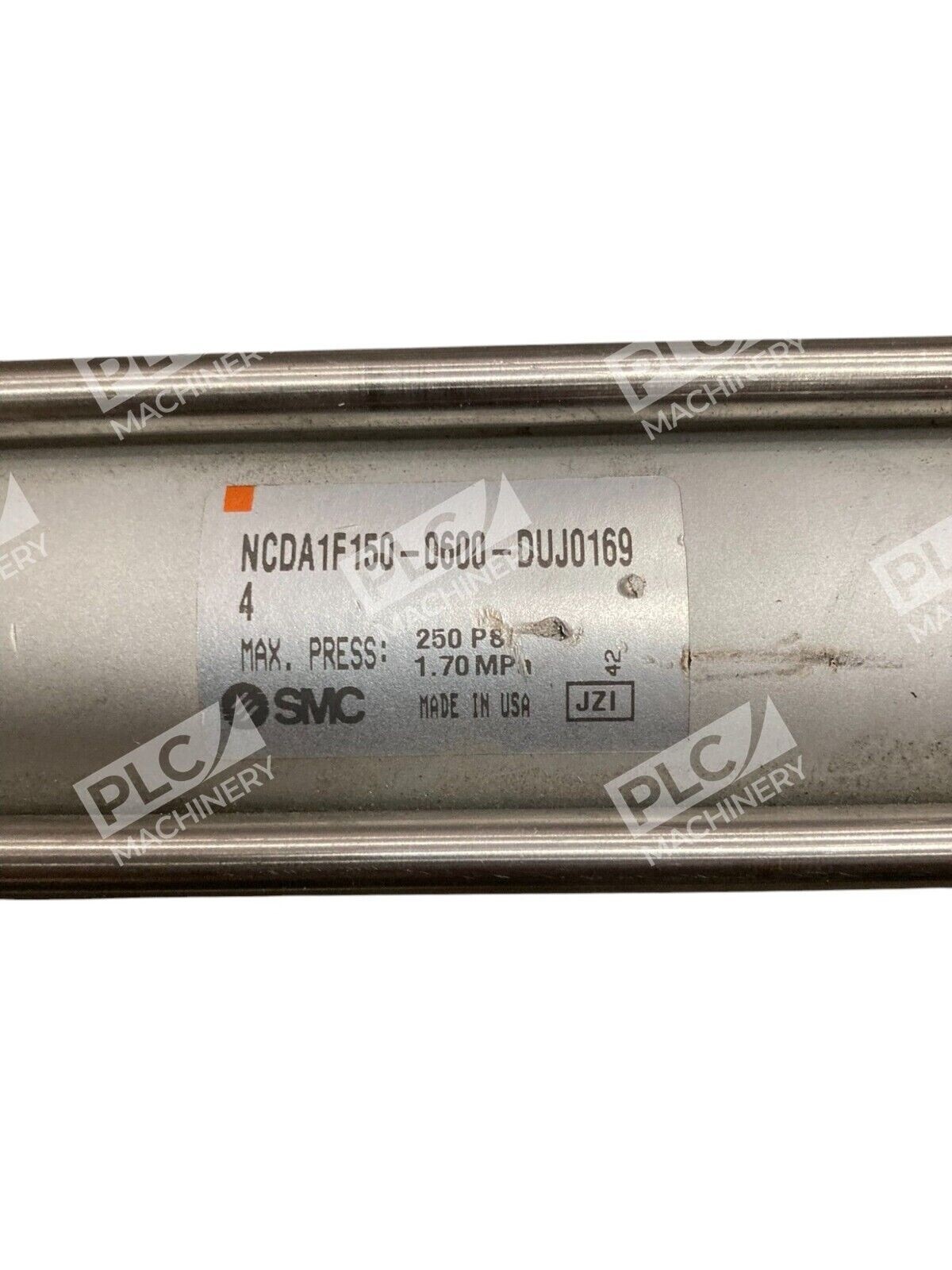

- Maximum Operating Pressure: 250 psi (1.70 MPa)
- Minimum Operating Pressure: 7 psi (0.05 MPa)
- Mounting Type: Front Flange Mount (MF2)
- Port Type: NPTF threaded, 3/8 inch
- Seal Material: NBR (Nitrile)
- Piston Rod Material: Hard chrome-plated steel
- Cylinder Body Material: Aluminum alloy
- Action: Double-acting, single rod
- Magnet: Built-in for autoswitch compatibility
- Series: NCA1 (Medium-duty NFPA)
- Condition: Used, fully functional
Typical Applications
NFPA-standard pneumatic cylinders like the NCDA1F150-0600-DUJ01694 are used across diverse industrial sectors:
- Packaging and labeling machinery
- Assembly line automation and material handling
- Press and stamping operations
- Clamping and holding fixtures
- Blow-off and air-shuttle applications
- Production tooling and test fixtures
- Conveyor gate and diverter control
- Factory automation and OEM equipment replacement
Compatibility & Replacements
Compatible With
- SMC pneumatic valve manifolds with 3/8″ NPTF porting
- Standard industrial compressed air systems (7–250 psi operating range)
- Allen-Bradley, Siemens, and general industrial PLC/automation controllers via solenoid valves
- Proximity sensors and autoswitches with magnetic piston rod detection
- NFPA-standard flange-mount actuator interfaces
Replaces / Drop-In Replacement For
- SMC NCDA1F150-0600 (base model without option codes)
- Other NFPA 1.5-inch bore, 6-inch stroke tie-rod cylinders with equivalent pressure ratings
- Note: Verify bore, stroke, port size, and flange orientation with your system documentation before installation. The suffix “-DUJ01694” represents specific options; confirm exact compatibility with your application.
Works With
- ISO 4400 and NFPA standard pneumatic circuit design
- Directional control valves (4/3, 4/2 solenoid types)
- Flow control and speed regulators
- Pneumatic logic and proportional valve systems
- Inductive and capacitive proximity sensors for position feedback
- Standard pneumatic tubing and fittings (inch and metric adapters available)
