Overview

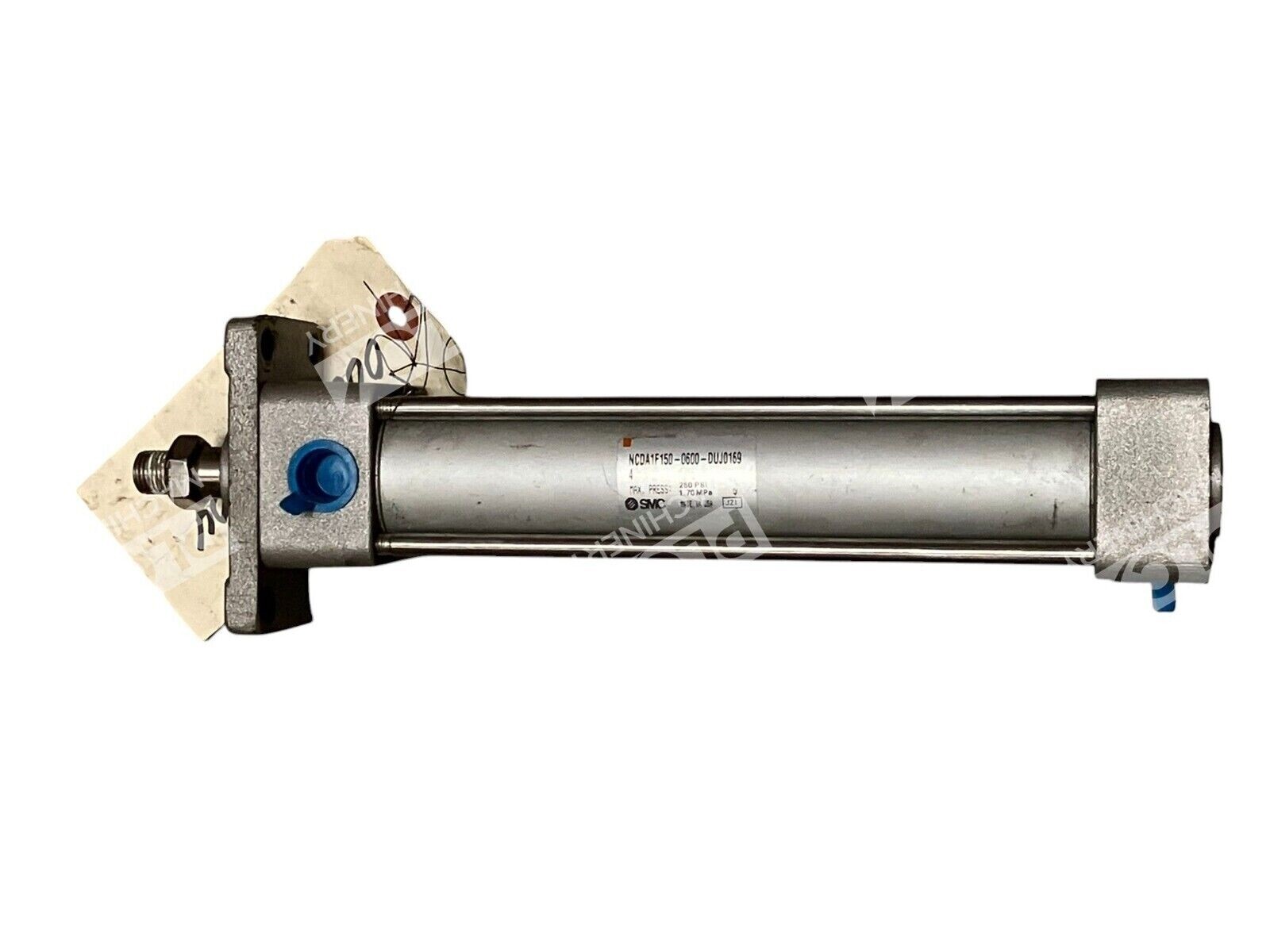

The SMC NCDA1F150-0600-DUJ0169 is a double-acting tie-rod pneumatic cylinder from SMC’s NCA1 NFPA-interchangeable series. With a 1.5-inch bore and 6-inch stroke, this medium-duty actuator delivers reliable linear motion for industrial pneumatic control systems. The NFPA-standard design ensures drop-in compatibility with existing mounting standards, making it a practical replacement or upgrade option for manufacturing, automation, and material handling applications.
Key Features
- Double-acting design with single rod for push/pull operation in both directions
- NFPA-interchangeable tie-rod construction for seamless system integration
- Medium-duty performance suitable for standard industrial pneumatic applications
- Compact 1.5-inch bore and 6-inch stroke configuration
- Built-in piston rod sensor (autoswitch) capability for position feedback
- NBR gaskets and seals for reliable operation across varied environments
Technical Specifications
Bore diameter: 1.5 inches | Stroke length: 6 inches | Mounting type: Front flange (MF2) | Port size: NPTF 3/8″ (threaded) | Piston speed range: 50–500 mm/s | Rod end configuration: Male thread | Seal material: NBR (Nitrile) | Series: NCA1 (NFPA medium-duty)
Typical Applications
- Packaging and product assembly systems
- Material handling and transfer automation
- Press and clamping fixtures
- Automated gate and door actuators
- Conveyor line control and sorting applications
Compatibility & Replacements
Compatible With
- SMC pneumatic control valves (directional, proportional, and standard solenoid types)
- Standard NFPA pneumatic mounting systems and standard air hose fittings
- Industrial pneumatic systems using 3/8″ NPTF port connections
- Pressure ranges up to 145 PSI for standard NCA1 series operation
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Other 1.5-inch bore, 6-inch stroke NFPA tie-rod cylinders with identical mounting may share compatible replacement role; consult manufacturer documentation for exact interchangeability with legacy or competing brands.
Works With
- SMC pneumatic solenoid valve manifolds
- Allen-Bradley and Siemens PLC systems via pneumatic control circuits
- Standard 12V and 24V DC solenoid directional control valves
- NFPA-standard front flange mounting systems
- SMC autoswitch sensor accessories for position feedback integration
